Ermenrich NetGeeks NU10 Optical Multimeter

35,99 €

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

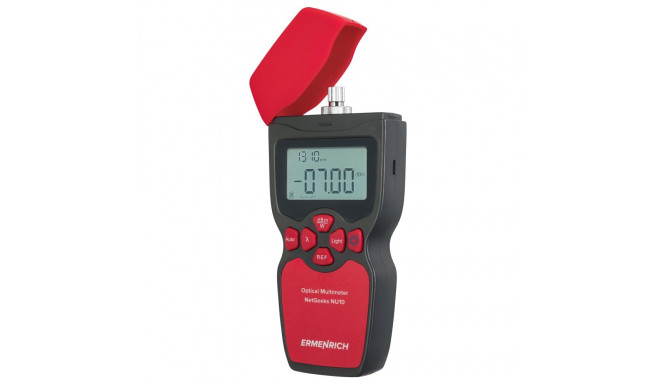

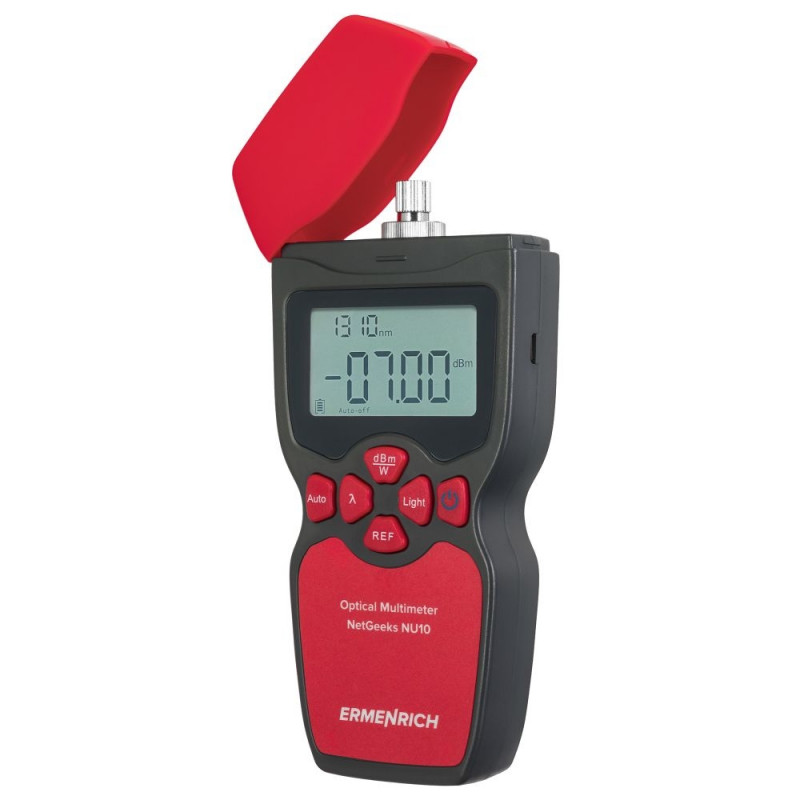

The Ermenrich NetGeeks NU10 optical multimeter is a compact device for testing fiber-optic communication lines. You can measure the absolute optical power or relative loss of optical power between two points in the fiber optic cable. The device is useful to those who install and maintain cable networks or inspect and certify telecommunications equipment.

The multimeter supports six wavelengths: You can select the desired one with a push of a button. The FC/SC/ST interfaces are used for connection. There is an option to set the reference level for the current wavelength, which makes it easier to determine the power loss. The measurements are displayed on the built-in backlit screen. The device runs on batteries. The auto-off function helps save the power.

Key features:

  • Absolute and relative optical power measurements
  • FC/SC/ST connectors, supports 6 wavelengths
  • Option to set the reference level
  • Powered by batteries; auto-off function
  • Portable design and simple operation

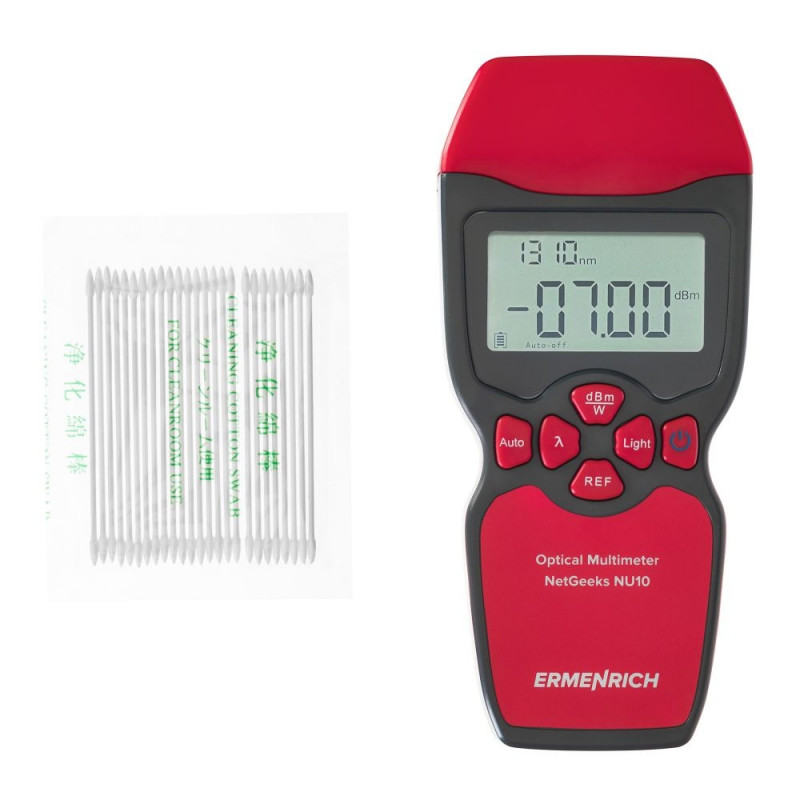

The kit includes:

  • Transmitter

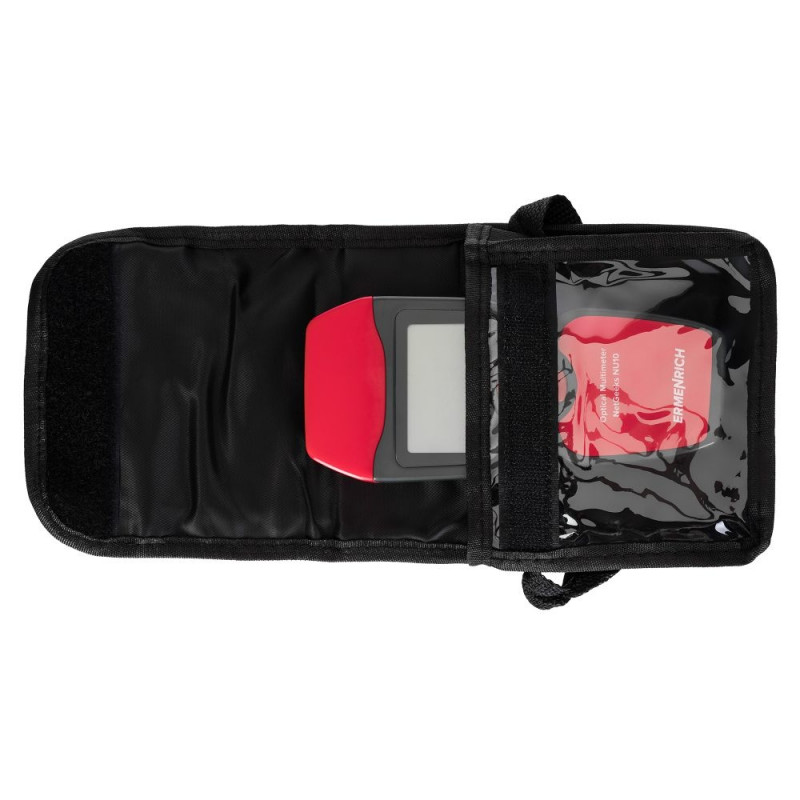

  • Pouch
  • Cotton swabs
  • User manual and warranty card
Brand Ermenrich
Warranty, years 5
EAN 5905555017006
Package size (LxWxH), cm 6x19x15.5
Shipping Weight, kg 0.35

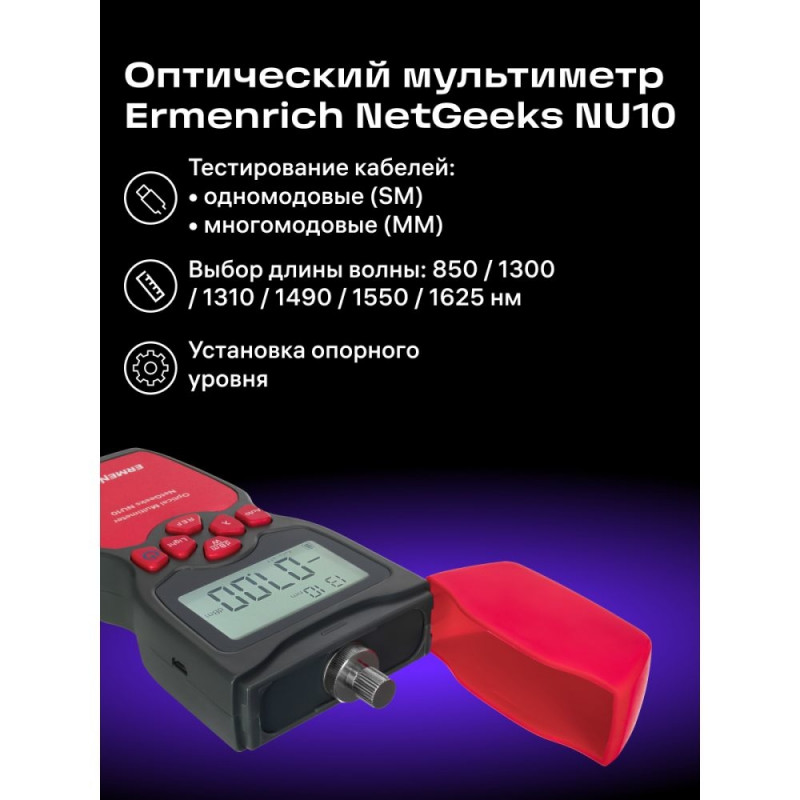

Optical power meter wavelength, nm 850/1300/1310/1490/1550/1625

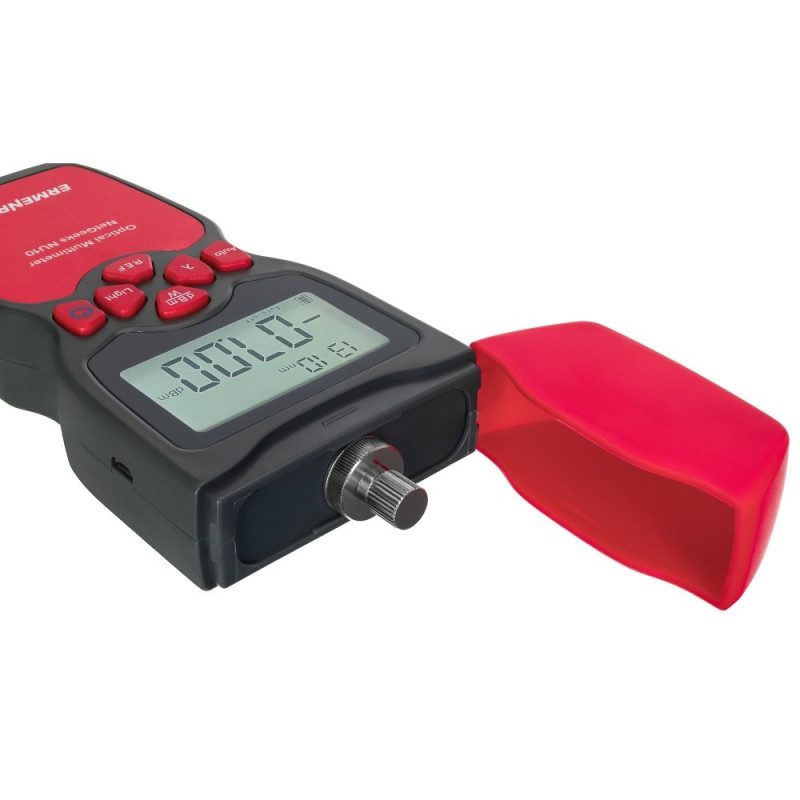

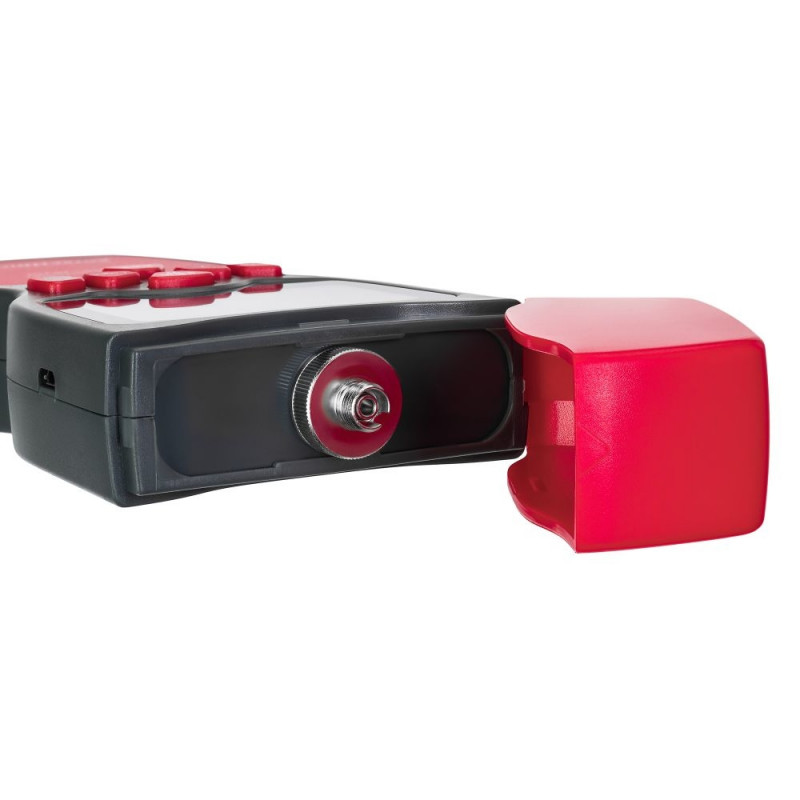

Fiber connector type FC, SC, ST
Maintained cable type single-mode (SM), multimode (MM)
Units of measurement dB, dBm, W
Power detection range, dBm -50 — 26
Option to set the reference level yes

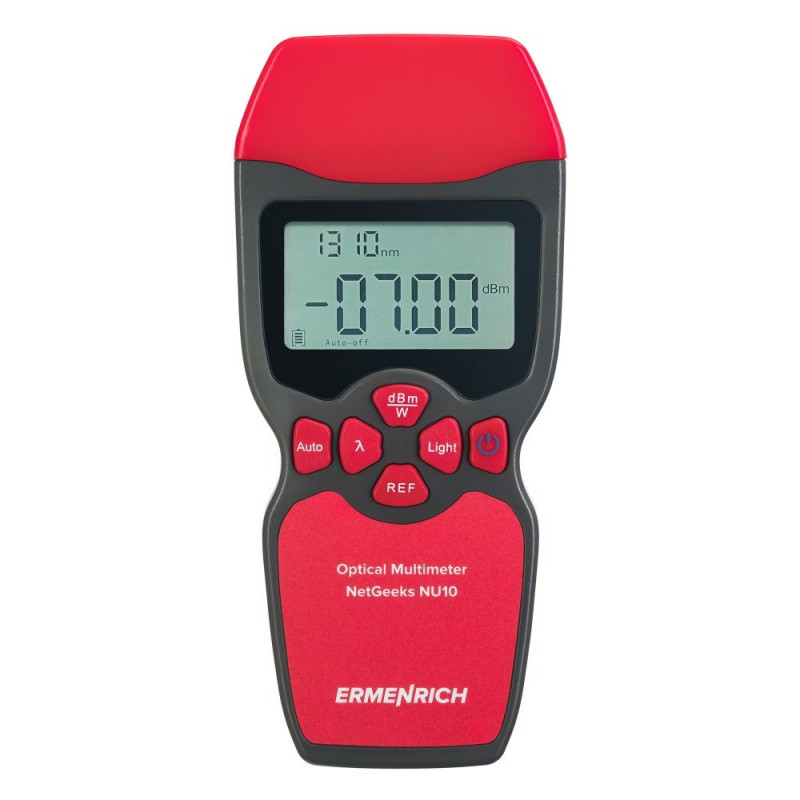

Display FSTN LCD
Display backlight yes

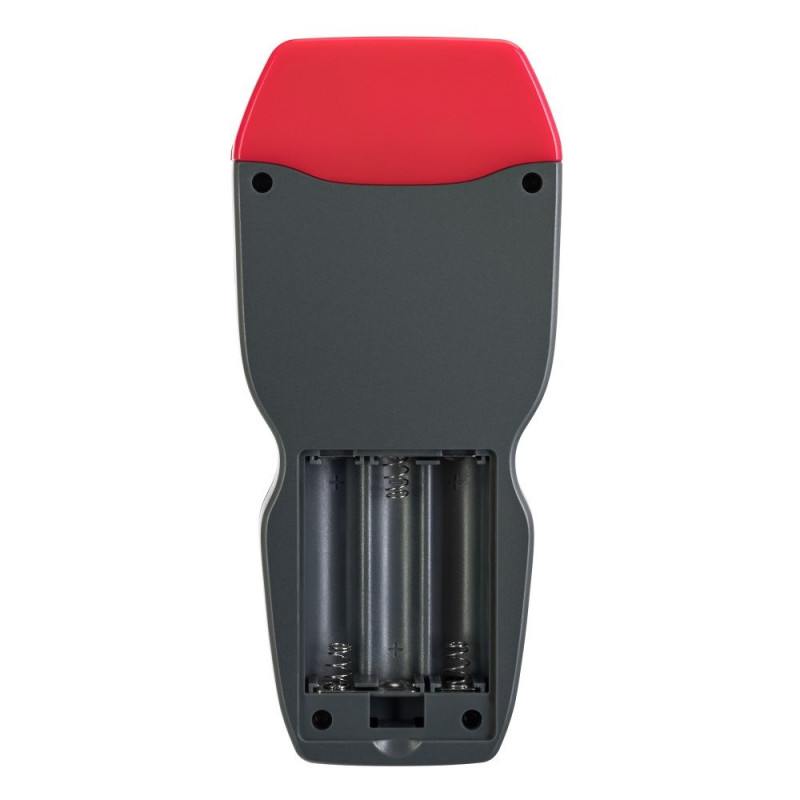

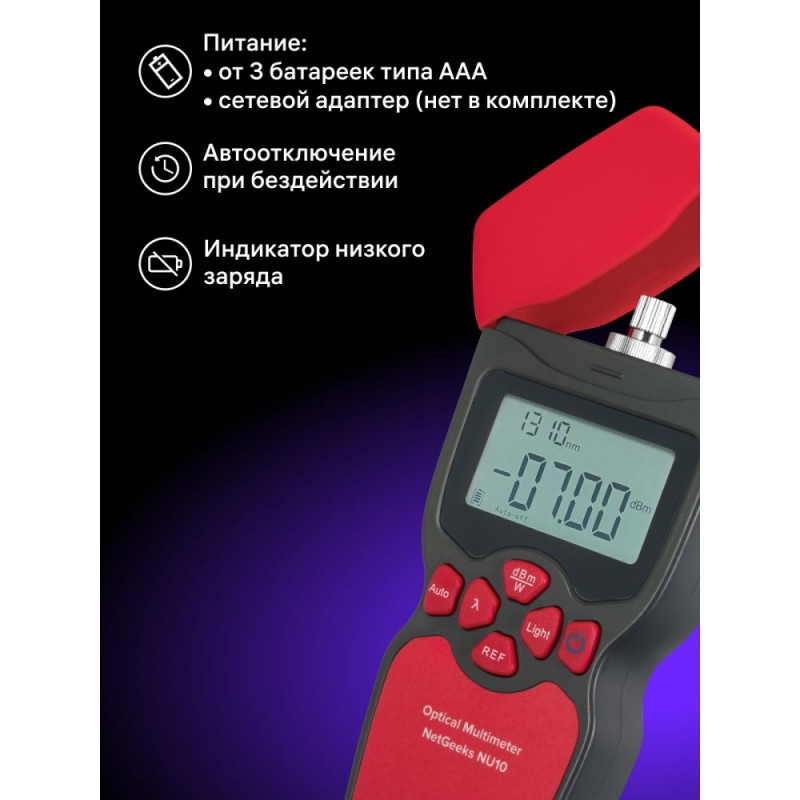

Power supply 3 AAA batteries (not included)
Low battery status indicator yes
Auto power off yes
Operating temperature range,°C -10 — 60
Operating humidity range, % 20 — 60
Type optical multimeter

*Can be put into parcel-machine Истина

Dimensions and weights

Gross weight
0.34 kg
Package width
15.5 cm
Package height
6 cm
Package length
19.5 cm

Product codes

EAN
5905555017006
