Ermenrich NetGeeks NU20 Optical Multimeter

FREE SHIPPING
WITHIN ESTONIA!

36,99 €

Monthly payment starting from 1,11 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

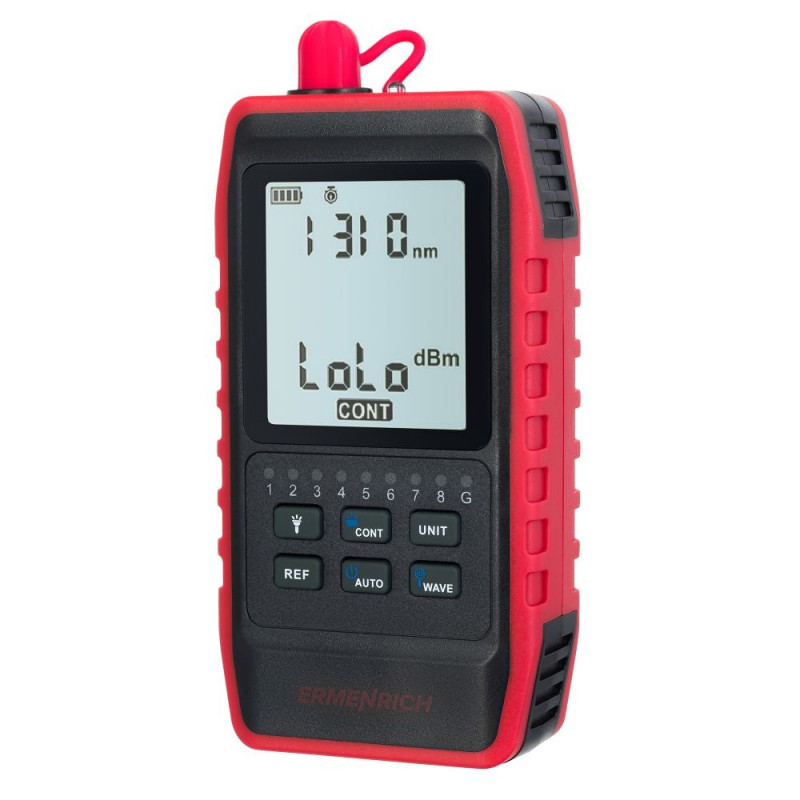

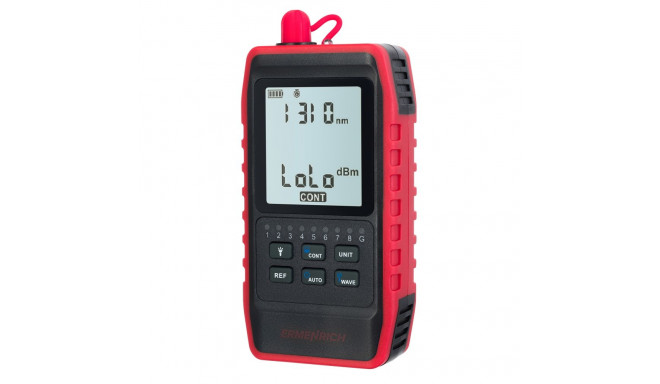

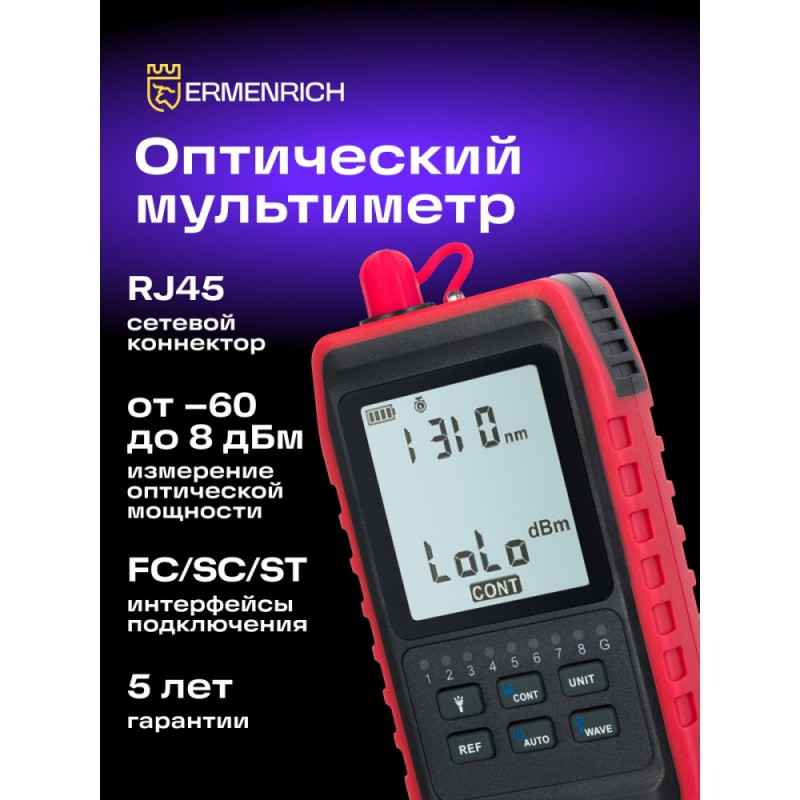

The Ermenrich NetGeeks NU20 optical multimeter is designed for testing fiber optic cables. You can measure the absolute optical power in any fiber optic system source, measure the optical power lost in a cable, and perform a continuity test to check if there are any breaks in the fiber optic cables. The optical multimeter is a must-have device for network cabling installers, system administrators, and fiber optic engineers to solve a wide range of professional tasks. The device can be used at home as well.

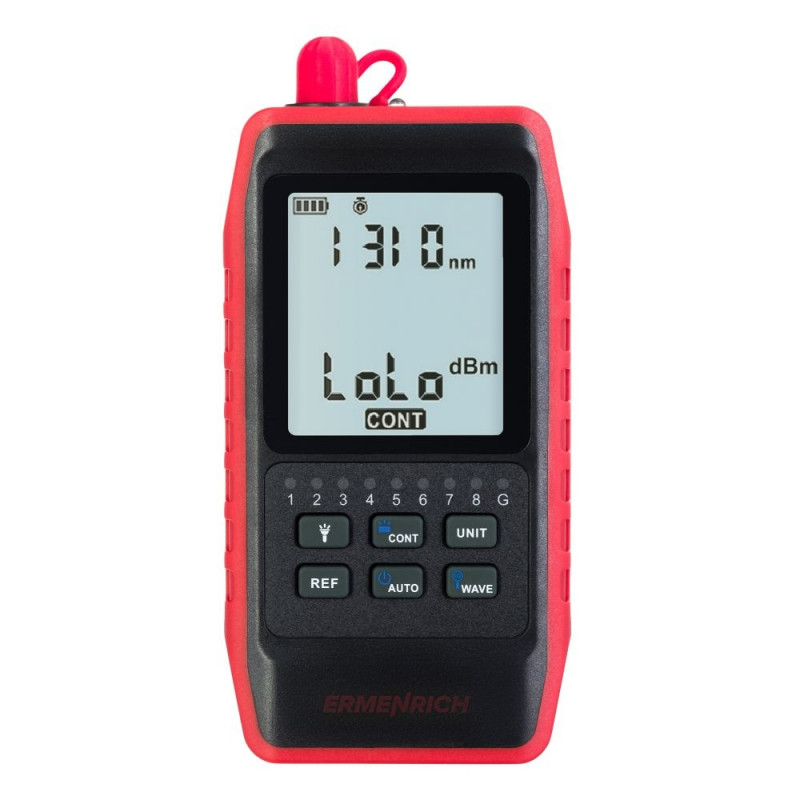

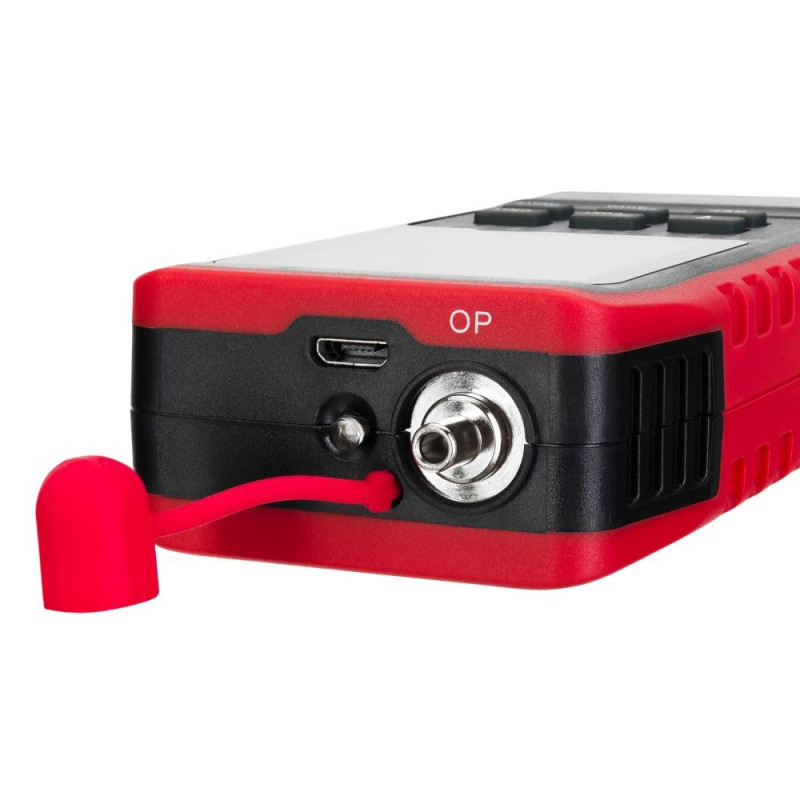

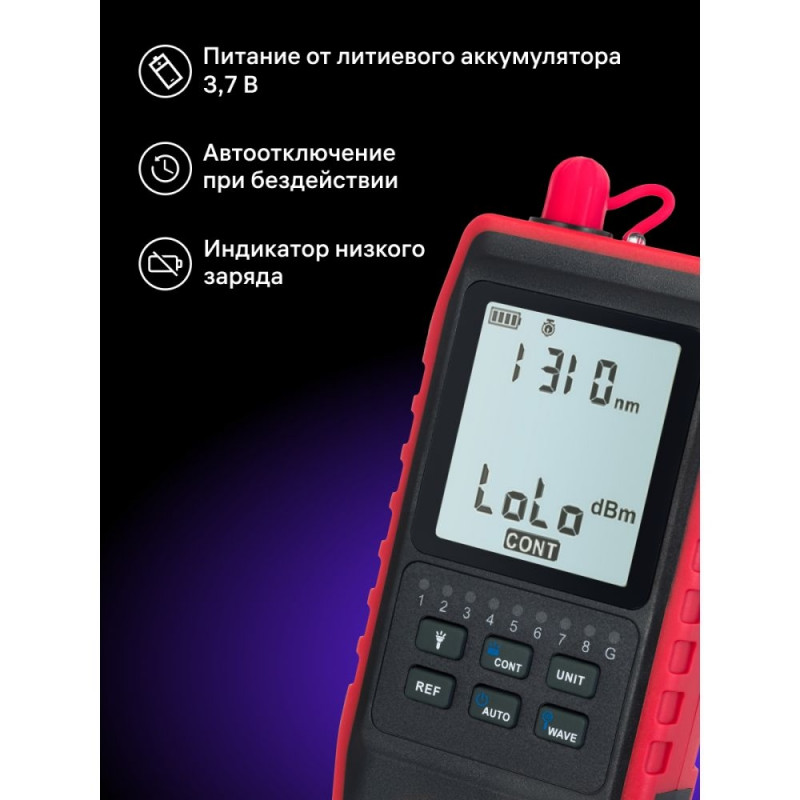

There are six wavelengths available. It supports single-mode and multi-mode cables and uses FC/SC/ST optical fiber connectors and an RJ45 network connector. The device has a built-in backlit screen, with LED indicators and control buttons underneath. The device is powered by a rechargeable battery, which is recharged through a Type-C USB cable. To save battery power, the multimeter is equipped with an auto power-off function that activates after 30 minutes of inactivity.

Key features:

  • Optical power or loss measurement
  • Continuity test – searching for breaks in the network cable

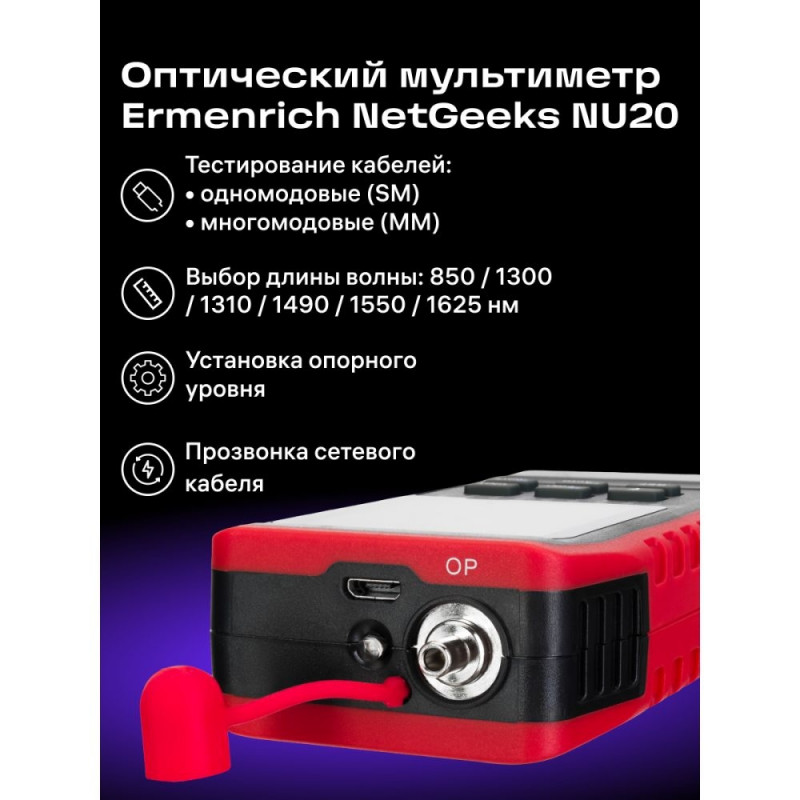

  • Supports six wavelengths, FC/SC/ST interfaces
  • Option to set the reference level
  • Powered by a rechargeable battery, charged via a USB-type cable

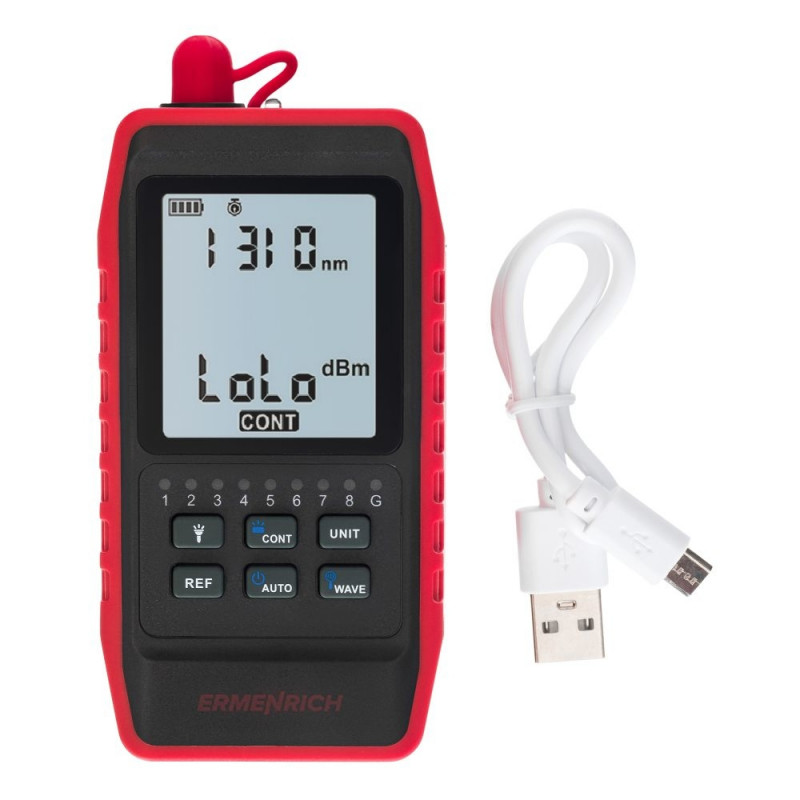

The kit includes:

  • Transmitter
  • Remote module
  • Type-C USB cable
  • User manual and warranty card
Brand Ermenrich
Warranty, years 5
EAN 5905555017020
Package size (LxWxH), cm 3.5x12.5x7.5
Shipping Weight, kg 0.13
Optical power meter wavelength, nm 850/980/1310/1490/1550/1625
Fiber connector type FC, SC, ST
Connector type RJ45
Maintained cable type single-mode (SM), multimode (MM)
Units of measurement dB, dBm, W
Power detection range, dBm -60 — 8
Option to set the reference level yes
Continuity test yes
Display FSTN LCD
Display backlight yes

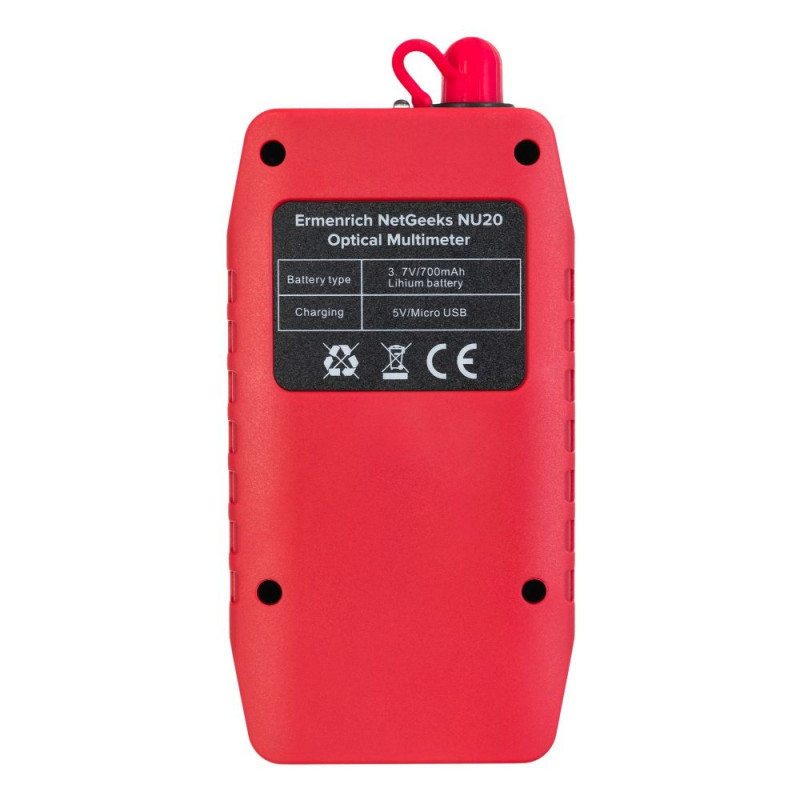

Power supply 3.7V, 700mAh
Auto power off yes
Auto power off yes, after 30 minutes of inactivity
Operating temperature range,°C -10 — 60
Operating humidity range, % 20 — 70
Type optical multimeter

*Can be put into parcel-machine Истина

Dimensions and weights

Gross weight
0.16 kg
Package width
8 cm
Package height
4 cm
Package length
12.5 cm

Product codes

EAN
5905555017020
