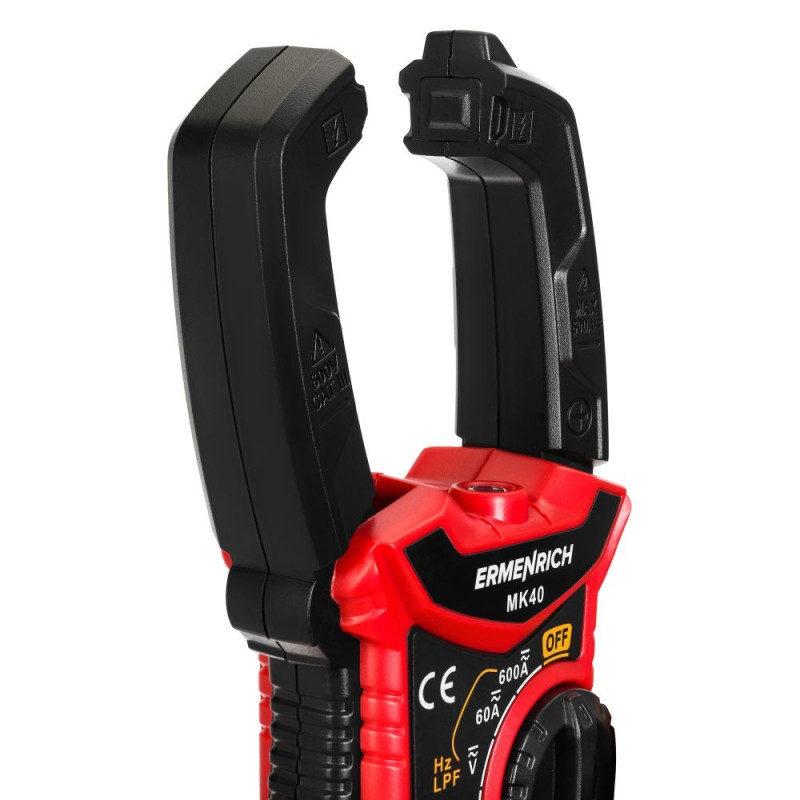

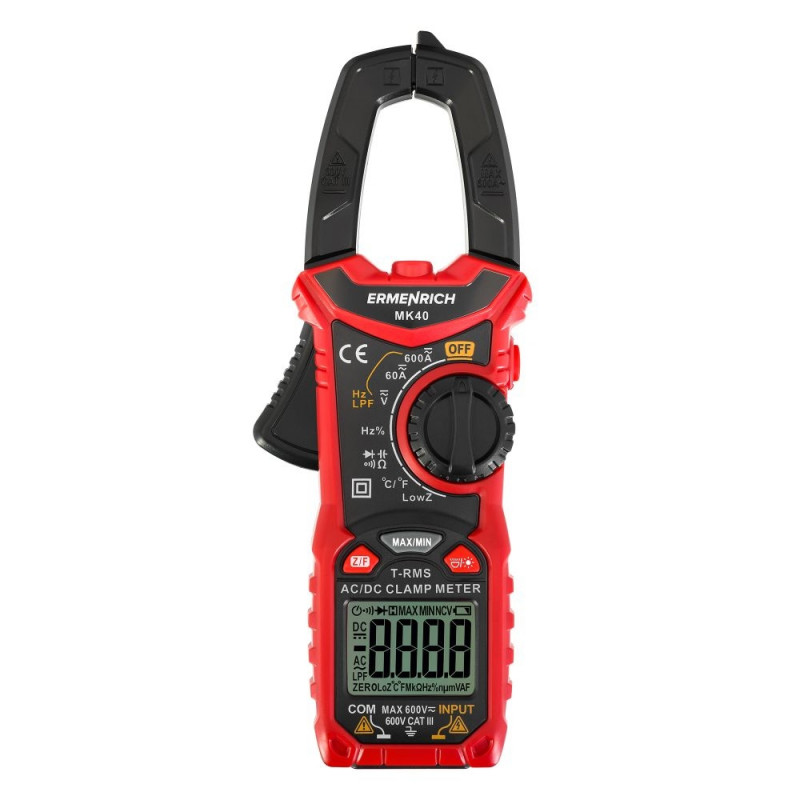

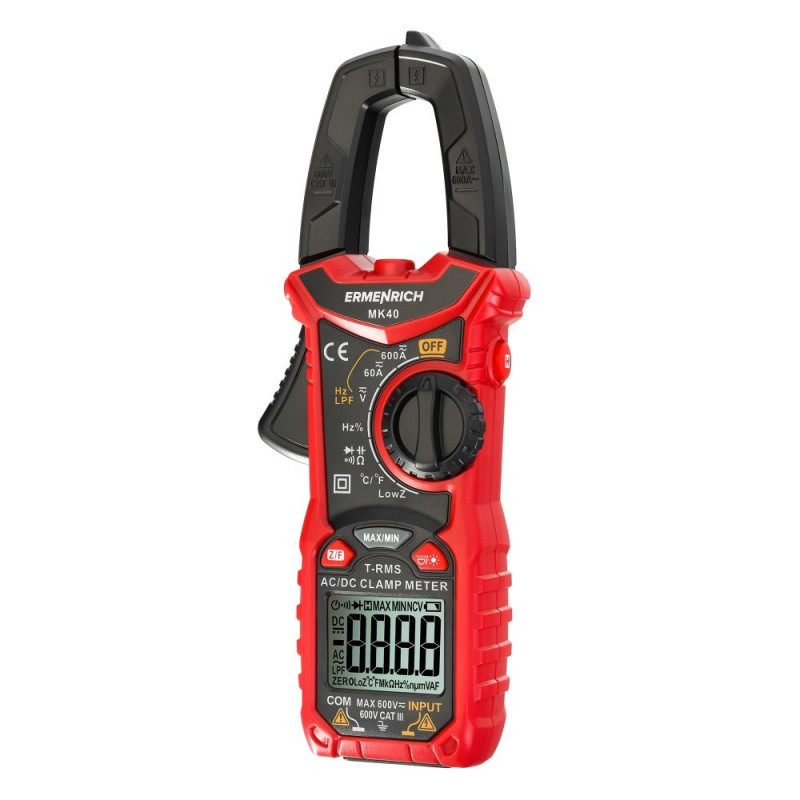

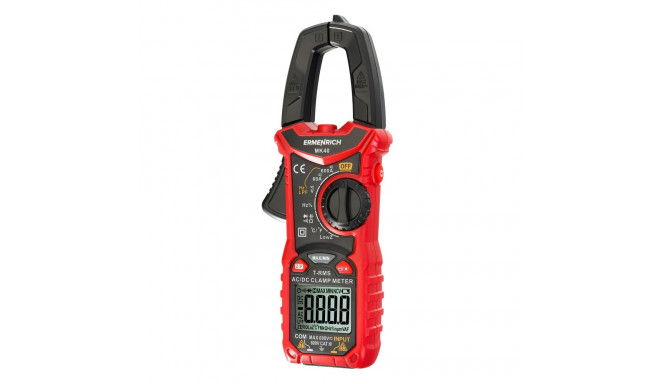

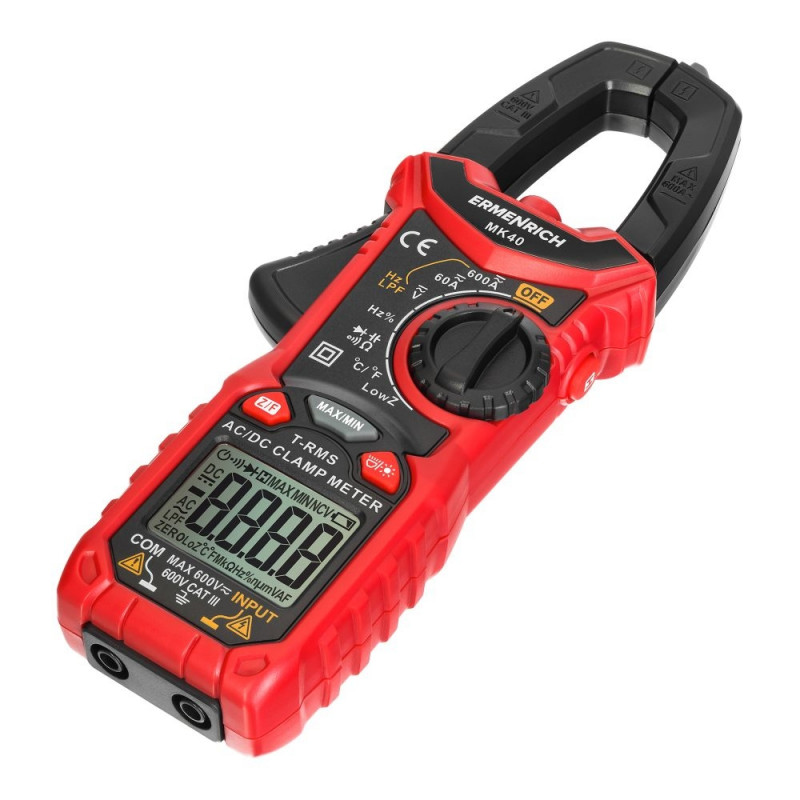

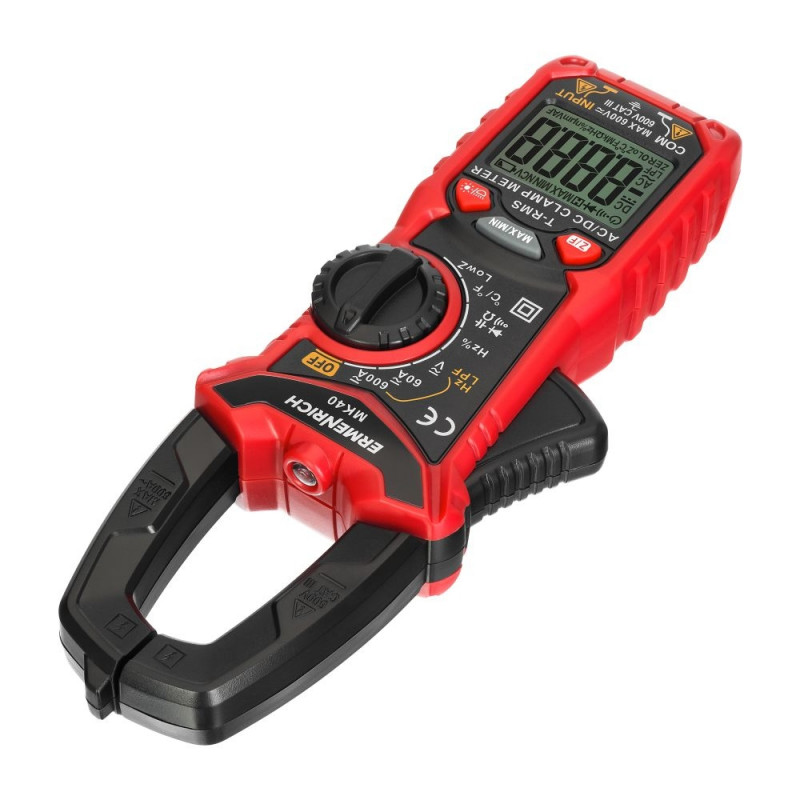

Ermenrich Ping MK40 Digital Clamp Meter

FREE SHIPPING
WITHIN ESTONIA!

37,99 €

Monthly payment starting from 1,14 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

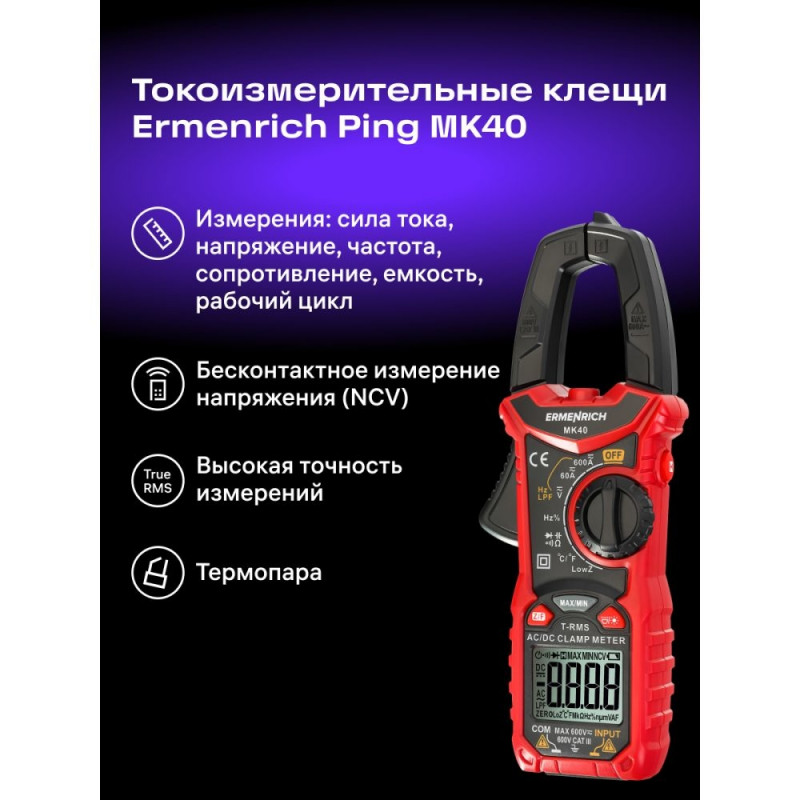

The Ermenrich Ping MK40 digital clamp meter measures not only alternating current but also direct current as well as 6 other parameters: voltage (direct and alternating), resistance, frequency, capacitance, duty cycle, and temperature. There is also additional functionality that will be enough for these current clamps to become the user’s only device for solving the problems of both household and professional use.

Measurements are carried out using True RMS, and so the results are more accurate. There is a low-frequency filter (LPF) that cuts off various harmonics – this also increases the reliability of measurements. To compensate for residual magnetization when measuring direct current, you can set zero (DCA Zero).

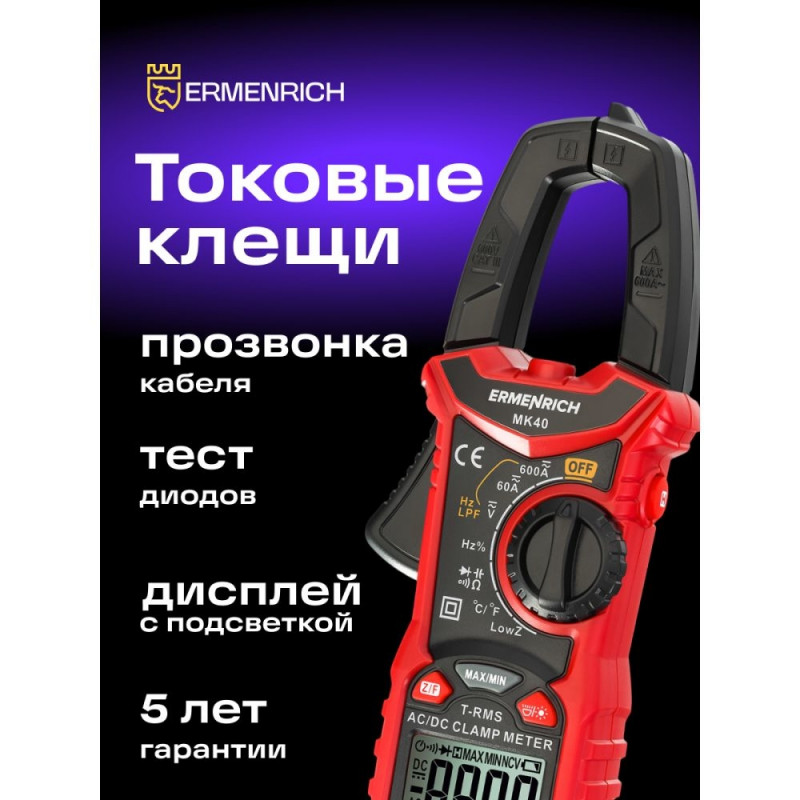

Continuity mode is one of the basic operating modes of current clamp meters. It helps find open and short circuits. You can also test diodes for faults. In NCV mode (non-contact detection of high voltage), the device finds hidden wiring and sockets that contain electricity.

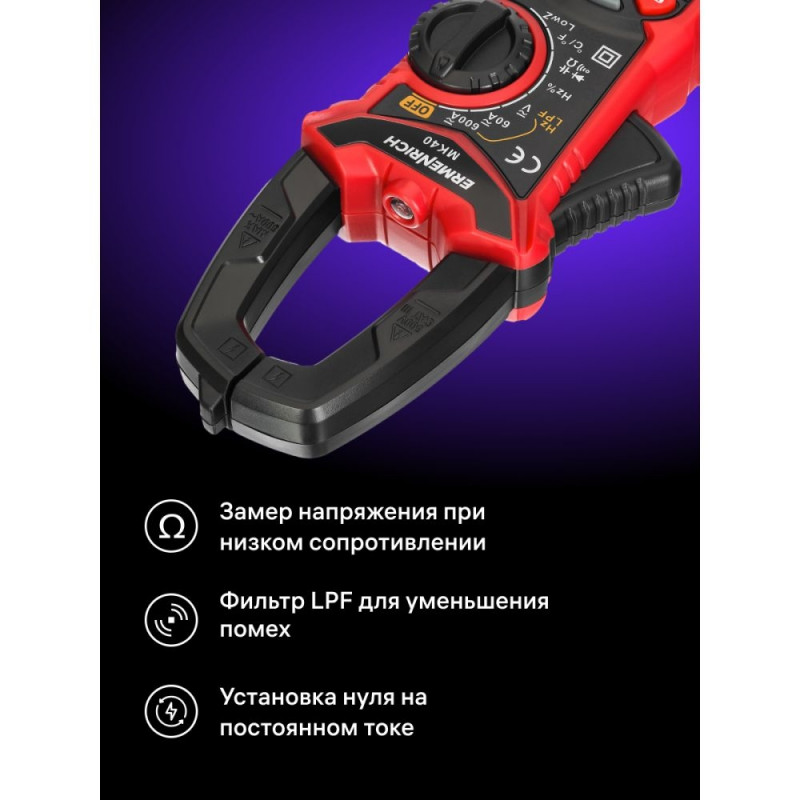

The LowZ function is not found in every device. With its help, the digital clamp meter is switched to low impedance mode – very low resistance. This significantly increases the accuracy of voltage measurements, which may drop due to interference from nearby electrical equipment or networks. In LowZ mode, the influence of interference on measurement accuracy is minimized.

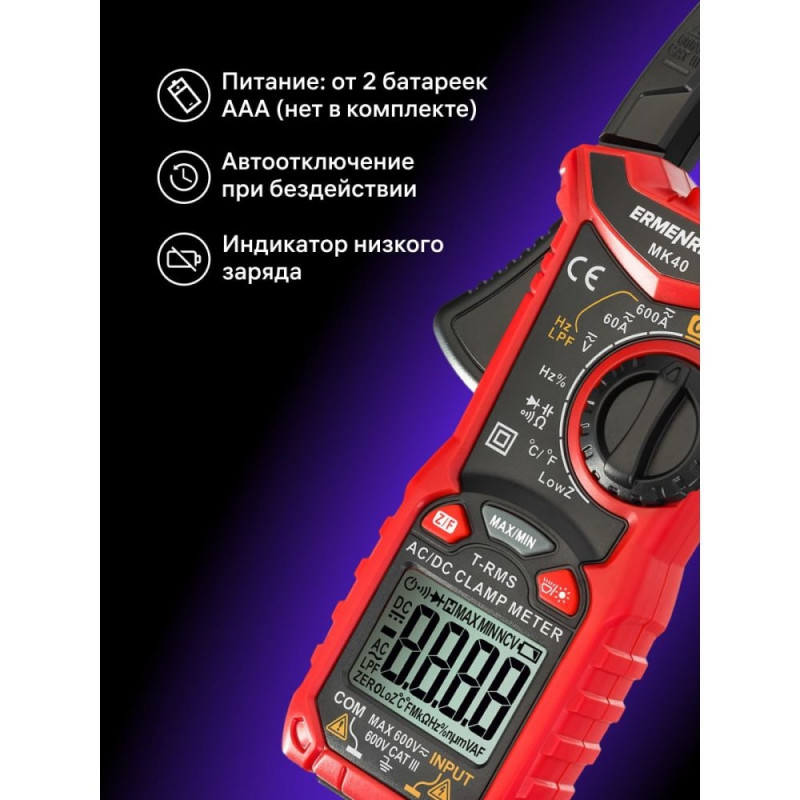

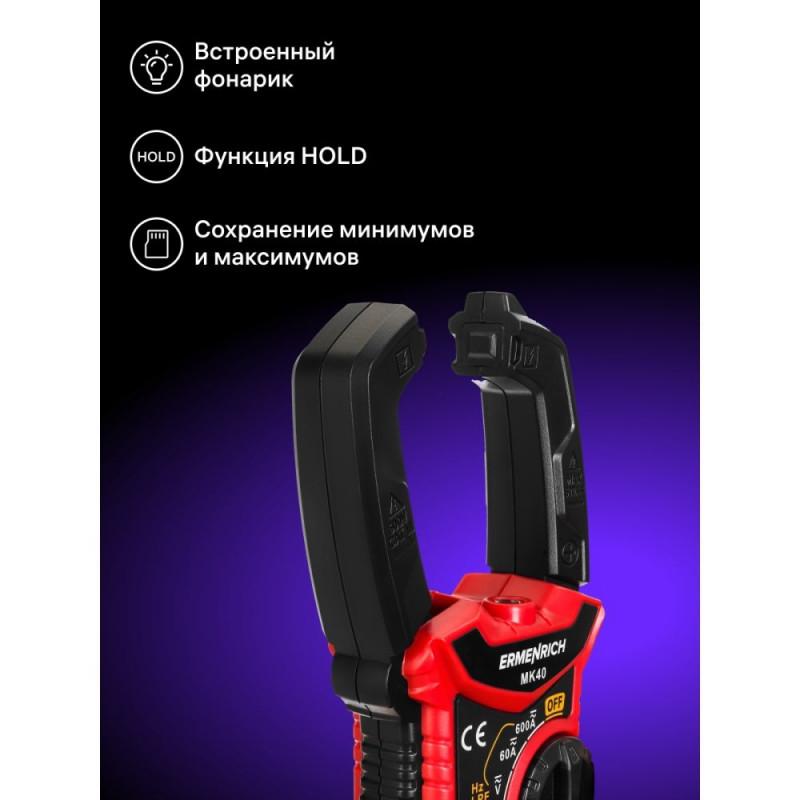

The device runs on standard batteries. There is a built-in flashlight for working in dark rooms and a Data Hold function that allows you to access the readings on the screen after measurements (it “freezes” the result on the screen).

Key features:

  • Safe measurement of AC and DC current without breaking the circuit
  • Functions of voltmeter (DC and AC voltage measurement), ohmmeter, frequency meter, capacitance meter, duty cycle meter, thermocouple sensor
  • Low impedance voltmeter function (LowZ) – voltage measurement at low resistance
  • Low-pass filter, DC zeroing and True RMS calculation for improved measurement reliability
  • Holding readings on the screen – Data Hold function

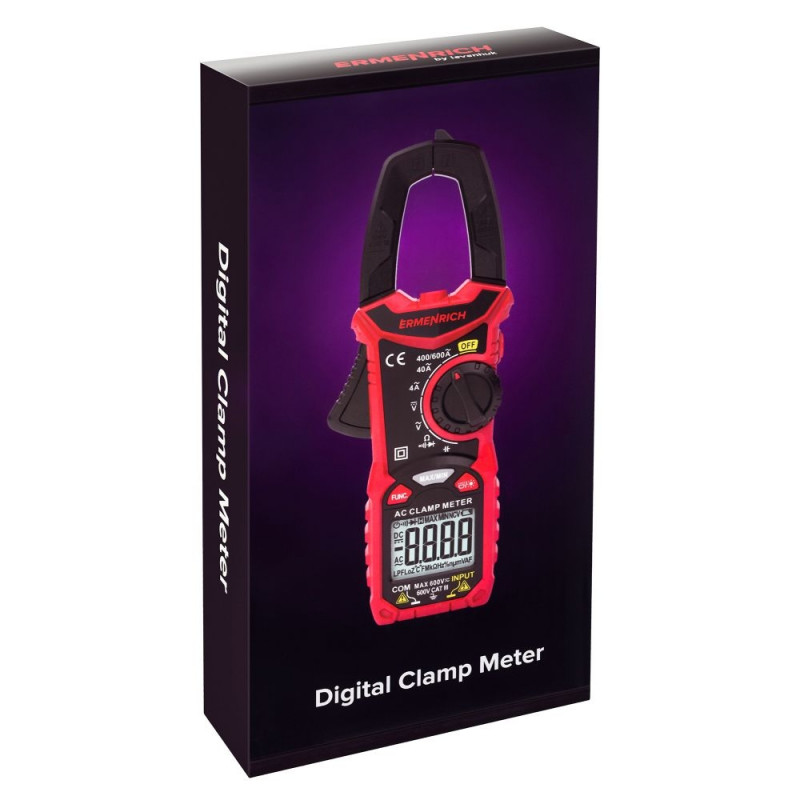

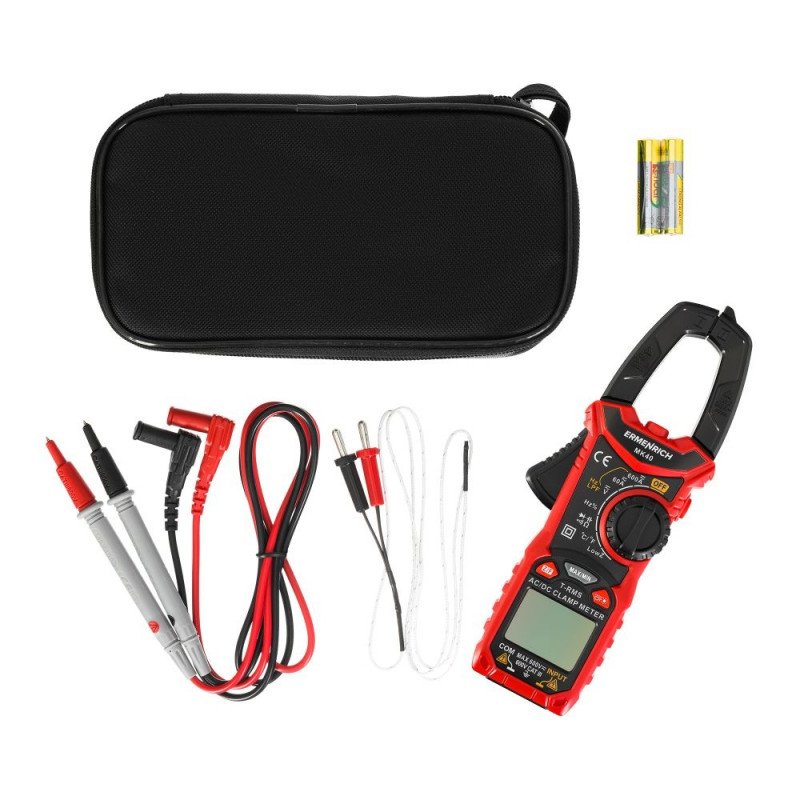

The kit includes:

  • Clamp meter
  • Probes

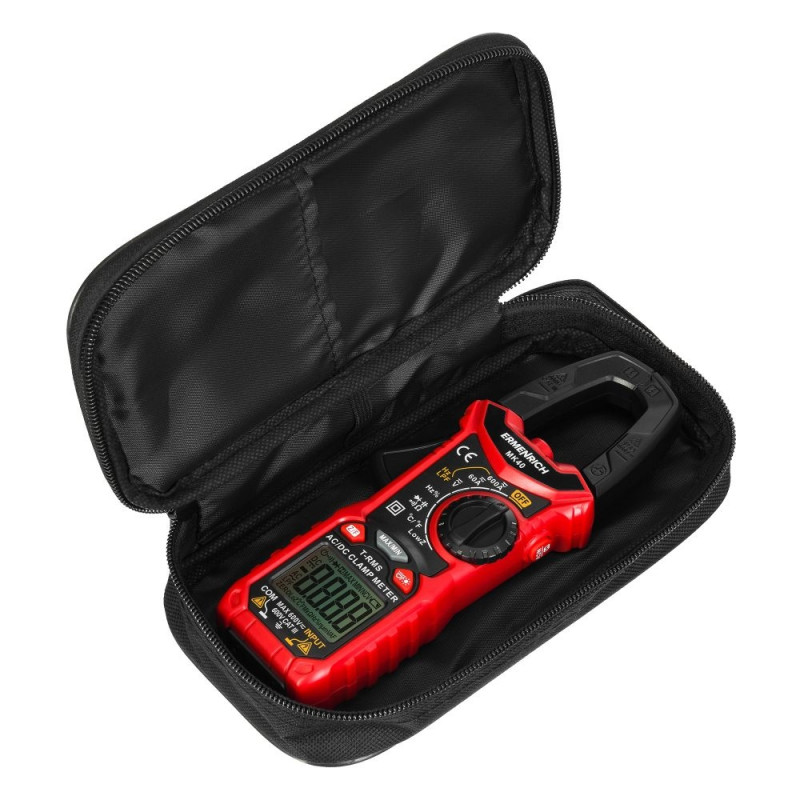

  • Pouch
  • User manual and warranty card
Brand Ermenrich
Warranty 5 лет
EAN 5905555017471
Package size (LxWxH) 22x11x4 cm
Shipping Weight 0.44 kg
Diodes test yes
Non-contact voltage detection (NCV) yes
True RMS yes
Hold function yes
Limit value function (Min/Max) yes
Operating temperature range,°C -40 — 1000
Continuity test yes
DCA Zero yes
Low Pass Filter (LPF) yes
Low impedance (LowZ) voltage measurement yes
Display counts 6000
Display backlight yes

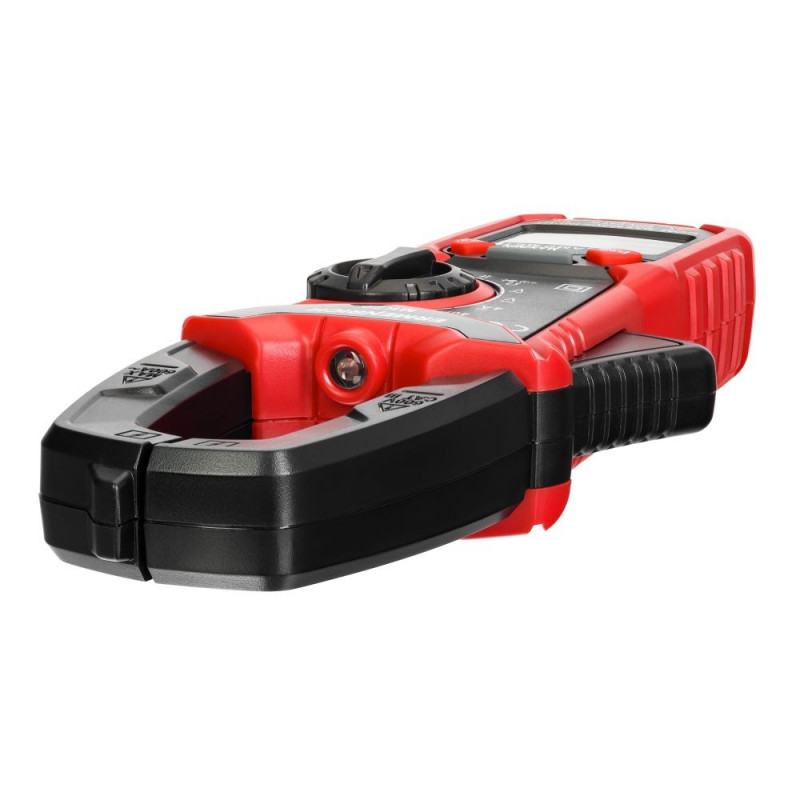

Flash light yes
Low battery status indicator yes
Auto power off yes
Selection of the measuring limit auto, manual
Basic functions voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple
DC voltage measuring limit 600mV/6V/60V/600V: error ±(0.5%+5)
AC voltage measuring limit 4/40/400/600V; 6/60/600/600V: error ±(0.8%+5)
DC current measuring limit 60/600A: error ±(2.5%+5)
AC current measuring limit 60/600A: error ± (2.5%+5)
Resistance measuring limit 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(1.0%+5)
Capacity measuring limit 4nF/40nF/400nF/4μF/40μF/400μF: error ±(4.0%+5)
Frequency measurement limits 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz: error ±(1.0%+3)
Duty cycle measurement range 1–99%: error ±(3.0%+3)
Overvoltage category CAT III 600V
Safety standards EN61010-1,-2-030; EN61010-2-033; EN61326-1

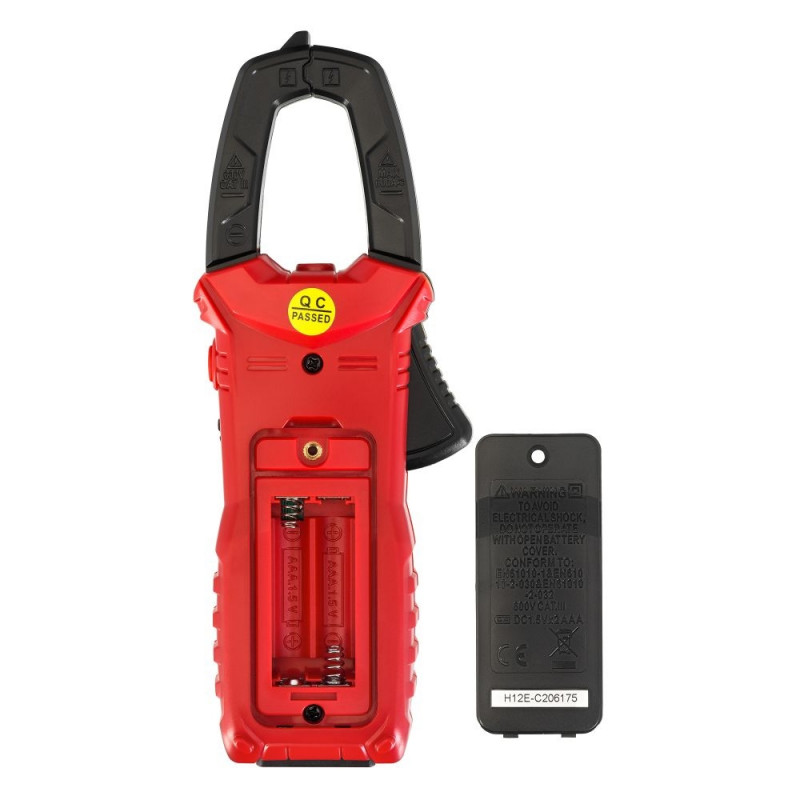

Power supply 2 AAA batteries (not included)

*Can be put into parcel-machine Истина
