Ermenrich Seek TV50 Thermal Camera

Addional discount of 6%
will be applied in shopping cart
(min. 12€ purchase)
254,99 €

Monthly payment starting from 8,69 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

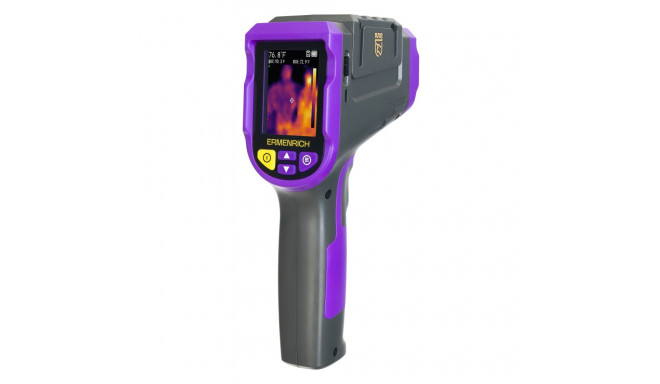

The Ermenrich Seek TV50 is suitable for a wide range of applications. When inspecting electrical equipment with a thermal camera, hidden faults such as overheated contacts can be detected. The Ermenrich Seek TV50 helps to find thermal leaks in facades and foundations when inspecting industrial and residential buildings. It can be used in construction work to control the installation of underfloor heating, radiators, and water heaters. The thermal camera can also be helpful in car service and repair as well as pest control (when looking for pest infestations in a building). The temperature measuring range of the Ermenrich Seek TV50 ranges from −20 to +400°C (−4 to +752°F).

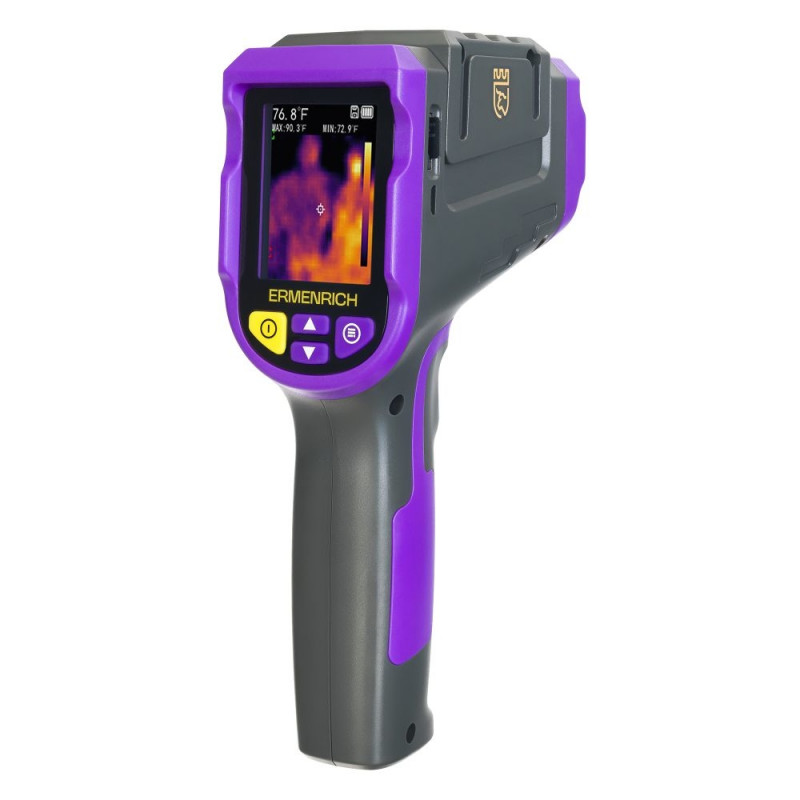

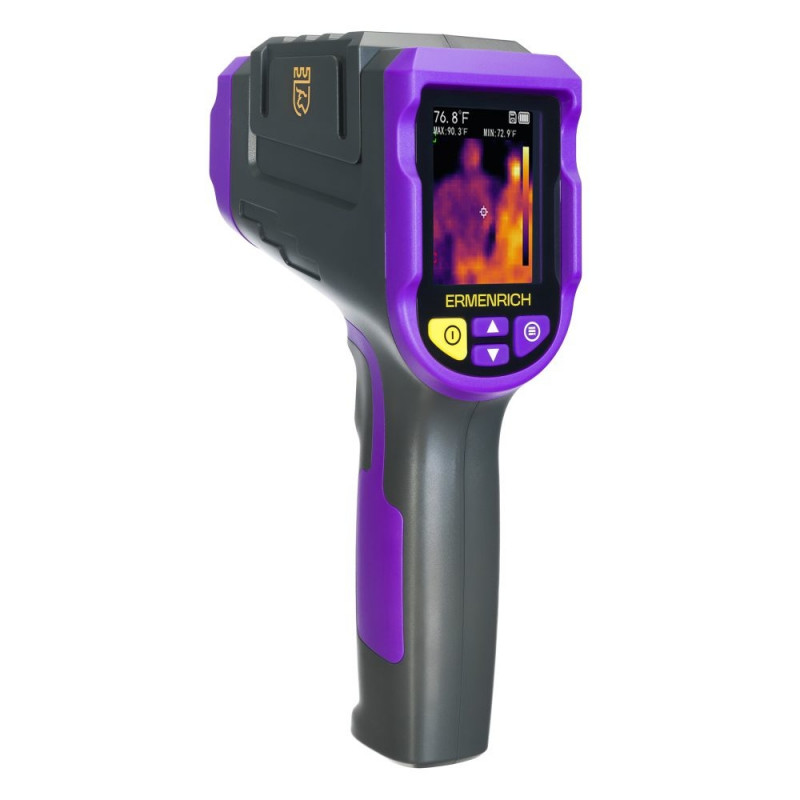

The thermal camera is equipped with a 32x32pix thermal imaging sensor (1024pix total) and a 2Mpix visible light camera. There are 4 modes available: infrared mode, infrared edge detection mode, dual light vision mode, and visible light mode. You can also choose between 7 color palettes. The image is displayed on the built-in color screen. The operation and settings are controlled by four buttons under the screen and one button on the handle. There is an image capture function – photos are stored on a memory card.

The device is handheld; no tripod mount is provided. The power source is a rechargeable battery.

Key features:

  • 32x32pix thermal imaging sensor and 2Mpix camera, adjustable emissivity
  • 7 color palettes, 4 modes, including the fusion of visible and IR image
  • High measurement accuracy ranging from −20 to +400°C (−4 to +752°F)
  • Image capture function, the data is stored on a memory card
  • Shockproof body, powered by a rechargeable battery

The kit includes:

  • Thermal camera
  • 16GB memory card
  • Micro USB cable

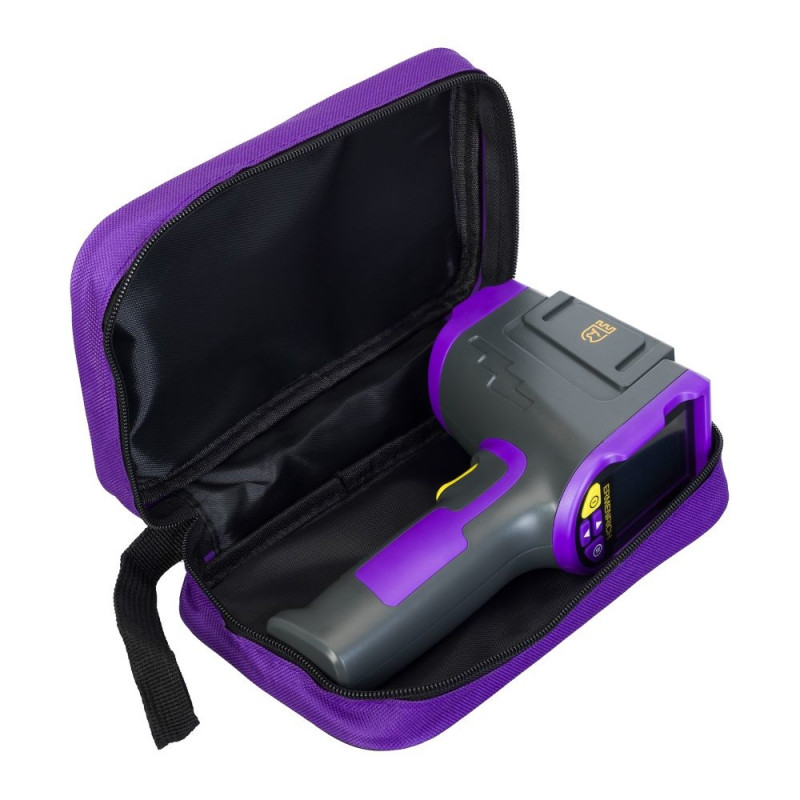

  • Pouch
  • User manual and warranty card
Brand Ermenrich
Warranty 5 лет
EAN 5905555021560
Package size (LxWxH) 23x14x8 cm
Shipping Weight 0.495 kg
Type of thermo vision device manual
Resolution of microbolometer matrix, px 32х32
Spectral range, μm 8–14
Frame rate ≤9
Temperature measuring range, °С -20 — 400
Temperature error, % accuracy: 0... +400°C: ±1.8°C (32… 752°F: ±3.3°F); −20... −0.9°C: ±3°C (−4… +30°F: ±4.5°F), resolution: 0.1°C (°F)
Temperature sensitivity (NETD), mK 150
Color palettes hot black, hot white, hot red, red iron, cold colored, rainbow, lava
Field of view (horizontal)x(vertical), ° 33 (horizontal), 18mrad (instant)
Fusion of optical and thermal imagery +
Display LCD, 2.4” TFT
Display resolution, px 320x240
Operating mode IR mode, IR edge detection mode, Dual light vision mode, Visible light mode
Power supply 2600mAh, 3.7V, charging via a micro USB cable (included)
Maximum load (impact), g drop from a height of up to 1m (3.3ft)
Operating temperature range, °C -10 — 45
Built-in recorder yes
Memory 16GB memory card (included)
Image format *.bmp
Interface connectors microUSB
Pouch/case/bag in set pouch
Additional auto-off function, a low battery indicator, camera resolution: 2Mpix, adjustable emissivity from 0.1 to 0.99, response time: 150ms
