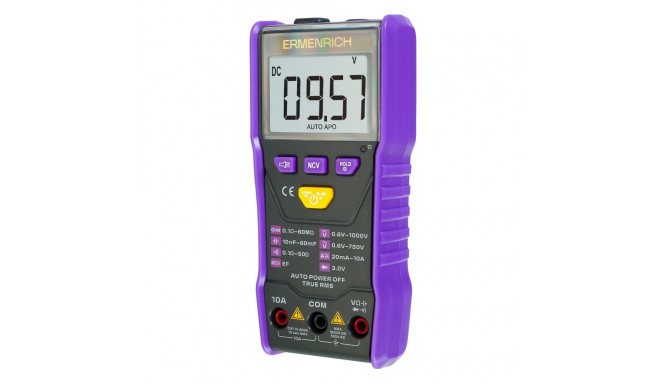

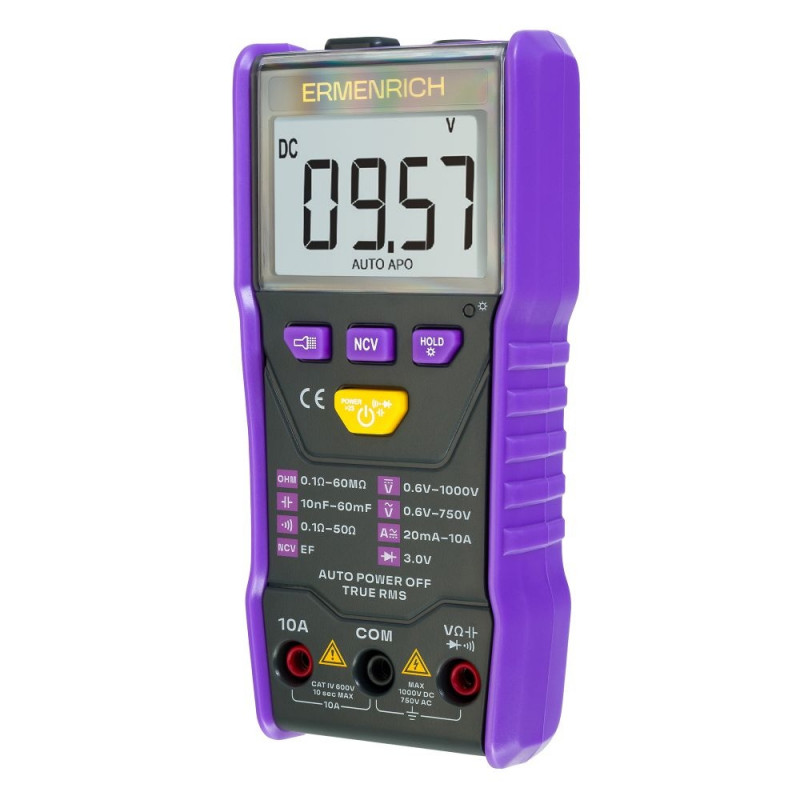

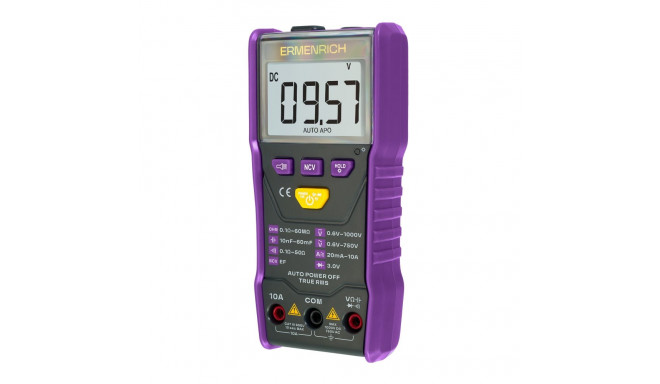

Ermenrich Zing TC20 Digital Multimeter

30,99 €

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

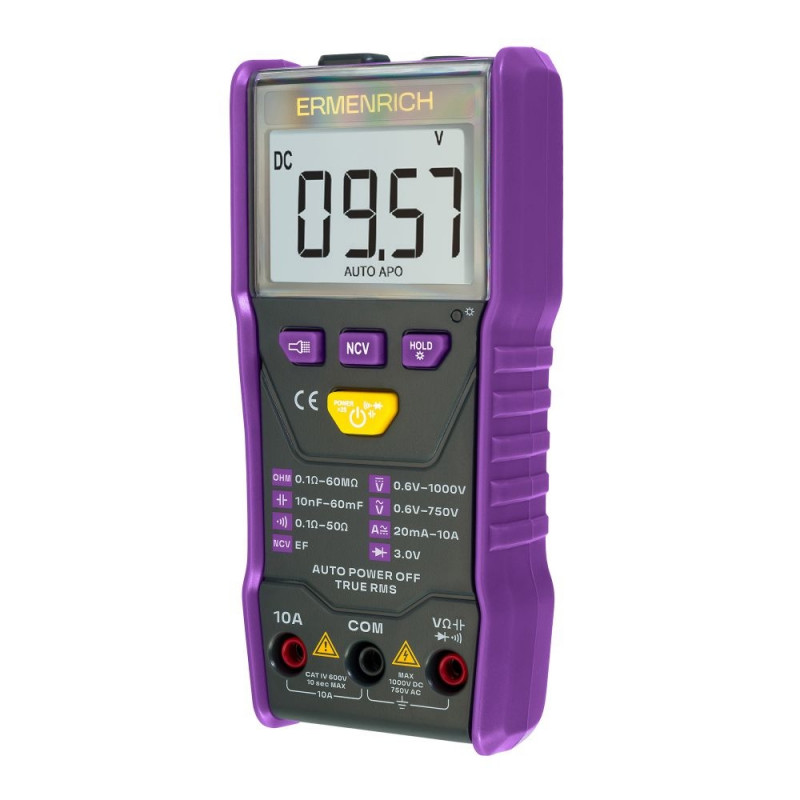

The Ermenrich Zing TC20 Digital Multimeter is a portable device for measuring DC/AC voltage, DC/AC current, resistance, and capacitance. It doesn’t have a rotary switch, i.e. the measuring limit is set automatically. Protected against overloads, the device is reliable and stable, and provides a high accuracy of measurements. It is most suitable for those interested in radio communication, handymen, and professional electricians.

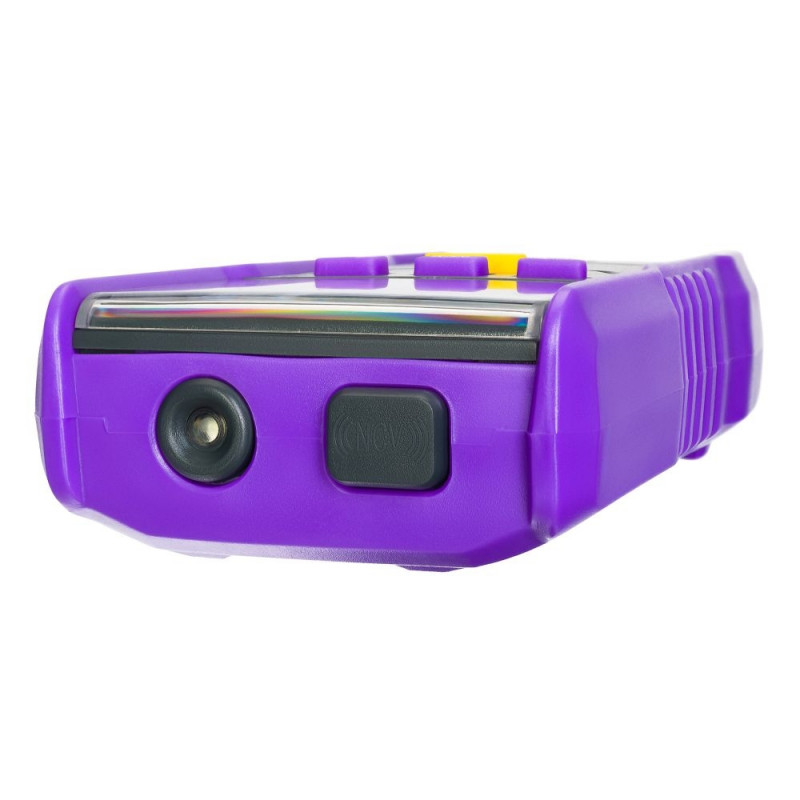

In the wire mapping mode, it checks the continuity of the circuit – the device locates an open or short circuit. The diodes test is used for testing diodes by measuring the voltage drop across the diodes. The device uses the True RMS method. That is, measurements are based on the True RMS formula, which improves the accuracy of results when measuring AC voltage and AC current. Additional features include a hold function, non-contact voltage detection (NCV), and a flashlight.

The device is powered by two standard batteries (not included).

Key features:

  • Without rotary dial, the measuring limit is set automatically
  • DC/AC voltage measurement, DC/AC current measurement, resistance, capacitance
  • Wire mapping mode, diodes test, NCV test
  • True RMS method that improves the accuracy of AC current and AC voltage measurements

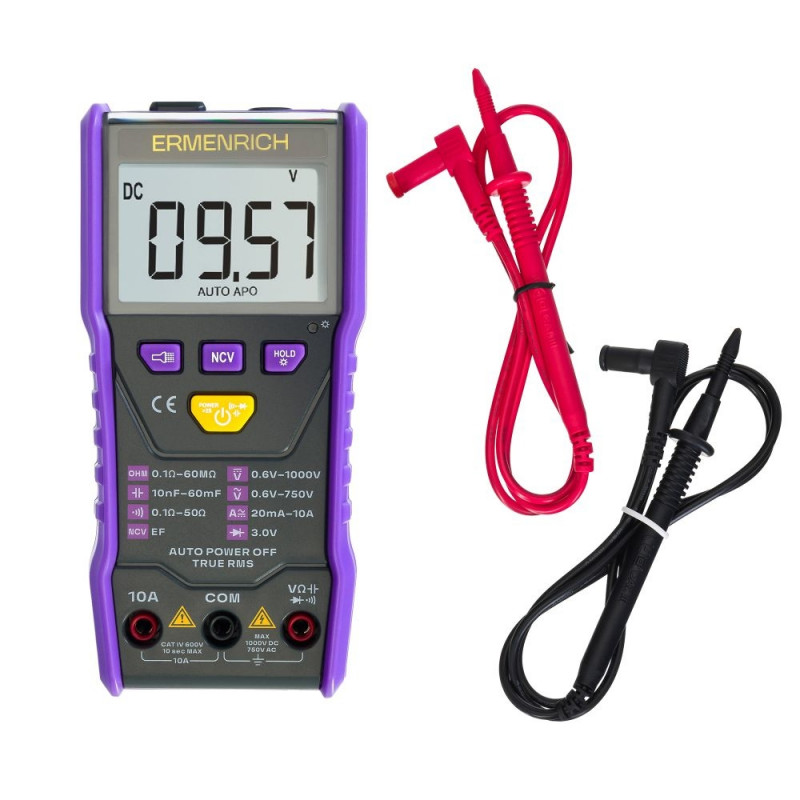

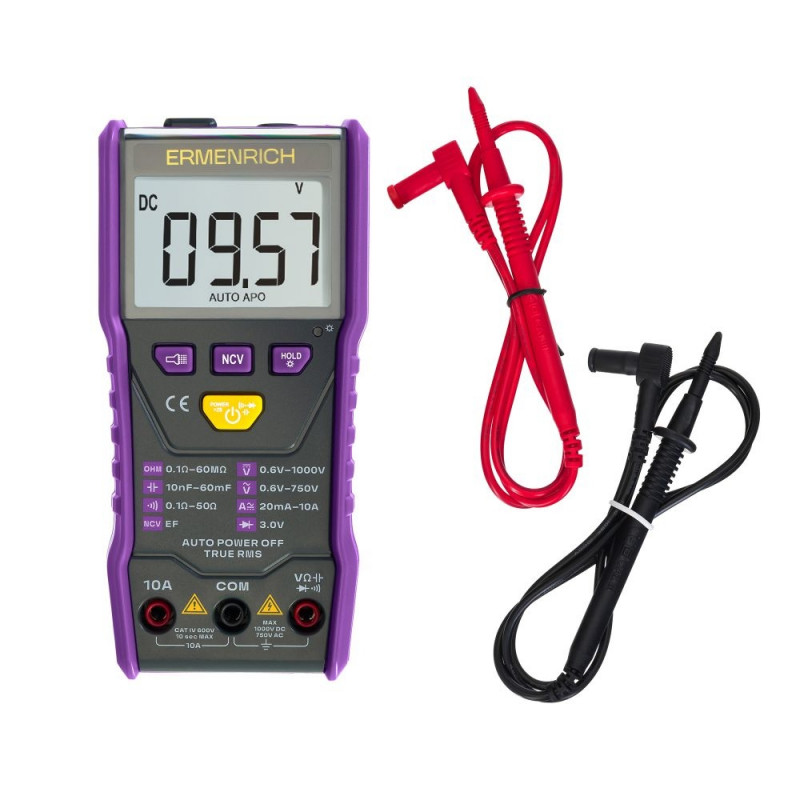

The kit includes:

  • Digital multimeter
  • Probe – 2 pcs.
  • User manual and warranty card
Brand Ermenrich
Warranty 5 лет
EAN 5905555021577
Package size (LxWxH) 16x10x5 cm
Shipping Weight 0.295 kg
Selection of the measuring limit automatic
Basic functions voltmeter, ammeter, ohmmeter, capacitance meter
DC voltage measuring range 0.6–1000V
DC voltage measuring limit 6/60/600V: error ±(0.5%+3), resolution 0.001/0.01/0.1V, 1000V: error ±(0.8%+10), resolution 1V
AC voltage measuring range 0.6–750V
AC voltage measuring limit 6/60/600V: error ±(0.5%+3), resolution 0.001/0.01/0.1V, 750V: error ±(0.8%+10), resolution 1V
DC current measuring range 20mA–10A
DC current measuring limit 6/10A: error ±(2.0%+30), resolution 0.001/0.01A
AC current measuring range 20mA–10A
AC current measuring limit 6/10A: error ±(2.0%+30), resolution 0.001/0.01A
Resistance measuring range 0.1Ohm–60MOhm
Resistance measuring limit 600Ohm: error ±(0.8%+5), resolution 0.1Ohm, 6kOhm/60kOhm/600kOhm/6MOhm: error ±(0.8%+3), resolution 1Ohm/10Ohm/100Ohm/1kOhm, 60MOhm: error ±(2.5%+3), resolution 10kOhm
Capacity measuring range 10nF–60mF
Capacity measuring limit 10nF/100nF/1µF/10µF/100µF/1mF/10mF: error ±(3.5%+20), resolution 10pF/100pF/1nF/10nF/100nF/1µF/10µF, 60mF: error ±(5%+3), resolution 100µF
Measurements per second 3
Wire mapping yes
Diodes test yes
Non-contact voltage detection (NCV) yes
True RMS yes
Hold function yes
Overvoltage category cat. IV
Display LCD
Display counts 5999
Display digits 3 5/6
Display backlight yes

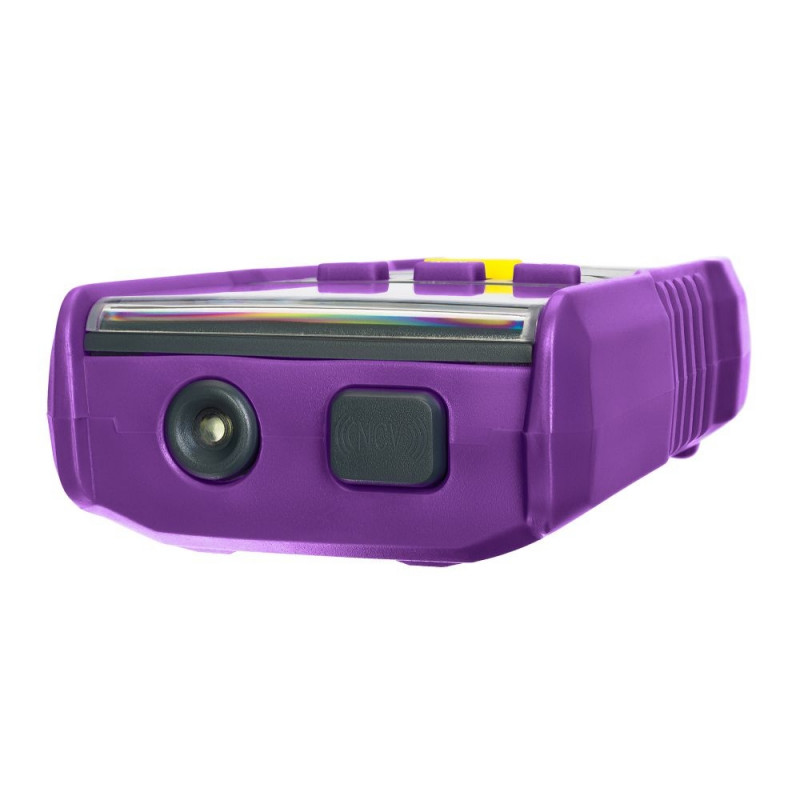

Flash light yes
Operating temperature range, °C 0 — 40

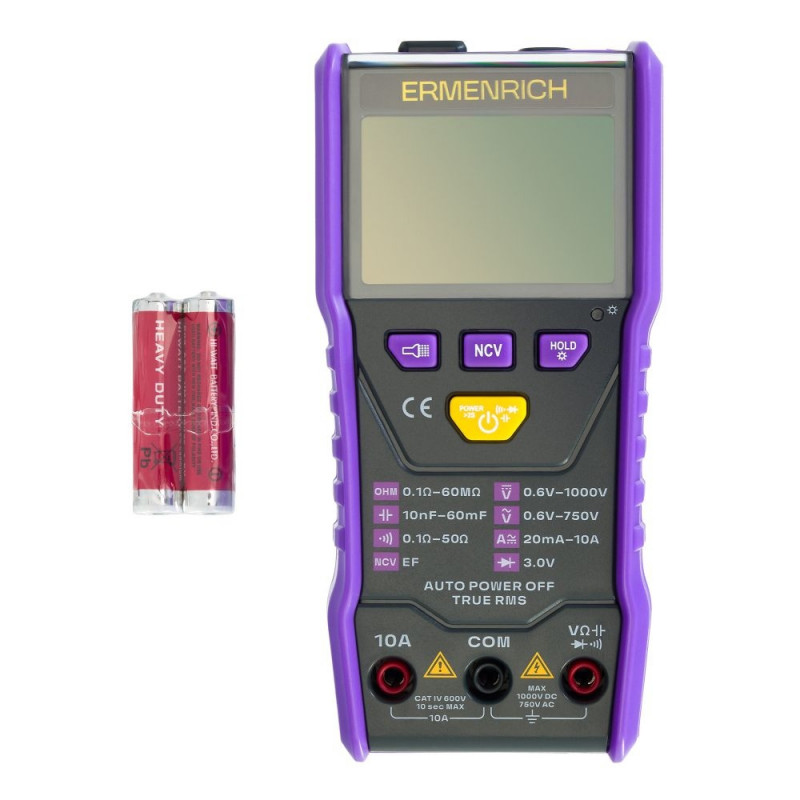

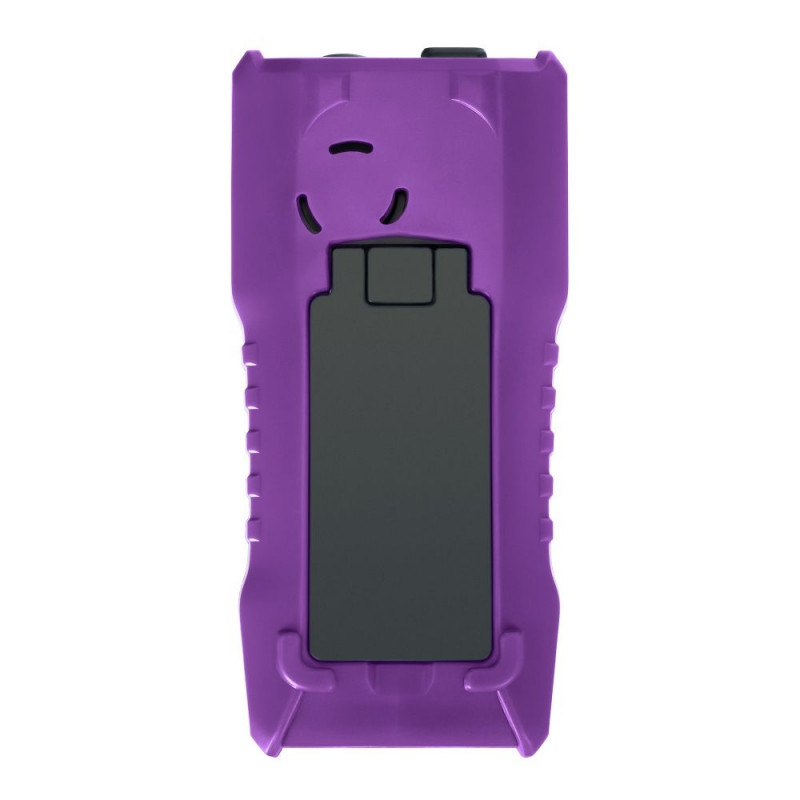

Power supply 2 AAA batteries (not included)
Low battery status indicator yes
Auto power off yes

*Can be put into parcel-machine Истина

Dimensions and weights

Gross weight
0.32 kg
Package width
10 cm
Package height
5 cm
Package length
16 cm

Product codes

EAN
5905555021577
