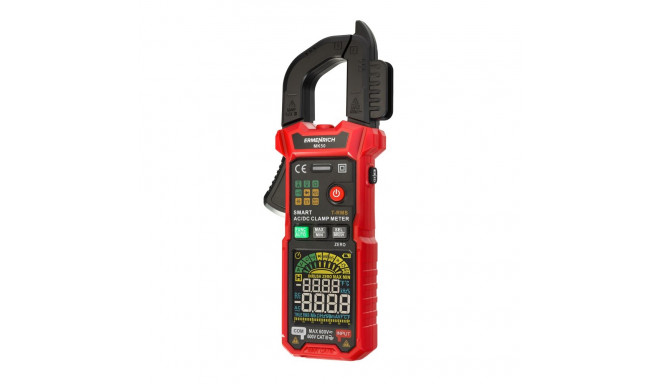

Ermenrich Ping MK50 Digital Clamp Meter

43,99 €

Monthly payment starting from 1,32 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

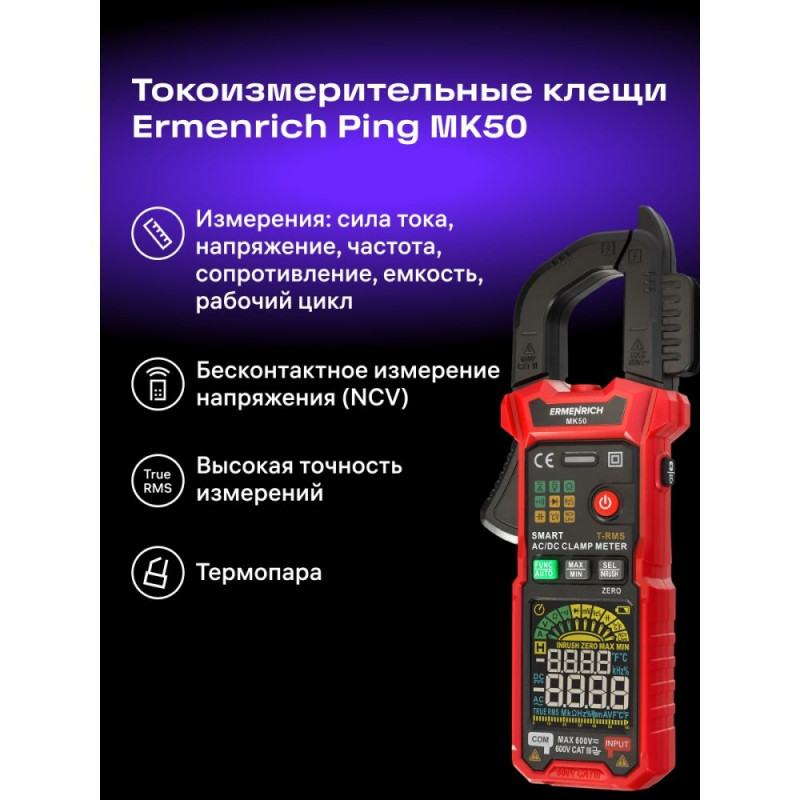

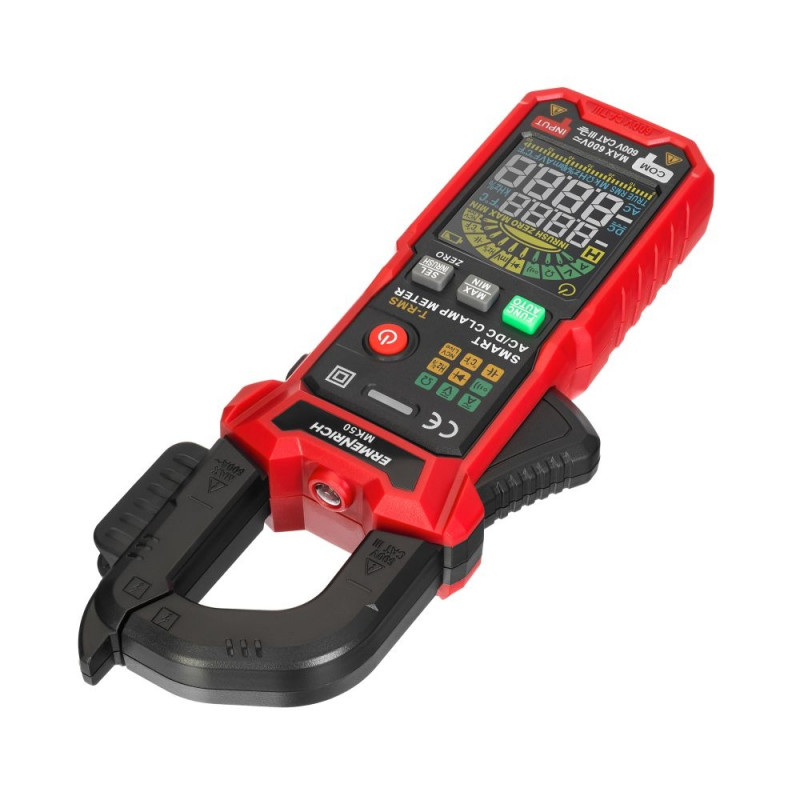

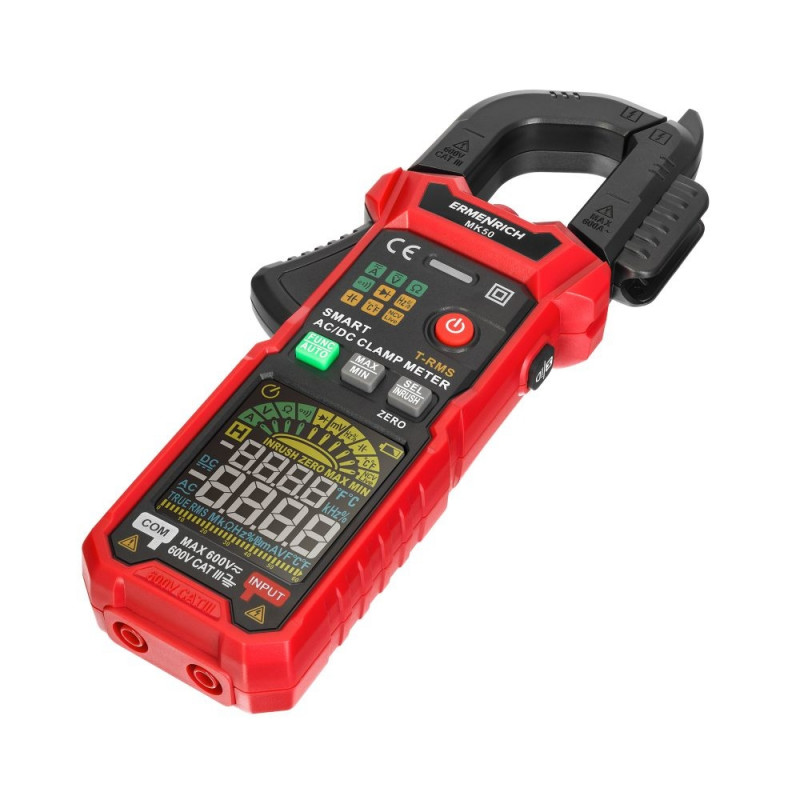

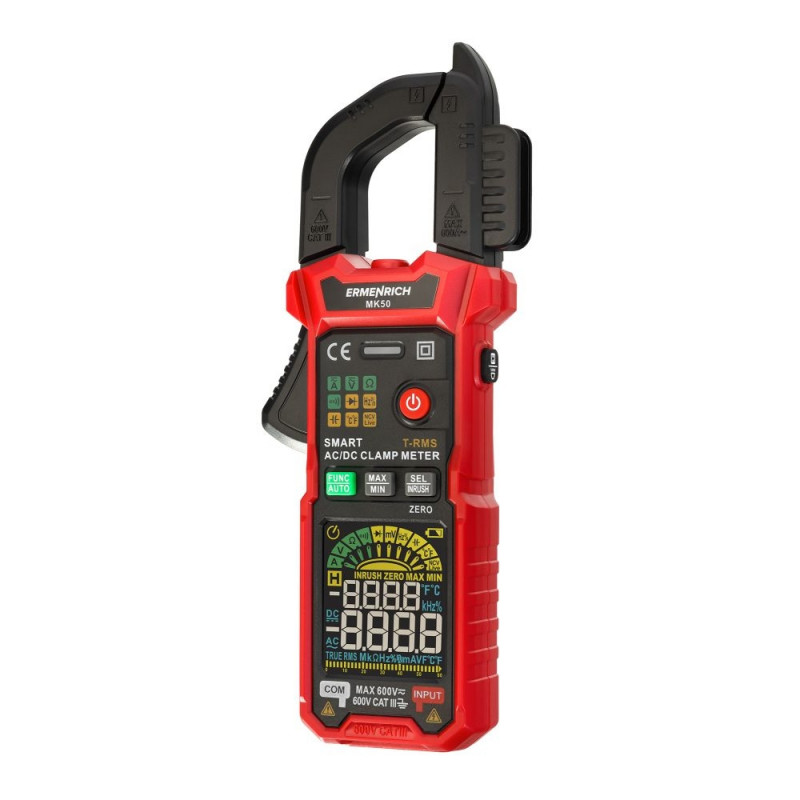

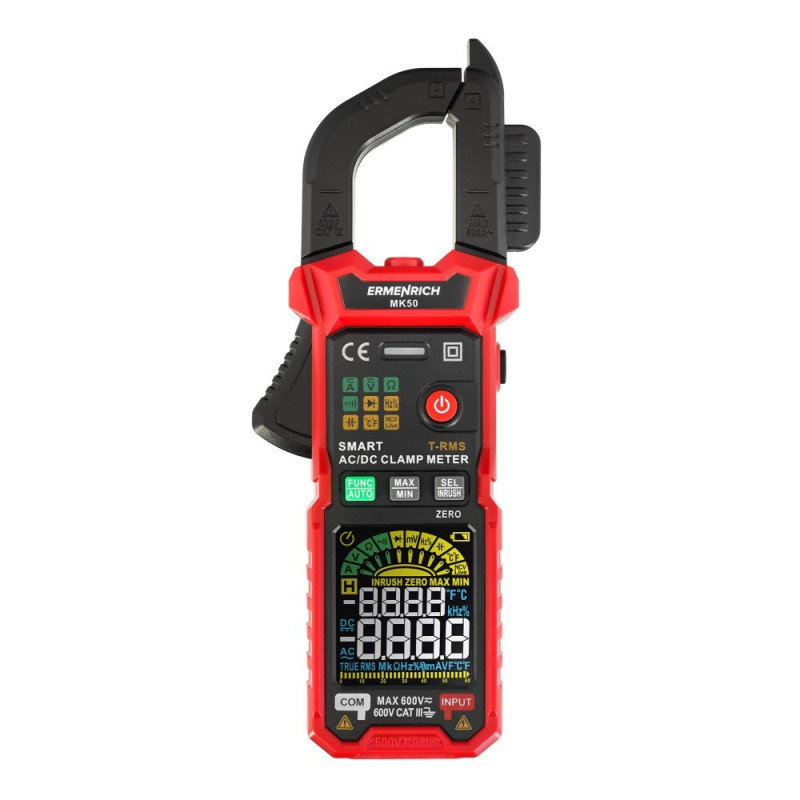

Using the Ermenrich Ping MK50 digital clamp meter, you can diagnose electrical equipment and measure the characteristics of electrical circuits. Both AC and DC currents are measured without breaking the circuit, and the device also works as a voltmeter, ohmmeter, thermocouple and duty cycle, frequency, and capacitance meter. Wide functionality, high measurement accuracy, and ease of operation make the Ermenrich Ping MK50 digital clamp meter an excellent choice for performing professional electrician tasks and maintaining the functionality of household electrical appliances and electrical wiring.

All of the measurements are carried out using the True RMS method, i.e. true root mean square value, which increases accuracy. When measuring DC current, you can use the DCA Zero function to compensate for residual magnetization. The device is intelligent, i.e., it can detect and measure the incoming signal in fully automatic mode: The Smart function works for continuity, voltage, and resistance measurements.

The continuity function is used for diagnostics; with its help, the electrical circuit is checked for continuity, and open and short circuits are detected. A separate test function is used to determine diode faults. Clamp meters can also work as a hazardous voltage detector: The NCV function is needed to find hidden wiring and electrical outlets. There is a phase detector.

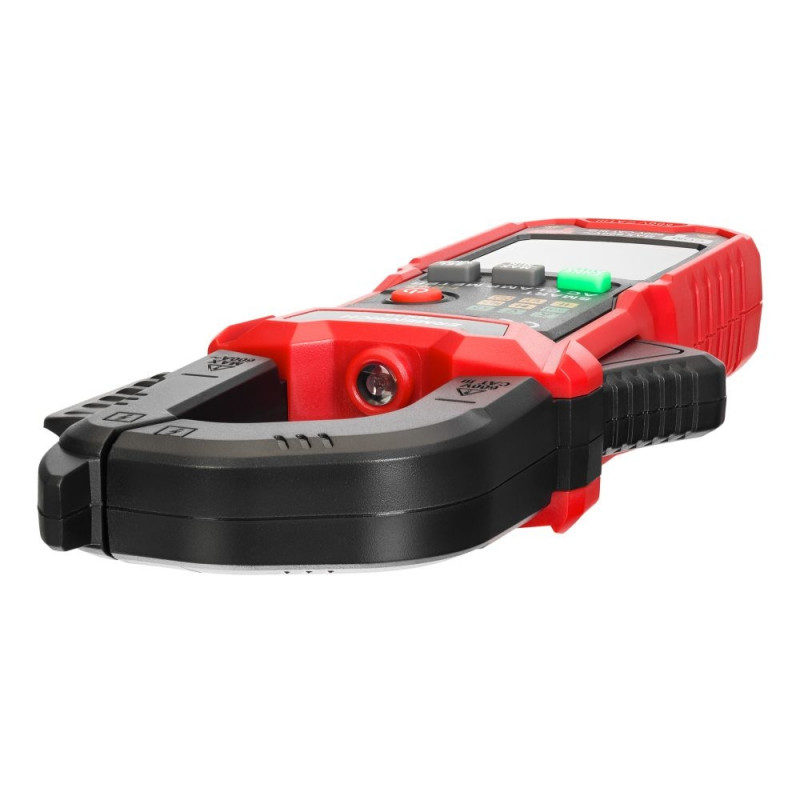

The device is compact, great for working in hard-to-access places, and it has a built-in flashlight. Powered by batteries.

Key features:

  • Measures AC and DC current
  • Additional measuring functions: ohmmeter, voltmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple
  • Smart function: automatic operation for continuity, resistance, and voltage measurement modes
  • NCV (hazardous voltage detection), continuity test (circuit continuity detection), diode testing, phase detector function

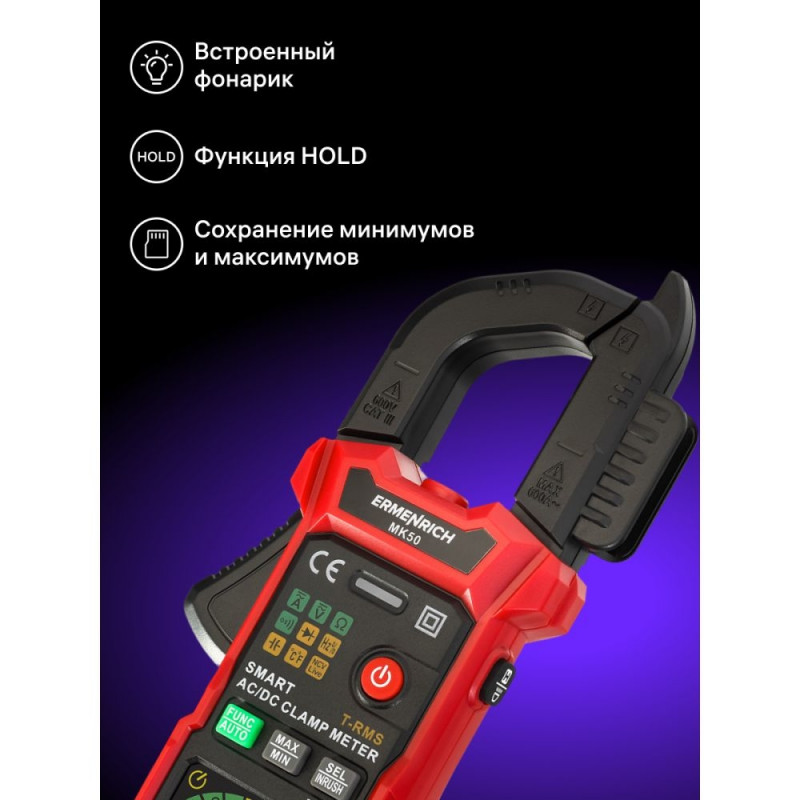

  • Data Hold function and minimums/maximums memory to simplify work with the measurement results
  • Built-in flashlight for working in dark rooms

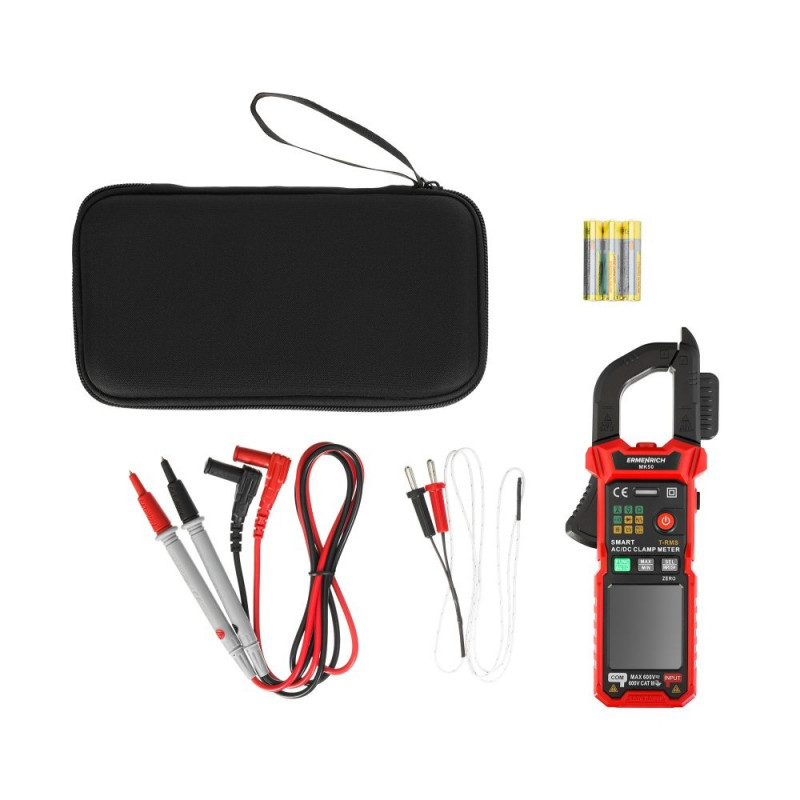

The kit includes:

  • Clamp meter
  • Probes

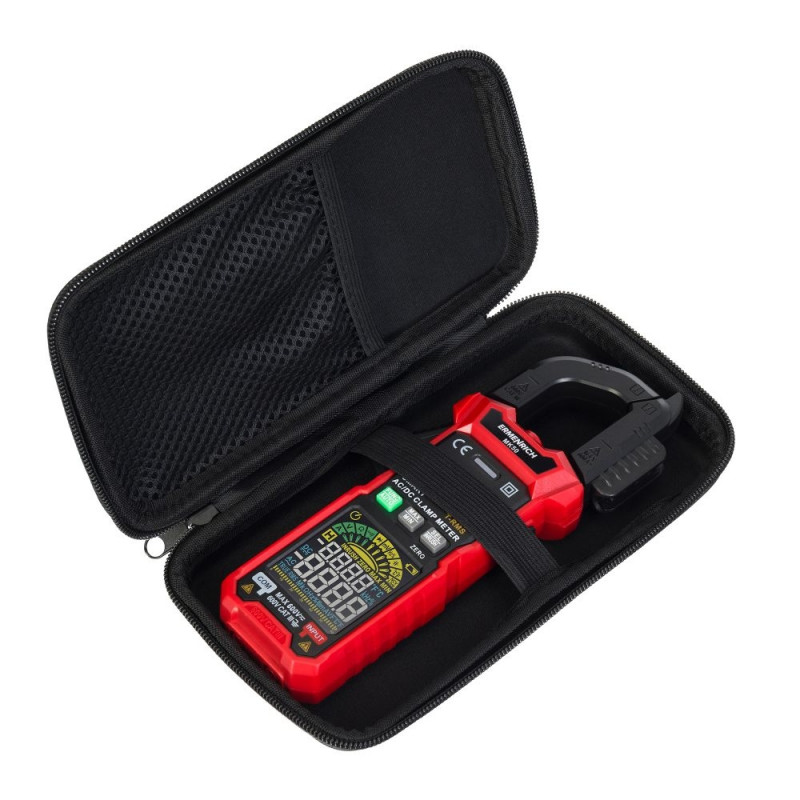

  • Pouch
  • User manual and warranty card
Brand Ermenrich
Warranty 5 лет
EAN 5905555017488
Package size (LxWxH) 22x11x4 cm
Shipping Weight 0.45 kg
Operating temperature range,°C -40 — 1000
Diodes test yes
Non-contact voltage detection (NCV) yes
True RMS yes
Hold function yes
Limit value function (Min/Max) yes
DCA Zero yes
Phase detector (Live) yes
Display counts 6000
Display backlight yes
Graphic scale yes
Flash light yes
Low battery status indicator yes
Auto power off yes
Selection of the measuring limit automatic
Basic functions voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple
DC voltage measuring limit 600mV/6V/60V/600V: error ±(0.5%+5)
AC voltage measuring limit 600mV/6V/60V/600V: error ±(0.8%+5)
DC current measuring limit 60/600A: error ±(2.5%+5)
AC current measuring limit 60/600A: error ± (2.5%+5)
Resistance measuring limit 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(1.0%+5)
Capacity measuring limit 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF: error ±(4.0%+5)
Frequency measurement limits 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz: error ±(1.0%+3)
Duty cycle measurement range 1–99%: error ±(3.0%+3)
Automatic recognition function (Smart) + (only for DC and AC voltage, resistance and continuity)
Overvoltage category CAT III 600V
Safety standards EN61010-1,-2-030; EN61010-2-033; EN61326-1
Continuity test +, combined with resistance measurement mode (600Ω)

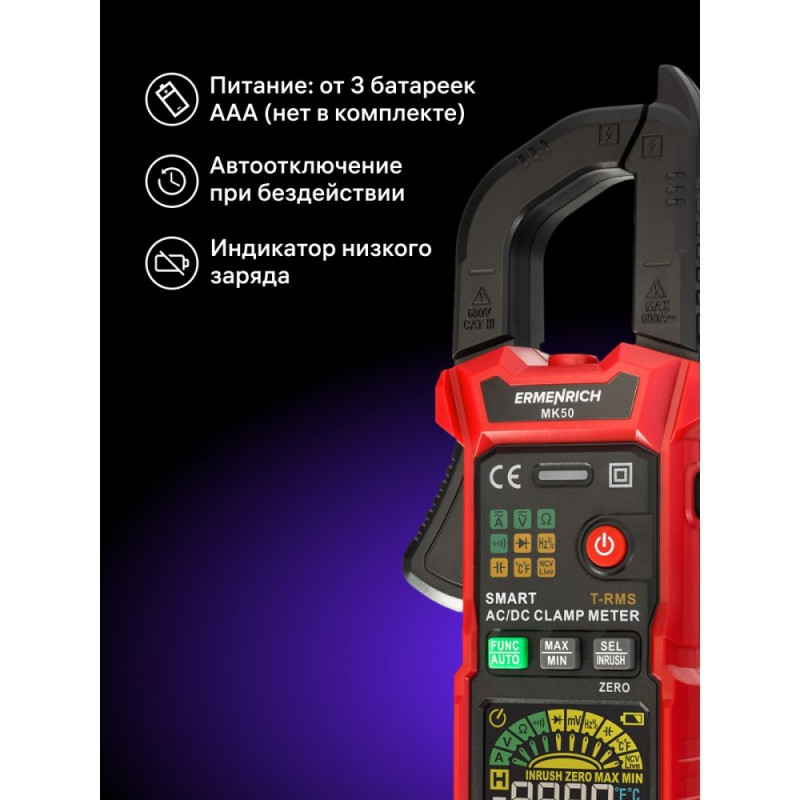

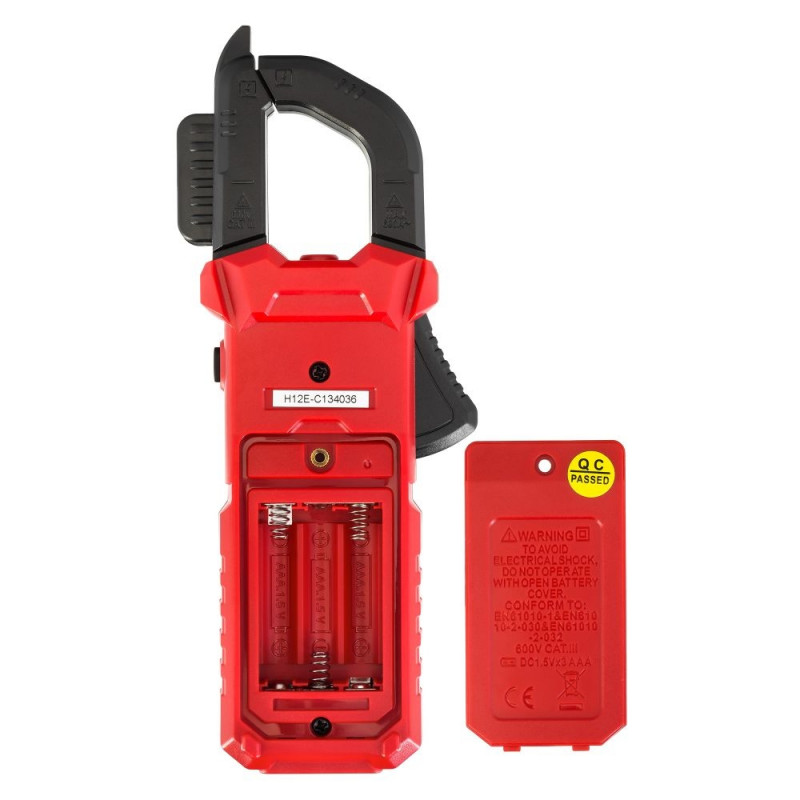

Power supply 3 AAA batteries (not included)

*Can be put into parcel-machine Истина

Product codes

EAN
5905555017488
