Ermenrich NetGeeks NU40 Optical Multimeter

79,99 €

Monthly payment starting from 2,39 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

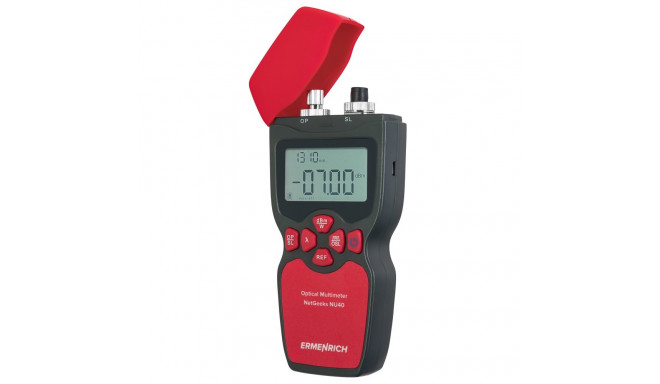

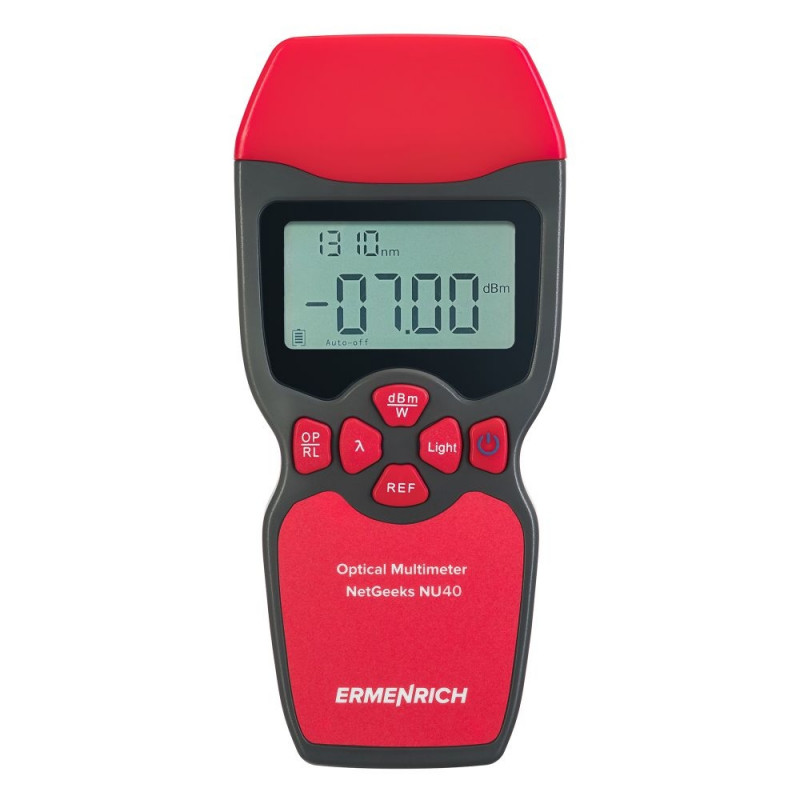

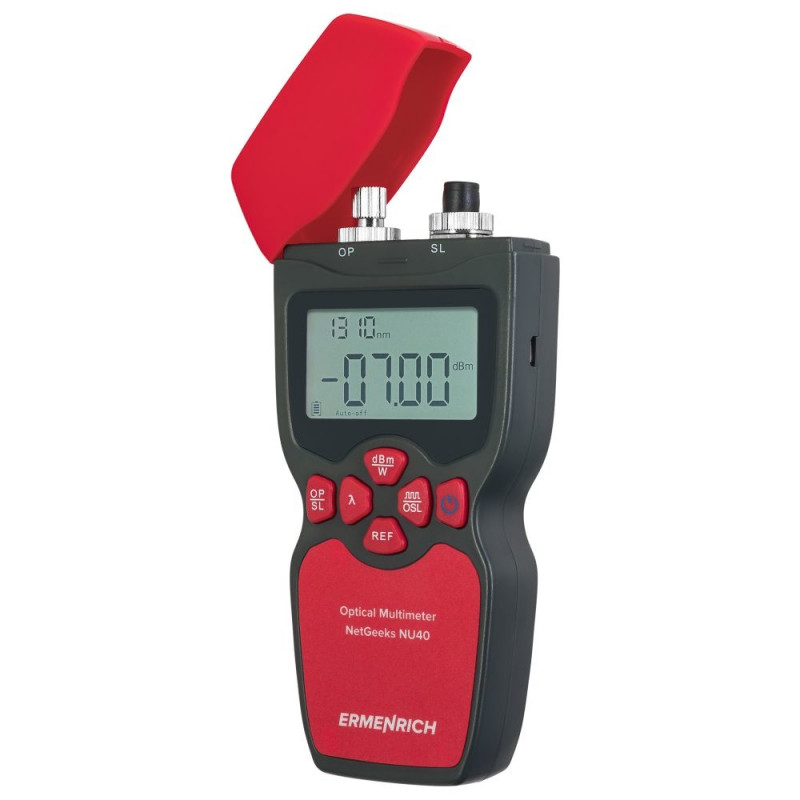

Optical multimeter, or optical power meter, Ermenrich NetGeeks NU40 – an essential tool for professionals who install and maintain fiber-optic communication lines (FOCL). The device allows you to measure the absolute power, find losses between two points in the line, locate faults, and indicate them with a red light (VFL function). There is a light source test function.

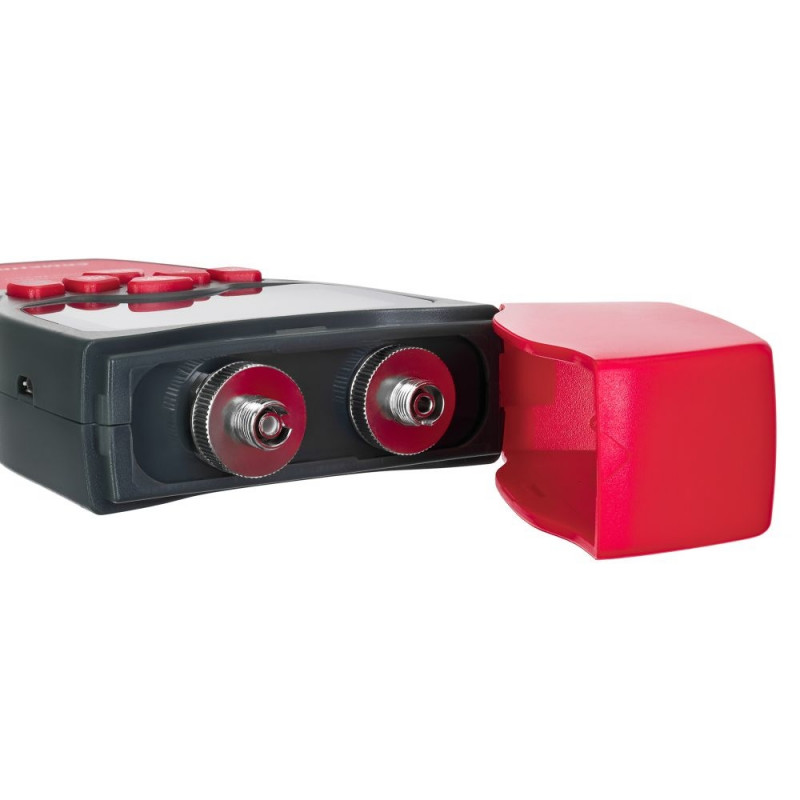

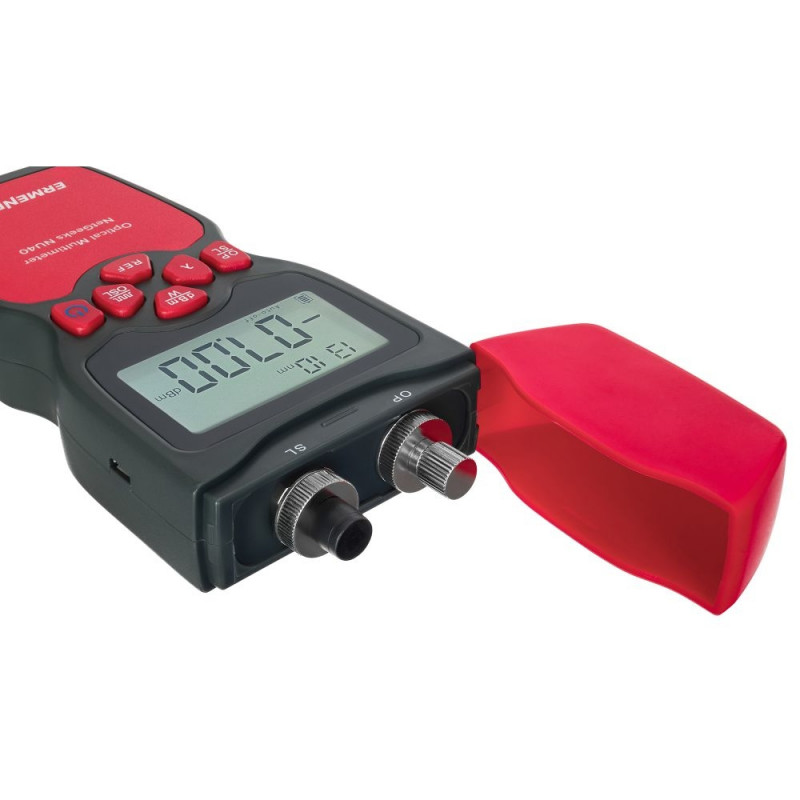

The device is equipped with FC, SC, ST connectors and can work with single-mode and multi-mode cables. You can adjust and select the operating mode with the buttons. The measurements are displayed on the built-in screen, which has a backlight for low-light conditions. The multimeter is powered by standard batteries (not included).

Key features:

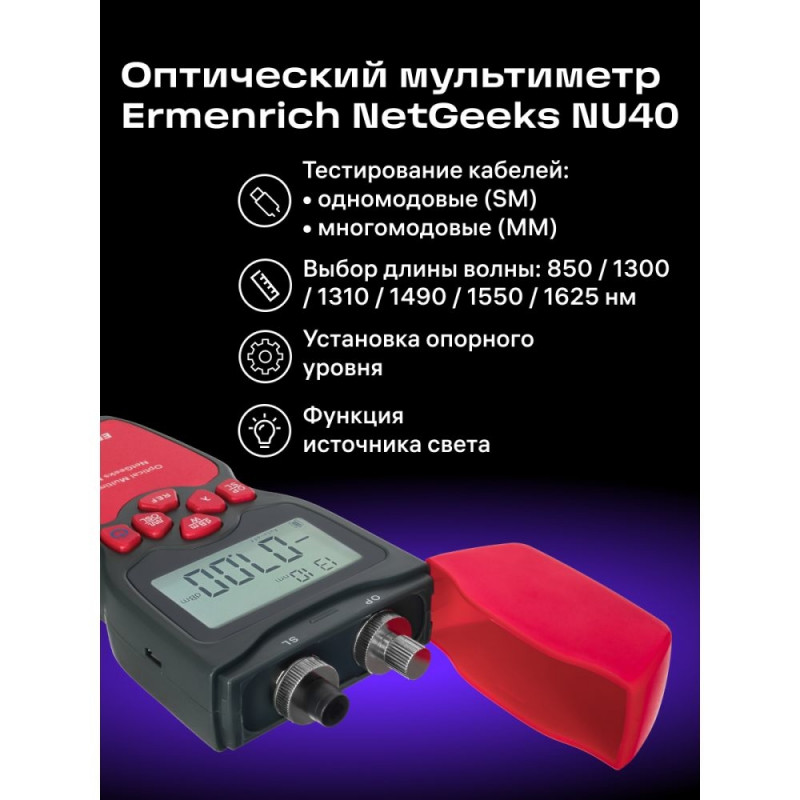

  • Supports single-mode and multi-mode cables, FC, SC, ST connectors
  • Measuring absolute and relative optical power, six wavelengths
  • Light source test function, two wavelengths
  • VFL function – red light indicates problem areas in the cable
  • Powered by standard batteries, auto-off function to save battery power

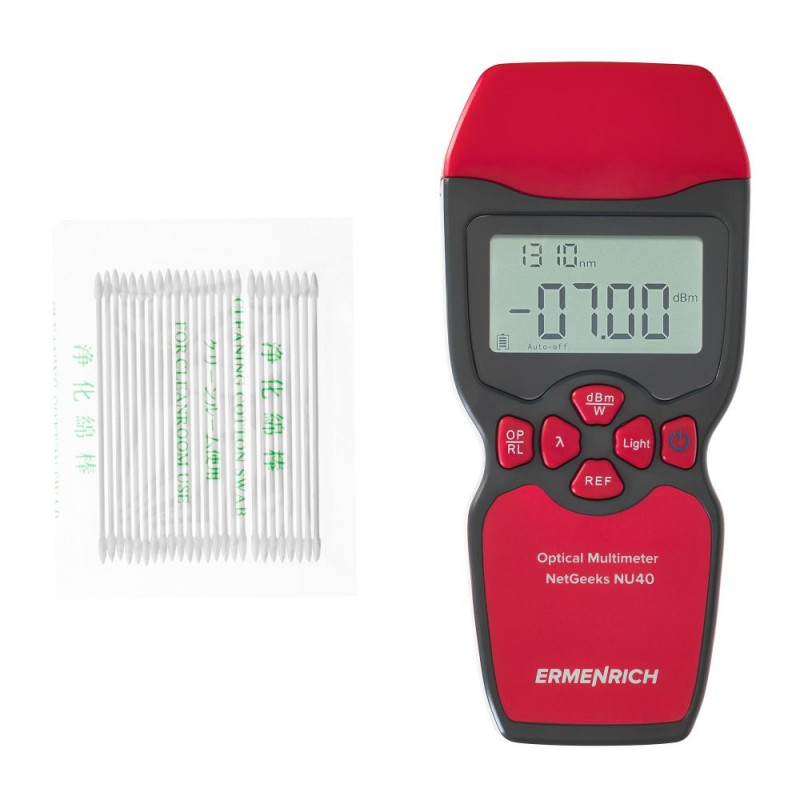

The kit includes:

  • Transmitter

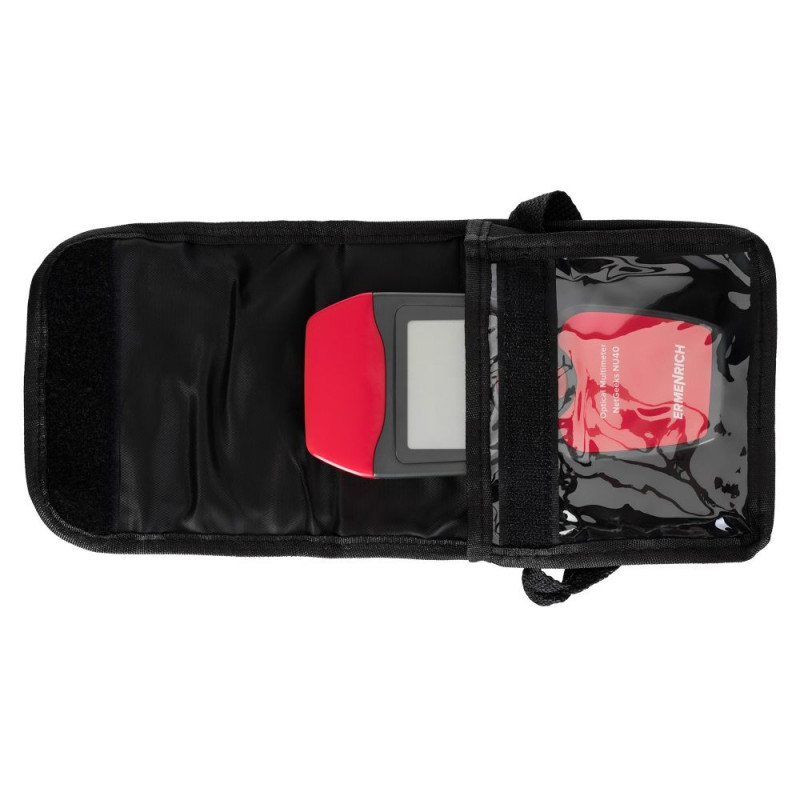

  • Pouch
  • Cotton swabs
  • User manual and warranty card
Brand Ermenrich
Warranty, years 5
EAN 5905555017037
Package size (LxWxH), cm 6x19x15.5
Shipping Weight, kg 0.43
Optical power meter wavelength, nm 850/1300/1310/1490/1550/1625
Fiber connector type FC, SC, ST
Maintained cable type single-mode (SM), multimode (MM)
Units of measurement dB, dBm, W

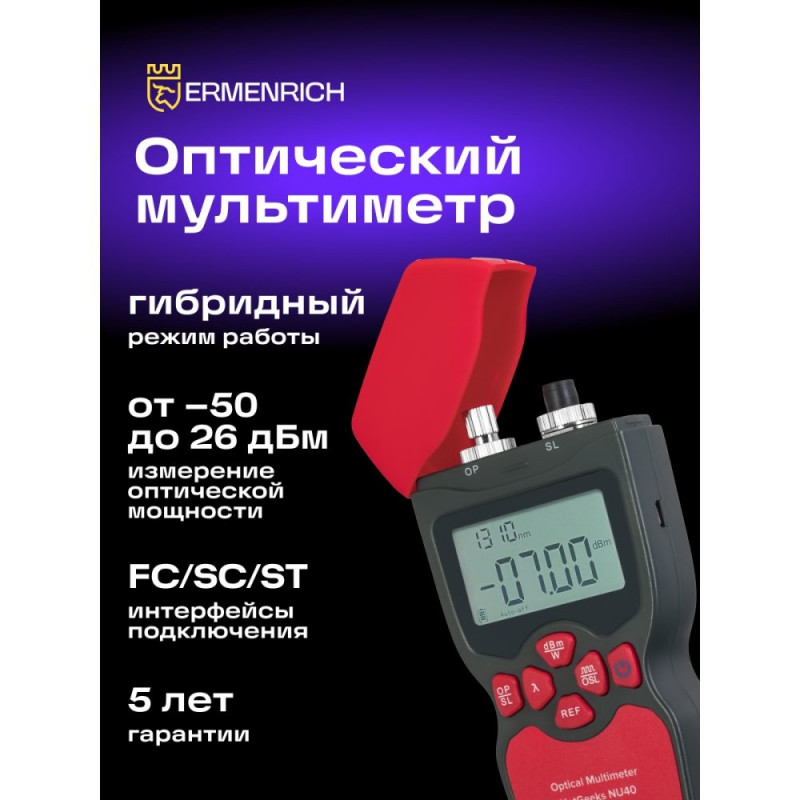

Power detection range, dBm -50 — 26
Option to set the reference level yes
Visual fault locator (VFL) yes
Visual fault locator (VFL) wavelength, nm 650
Light source test yes
Light source wavelength, nm 1310/1550
Display FSTN LCD
Display backlight yes

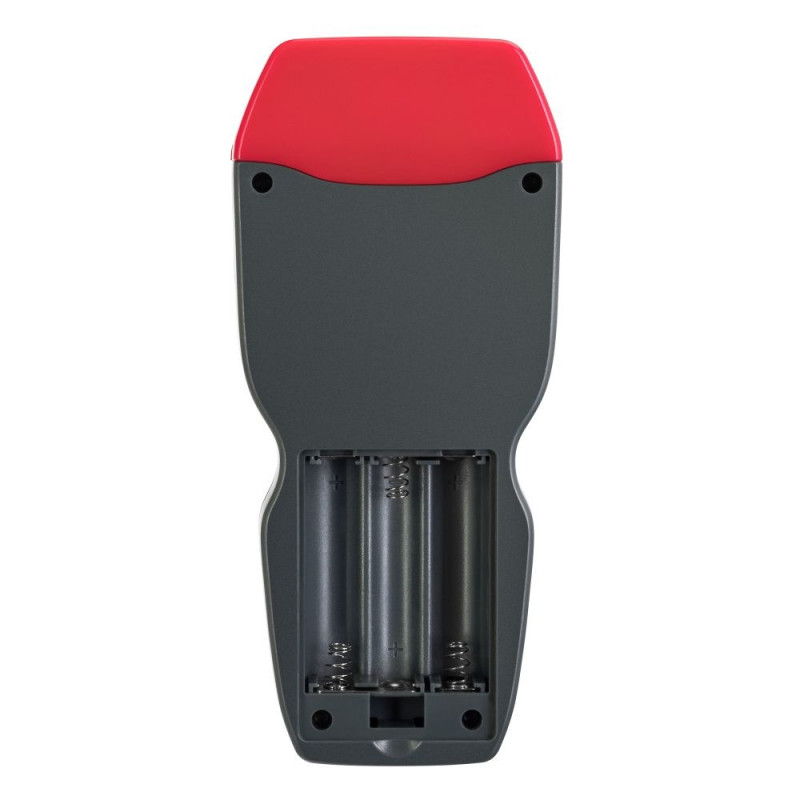

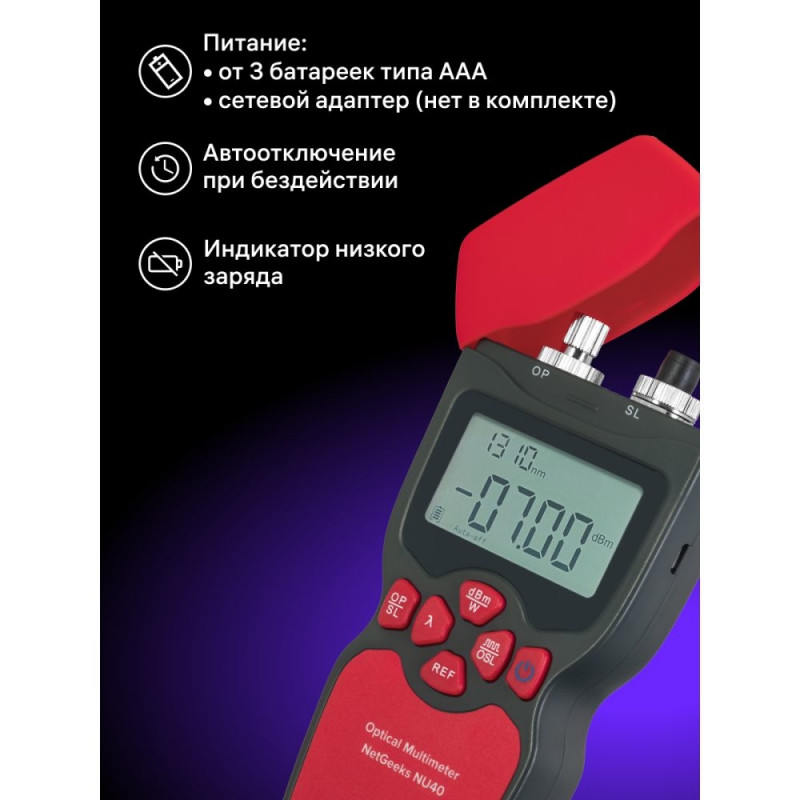

Power supply 3 AAA batteries (not included)
Low battery status indicator yes
Auto power off yes
Operating temperature range,°C -10 — 60
Operating humidity range, % 20 — 70
Type optical multimeter

*Can be put into parcel-machine Истина

Extended warranties and insurance:

  • Additional warranty (2 years) - 19,99 €
  • Additional warranty + insurance (2 + 1 year) - 29,99 €
  • Insurance (1 year) - 19,99 €
  • Insurance (2 years) - 29,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
0.36 kg
Package width
15.5 cm
Package height
6 cm
Package length
19.5 cm

Product codes

EAN
5905555017037
