Ermenrich NetGeeks NP40 Digital Cable Tracker

Addional discount of 6%
will be applied in shopping cart
(min. 10€ purchase)
79,99 €

Monthly payment starting from 2,39 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

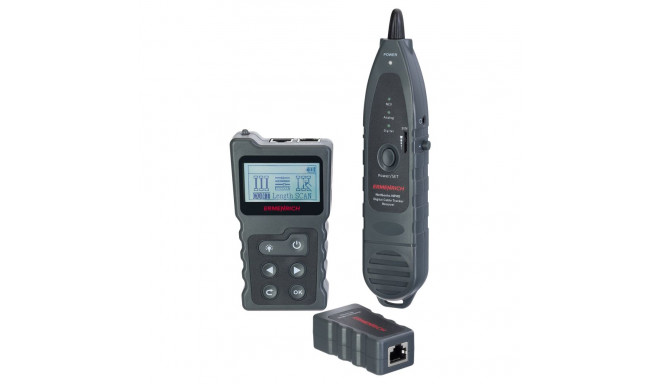

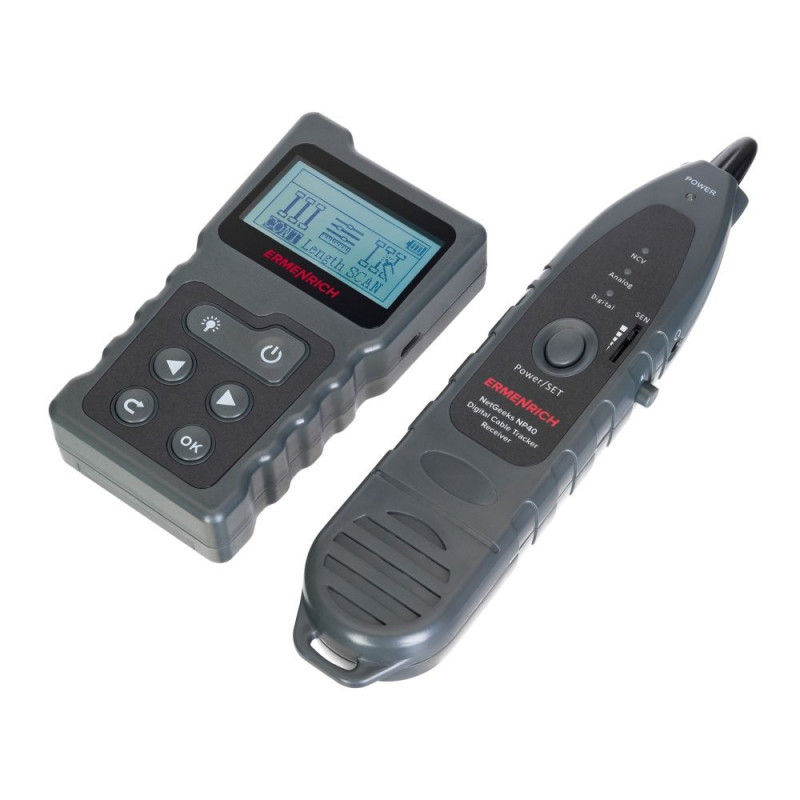

The Ermenrich NetGeeks NP40 multifunctional is a digital cable tester that is designed for tracing twisted pair and telephony, testing lines for faults and installation errors, measuring cable lengths and the distance to open or short circuits. The device will become an effective tool for technicians deploying and maintaining a computer or telephone network in an office, at a facility, or at home.

In the base mode of operation, the device can check the wires within the cable for damage: open circuits, short circuits, crossed pairs. In the cable length measurement mode, you can measure the total cable length within 200 meters as well as the distance to the break. TDR measurements, high accuracy, and calibration can be performed, if needed.

The Port Flash function can be used to find the exact port on the network switch or router to which the target cable is connected. The PoE test identifies the PSE type and detects midspan/endspan. The device also measures voltage and polarity. The tester receiver can be set to NCV mode for non-contact voltage detection.

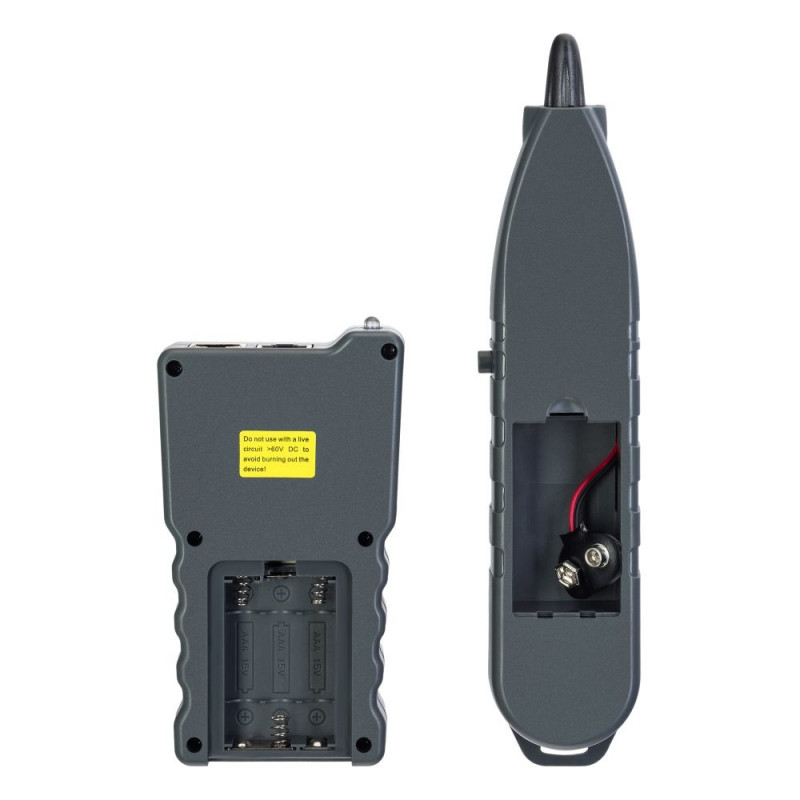

The transmitter and receiver are powered by batteries (not included).

Key features:

  • Cable tracing, testing lines for faults and installation errors
  • Cable length measurement with the TDR technique (pulse reflectometry)
  • Measuring the distance to open or short circuits
  • PoE test with voltage measurement, identification of a PSE type, midspan/endspan identification
  • Port Flash and NCV functions, powered by batteries

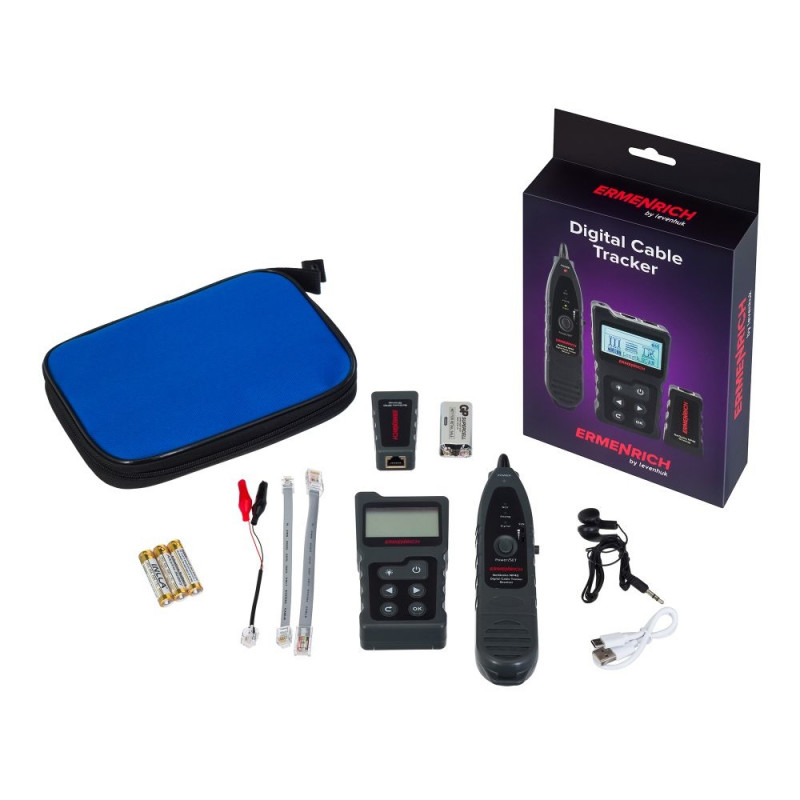

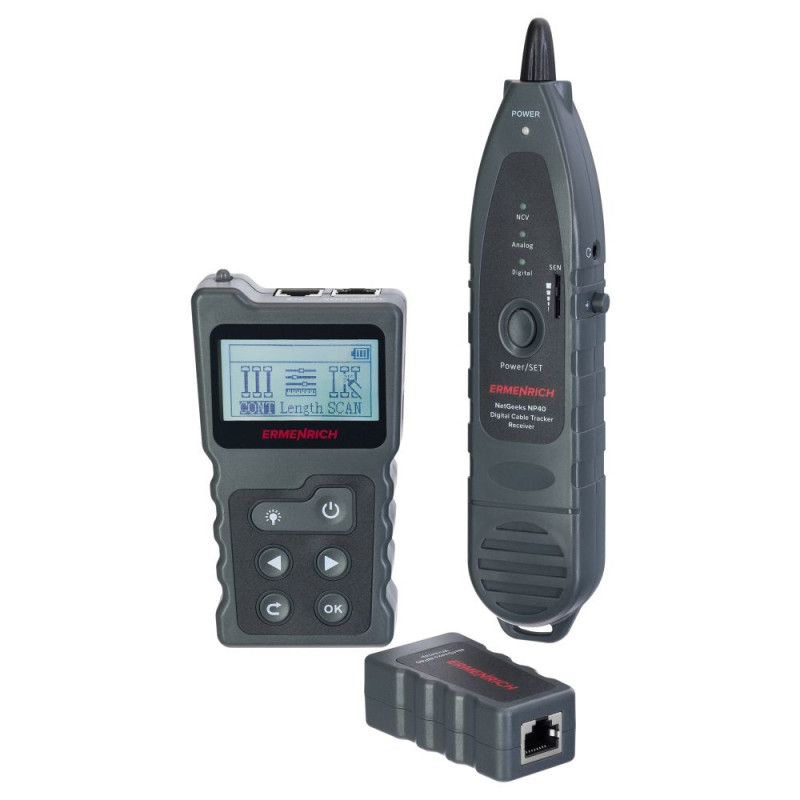

The kit includes:

  • Transmitter
  • Receiver

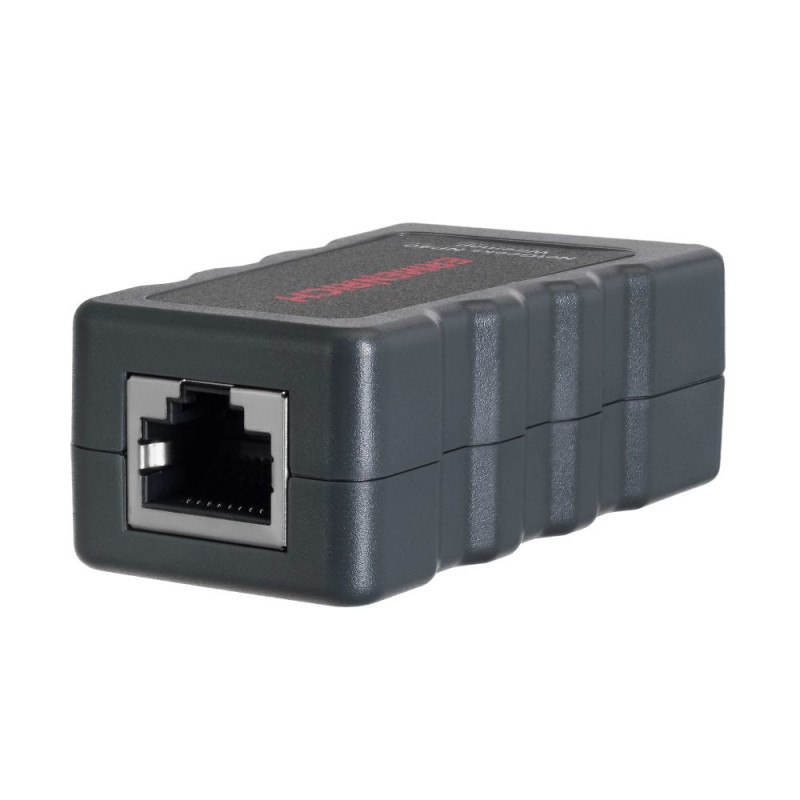

  • Remote unit
  • RJ11 patch cord
  • RJ45 patch cord
  • Alligator clip
  • DC cable
  • Earbuds
  • Type-C USB cable

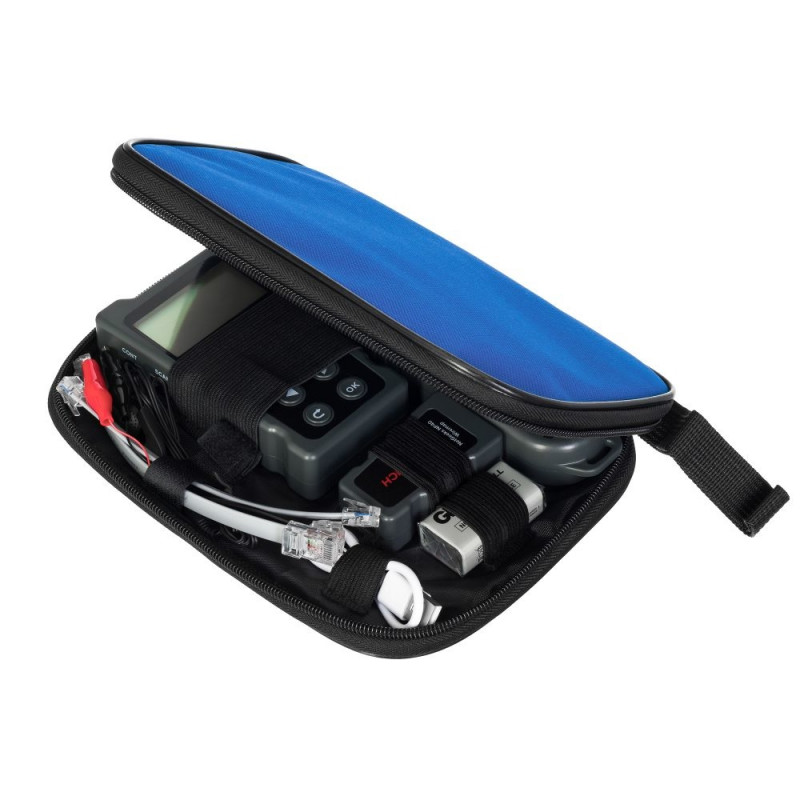

  • Carry bag
  • User manual and warranty card
Brand Ermenrich
Warranty, years 5
EAN 5905555016948
Package size (LxWxH), cm 23x16.5x4.5
Shipping Weight, kg 0.43
Cable length measurement yes
Cable tracing yes
PoE test yes
Voltage polarity detection yes
Measuring range, m 2.5 — 200
Error 3 (±0.5m/1.6ft)
Measuring the distance to open circuits yes
Measuring the distance to short circuit yes
=== Delimiter === PoE test
Midspan/endspan identification yes
Operating voltage range (DC), V 5 — 60
Display resolution, px 128х64
Display backlight yes

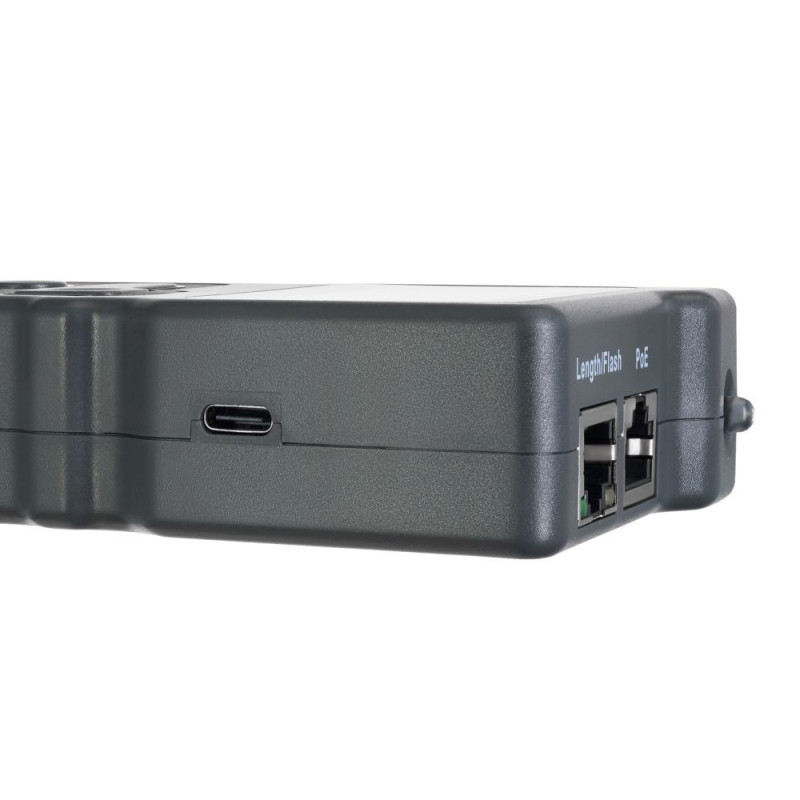

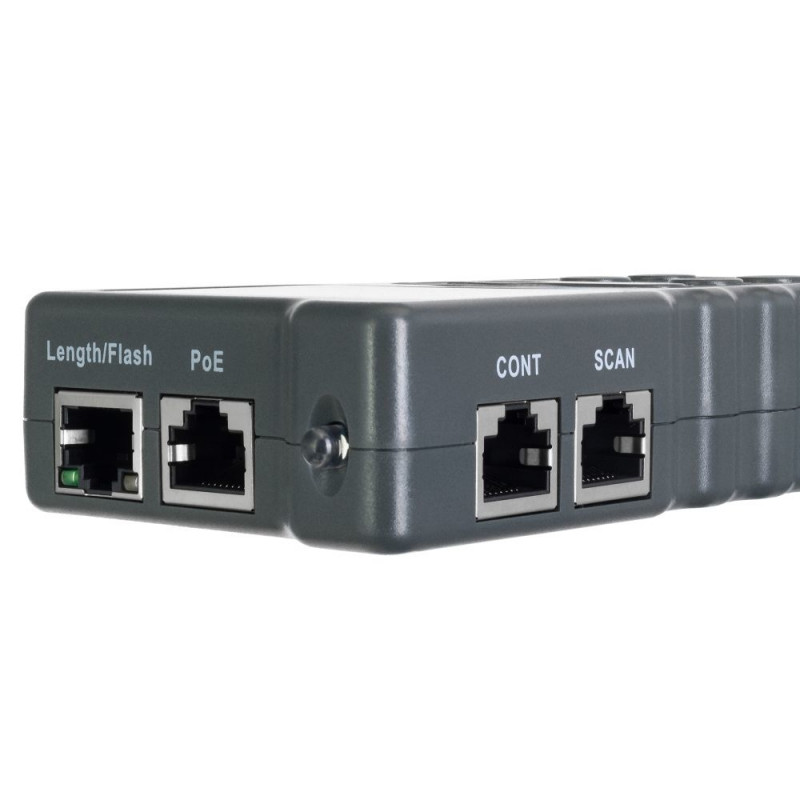

Ports PoE, Scan, Length/Flash, Cont
Tracing cable types telephone, common wires, STP/UTP (CAT5E, CAT6, CAT6A) network cable
Testing cable types STP/UTP (CAT5E, CAT6, CAT6A) network cable
Maximum length of the tested cable, m (ft) 600 (1970)
Cable testing + (open circuits, short circuits, crossed pairs, reversed pairs, split pairs, crosstalk)
Port flash function +, (full duplex/half duplex, auto-nego/non-auto-nego, 10/100/1000Mbit/s)
Measuring method Time-domain pulse reflectometry (TDR)
Units of measurement meters/yards, feet
Calibration +
Minimum cable length for calibration, m (ft) 10 (32.8)
Calibration error, % 2 (±0.5m/1.6ft)
Power source equipment (PSE) type test standard (IEEE 802.3at/af)/non-standard
Maximum operating current, mA <150
Protection input voltage: 48V, current: 5mA
Display LCD
Power supply charging via a USB Type-C cable (included), 3 rechargeable AAA batteries (not included)
Low battery status indicator yes
Auto power off 15 min, 60 min, 30 min
Operating temperature range,°C −10… +60 (14… 140)
Operating humidity range, % 20…70
Ports RJ45, earbuds
Adjustable sensitivity yes

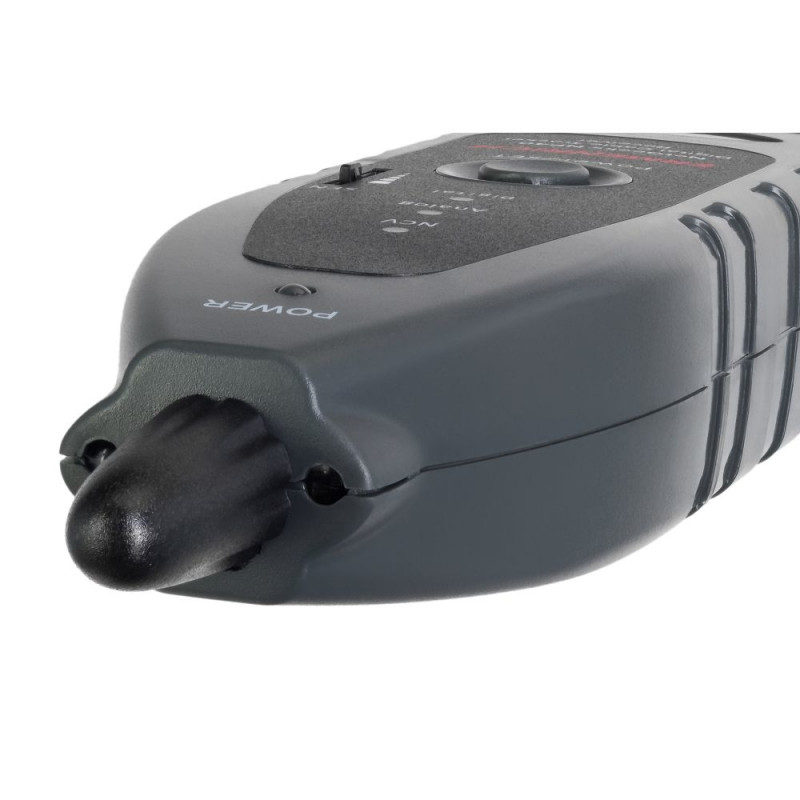

Non-contact voltage detection (NCV) yes

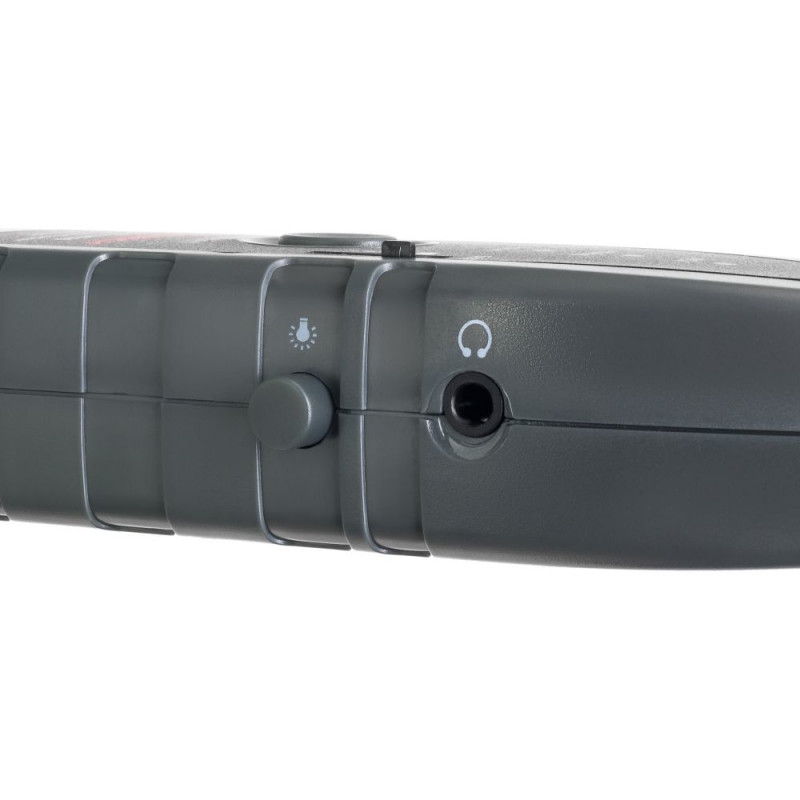

Flash light yes
Maximum operating current, mA <100
Power supply 9V battery (not included)
Operating temperature range,°C −10… +60 (14… 140)
Operating humidity range, % 20…70

*Can be put into parcel-machine Истина

Dimensions and weights

Gross weight
0.52 kg
Package width
16.5 cm
Package height
5 cm
Package length
23 cm

Product codes

EAN
5905555016948
