Ermenrich Ping MK70 Digital Clamp Meter

59,99 €

Monthly payment starting from 1,79 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

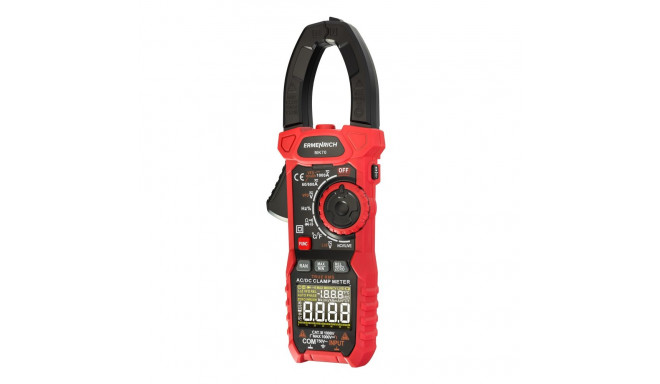

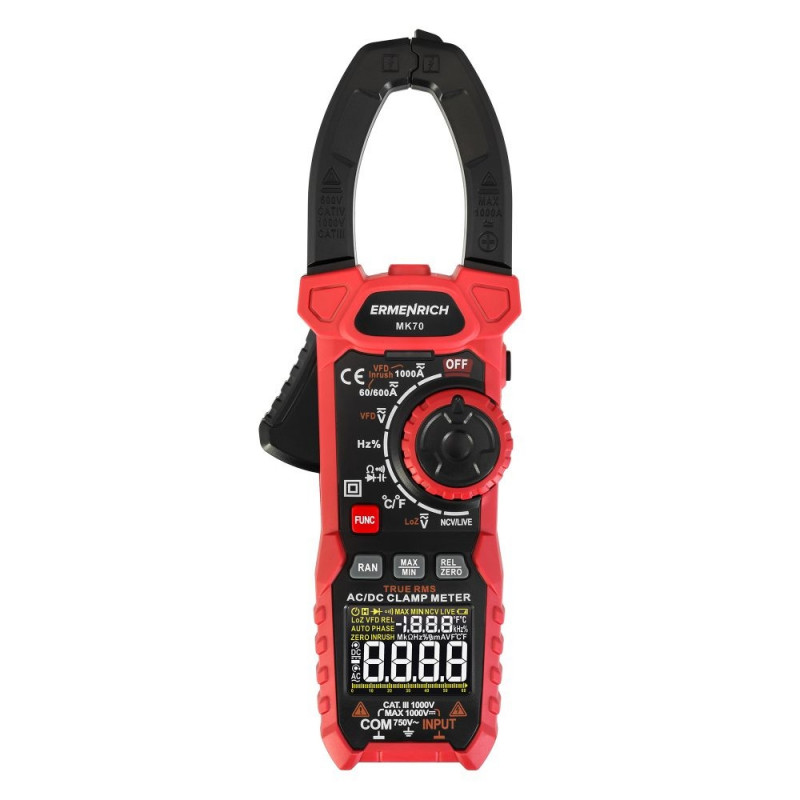

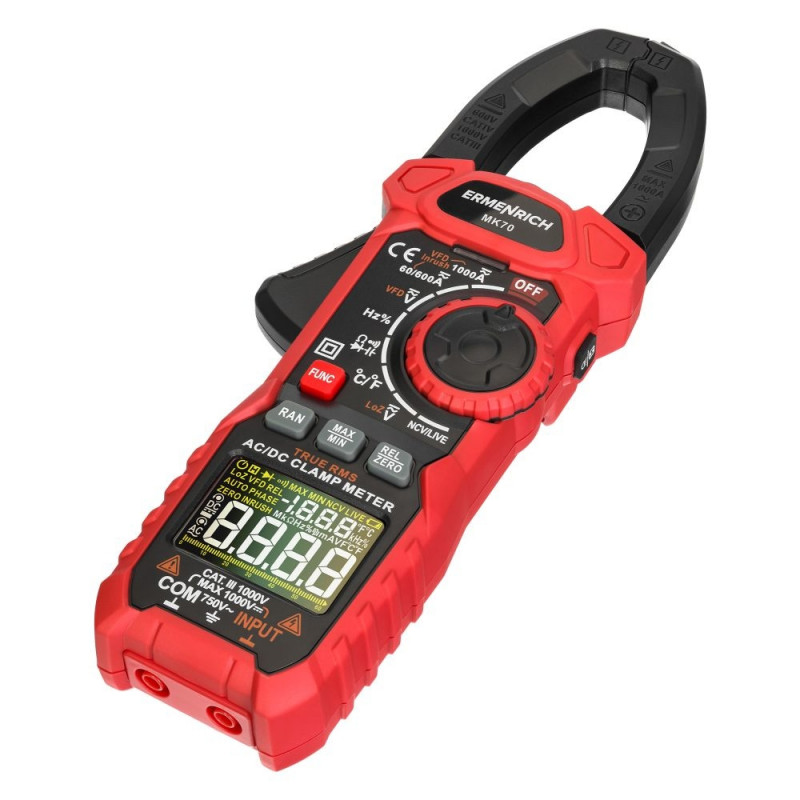

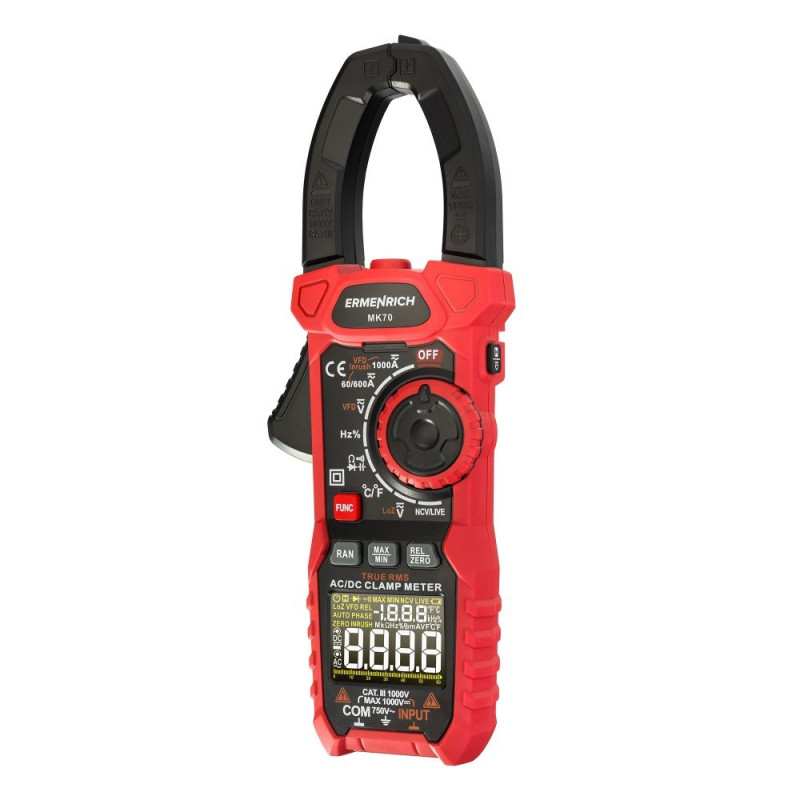

Ermenrich Ping MK70 is a clamp meter with DC current measurement function. They also measure alternating current and combine the functions of 6 more measuring instruments: ohmmeter, voltmeter, frequency meter, capacitance meter, duty cycle meter, and thermocouple-based temperature sensor. The high reliability of measurements is guaranteed by a calculation based on the true root mean square value (True RMS). The wide functionality covers the needs of not only the hobby handyman but also the professional electrician.

The digital clamp meter is also used for diagnosing electrical networks for open and short circuits, to test diodes for faults, and detect hidden wiring (NCV function). This model also has advanced functions: inrush current measurement, frequency converter, low impedance mode (low resistance voltage measurement), DC zero setting (DCA Zero).

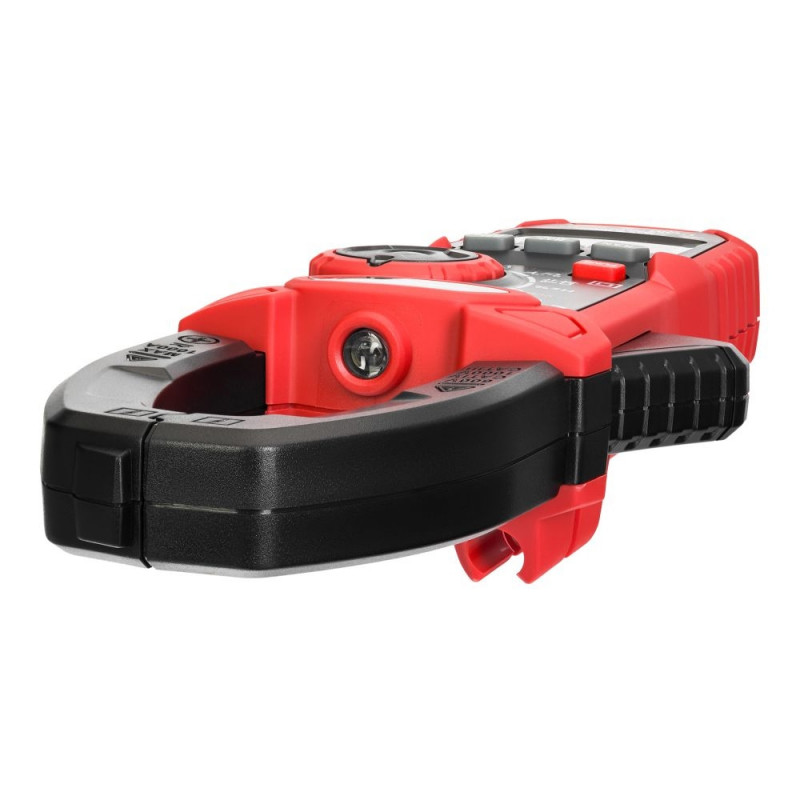

The device has auxiliary functions that increase comfort and simplify routine operations: holding readings on the screen (Hold), storing limit values (Min/Max), relative measurements through reference values (REL). In addition, the digital clamp meter is equipped with a built-in flashlight and has a convenient display with an easy-to-read indicator and a graphic scale.

The device runs on standard batteries; when the battery is low, a notification appears on the screen. The auto-off function helps the batteries last longer without needing to be replaced.

Key features:

  • Digital clamp meter of the True RMS class with measurement of alternating, direct and inrush current
  • Measurement of DC and AC voltage, resistance, frequency, capacitance, duty cycle, temperature
  • Electrical continuity diagnostics, NCV function for locating outlets and live wires, diode testing for faults, frequency converter, low resistance voltage measurement
  • Convenient functions for working with measurement results: relative measurements using reference values, holding readings on the screen, recording minimums and maximums
  • Flashlight, auto-off function, battery-powered

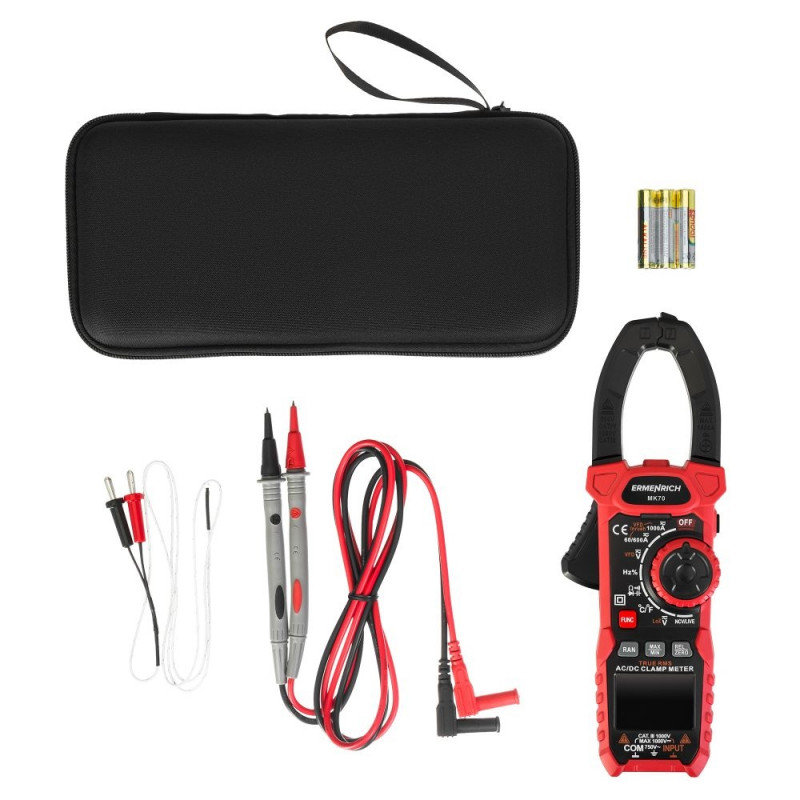

The kit includes:

  • Clamp meter
  • Probes

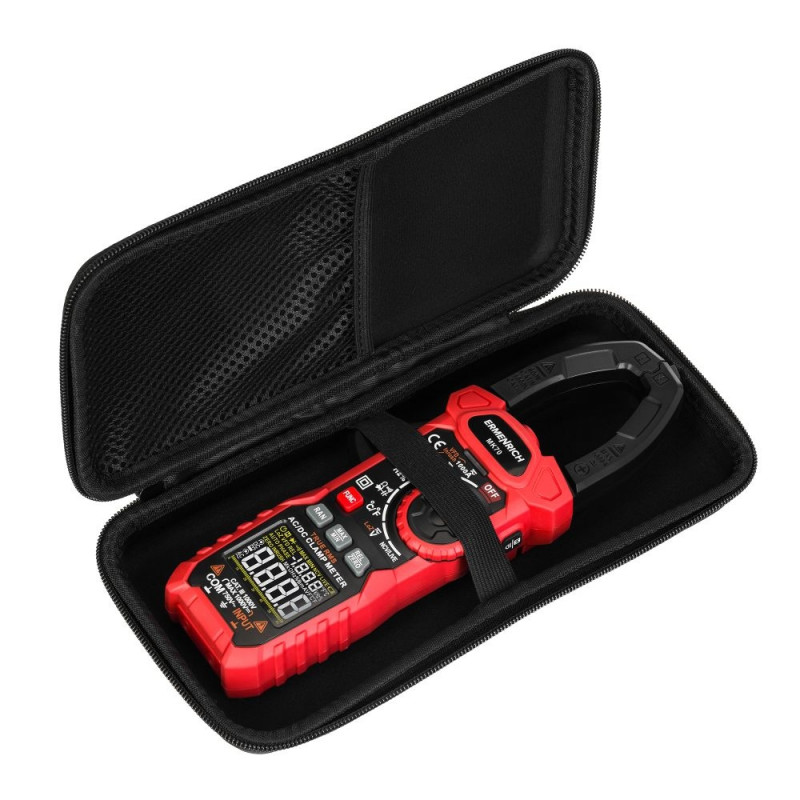

  • Pouch
  • User manual and warranty card
Brand Ermenrich
Warranty 5 лет
EAN 5905555017495
Package size (LxWxH) 28x13x6 cm
Shipping Weight 0.65 kg
Diodes test yes
Non-contact voltage detection (NCV) yes
True RMS yes
Hold function yes
Limit value function (Min/Max) yes
Continuity test yes
Relative value measurement (REL) yes
DCA Zero yes
Low impedance (LowZ) voltage measurement yes
Frequency converter (VFD) yes
Inrush current measurement (INRUSH) yes
Selection of the measuring limit auto, manual
Basic functions voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple
DC voltage measuring limit 600mV/6V/60V/600V/1000V: error ±(0.5%+3)
AC voltage measuring limit 600mV/6V/60V/600V/750V: error ±(0.8%+3)
DC current measuring limit 60/600/1000A: error ±(2.5%+5)
AC current measuring limit 60/600/1000A: error ±(2.5%+5)
Resistance measuring limit 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(0.8%+3)
Capacity measuring limit 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF: error ±(3.0%+3)
Frequency measurement limits 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz: error ±(0.5%+5)
Duty cycle measurement range 1–99%: error ±(1.0%+2)
Overvoltage category CAT III 1000V, CAT IV 600V
Display counts 6000
Display backlight yes
Flash light yes
Safety standards EN61010-1,-2-030; EN61010-2-033; EN61326-1
Operating temperature range,°C −40… +1000°C (−40… +1832°F): error ±(1.0%+2)

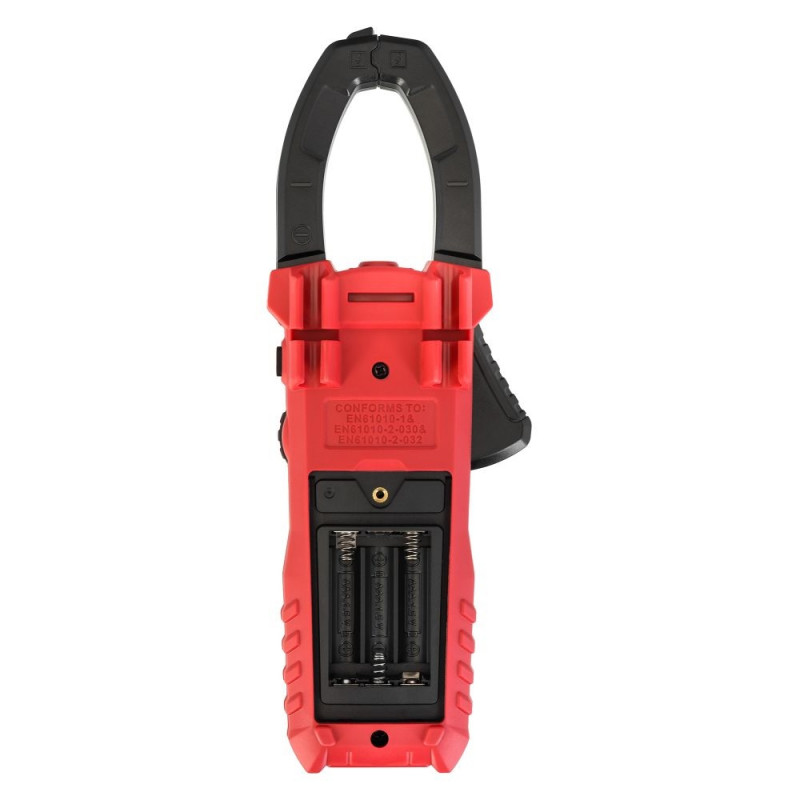

Power supply 3 AAA batteries (not included)
Low battery status indicator yes
Auto power off yes

*Can be put into parcel-machine Истина
