Ermenrich Ping SM150 Underground Wire Locator

211,99 €

Monthly payment starting from 7,23 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

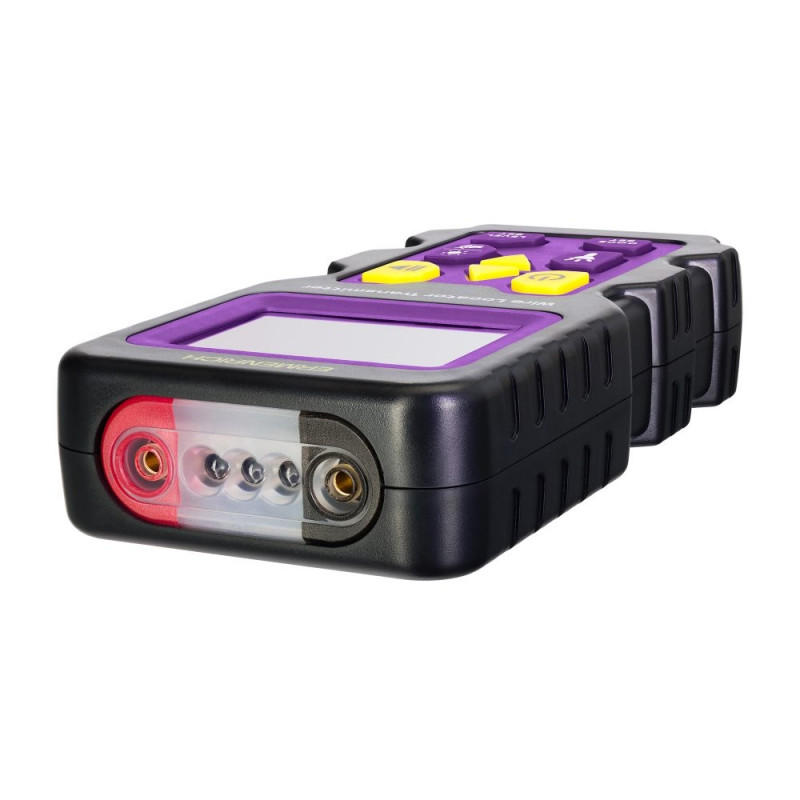

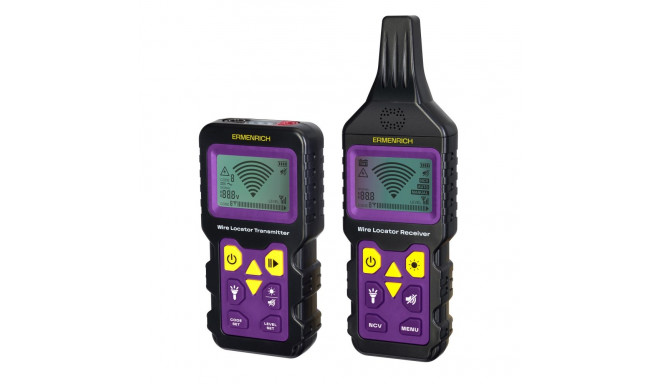

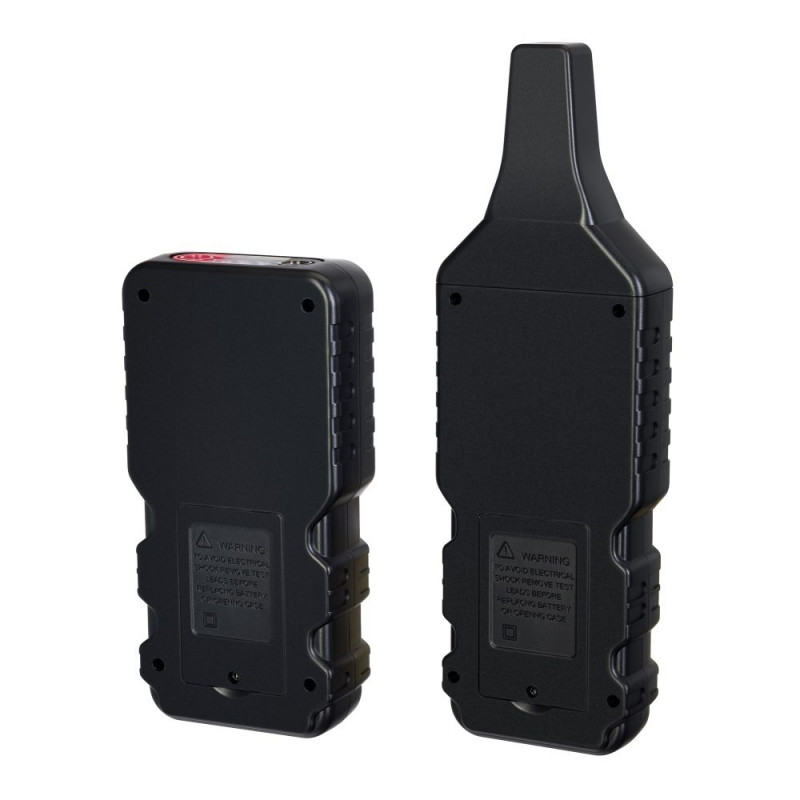

The Ermenrich Ping SM150 Underground Wire Locator includes a transmitter, receiver, and additional accessories. It is used for the inspection and maintenance of cable and electrical networks, water and gas pipelines buried in the ground or located in the walls or footings of buildings. The device can find fuses, hidden wires, and outlets as well as switchboards that have been accidentally covered by plaster during renovations.

The detector can locate not only de-energized cables, but also live cables (maximum voltage is 400V). The inspection of cable lines allows you not only to identify cable wiring patterns, but also to test cables for faults: short circuits and open circuits. The device also has a voltmeter function and can detect DC and AC voltages.

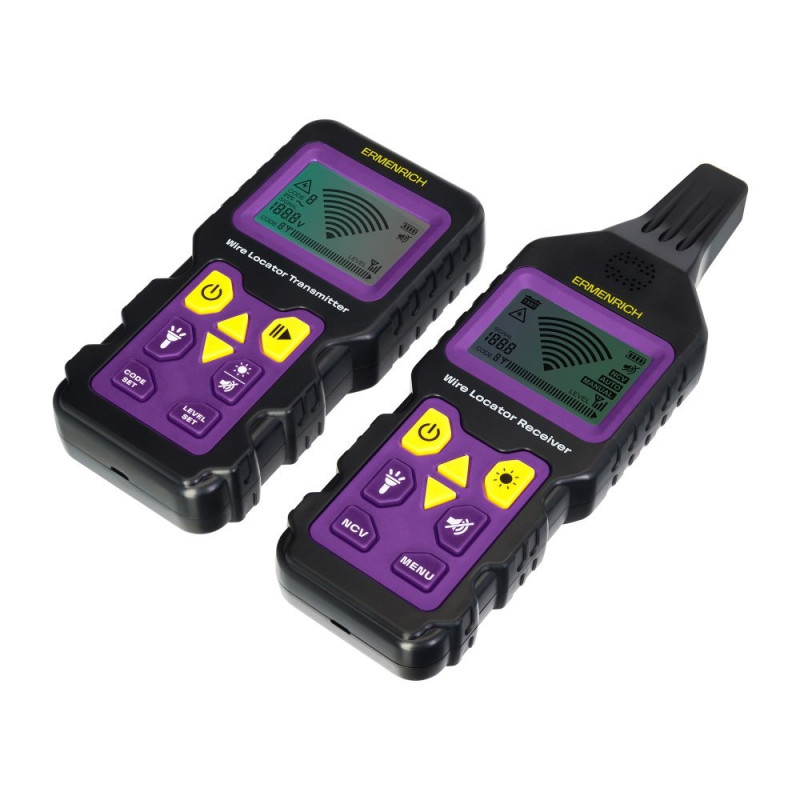

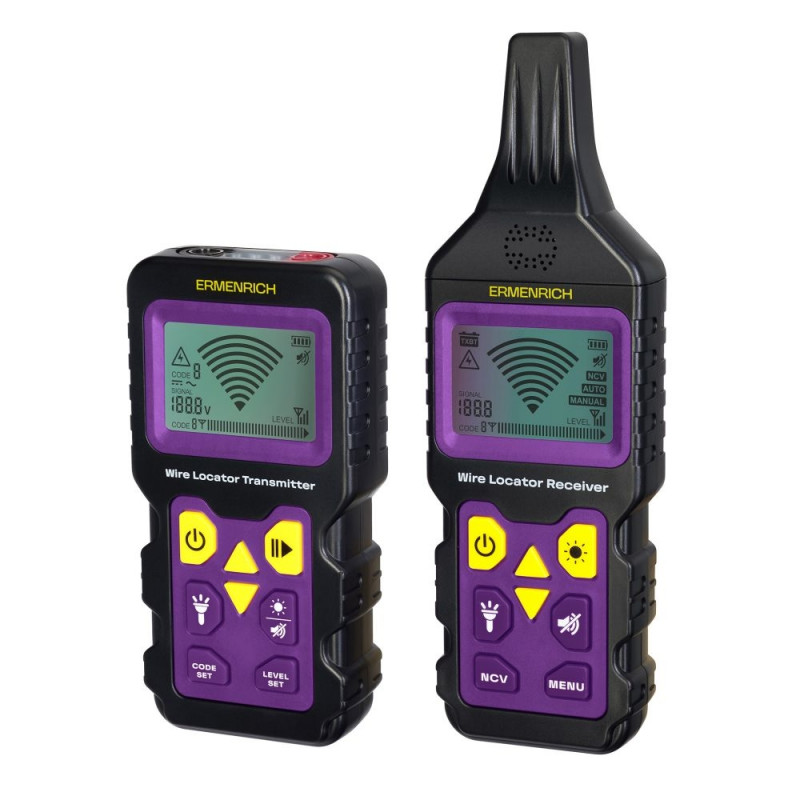

Both the transmitter and receiver have built-in backlit displays and easy push-button operation. Both gadgets are powered by rechargeable batteries. The auto-off function saves battery power and extends the operation time of the devices.

Key features:

  • Locating cables and pipes buried in the ground or hidden in walls
  • For de-energized or energized cables
  • Locates gas and water pipes, fuses, and switchboards
  • Test cable for faults: short circuits and open circuits

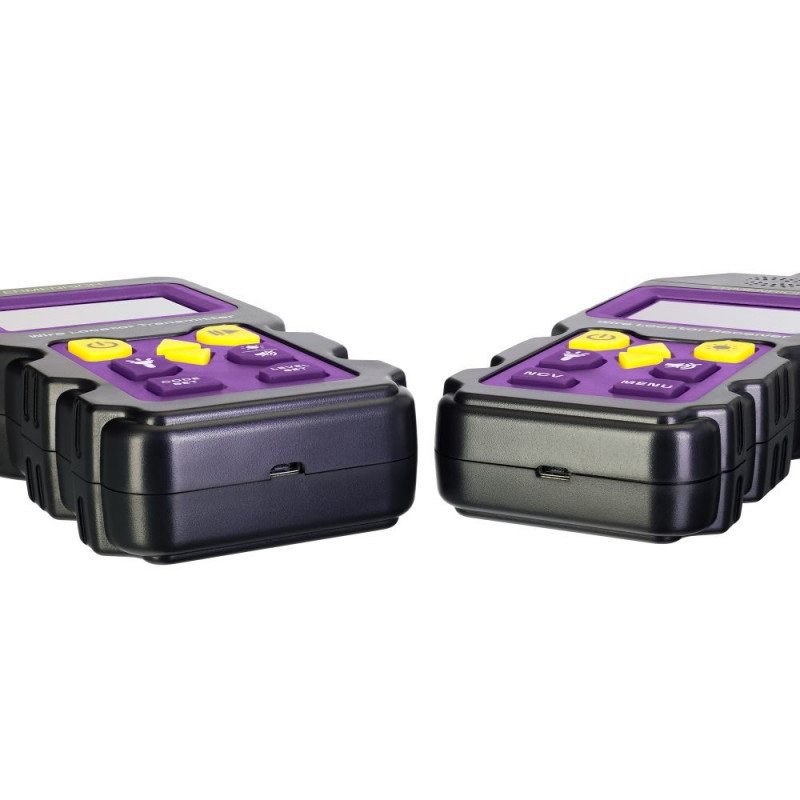

  • The receiver and transmitter are powered by rechargeable batteries

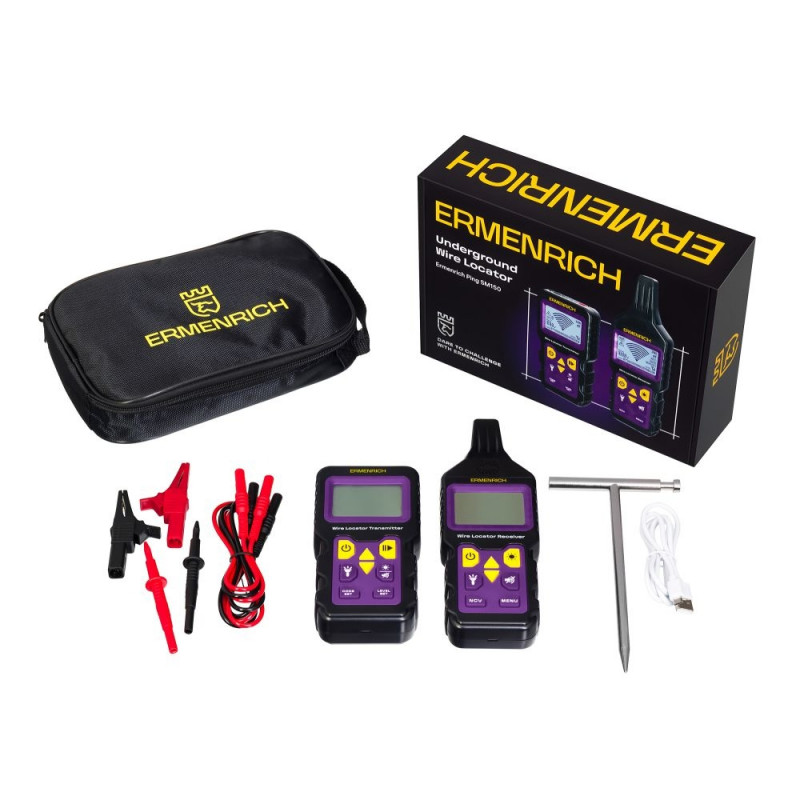

The kit includes:

  • Transmitter
  • Receiver
  • Alligator clips – 2 pcs.
  • Cable – 2 pcs.
  • Probe – 2 pcs.
  • Ground rod

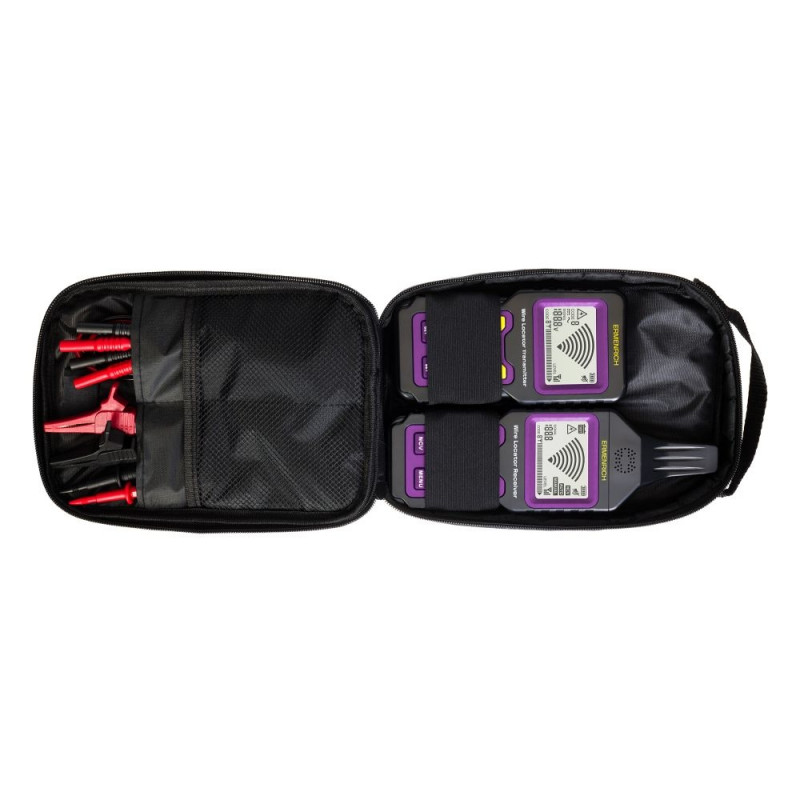

  • Carry bag
  • Micro USB cable
  • User manual and warranty card
Brand Ermenrich
Warranty 5 years
EAN 5905555023113
Package size (LxWxH) 25x18x6 cm
Shipping Weight 1.01 kg
Delimiter Ermenrich Ping SM150 Underground Wire Locator
=== Delimiter === Transmitter
Maximum detection depth, m (ft) single pole mode: 0–1 (0–3.3), dual pole mode: 0–0.5 (0–1.6) , single loop line: 0–2.5 (0–8.2), circuit voltage detection: 0–0.4 (0–1.3)
Maximum possible voltage of the circuit under test, V 400
Maximum signal transmission distance, m (ft) 2000
Operating voltage range (DC), V 12 — 400
Operating voltage range (AC), V (12–400) ±2,5%
Overvoltage category III (300V)
Pollution degree 2
Power consumption, mA 80 — 300
Display FSTN LCD
Display backlight yes

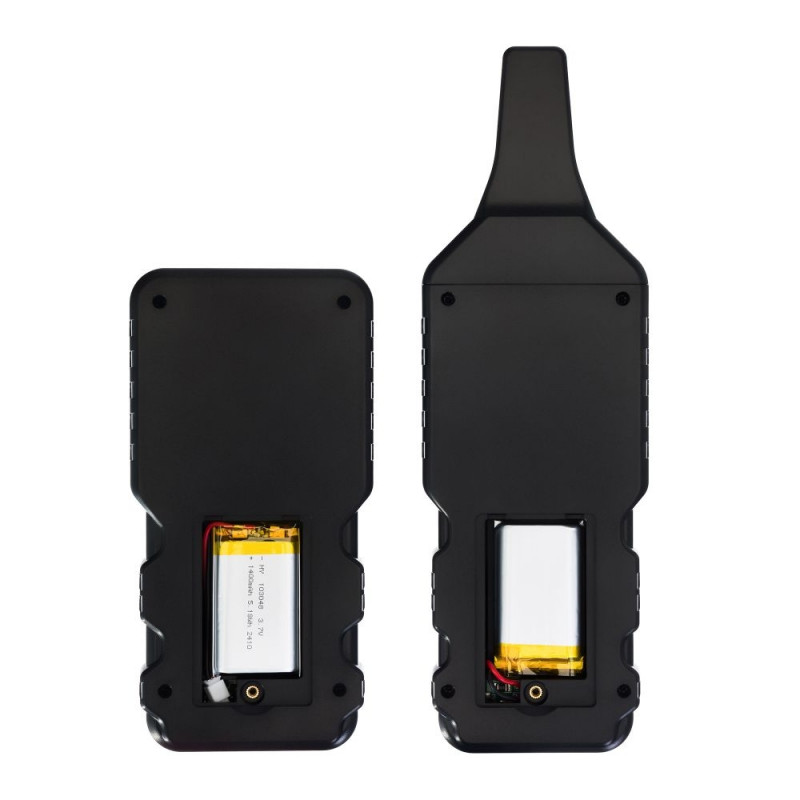

Power supply charging via a micro USB cable (included), 1400 mAh, 3.7V lithium polymer battery
Auto power off 15 min
Operating temperature range, °C 0 — 40

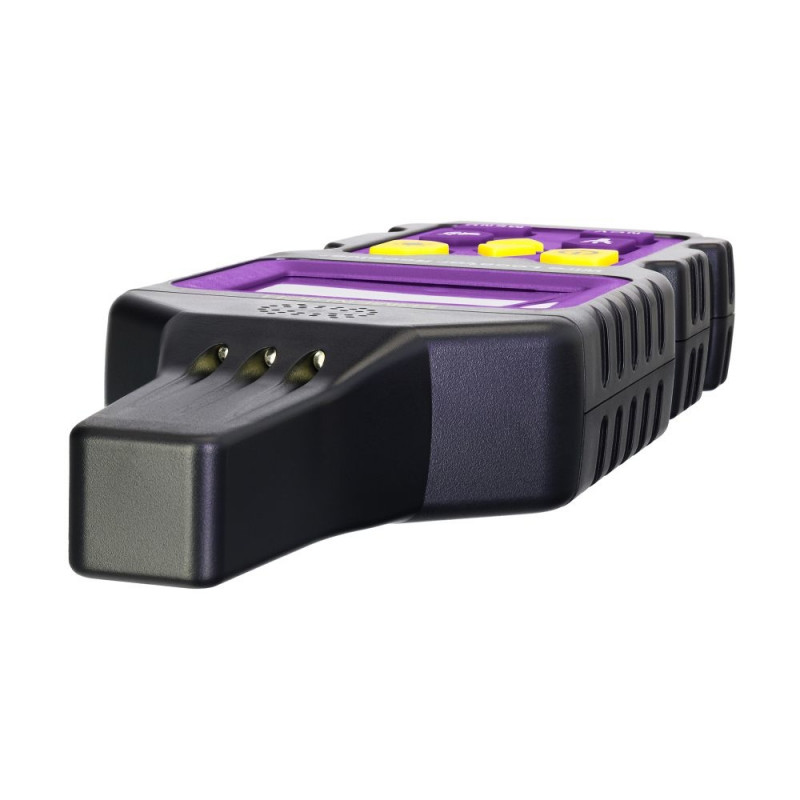

=== Delimiter === Receiver / Remote unit
Power consumption, mA 100 — 300
Adjustable sensitivity yes
Non-contact voltage detection (NCV) yes
Flash light yes
Display FSTN LCD
Display backlight yes
Power supply charging via a micro USB cable (included), 1400 mAh, 3.7V lithium polymer battery
Auto power off 15 min
Operating temperature range, °C 0 — 40
