Ermenrich Ping SM75 Cable Tester With Multimeter

FREE SHIPPING
WITHIN ESTONIA!

121,99 €

Monthly payment starting from 3,65 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

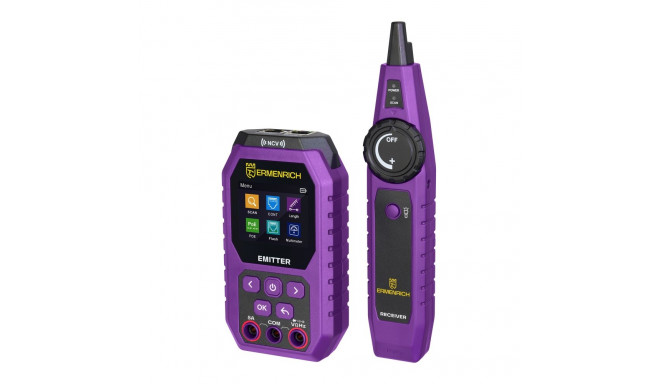

Cable tester with multimeter Ermenrich Ping SM75 is a multifunctional tool for comprehensive diagnostics and determining the condition of telephone lines, computer networks, and electrical equipment. The device is designed for professionals who are engaged in network installation and maintenance in industrial, office, and residential settings.

The tester is used for tracing twisted pair, cable tracing, and determining cable length (up to 200m, with an error of ±3m) and distance to short or open circuits. Ermenrich Ping SM75 stands out from similar devices with its wide range of functions. It allows you to perform a PoE test, determining the type of power supply equipment according to the IEEE 802.3af/at standard. It has NCV (non-contact detection of hazardous voltage) and Port Flash functions, and it is compatible with STP/UTP network cables of 5E/6/6A categories. It also replaces a digital multimeter by measuring voltage (DC and AC), current (DC and AC), resistance, frequency, and capacitance. The measurement results are displayed on the transmitter’s color TFT screen with a 320x240px resolution.

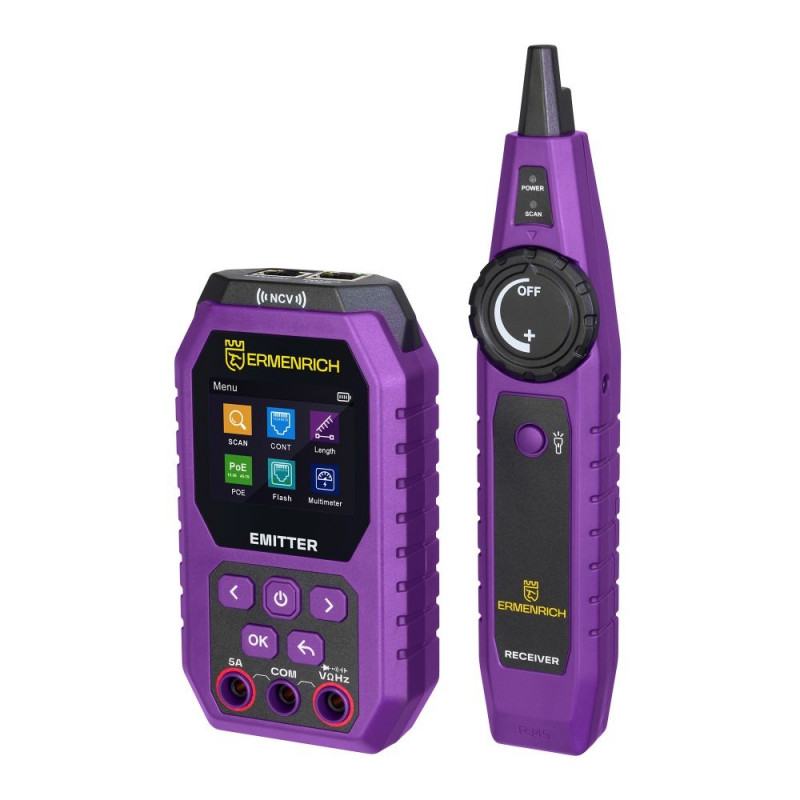

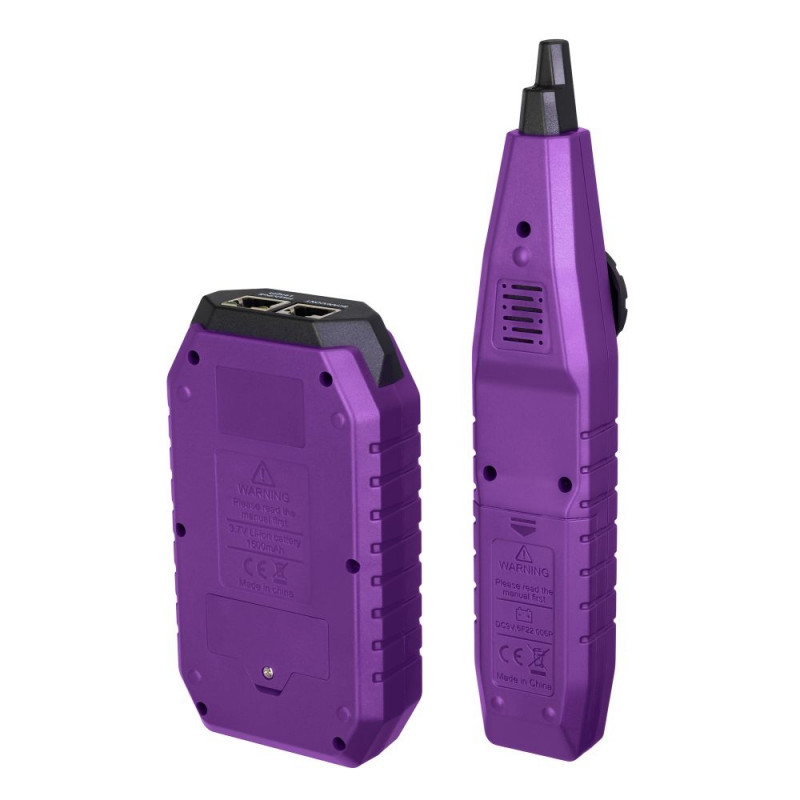

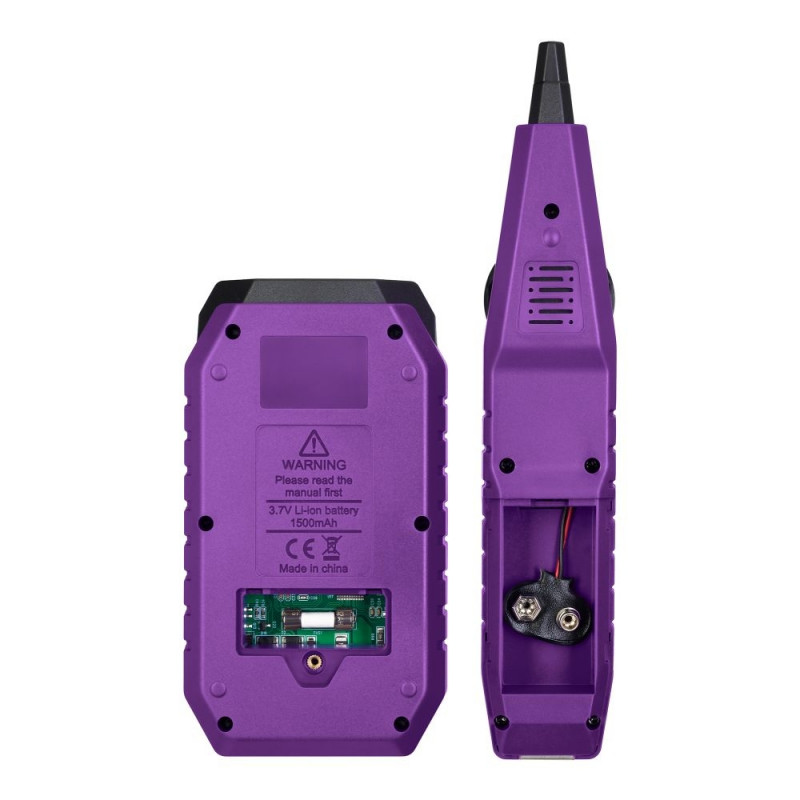

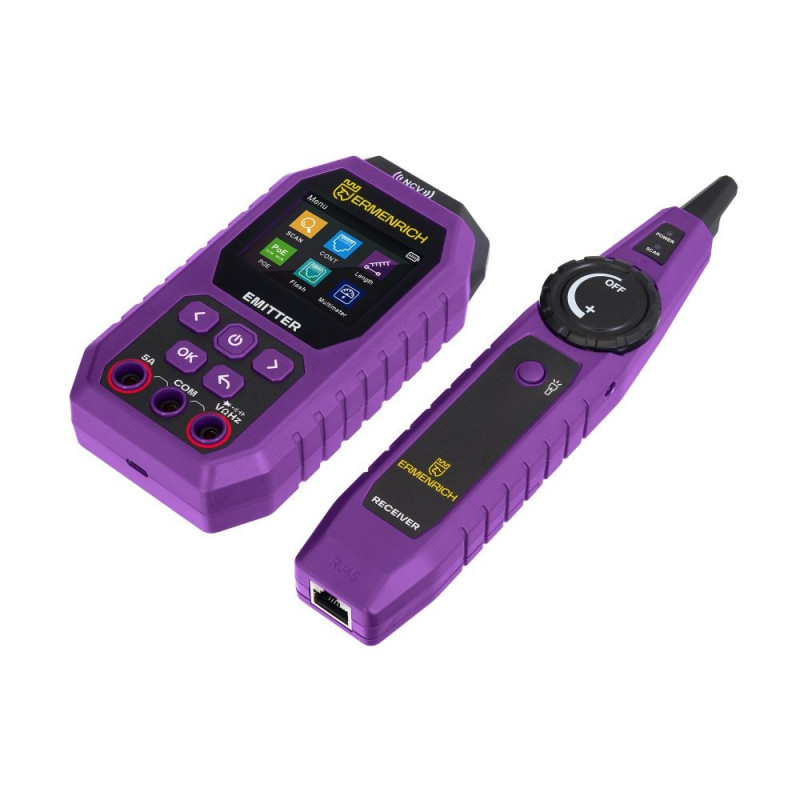

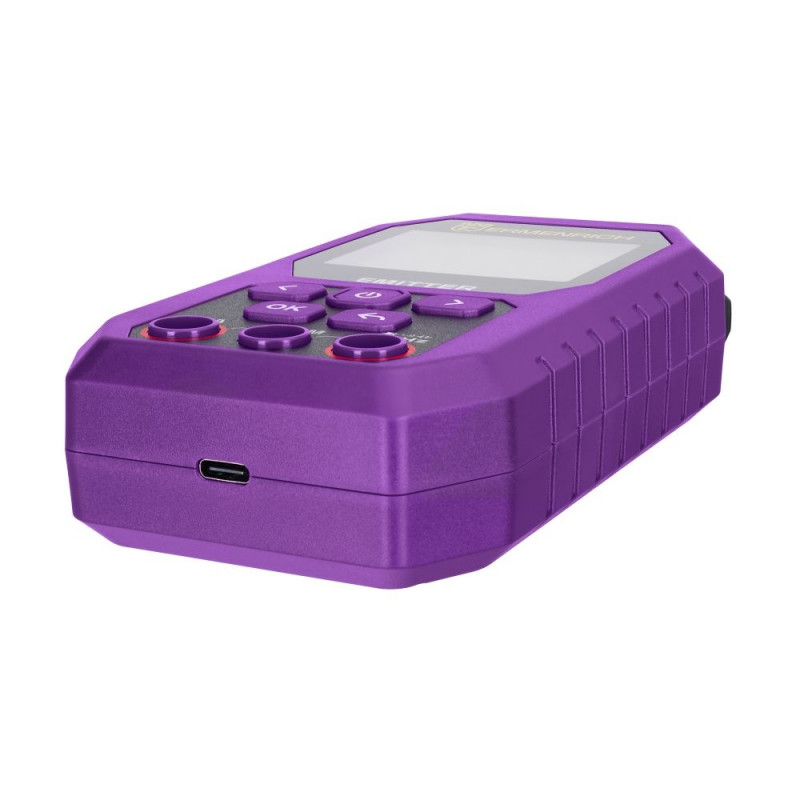

The kit includes a transmitter, a receiver with a headphone port for connecting earbuds (included), an RJ45 port, and test probes for the multimeter. The transmitter is powered by a built-in rechargeable 3.7V battery (charging adapter purchased separately), and the receiver is powered by a 9V battery.

Key features:

  • Measuring cable length up to 200m with an error of no more than 3m
  • Cable tracing range: 0 to 1000m
  • NCV, Port Flash, PoE test, polarity detection functions
  • Multimeter: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter
  • Quickly determine the distance to open circuits, short circuits, or crossed pairs
  • Bright color TFT display for network test results

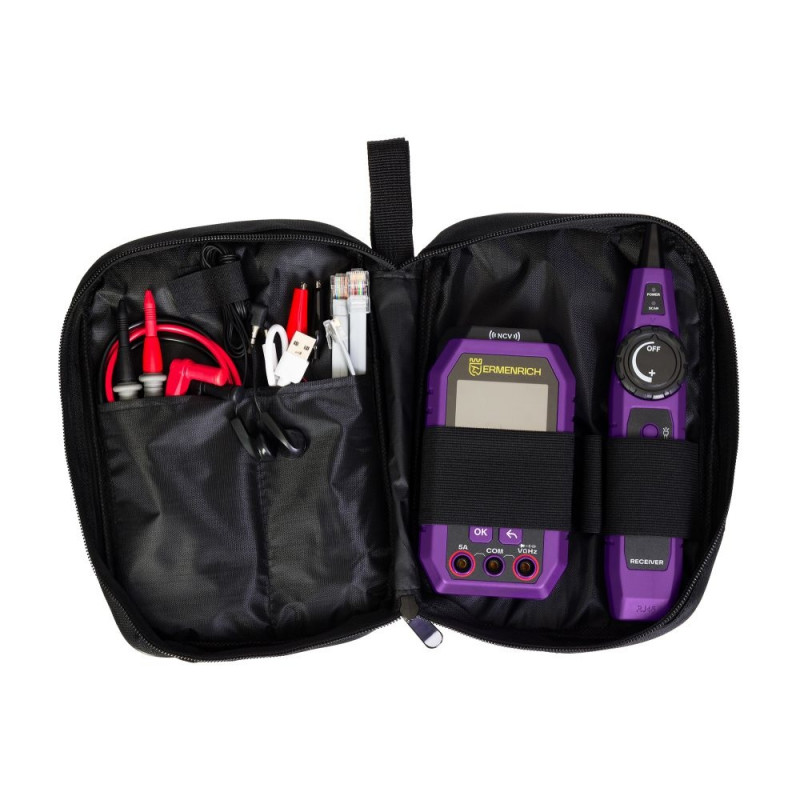

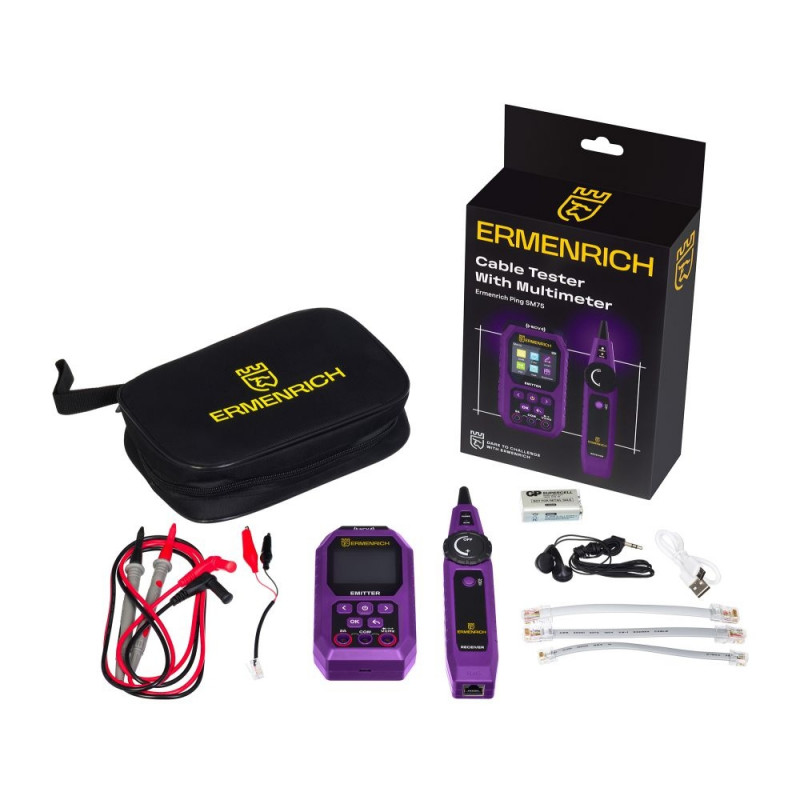

The kit includes:

  • Transmitter
  • Receiver
  • Earbuds
  • Probe – 2 pcs.
  • Type-C USB cable
  • Carry bag
  • User manual and warranty card
Brand Ermenrich
Warranty 5 years
EAN 5905555023151
Package size (LxWxH) 29x17x5 cm
Shipping Weight 0.63 kg
=== Delimiter === Transmitter

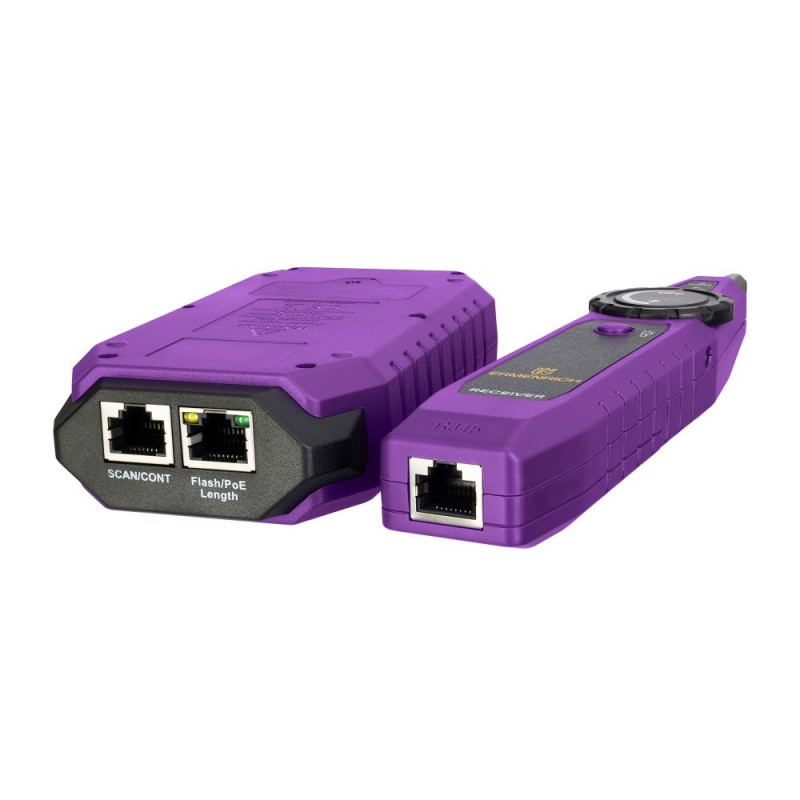

Ports Type-C, RJ45 (Wiremapping/Scan), RJ45 (Length/Flash/PoE), 5A, COM, basic multimeter measurements
Tracing cable types common wires, STP/UTP 5/5E/6/6A network cable
Testing cable types STP/UTP (CAT5E, CAT6, CAT6A) network cable
Maximum length of the tested cable, m 600 (analog), 1000 (digital)
Cable length measurement yes
Cable testing yes
Cable testing + (open circuits, short circuits, crossed pairs)
Port flash function yes
Port flash function +, (full duplex/half duplex, auto-nego/non-auto-nego, 10/100/1000Mbit/s)
Cable tracing yes
PoE test yes
Voltage polarity detection yes
=== Delimiter === Cable length measurement
Units of measurement meters/yards, feet
Measuring range, m 5 — 200
Error 3m
=== Delimiter === PoE test
Power source equipment (PSE) type test standard (IEEE 802.3at/af)
Midspan/endspan identification yes
Operating voltage range (DC), V 5 — 60
=== Delimiter === Digital multimeter
Selection of the measuring limit automatic
Basic functions voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter
DC voltage measuring range 600mV – 610V ±(0.5% + 3)
AC voltage measuring range 600mV – 610V ±(0.5% + 3)
DC current measuring range 1mA – 3A ±(0.8% + 3)
AC current measuring range 1mA – 3A ±(0.8% + 3)
Resistance measuring range 600Ω – 60MΩ ±(1.0% + 5)
Capacity measuring range 60nF – 6mF ±(2,5% + 60), 6mF – 30mF ±(5,0% + 10)
Frequency measurement range 0–6MHz
=== Delimiter === Key features
Maximum operating current, mA 200
Protection input voltage: 60V
Display TFT
Display diagonal, inch 2.4
Display resolution, px 320x240
Display backlight yes
Power supply built-in rechargeable lithium battery 3.7V, 1500mA
Battery life, h 10
Low battery status indicator yes
Auto power off yes
Operating temperature range, °C -10 — 60
Operating humidity range, % 20…70
=== Delimiter === Receiver / Remote unit
Ports RJ45, earbuds
Non-contact voltage detection (NCV) yes

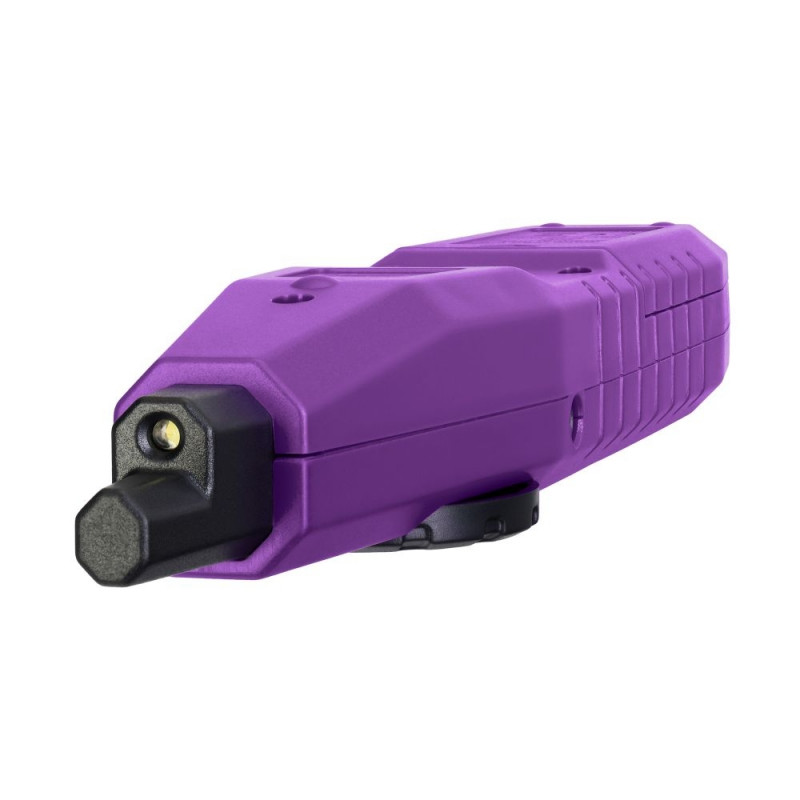

Flash light yes
Maximum operating current, mA <150
Power supply 9V battery - 1 pc.
Battery life, h 10
Operating temperature range, °C -10 — 60
Operating humidity range, % 20…70
