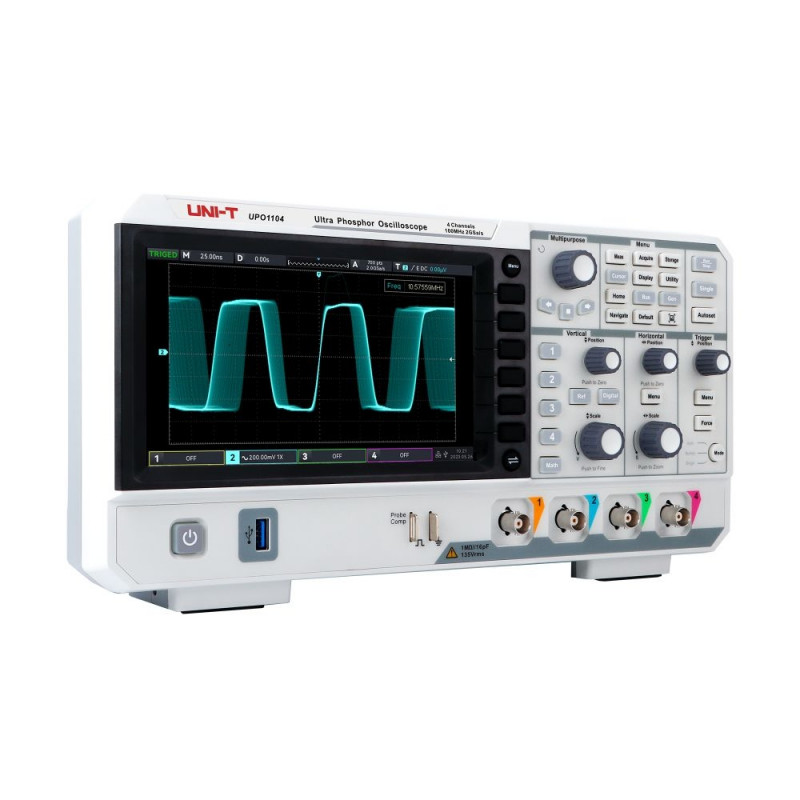

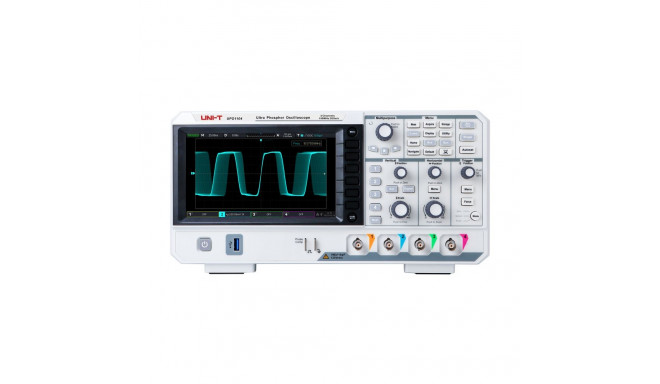

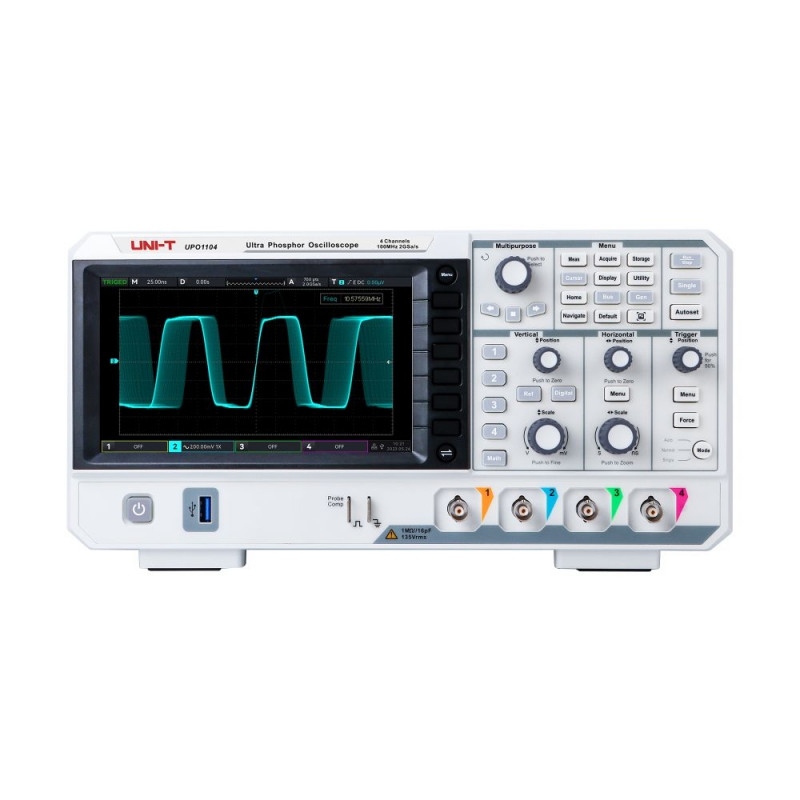

Oscyloskop Uni-T UPO1104

619 €

Monthly payment starting from 21,10 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

-----------
PARAMETRY GŁÓWNE
-----------
Szerokość pasma analogowego: 100 MHz
Czas narastania: <=3,5 ns
Liczba kanałów: 4
Częstotliwość próbkowania: 1 GS/s
Głębokość pamięci: 56 Mpts (1 kanał)
Szybkość przechwytywania przebiegu: 500 000 wfms/s
Podstawa czasu: 5 ns/div~50 s/div
Impedancja wejściowa: (1MOhm ?2%) II (20 pF ?3 pF)
Czułość odchylenia pionowego: 1 mV/div~20 V/div (1M?)
Dokładność wzmocnienia sygnału: <=?3%
Zapis przebiegów: 120 000 ramek
Sposoby wyzwalania: Edge, pulse width, runt, window, N-edge, delay, timeout, duration, setup/hold, slope, video, code
Opcje dekodowania magistrali szeregowych: RS232/UART, I2C
Operacje na przebiegach: A+B, A-B, AxB, A/B, FFT, operacje logiczne, zaawansowane
Pomiar automatyczny 27 parametrów: Peak-Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mean, Middle, Cycle Mean,RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time,Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio,Delay A->B (Rising edge), Delay A->B (Falling edge), Delay B->A (Rising edge), Delay B->A (Falling edge).
Typy wyświetlenia wyników: 5 wyników jednocześnie
Statystyki pomiarów: Average, Max, Min, odchylenie standardowe, numer pomiaru
Okno częstotliwości: 6 bitów

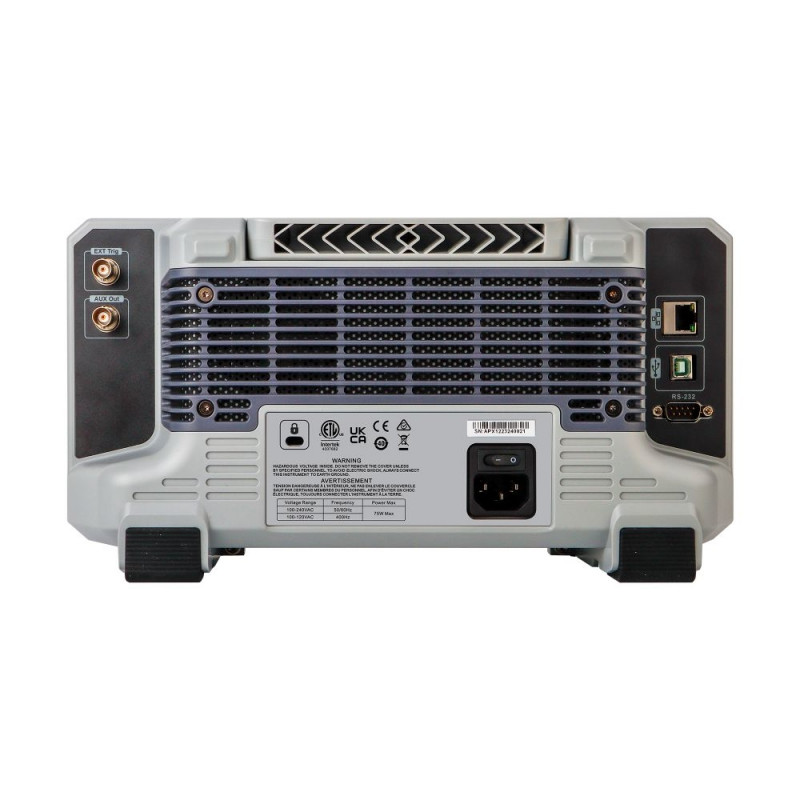

Interfejsy: USB-Host, USB-Device, LAN, EXT Trig, AUX (Trig Out, Pass/Fail, DVM)

-----------
CECHY OGÓLNE
-----------
Zasilanie: 100V~240VAC, 50Hz/60Hz
Wyświetlacz: 7? TFT LCD, WVGA (800×480 px)
Waga: 2,45 kg
Wymiary: 336 x 170 x 110 mm

Product codes

EAN
5901890121729
