Habotest HT118E Universal Digital Multimeter True RMS NCV

Addional discount of 5%
will be applied in shopping cart
(min. 10€ purchase)
53,99 €

Monthly payment starting from 1,62 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

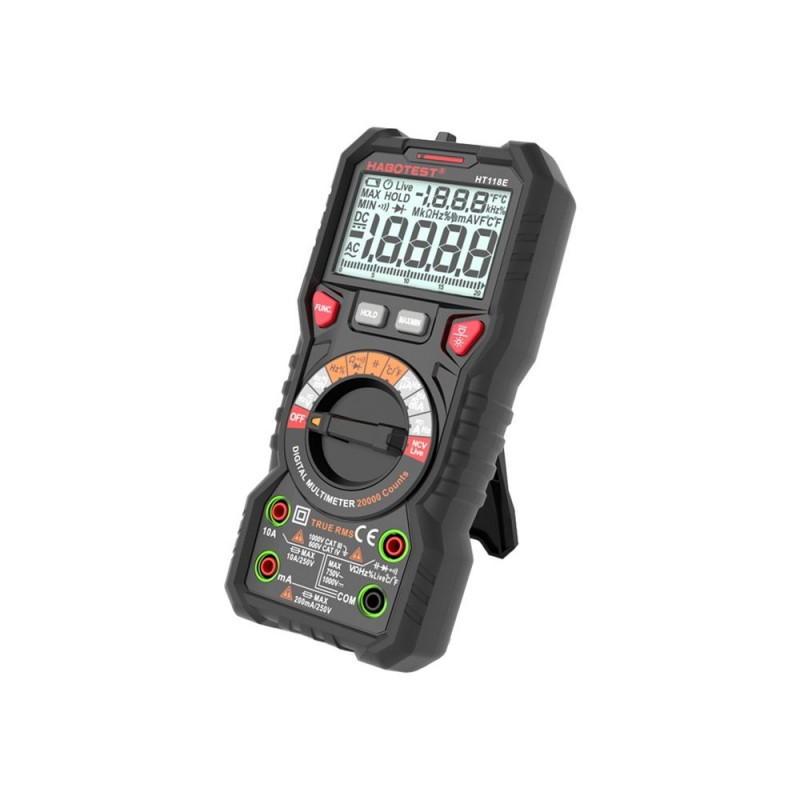

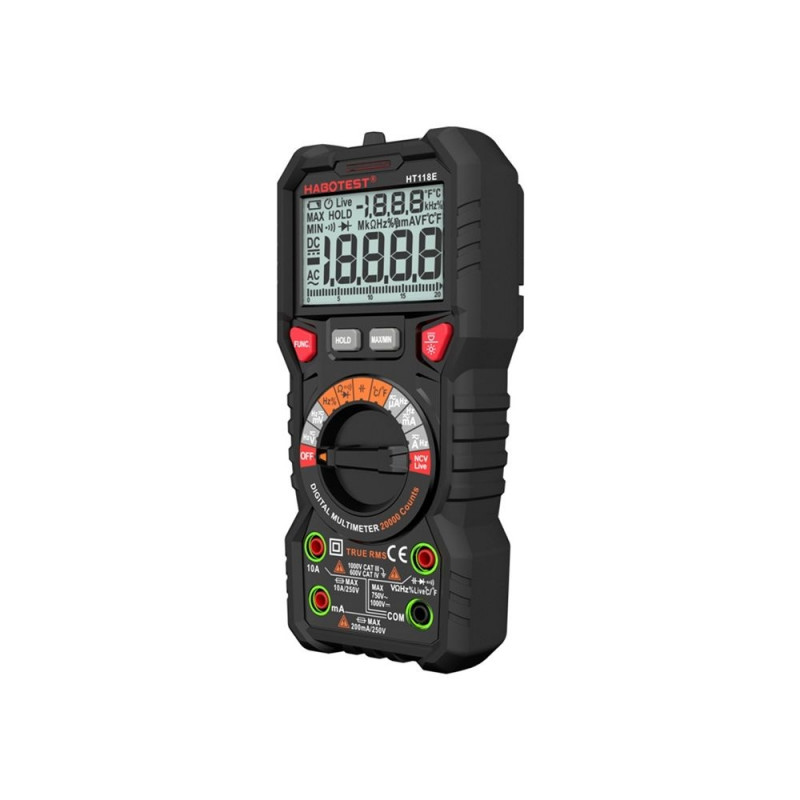

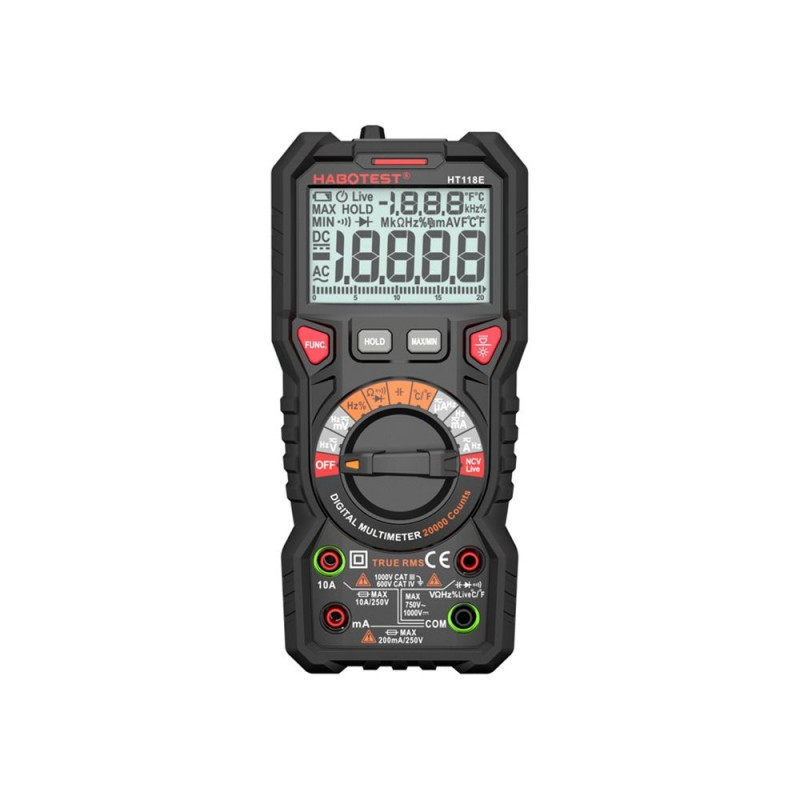

Habotest HT118E Universal Digital Multimeter True RMS NCV

The Habotest HT118E is a versatile digital multimeter that supports up to 20,000 counts and offers precise measurements of AC/DC voltage, current, resistance, capacitance, frequency and temperature (-20°C to 1000°C). A True RMS function ensures accurate readings, and non-contact voltage detection (NCV) enhances operational safety. A large LCD display with backlight, LED flashlight, automatic range selection, and built-in stand provide comfort in all conditions.

Wide range of measurements

The HT118E multimeter offers measurement of AC/DC voltage up to 1000V, current up to 10A, resistance up to 100MΩ, capacitance up to 2mF and frequency up to 20MHz. The ability to test diodes, check circuit continuity, and measure minimum and maximum values makes it an extremely functional tool for electronics engineers, electricians and do-it-yourselfers.

NCV and Live Test function

With non-contact voltage detection (NCV), you can check the presence of voltage in wires without physical contact. Live Test allows you to quickly detect a live wire, and a built-in audible and light alarm signals the danger.

Backlit screen and result memory

The HT118E features an easy-to-read, 2.7-inch LCD display with dual backlighting that automatically turns orange when 80V or 1A is exceeded, warning of high voltage. A data storage function saves measurement results, and a dynamic bar graph makes analysis easy.

Durability and safety

A double fuse protects both the multimeter and the electrical system under test. The housing with protective silicone covering protects against mechanical damage and electric shock. CAT III 1000V and CAT IV 600V safety certifications ensure that the multimeter can be used even at high voltages.

Practical solutions

The built-in LED flashlight allows work in dark rooms, and the stable stand allows comfortable use without holding the meter in your hand. Flexible cable extrusions help keep the work area tidy. Power is provided by 2 AA batteries (included), and an automatic shut-off function after 15 minutes extends the operating time.

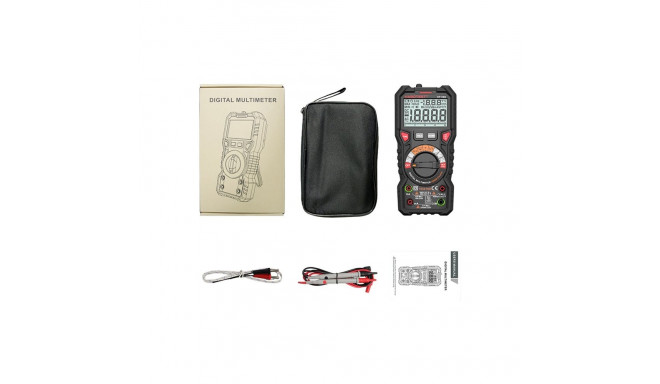

Included:
  • Habotest HT118E True RMS NCV digital multimeter
  • Measurement cable x2 (red and black)
  • Thermocouple for temperature measurement
  • AA battery x2
  • Protective cover
Manufacturer Habotest
Manufacturer code HT118E
DC voltage 200mV / 2V / 20V / 200V / 1000V
AC voltage 200mV / 2V / 20V / 200V / 750V
DC current 200μA / 2000μA / 20mA / 200mA / 10A
AC current 200μA / 2000μA / 20mA / 200mA / 10A
Resistance 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 100MΩ
Capacitance 20nF / 200nF / 2μF / 20μF / 200μF / 2mF
Frequency 200Hz / 2kHz / 20kHz / 200kHz / 2MHz / 20MHz
Temperature range from -20°C to 1000°C
Sampling frequency ~3 times/second
Number of counts 20 000
Display 2.7" LCD
Dual backlight yes
Live Test (live wire test) yes, audible and light alarm
Non-contact voltage detection (NCV) yes, audible and light alarm
Diode testing yes
Max/min value measurement yes
Data storage yes
True RM yes
Frequency response 1kHz
Automatic shutdown yes
Low battery indicator yes
Active jack indicator yes
LED flashlight yes
Power supply 2x AA battery
Housing material ABS with silicone protective cover
Safety standards EN61010-1, -2-030, EN61010-2-033, EN61326-1, CAT III 1000V, CAT IV 600V

Dimensions and weights

Gross weight
0.61 kg
Package width
8.8 cm
Package height
5.8 cm
Package length
18.8 cm

Product codes

EAN
5907085524382
Manufacturer code
HT118E
