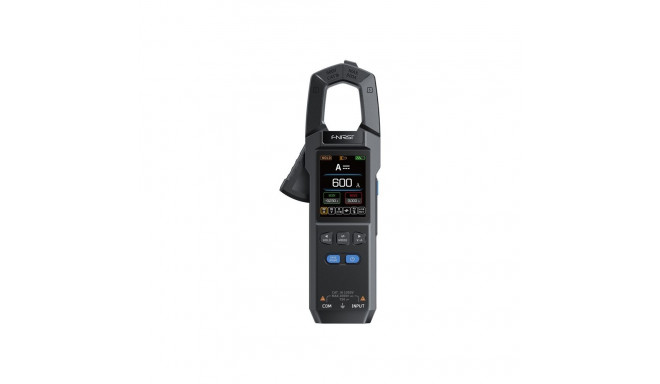

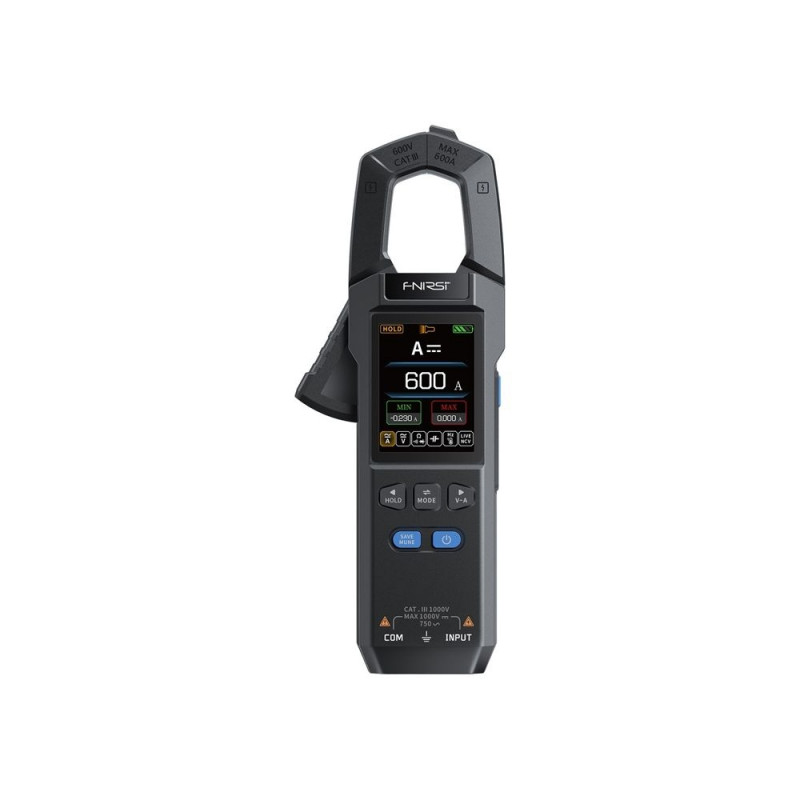

FNIRSI DMC-100 digital clamp meter

FNIRSI DMC-100 is a digital clamp meter for universal measurements in electrical installations. The device integrates the functions of measuring current, voltage, resistance and many other parameters, while allowing non-contact voltage testing. Thanks to its clamp design and 25mm diameter bore, the DMC-100 is suitable for both home work and professional service use.

Extensive measurement functions

The meter supports measurement of AC/DC current, AC/DC voltage, resistance, capacitance, circuit continuity, diodes, frequency, temperature, and neutral and phase wire test. Thanks to the NCV (non-contact voltage detection) function, it is possible to quickly check the presence of voltage without the risk of contact with wires.

Dual measuring system design

The use of two independent measuring circuits allows simultaneous measurement of voltage and current, with automatic power calculation. This feature speeds up diagnostics and eliminates the need for additional instruments.

Measurement accuracy and data recording

The device offers measurement accuracy based on True RMS technology and a resolution of up to 10000 counts, which guarantees precise readings even for nonlinear signals. The graph and data recording function allows analysis of up to 30 sets of results, with the ability to view the last 8 measurements.

Efficient power supply

A built-in 1500 mAh lithium battery ensures long operation without recharging. Protected by a silicone cap, the USB-C connector is protected from dust and damage. The 2" color LCD display and built-in flashlight allow you to work in low visibility conditions.

Included
  • clamp meter
  • USB-A to USB-C charging cable
  • probe for measuring temperature
  • measuring cable
  • user manual
Manufacturer Fnirsi
Model DMC-100
Display TFT 2.0" color screen
Power supply Lithium battery 3.7V
Charging USB Type-C, 5V/1A
Maximum clamp diameter 25mm
Dimensions 193 × 74 × 32 mm
Weight 194 g
DC voltage range 9.999V / 99.99V / 999.9V
DC voltage accuracy ±(0.5% + 3)
AC voltage range 9.999V / 99.99V / 750.0V
Accuracy of AC voltage ±(1% + 3)
DC current range 99.99A / 600.0A
Accuracy of DC current ±(2.5% + 10)
AC current range 99.99A / 600.0A
Accuracy of AC current ±(2.5% + 10)
Resistance range 9.999MΩ / 999.9kΩ / 99.99kΩ / 9.999kΩ / 999.9Ω
Resistance accuracy ±(1.5% + 3)
Additional resistance range 99.99MΩ
Resistance accuracy ±(1.5% + 3)
Capacitance range 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Accuracy of capacitance ±(2.0% + 5)
Additional capacitance range 9.999mF / 99.99mF
Accuracy of capacitance ±(5.0% + 20)
Frequency range 9.999MHz / 999.9kHz / 99.99kHz / 9.999kHz / 999.99Hz / 99.99Hz / 9.999Hz
Frequency accuracy ±(0.1% + 2)
Temperature range (-55 ~ 1300°C) / (-67 ~ 2372°F)
Temperature accuracy ±(2.5% + 5)
Diode / continuity / NCV / phase wire test (LIVE) yes
