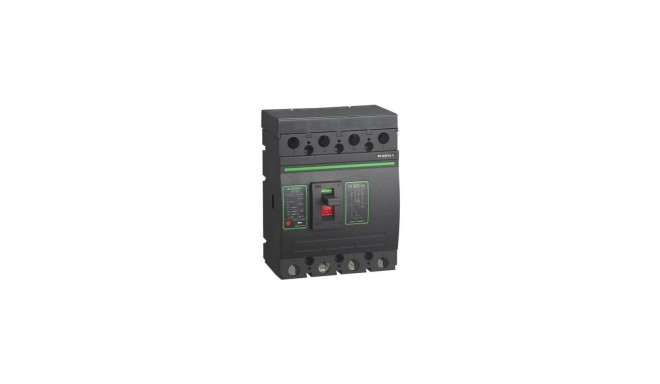

DC Circuit Breaker - 4P 250A 1000VDC

210,99 €

Monthly payment starting from 7,19 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Molded case DC circuit breaker with 4 poles, rated for 250A and 1000V DC, suitable for solar power systems and electric vehicle charging stations. Complies with IEC standards, providing protection against overload and short circuits, with an operating temperature range of -40°C to 85°C.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

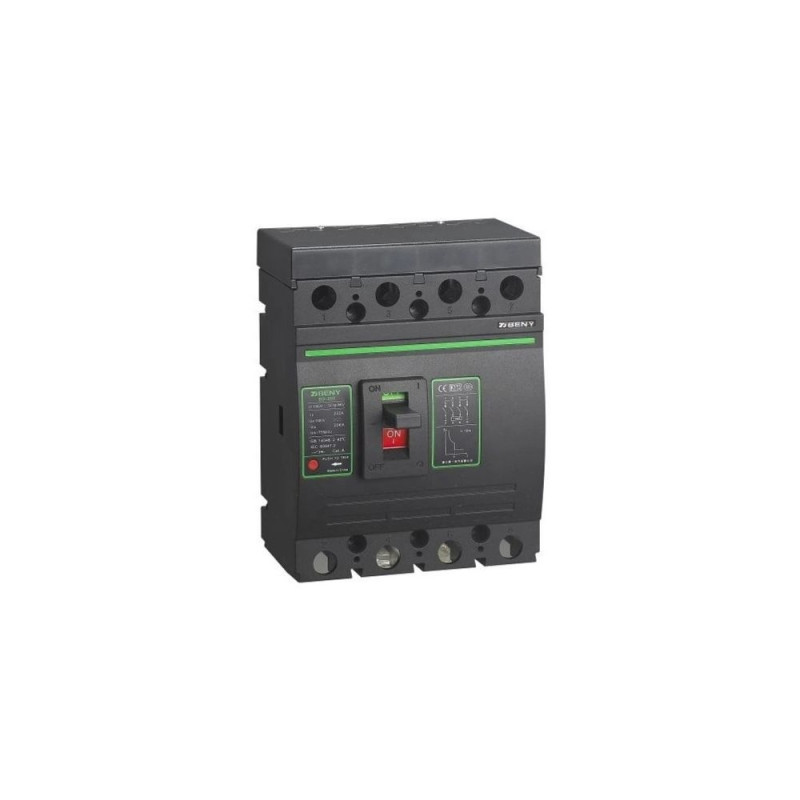

DC Circuit Breaker - 4P, 250A, 1000VDC

Molded case DC circuit breaker with 4 poles, rated for 250A and 1000V DC, suitable for solar power systems and electric vehicle charging stations. Complies with IEC standards, providing protection against overload and short circuits, with an operating temperature range of -40°C to 85°C.


  • Molded case circuit breaker designed for solar power systems, providing reliable DC circuit overcurrent protection.
  • Rated for up to 1000V DC and 250A, suitable for large solar installations and electric vehicle charging stations.
  • Complies with IEC standards, ensuring safety and performance in grounded or ungrounded systems.
  • Durable design tested for extreme temperatures from -40°C to 85°C, with a 24-month warranty.

Features
Product Type DC Circuit Breaker
Model 4P, 250A, 1000VDC
Specifications
Rated Voltage (Ue) DC 1000V
Max Rated Current (In) 250A
Ultimate Breaking Capacity (Icu) 20kA
Rated Impulse Withstand Voltage (Uimp) 8kV
Mechanical Life 14,000 cycles
Electrical Life 2,000 cycles
Protection Class IP20 (connection terminal), IP40 (housing all sides)
Dimensions 165 × 140 × 88 mm
Wire Size (min-max) 50-120 mm²
Color Black
Operating Temperature -40°C to 85°C
Certifications
Standards Complied IEC 60947.2, GB14048.2

Width 140 mm
Height 88 mm
Length 165 mm
Product Weight 1200 g
Country DE

Dimensions and weights

Gross weight
1.6 kg
Package width
20 cm
Package height
15 cm
Package length
25 cm

Product codes

EAN
9990000822614
