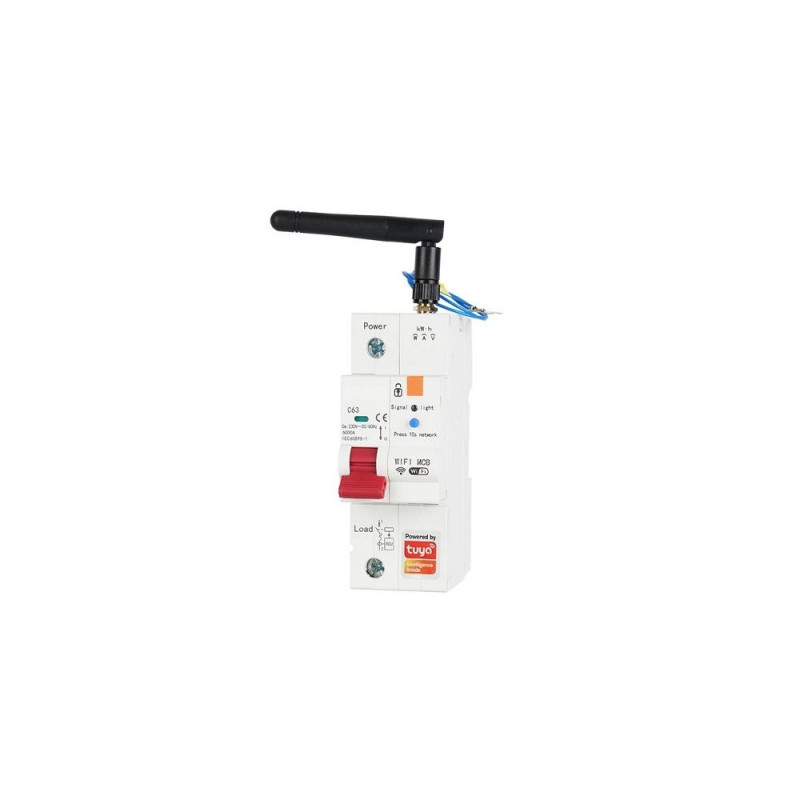

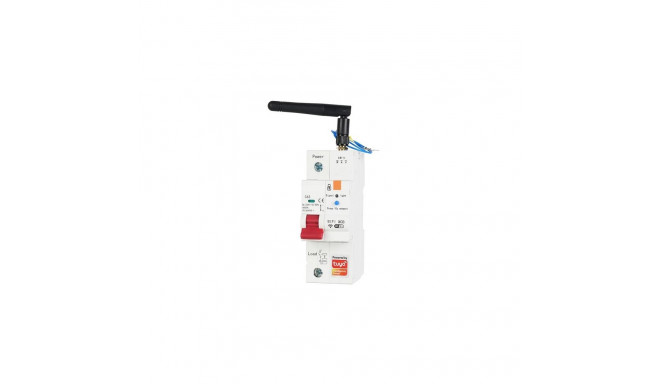

Smart Circuit Breaker - TUYA 1P 63A Wi-Fi RS485 Energy Metering

92,99 €

Monthly payment starting from 2,78 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Smart circuit breaker with a maximum current of 63A, supporting remote control via Wi-Fi and RS485 interface. Features include energy metering, voice control compatibility, and multiple protection mechanisms.
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Tuya Smart Circuit Breaker, 1P, Wi-Fi, RS485, 63A

Smart circuit breaker with a maximum current of 63A, supporting remote control via Wi-Fi and RS485 interface. Features include energy metering, voice control compatibility, and multiple protection mechanisms.


  • Remote control and monitoring of electrical circuits via TuyaSmart or SmartLife app.
  • Supports voice control with Google Assistant and Amazon Alexa for hands-free operation.
  • Built-in energy metering functionality to track and manage power usage effectively.
  • Protection features against overload, short circuit, and high temperature ensure safety and reliability.

Features
Product Type Smart Circuit Breaker
Brand TUYA
Model 1P, Wi-Fi, RS485, 63A
Specifications
Number of Poles 1P
Rated Voltage AC 230 V
Current Max. 63A
Frequency 50/60 Hz
Breaking Capacity Up to 6kA
Wi-Fi Frequency 2.4 GHz
Wi-Fi Standards 802.11b/g/n
RS485 Interface Yes
Control Methods Manual / Automatic
Protections Overload / High Temperature / Short Circuit / Overvoltage / Leakage
Operating Temperature -25°C to +70°C (max.)
Mechanical Lifespan >10000 times
Electrical Lifespan >6000 times
Housing Material PC V0 (flame-retardant)
Installation DIN rail, 35mm
Certifications CE, RoHS, IEC60898-1
Dimensions 36 x 74 x 100 mm
Weight 195g
Color White
Included Accessories 2x Wi-Fi antennas and RS485 adapter

Width 74 mm
Height 100 mm
Length 36 mm
Product Weight 195 g
Country CN

Dimensions and weights

Gross weight
0.3 kg
Package width
10 cm
Package height
15 cm
Package length
20 cm

Product codes

EAN
9990001084042
