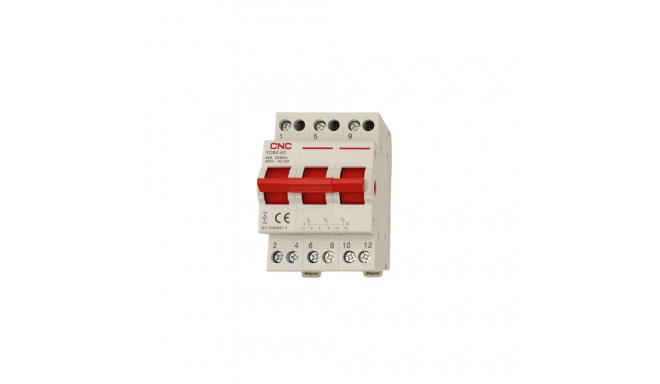

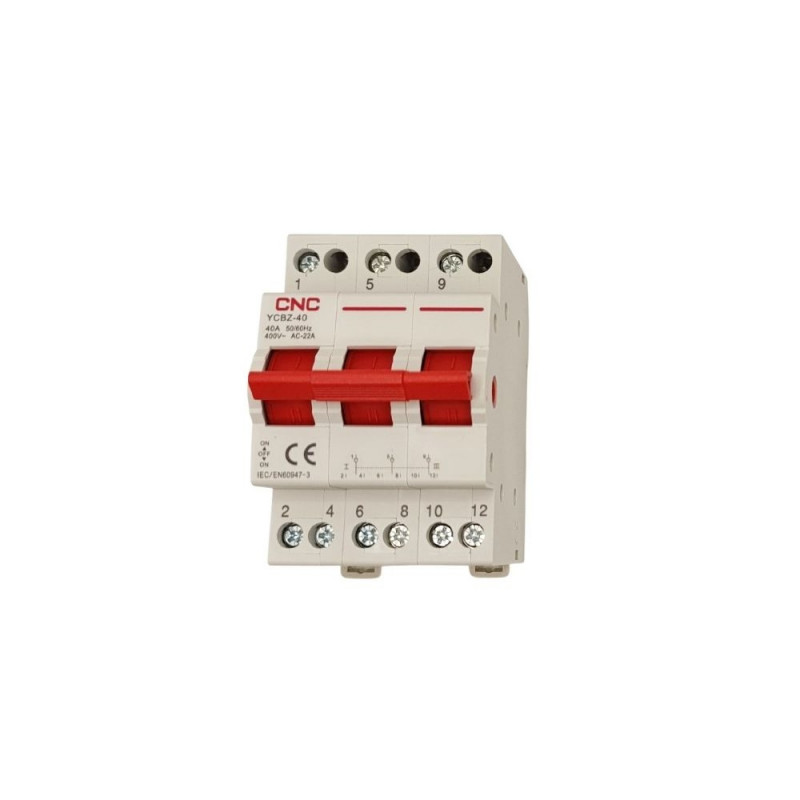

Changeover Switch - YCBZ-40 3P 40A 1-0-2 DIN Rail Mounted

22,99 €

Main info

Modular changeover switch with three positions (1-0-2) and a rated current of 40A. Suitable for AC 50/60 Hz circuits up to 400V, it mounts on a DIN rail and complies with IEC 60947-3 standards.
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Changeover Switch Cnc Ycbz-40, 3p, 40a, 1-0-2

Modular changeover switch with three positions (1-0-2) and a rated current of 40A. Suitable for AC 50/60 Hz circuits up to 400V, it mounts on a DIN rail and complies with IEC 60947-3 standards.


  • Modular 3-position changeover switch for reliable power source switching between mains and backup systems.
  • Designed for quick switching in AC 50/60 Hz circuits with a rated current of 40A.
  • Easy installation on DIN rail with a robust design compliant with IEC 60947-3 standards.
  • Suitable for residential, workshop, and small business applications, ensuring safety and efficiency.

Features
Product Type Changeover Switch
Model YCBZ-40, 3P, 40A, 1-0-2
Specifications
Number of Poles 3
Rated Voltage (Ue) AC 400V
Maximum Voltage AC 415V
Rated Current 40 A
Frequency 50/60Hz
Contact Form I - 0 - II
Mechanical Life 8500 cycles
Electrical Life 1500 cycles
Mounting DIN rail EN60715 (35mm)
Cable Cross-Section Area Max. 10mm²
Operating Temperature -5°C to +40°C
Dimensions 54 x 61 x 77 mm
Protection Class IP20
Color White
Standards IEC 60947-3 / EN 60947-3, cat. AC-22A

Width 61 mm
Height 77 mm
Length 54 mm
Product Weight 300 g
Country CN

Dimensions and weights

Gross weight
0.45 kg
Package width
8 cm
Package height
10 cm
Package length
12 cm

Product codes

EAN
6942034338275
