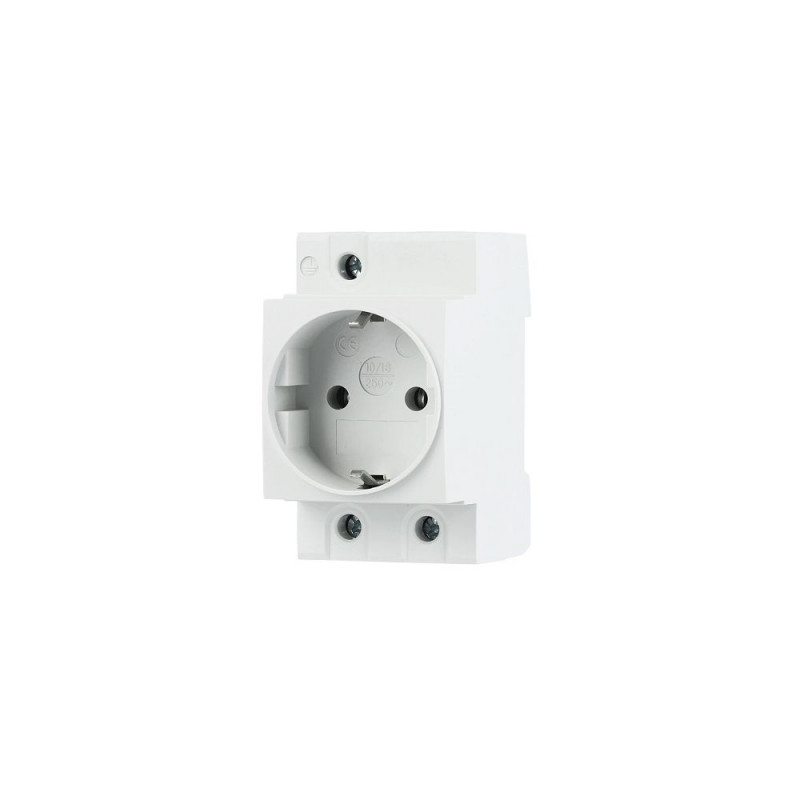

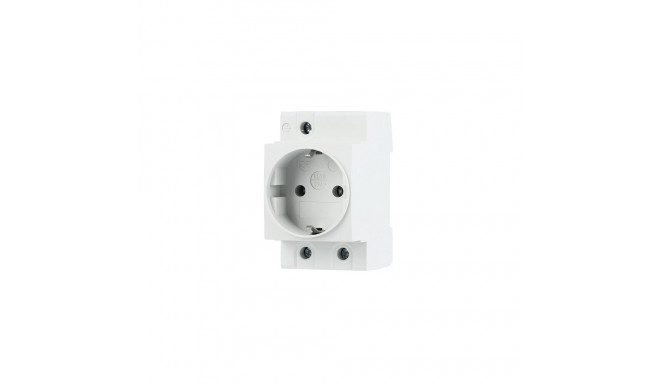

Modular Socket - TMS-5 16A 2P+PE AC 220V DIN Rail Mounting

8,99 €

Main info

Modular socket outlet for DIN rail mounting with 16A rated current and 2P+PE configuration. Designed for AC 220 V, it features a fire-resistant plastic housing and is suitable for various electrical devices.
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Modular Socket TMS-5, 16A, EU

Modular socket outlet for DIN rail mounting with 16A rated current and 2P+PE configuration. Designed for AC 220 V, it features a fire-resistant plastic housing and is suitable for various electrical devices.


  • Modular socket outlet designed for 35 mm DIN rail mounting, ideal for electrical distribution boards and control panels.
  • Features 2 poles plus protective grounding (PE) for safe connection of single-phase electrical devices.
  • Made from fire-resistant plastic, ensuring durability and safety in various applications.
  • Rated for 16A and 220V, suitable for tools, measuring devices, and portable lamps.

Features
Product Type Modular Socket
Model TMS-5
Specifications
Number of Contacts 2P+PE
Rated Current 16 A
Rated Voltage AC 220 V
Frequency 50/60 Hz
Electrical Service Life 5000 cycles
Protection Class IP20
Wire Cross-Section Area up to 25 mm²
Connection From top and bottom
Installation On DIN rail EN 60715 (35 mm)
Dimensions 76 x 64.4 x 44 mm
Width on DIN Rail 44 mm
Color White
Standard IEC60884-1

Width 64 mm
Height 44 mm
Length 76 mm
Product Weight 150 g
Country DE

Dimensions and weights

Gross weight
0.25 kg
Package width
8 cm
Package height
10 cm
Package length
15 cm

Product codes

EAN
6942108763194
