UNI-T UT682D wire pair detector

21,99 €

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

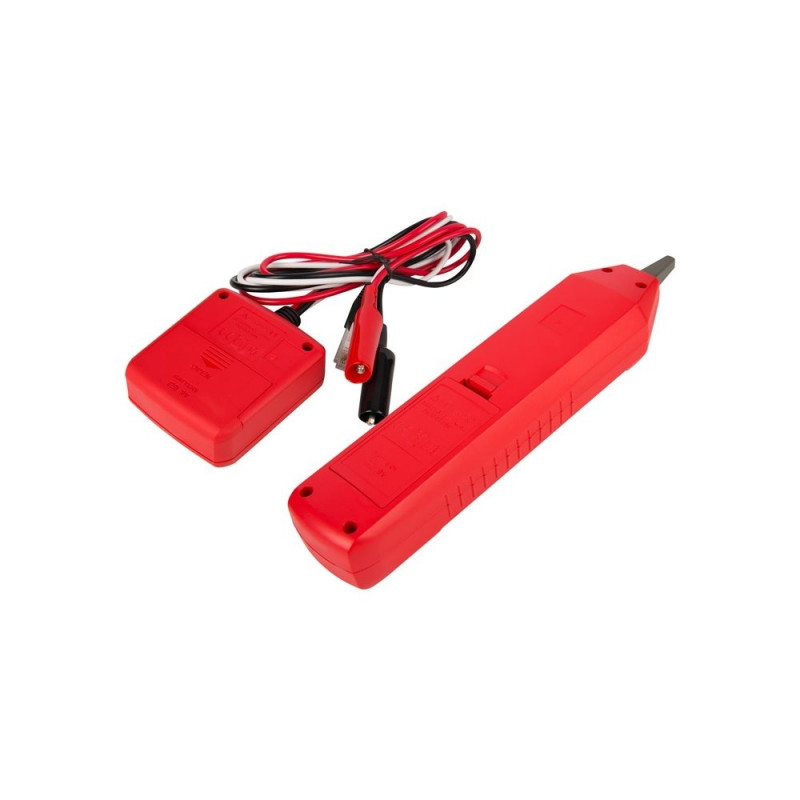

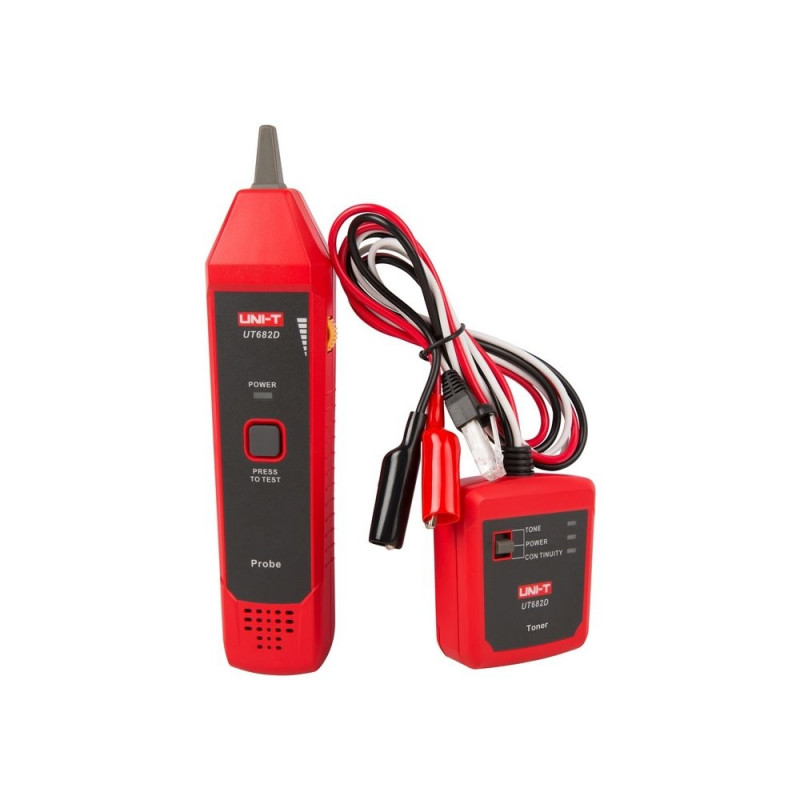

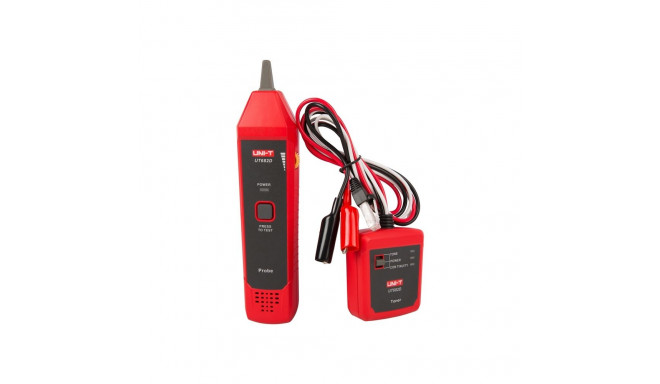

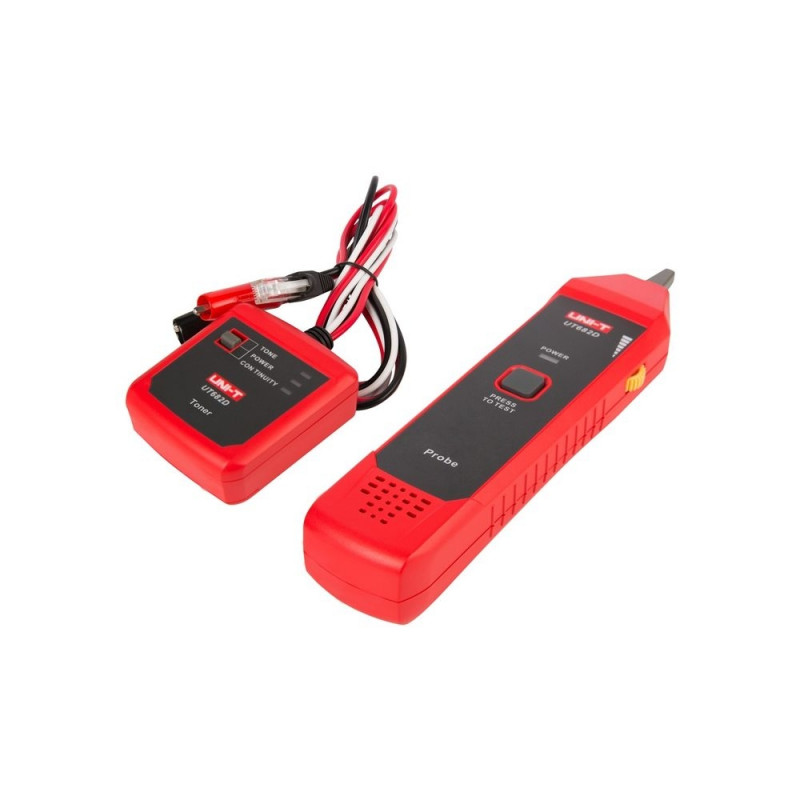

UNI-T UT682D wire pair detector

UNI-T UT682D is a compact and effective wire detector that will prove useful wherever you count on quickly locating a break, short circuit or incorrect connection in telephone, network or electrical cables. The device consists of a transmitter and a receiver, allowing precise detection of wires even in difficult conditions - including in the presence of noise or interference. Thanks to its high sensitivity and ease of use, the UT682D is an indispensable tool in the work of installers, service technicians and network technicians.

Functionality that makes every test easier

The detector can trace cables at distances of up to 3,000 meters for telephone lines, allowing accurate wire discrimination and quick detection of short circuits and interruptions. It also supports DC voltage level measurement and telephone wire polarity indication, greatly simplifying the analysis of installation status. The built-in connection sequence measurement function and signal strength indicator further enhance diagnostic performance.

For use in all conditions

The UT682D features a lightweight and handy design - both the transmitter and receiver lie well in the hand for easy operation. The ability to connect headphones makes the device ideal for use in noisy environments. By adjusting the signal volume and operating in two measurement speed modes, you can match the device's performance to the specific situation.

Ready for action

The UT682D is powered by classic 9V batteries for convenient use without recharging. The kit includes a set of necessary accessories, and the whole thing is packed in an aesthetic gift box, making it an ideal choice also as a professional gift for a specialist.

Included
  • UNI-T UT682D wire pair detector
  • User manual
Manufacturer Uni-T
Manufacturer code UT682D
Certifications CE, UKCA
Supported cables Telephone lines, twisted pair, electrical wires
Tracking of telephone wires Up to 3000 m
Short circuit/interruption test Yes
Polarity indication Yes
DC voltage level test ±(5V~52V)
Wire sequence measurement Yes
Operating modes Fast and slow selectable
Signal strength indicator Yes
Power supply of the transmitter 9V battery
Receiver power supply 9V battery
Headphone socket Yes
Volume control Yes
Receiver operating current <40 mA (AC RMS)
Receiver standby current ~10 mA
Voltage protection 60V DC
Operating temperature range 0-40°C
Operating humidity 20-75% RH
Operating altitude ≤2000 m
Net weight transmitter - 150 g, receiver - 130 g
Dimensions Transmitter - 74 × 68 × 28 mm, receiver - 208 × 47 × 33 mm
Color red-gray

Dimensions and weights

Gross weight
0.48 kg
Package width
4 cm
Package height
21.5 cm
Package length
12 cm

Product codes

EAN
6935750568262
Manufacturer code
UT682D
