UNI-T UT18E voltage and continuity tester

48,99 €

Monthly payment starting from 1,47 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

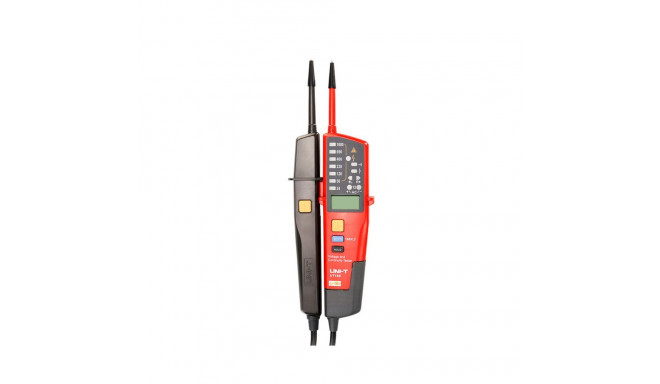

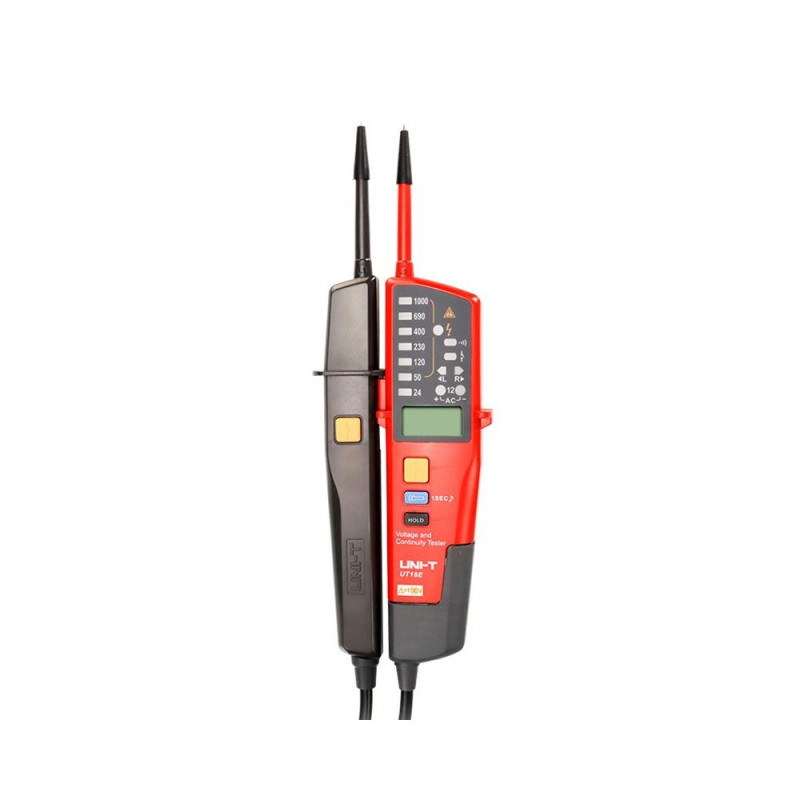

UNI-T UT18E voltage and continuity tester

UNI-T UT18E voltage and continuity tester is a practical tool for quick diagnostics of electrical installations. It allows you to measure AC/DC voltages up to 1000 volts, test phase sequence, circuit continuity and operation of residual current circuit breakers. It is convenient to use and at the same time provides a clear reading both on the LCD screen and with backlit LEDs.

Universal voltage measurement range

The UT18E supports up to 8 voltage levels: 6V, 12V, 24V, 50V, 120V, 230V, 400V, 690V and 1000V. It operates in both AC and DC modes, which makes it suitable for various types of installations - from domestic to industrial. The automatic polarity recognition function further helps avoid errors when diagnosing DC circuits.

Continuity measurement and RCD test

The tester allows you to check the continuity of a circuit in the range of 0 Ω to 60 kΩ, and the built-in audible signal and LED light indicate that the current is flowing correctly. The UT18E also allows you to test residual current devices (RCDs) at 230 V and 50-400 Hz, which increases the safety of the installation's use.

Additional functions to make work easier

LCD display indicates voltage in the range of 6-1000 V, and frequency in the range of 40-400 Hz. A built-in flashlight, audible signal, automatic shut-off function and silent mode make the UT18E a convenient tool. The tester is IP65-rated, which means dust and splash resistance - it will work well in construction and industrial conditions.

Manufacturer UNI-T
Model UT18E
Voltage range (AC/DC) 6V ± (1.5%＋1); 12V ± (1.5%＋2); 24V ± (1.5%＋2); 50V ± (1.5%＋3); 120V ± (1.5%＋4); 230V ± (1.5%＋5); 400V ± (1.5%＋5); 690V ± (1.5%＋5); 1000V ± (1.5%＋5)
Phase rotation test 100V ac～400V ac (3 phases); frequency 50/60 Hz
Continuity test Resistance: 0Ω~60kΩ; sound and light indicator
RCD test Operating voltage: 230V (50~400 Hz)
Polarity detection positive and negative
Self-verification LED or LCD
Power failure test 100~1000V
Standby current ＜10μA
Backlighting Yes
Silent mode Yes
Overvoltage protection Yes, 1100 V
Low battery indicator Yes (approx. 2.4V)
LCD display (voltage) 6V~1000V
LCD display (frequency) 40 Hz ~ 400 Hz
Waterproof IP65
Weight (with batteries) 277 g
Dimensions 272 x 85 x 31 mm

Dimensions and weights

Gross weight
0.357 kg
Package width
31.7 cm
Package height
7.8 cm
Package length
15.6 cm

Product codes

EAN
6935750518076
Manufacturer code
UT18E
