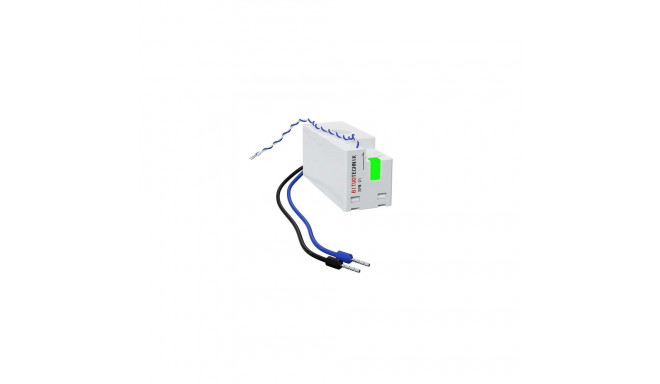

Energy Sensor - Smart Energy Sensor 1P+N 63A Modbus RS485

68,99 €

Monthly payment starting from 2,06 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Smart energy sensor monitors energy consumption in single-phase systems up to 63A and communicates via Modbus RTU (RS485). It measures voltage, current, power, and energy with an accuracy of 1% and operates within a temperature range of -25°C to +60°C.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

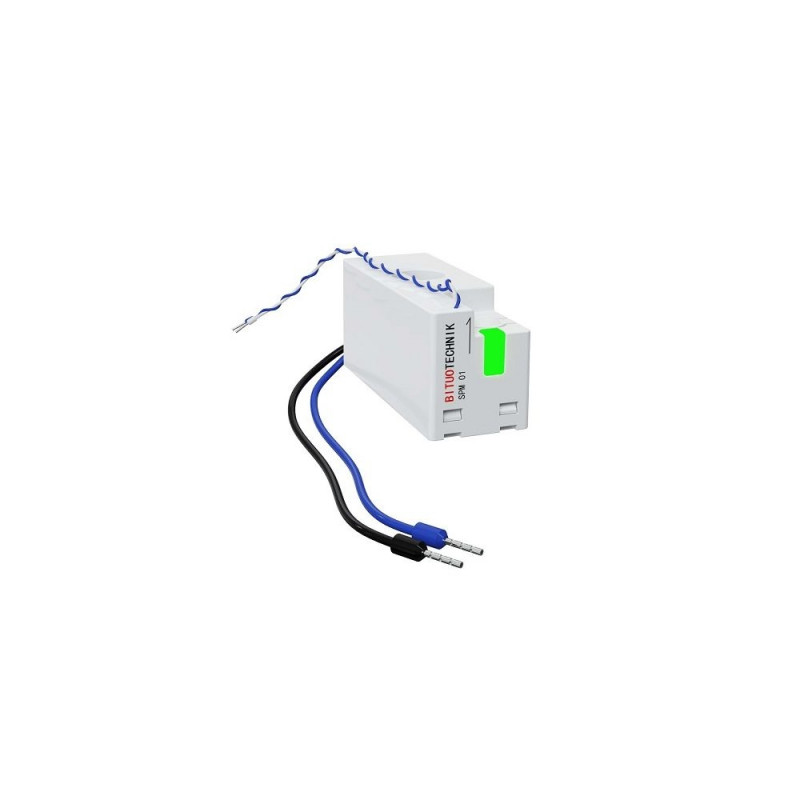

Smart Energy Sensor, 1P+N, 63A, Modbus RS485

Smart energy sensor monitors energy consumption in single-phase systems up to 63A and communicates via Modbus RTU (RS485). It measures voltage, current, power, and energy with an accuracy of 1% and operates within a temperature range of -25°C to +60°C.


  • Compact smart energy sensor for efficient monitoring of single-phase systems (1P+N).
  • Measures voltage, current, power, and energy consumption with high accuracy (1%; Class 1).
  • Utilizes Modbus RTU communication for stable integration with industrial control systems.
  • Flexible installation in small distribution panels, ideal for monitoring specific circuits or devices.

Features
Product Type Smart Energy Sensor
Model 1P+N, 63A, Modbus RS485
Specifications
Max Current 63 A
Operating Voltage 110~240V AC
Frequency 50/60 Hz
Rated Insulation Voltage 250 V
Energy Measurement Accuracy 1%; Class 1
Operating Power 0.5W
Rated Impulse Withstand Voltage 4 kV
Surge Category III
Connection Type Modbus RTU (RS485)
Reset Button Yes
Indicator Light Yes
Installation Downstream
Protection Class IP20
Operating Temperature -25°C to +60°C
Measuring Cavity Diameter 9.8 mm
Dimensions 46.8 x 17.8 x 21.3 mm

Width 47 mm
Height 21 mm
Length 18 mm
Product Weight 100 g
Country CN

Dimensions and weights

Gross weight
0.15 kg
Package width
10 cm
Package height
5 cm
Package length
20 cm

Product codes

EAN
9990001083830
