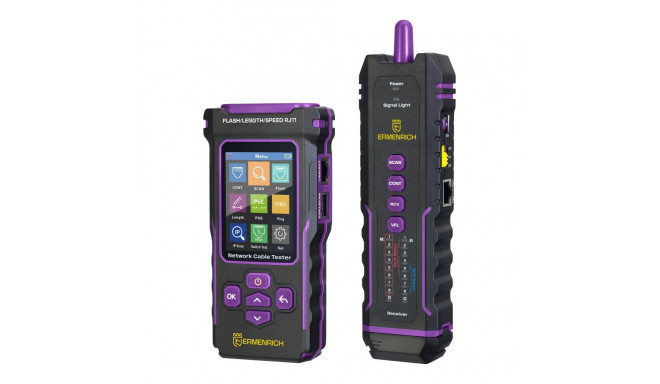

Ermenrich NetGeeks NP50 Multifunctional Cable Tester

141,99 €

Monthly payment starting from 4,84 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

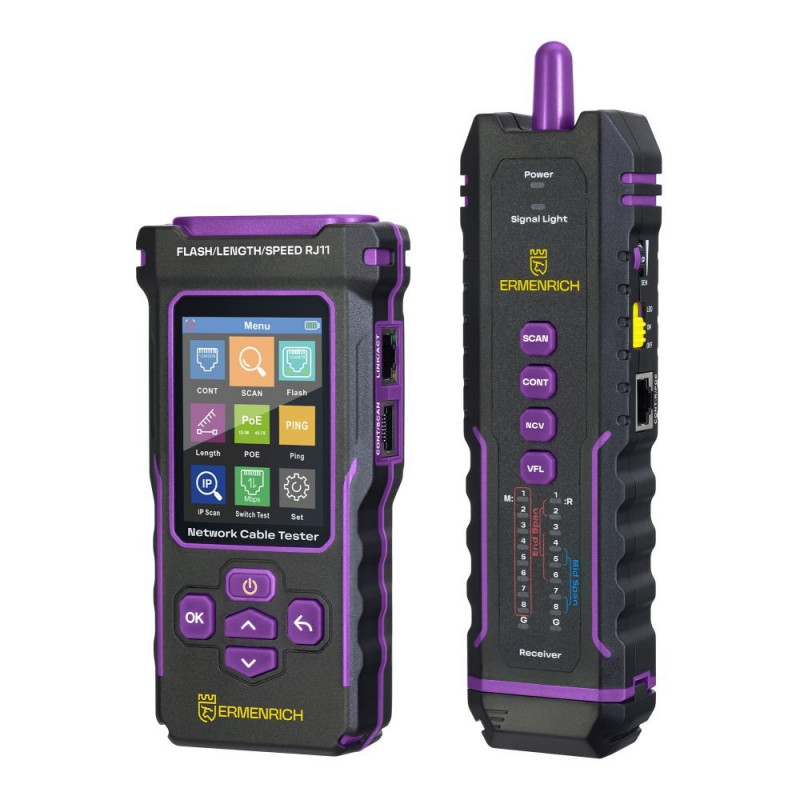

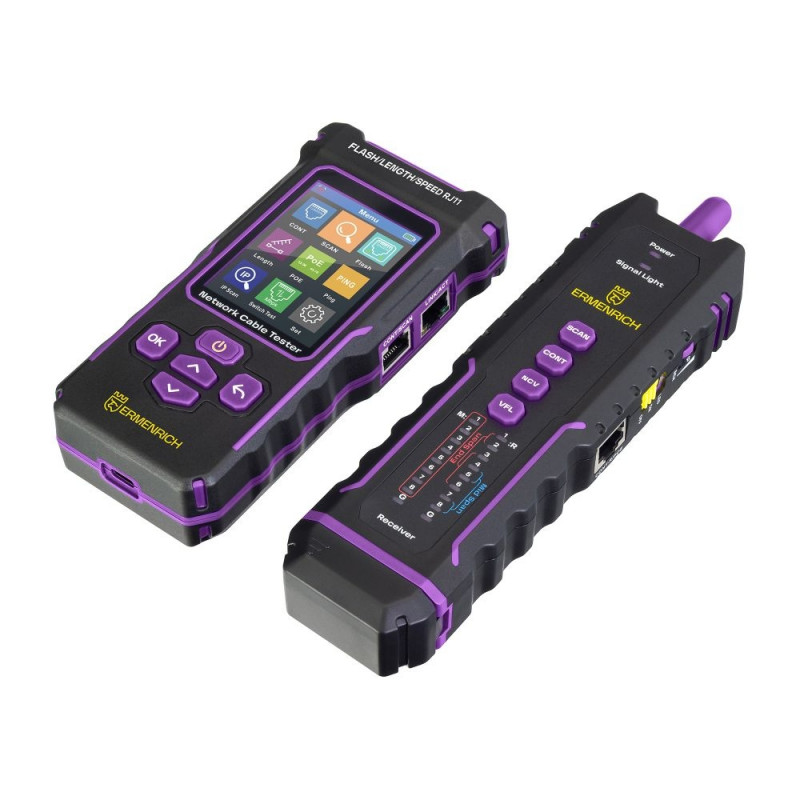

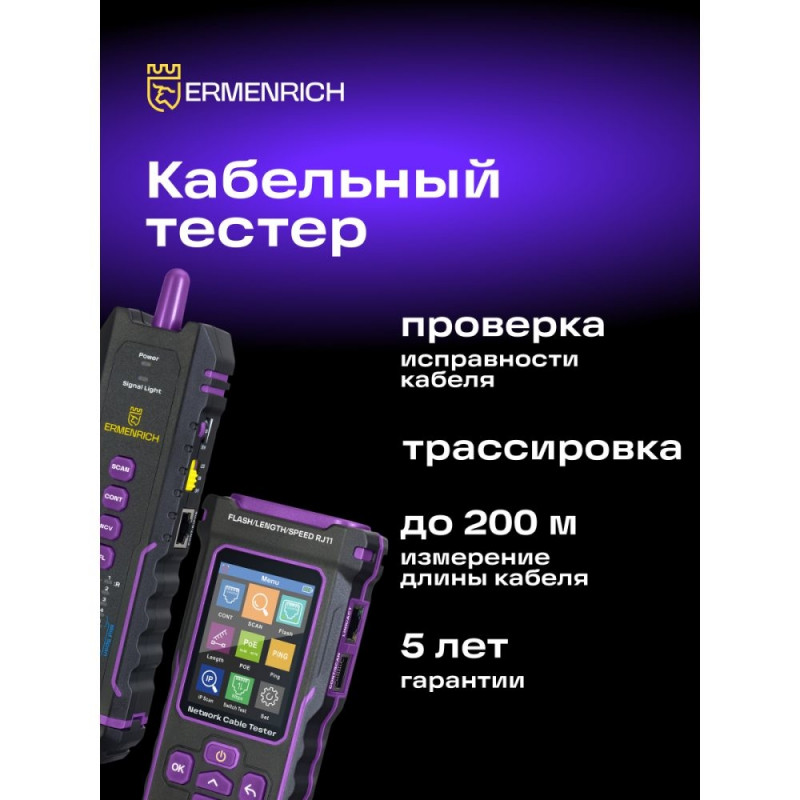

The Ermenrich NetGeeks NP50 multifunctional cable tester is designed for testing STP/UTP network cables of 5/5E/6/6A categories, measuring cable length using the TDR method (within 5–200m), conducting comprehensive diagnostics of telephone and computer networks, and detecting twisted pair. The device will identify the location of open or short circuit on the line, measure the approximate distance to the fault as well as detect crossed pairs. Maximum length of the tested cable: 1000m.

The device has many functions that are useful to specialists who install, maintain, and repair networks in industrial, office, and home environments. Ermenrich NetGeeks NP50 can be used to perform Ethernet network tests: PoE (identifies the PSE type and midspan/endspan) and PING (measure the packet transmission speed, determine the IP address). The Port Flash feature allows you to quickly identify which port on your router or switch your cable is connected to. Using the Visual Fault Locator (VFL), you can locate network faults based on the receiver’s light signals. Light indication is also present in the non-contact voltage detection (NCV) function. All of the diagnostic results are displayed on the transmitter’s color TFT screen.

Key features:

  • PSE identification according to IEEE 802.3at/af/bt and non-standard
  • Measuring of cable length 5–200m with an error of ±3m
  • The receiver features a flashlight that is also used for light indication
  • Cable tracing, locating open or short circuits and crossed pairs
  • Comprehensive network diagnostics with PoE, VFL, NCV, PING, QC test functions

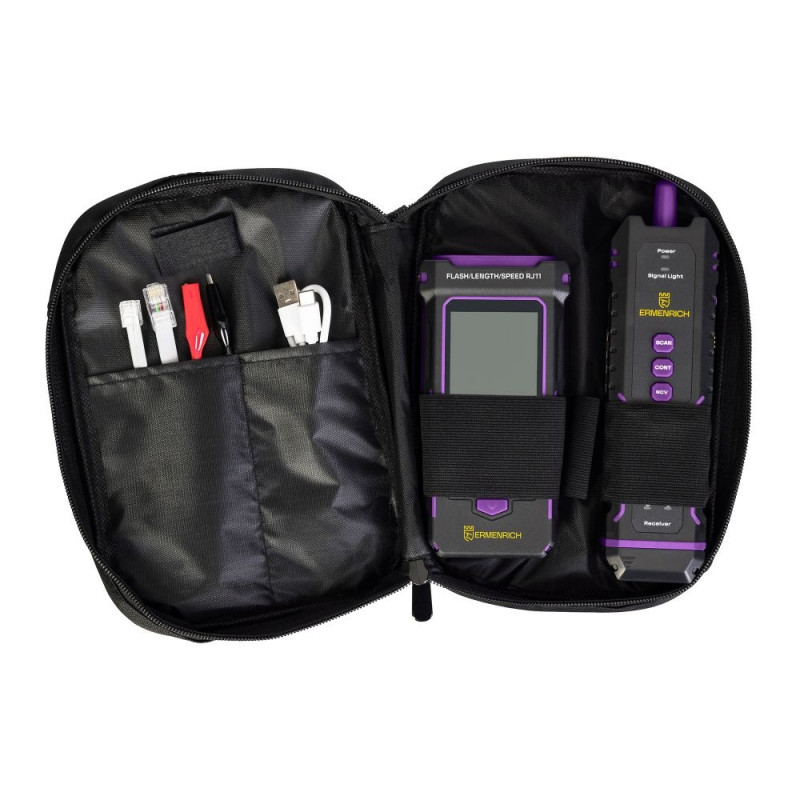

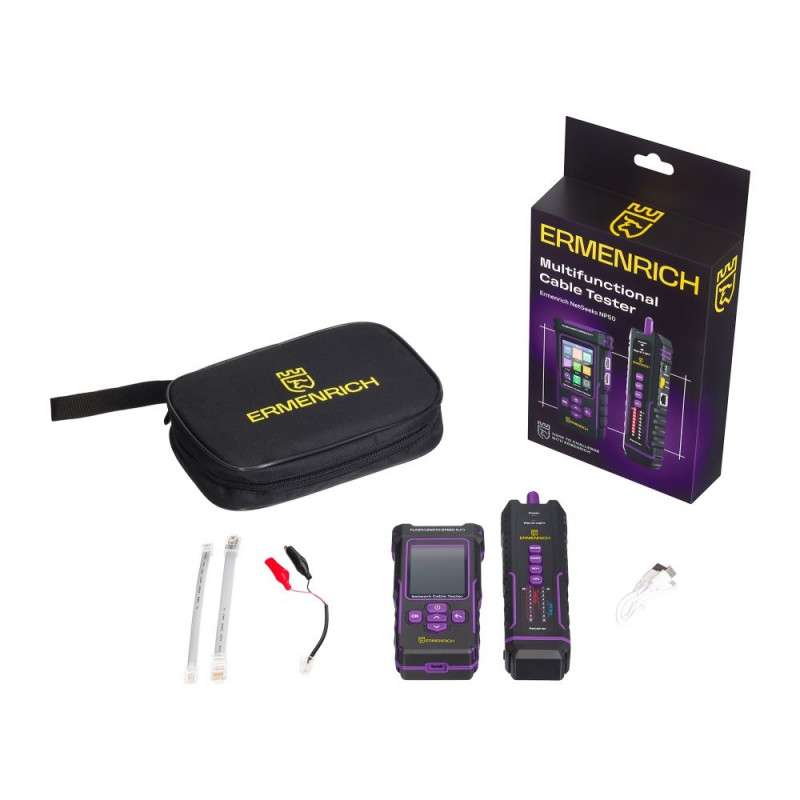

The kit includes:

  • Transmitter
  • Receiver
  • RJ11 patch cord
  • RJ45 patch cord
  • Alligator clip
  • Type-C USB cable
  • Carry bag
  • User manual and warranty card
Brand Ermenrich
Warranty 5 years
EAN 5905555023175
Package size (LxWxH) 24x16x5 cm
Shipping Weight 0.63 kg
=== Delimiter === Transmitter

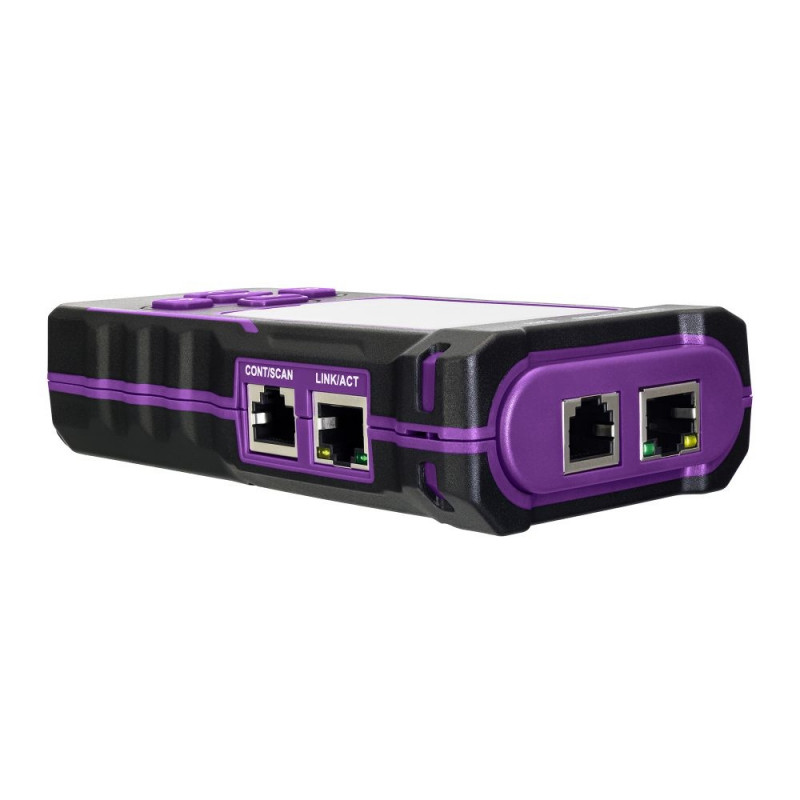

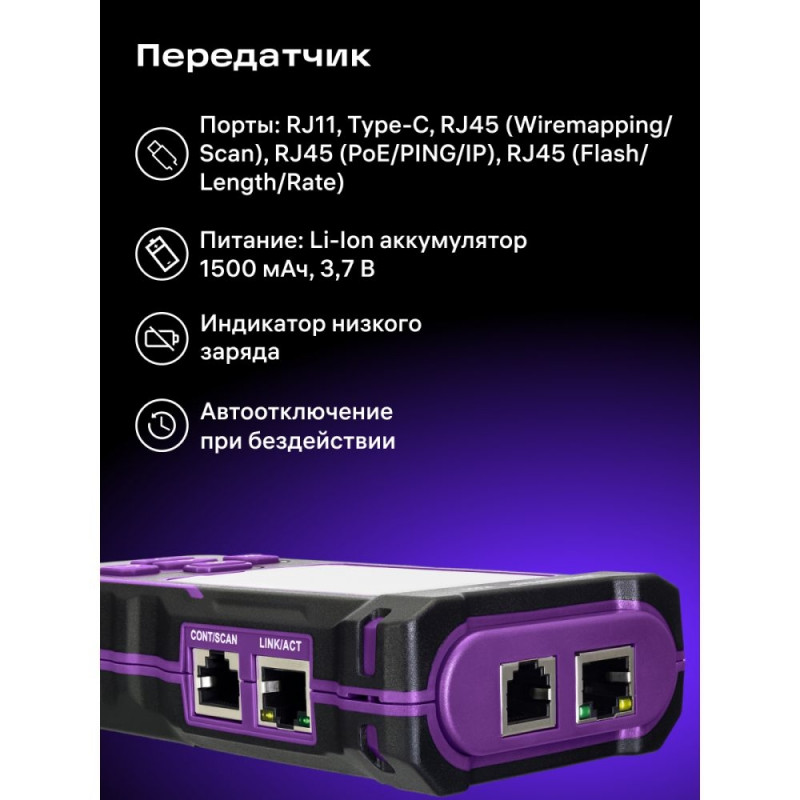

Ports RJ11, Type-C, RJ45 (Wiremapping/Scan), RJ45 (PoE/PING/IP), RJ45 (Flash/Length/Rate)
Tracing cable types telephone, common wires, STP/UTP 5/5E/6/6A network cable
Testing cable types STP/UTP 5/5E/6/6A network cable
Maximum length of the tested cable, m 600 (analog), 1000 (digital)
Cable length measurement yes
Cable testing yes
Cable testing + (open circuits, short circuits, crossed pairs)
Port flash function yes
Cable tracing yes
PoE test yes
PING test yes
Voltage polarity detection yes
Visual fault locator (VFL) yes
=== Delimiter === Cable length measurement
Measuring method time-domain reflectometer (TDR)
Units of measurement meters/yards, feet
Measuring range, m 5 — 200
Error 3m
Measuring the distance to open circuits yes
Measuring the distance to short circuit yes
Calibration +
Minimum cable length for calibration, m (ft) 10 (32.8)
=== Delimiter === PoE test
Power source equipment (PSE) type test non-standard, standard (IEEE 802.3at/af/bt)
Midspan/endspan identification yes
Power measurement range, W 5 — 60
=== Delimiter === Key features
Maximum operating current, mA 150
Protection input voltage: 60V
Display TFT
Display resolution, px 128х64
Display backlight yes
Power supply Li-ion battery 3.7V, 1500mAh
Battery life, h 10
Low battery status indicator yes
Auto power off 15 min, 60 min, 30 min
Operating temperature range, °C -10 — 60
Operating humidity range, % 20…70

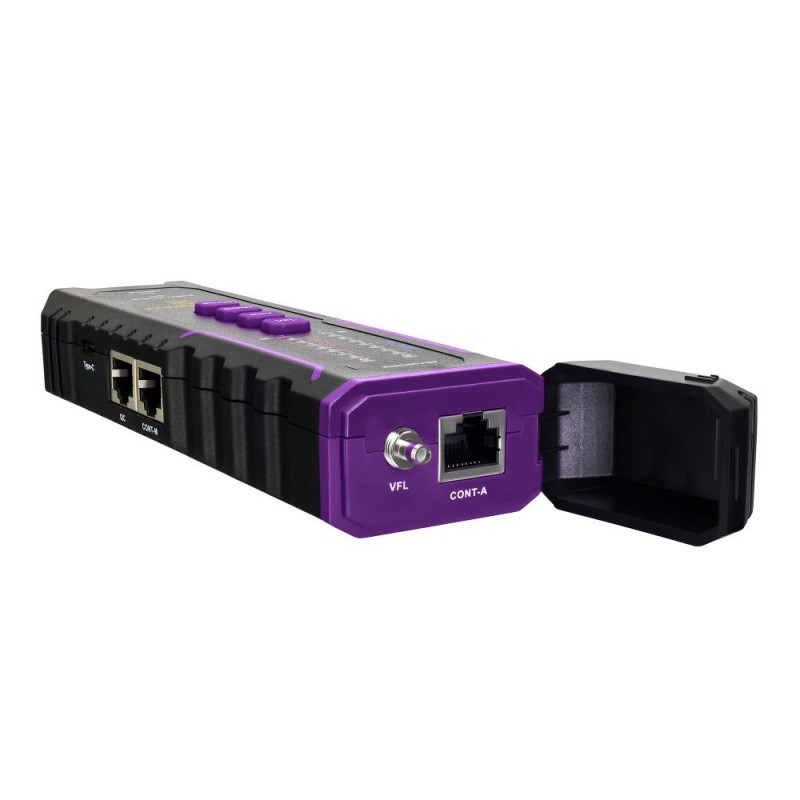

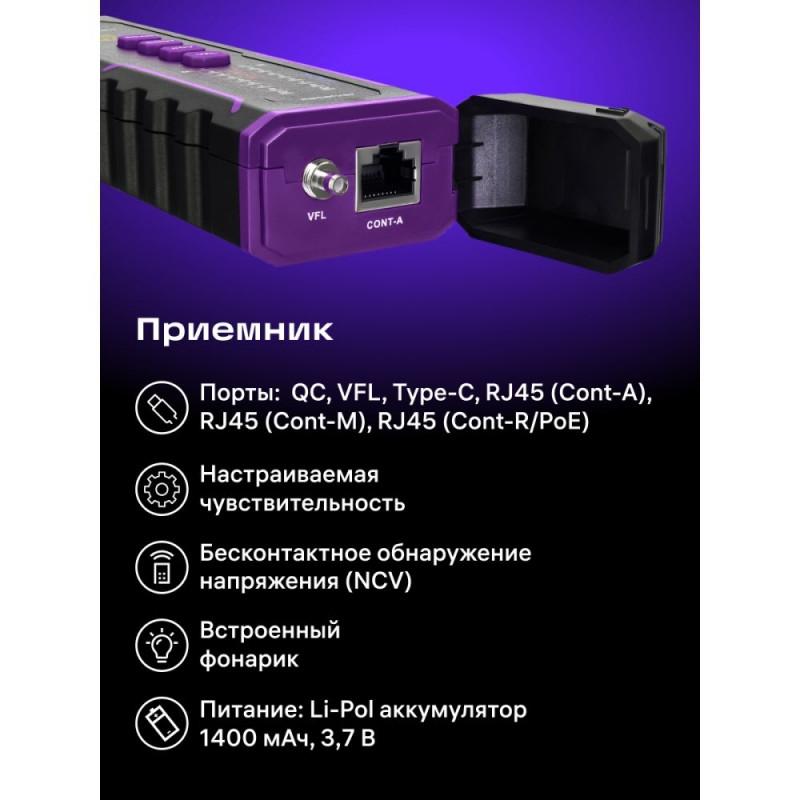

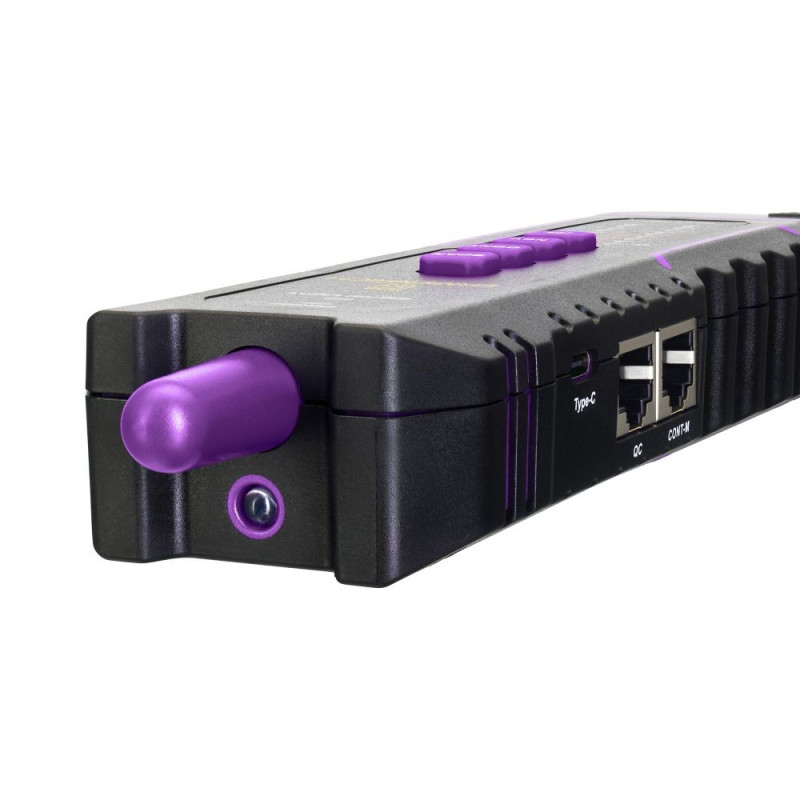

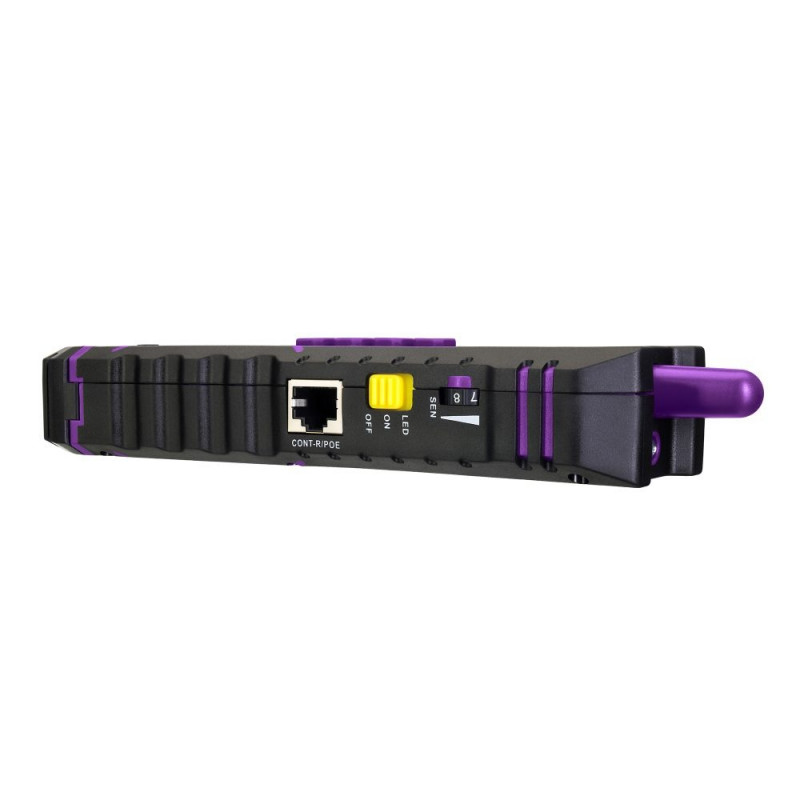

=== Delimiter === Receiver / Remote unit

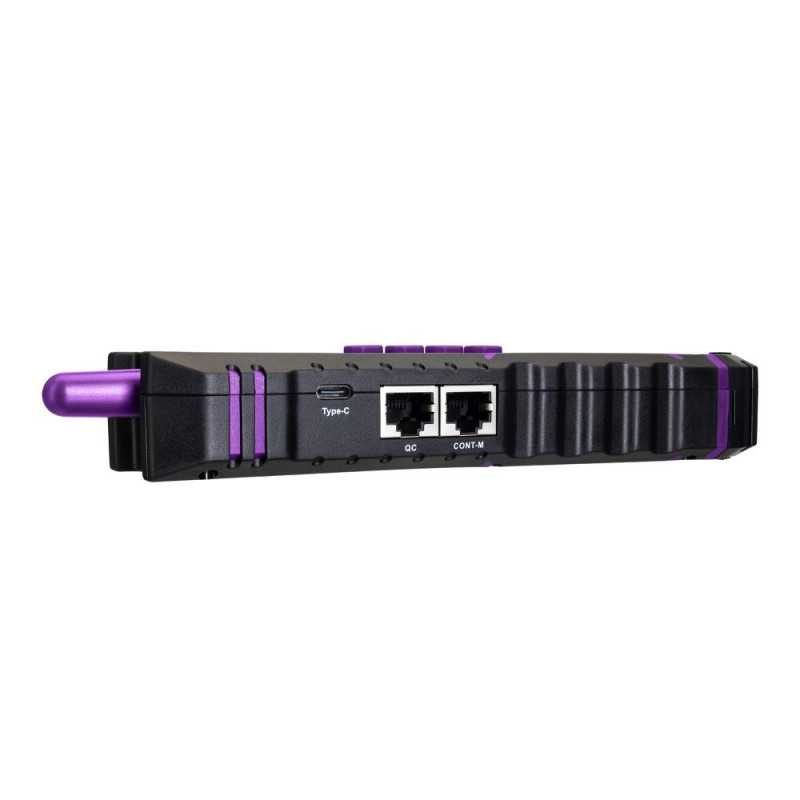

Ports QC, VFL, Type-C, RJ45 (Cont-A), RJ45 (Cont-M), RJ45 (Cont-R/PoE)
Adjustable sensitivity yes
Non-contact voltage detection (NCV) yes
Сable crystal head QC yes
Flash light yes
Maximum operating current, mA 100
Power supply 1400 mAh, 3.7V lithium polymer battery
Battery life, h 10
Operating temperature range, °C -10 — 60
Operating humidity range, % 20…70
