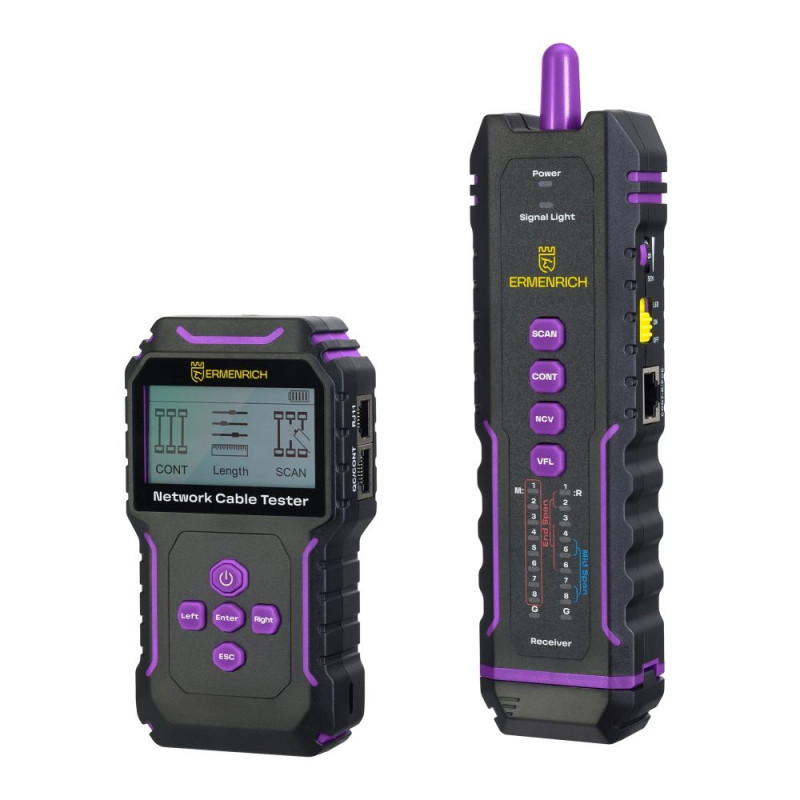

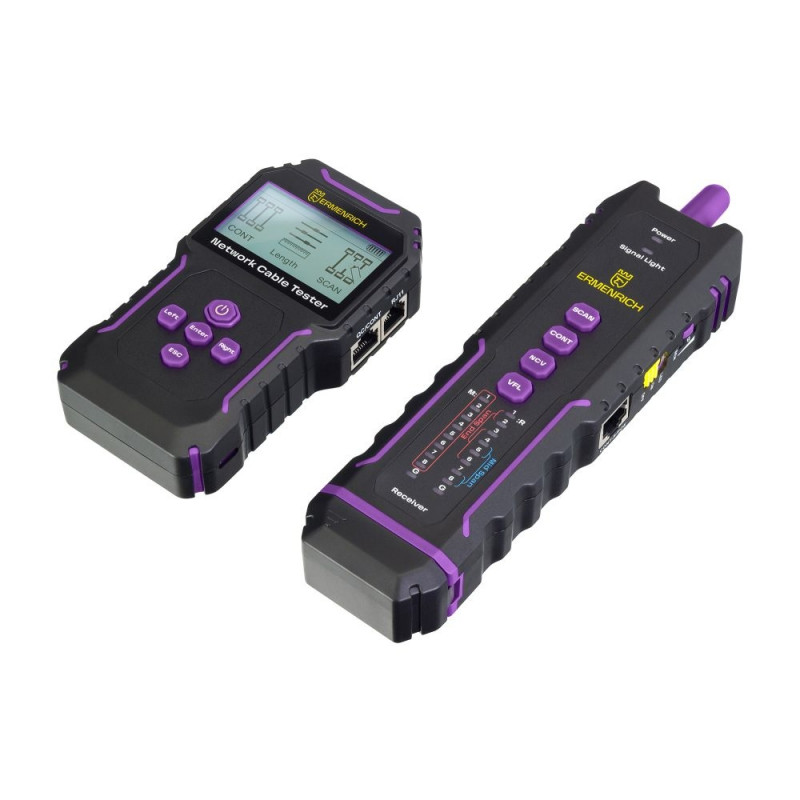

Ermenrich NetGeeks NP45 Multifunctional Cable Tester

85,99 €

Monthly payment starting from 2,57 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

The Ermenrich NetGeeks NP45 Multifunctional Cable Tester is a special device for testing a large number of parameters of telephone, computer, and twisted pair networks as well as detecting cable faults and open circuits, determining the presence of voltage, etc. The tester offers features that empower professionals to efficiently install, diagnose, and repair networks across the office, home, and industrial settings.

The Port Flash function on the tester can help you locate the cable connected to the network port on the switch or router. The device has an NCV function for non-contact detection of hazardous voltage. The device can also conduct a PoE test, which helps to determine the PSE type and it detects midspan/endspan. The VFL (Visual Fault Locator) function allows you to find bends and damage to the cable using the light signals of the device. Ermenrich NetGeeks NP45 can be used to measure cable length using the TDR method (in the range of 2.5 to 200m). The maximum cable length covered during testing is 600m.

The device is designed for testing STP/UTP network cables of 5E/6/6A categories as well as for the additional detection of telephone and electrical cables.

Key features:

  • RJ11 and RJ45 patch cords, alligator clip, and charging cable included
  • Port Flash, NCV, VFL, PoE test functions – everything you need for comprehensive diagnostics
  • Measuring cable length from 2.5 to 200m using time-domain reflectometry
  • Сable crystal head QC, polarity detection
  • The transmitter and receiver are powered by a rechargeable battery

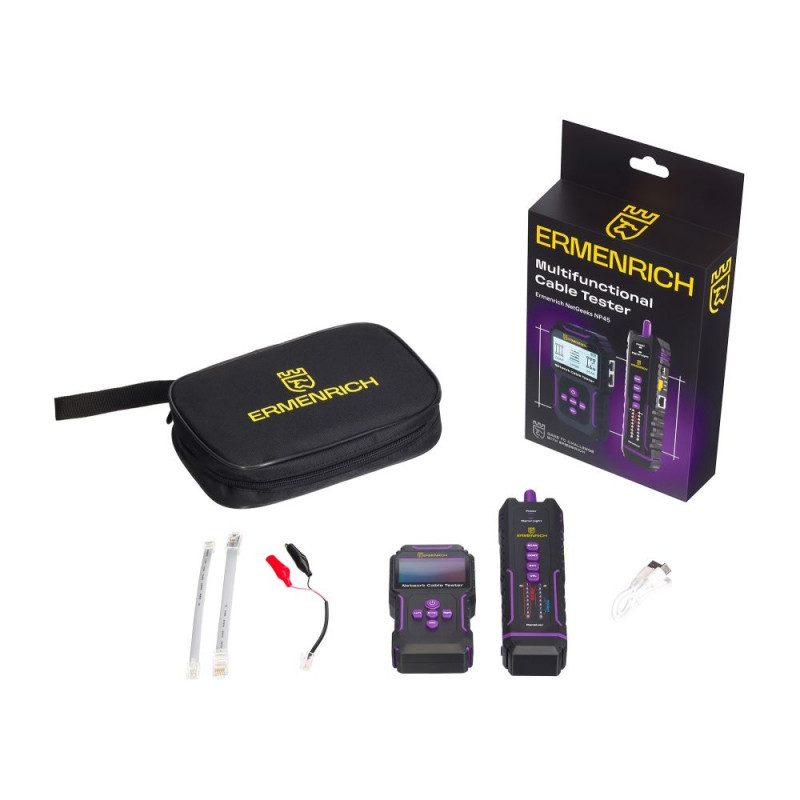

The kit includes:

  • Transmitter
  • Receiver
  • RJ11 patch cord
  • RJ45 patch cord
  • Alligator clip
  • Type-C USB cable

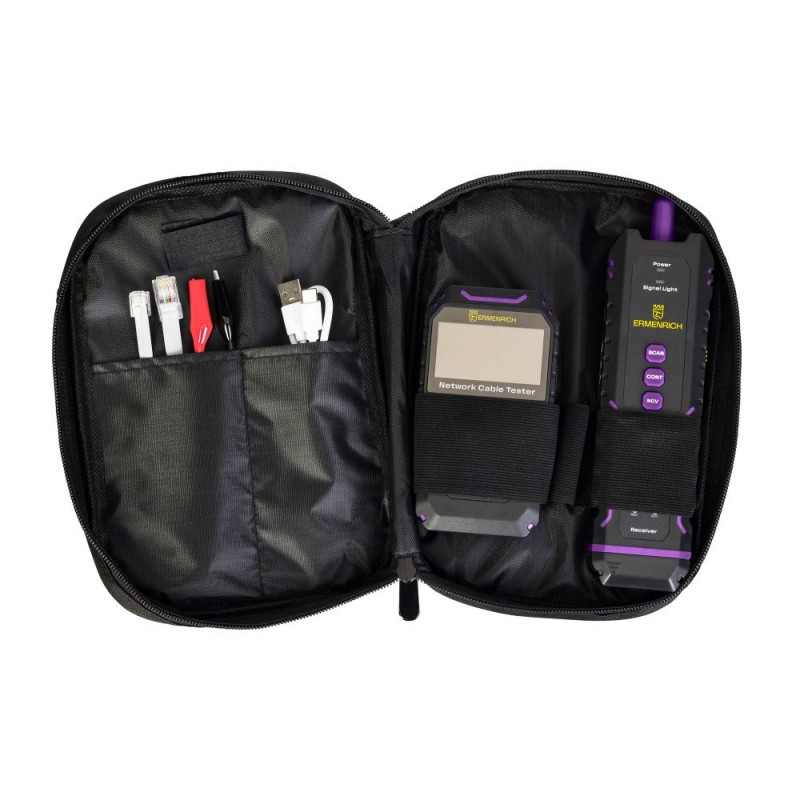

  • Carry bag
  • User manual and warranty card
Brand Ermenrich
Warranty 5 years
EAN 5905555023168
Package size (LxWxH) 24x16x5 cm
Shipping Weight 0.6 kg

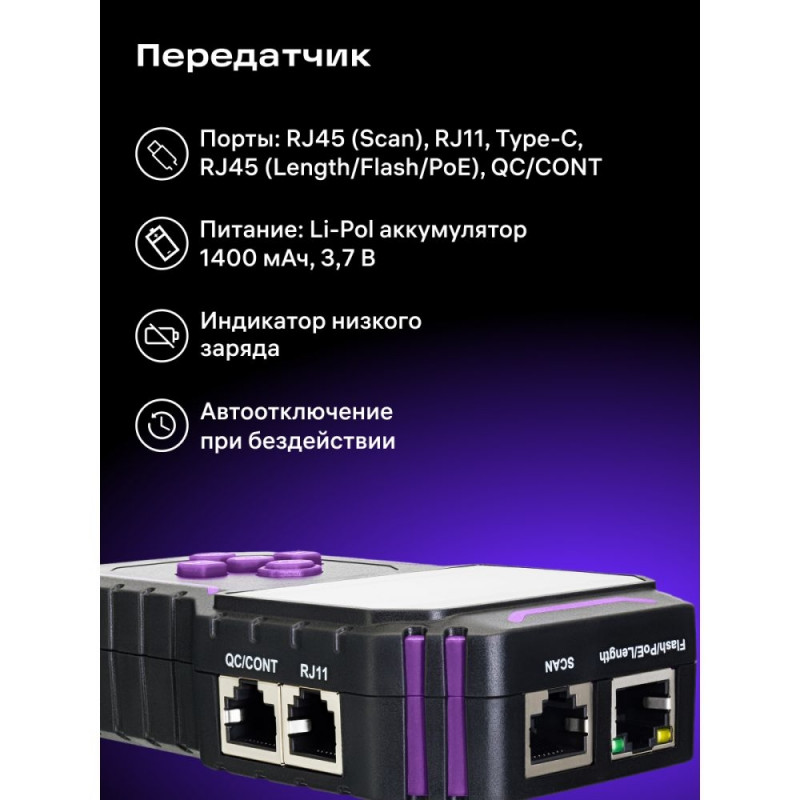

=== Delimiter === Transmitter

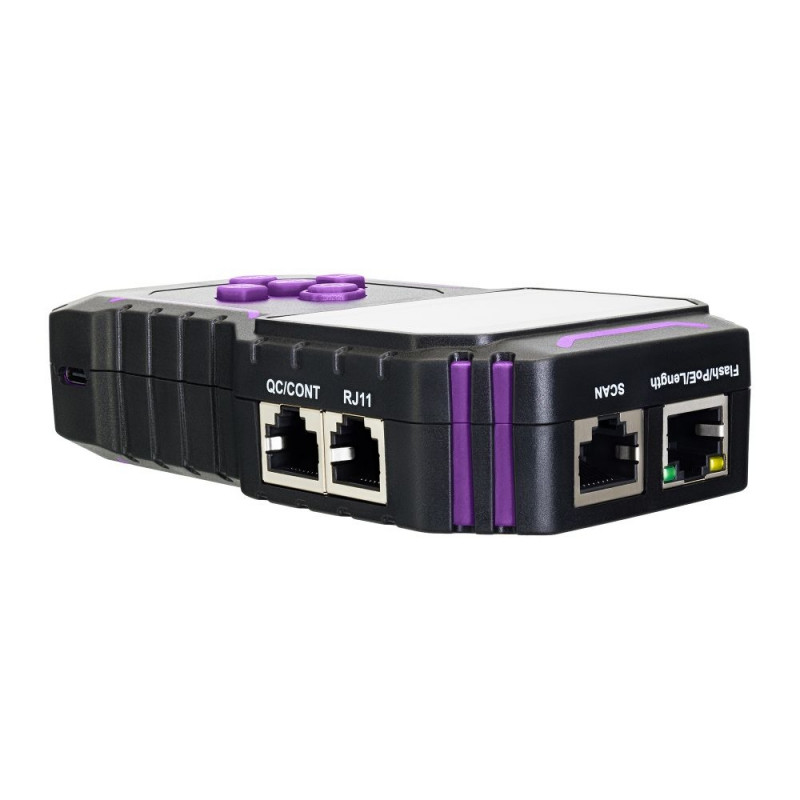

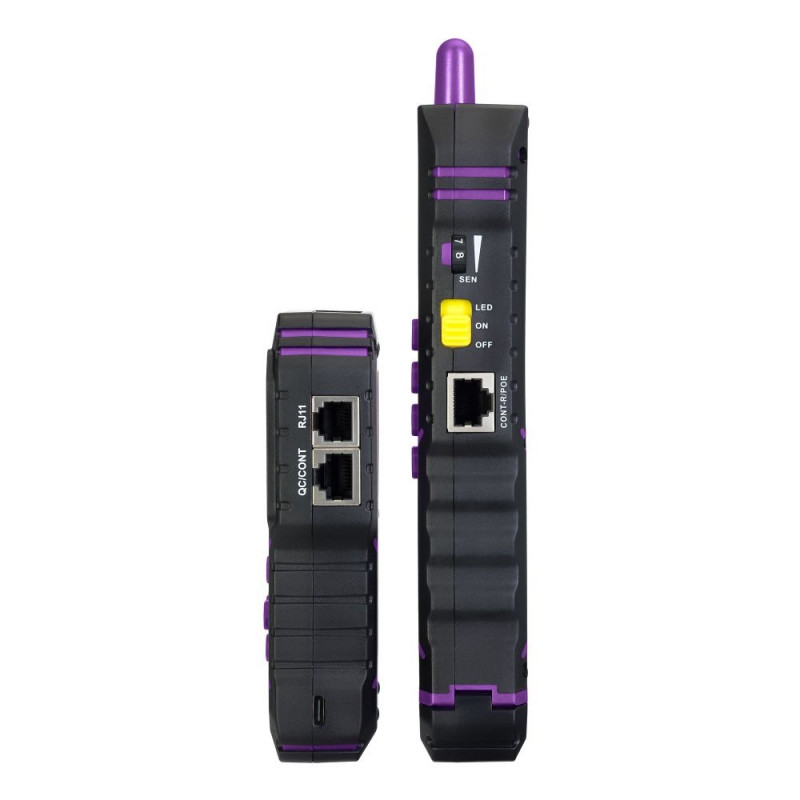

Ports RJ45 (Scan), RJ11, Type-C, RJ45 (Length/Flash/PoE), QC/CONT
Tracing cable types telephone, common wires, STP/UTP (CAT5E, CAT6, CAT6A) network cable
Testing cable types STP/UTP (CAT5E, CAT6, CAT6A) network cable
Maximum length of the tested cable, m 600
Cable length measurement yes
Cable testing yes
Cable testing + (open circuits, short circuits, crossed pairs)
Port flash function yes
Port flash function +, (full duplex/half duplex, auto-nego/non-auto-nego, 10/100/1000Mbit/s)
Сable crystal head QC yes
Cable tracing yes
PoE test yes
Voltage polarity detection yes
Visual fault locator (VFL) yes
=== Delimiter === Cable length measurement
Measuring method time-domain reflectometer (TDR)
Units of measurement meters/yards, feet
Measuring range, m 2.5 — 200
Measuring the distance to open circuits yes
Measuring the distance to short circuit yes
Calibration +
Minimum cable length for calibration, m (ft) 10 (32.8)
=== Delimiter === PoE test
Power source equipment (PSE) type test standard (IEEE 802.3at/af), non-standard
Midspan/endspan identification yes
Power measurement range, W 5 — 60
=== Delimiter === Key features
Maximum operating current, mA 200
Protection input voltage: 60V
Display LED
Display resolution, px 128х64
Display backlight yes

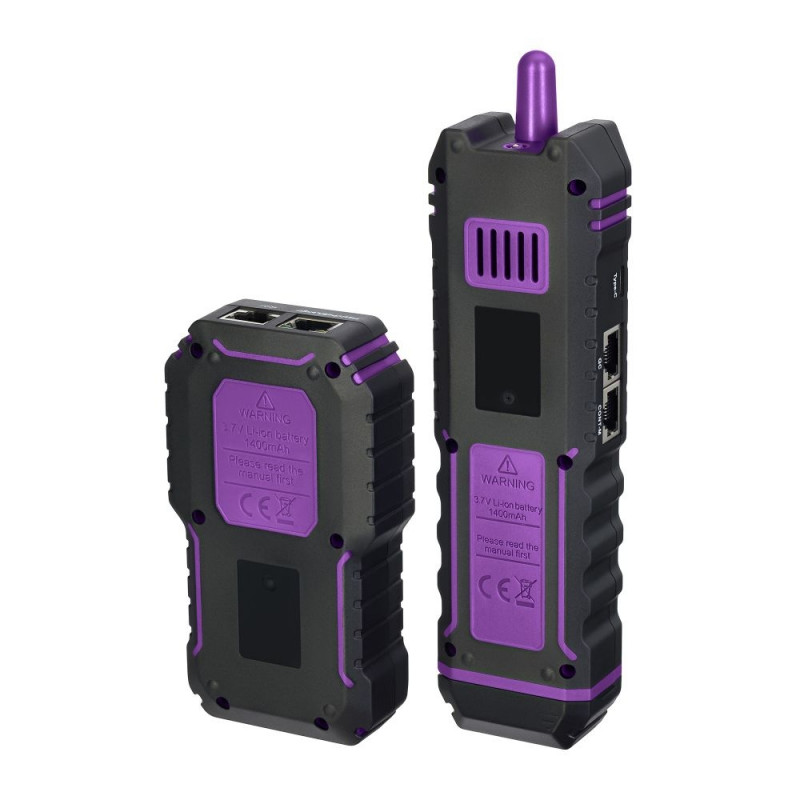

Power supply 1400 mAh, 3.7V lithium polymer battery
Battery life, h 15
Low battery status indicator yes
Auto power off 15 min, 60 min, 30 min
Operating temperature range, °C 0 — 50
Operating humidity range, % 20…70

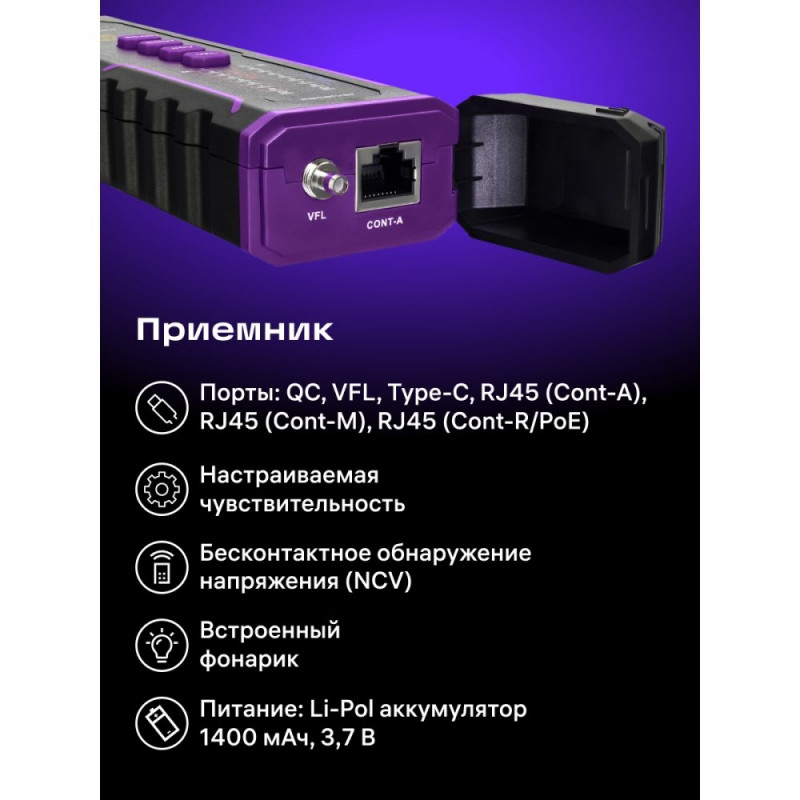

=== Delimiter === Receiver / Remote unit

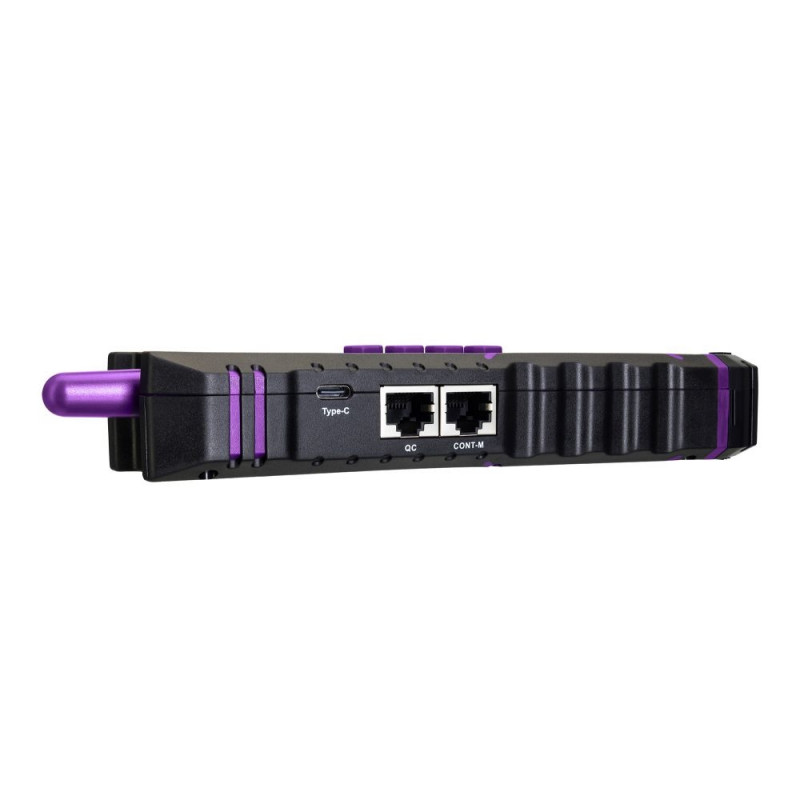

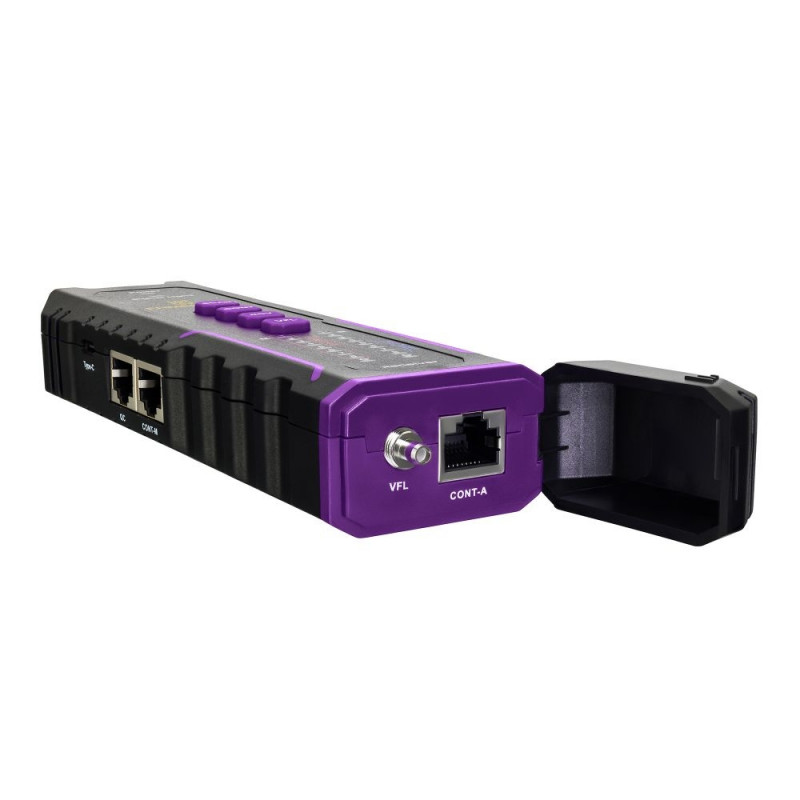

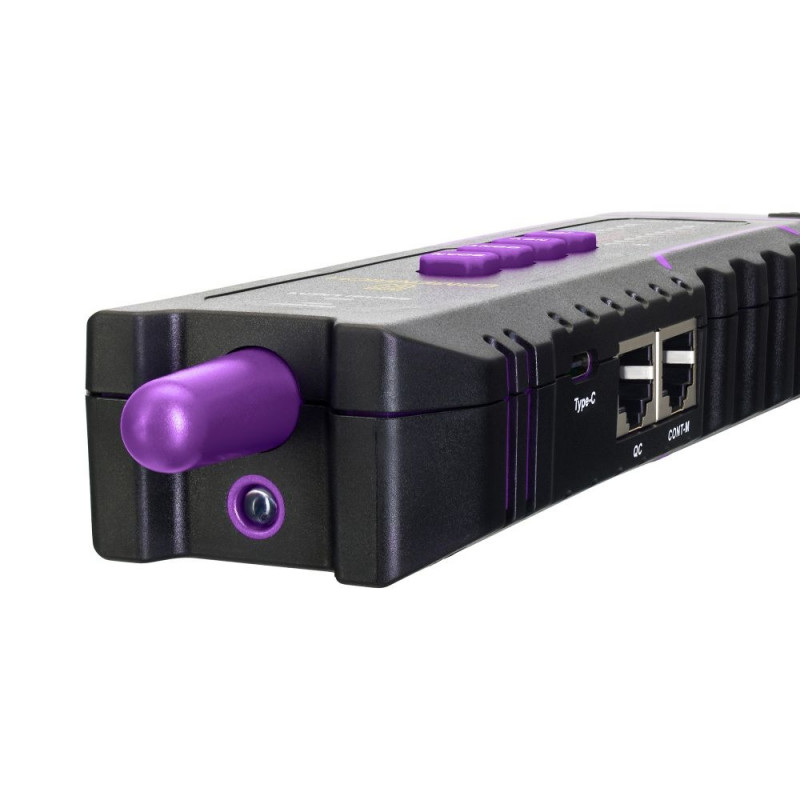

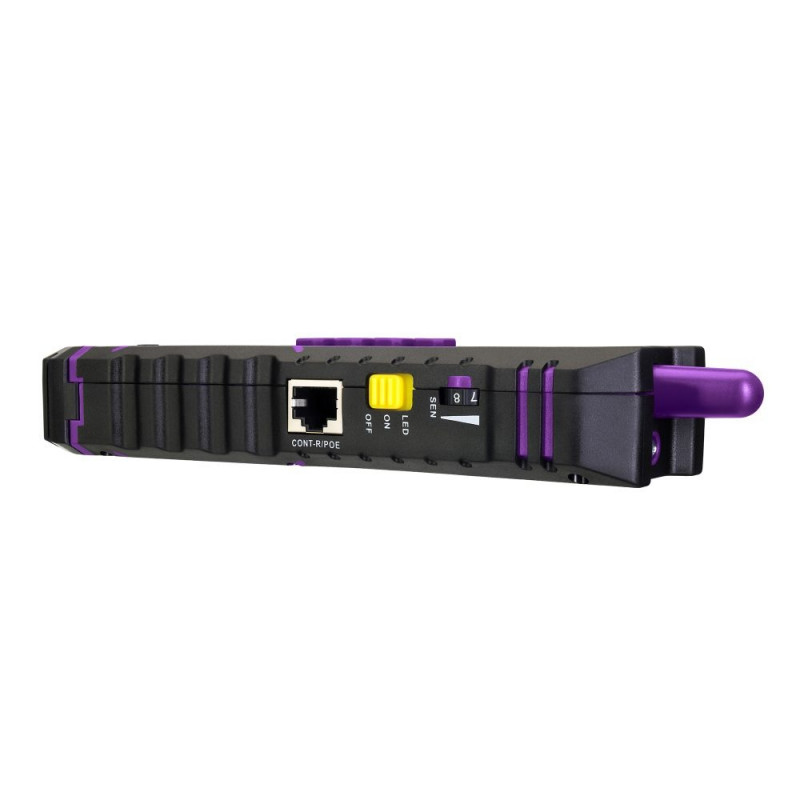

Ports QC, VFL, Type-C, RJ45 (Cont-A), RJ45 (Cont-M), RJ45 (Cont-R/PoE)
Adjustable sensitivity yes
Non-contact voltage detection (NCV) yes
Сable crystal head QC yes
Flash light yes
Maximum operating current, mA 100
Power supply 1400 mAh, 3.7V lithium polymer battery
Battery life, h 10
Operating temperature range, °C -10 — 60
Operating humidity range, % 20…70
