Induction Tester YT-28313 YATO

FREE SHIPPING
WITHIN ESTONIA!

8,99 €

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

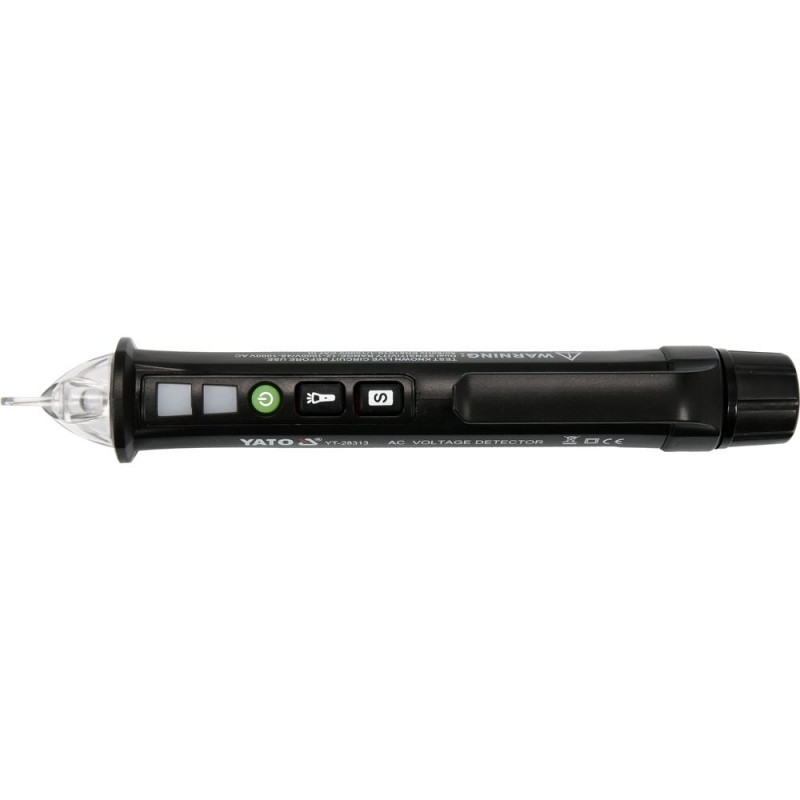

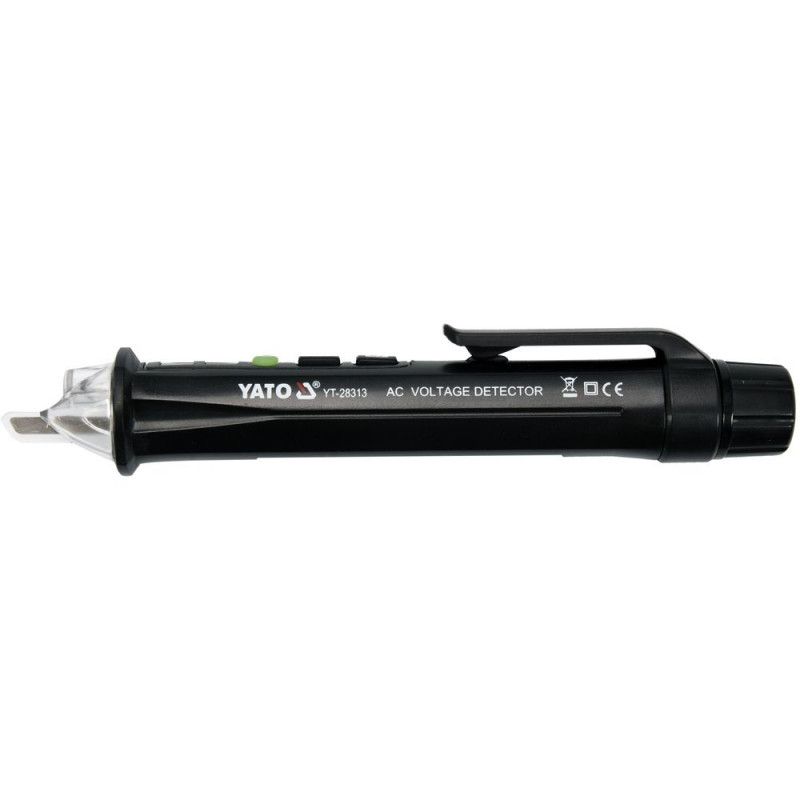

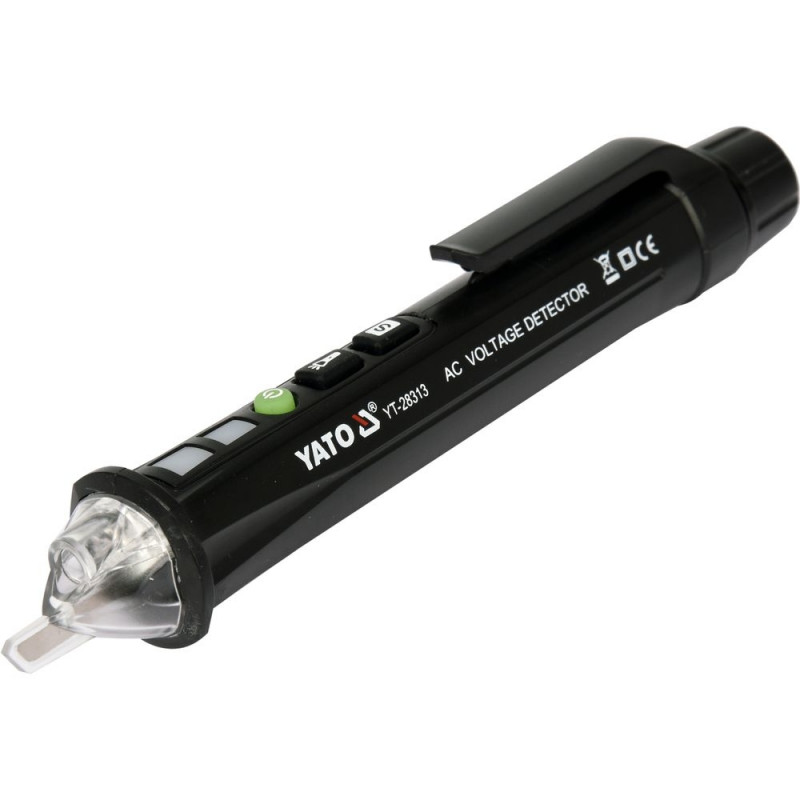

The YATO Induction Tester YT-28313 is designed for detecting alternating voltage in electric wires across two ranges: 12-1000V and 48-1000V. This tester allows users to safely identify voltage without direct contact, mitigating the risk associated with testing live wires. The presence of voltage is indicated both by an LED light and an audible signal.

FUNCTIONS OF THE TESTER

  • Inductive AC voltage detection: 12 - 1000V
  • Continuity test of conductors using an inductive method
TECHNICAL DATA
  • Overall length: 155 mm
  • Two voltage detection ranges
  • Sound and light signaling (LED)
  • Additional LED for lighting the work area
  • Power supply: 2x1.5V AAA batteries

INDUCTIVE METHOD

The blade of the YT-28313 utilizes the principle of electromagnetic induction. When brought near a live AC wire, the tester emits a pulsing green LED and sound. The pulse rate increases with the strength of the electromagnetic field. Additionally, this method allows for the detection of breaks in live wires without direct contact; if a break is detected, the tester will stop signaling voltage presence. Pressing the button labeled "S" increases the tester's sensitivity, thereby extending its operational range.


  • Series: GRD
  • Voltage - non-contact test: 12-1000 V a.c.
  • Measured voltage frequency: 50/60 Hz
  • Length: 155 mm
  • Material: ABS
  • Voltage: 3 V d.c.
  • Continuity test: yes
  • Conduction test: no
  • LED backlight: yes
  • Work area lighting: yes
  • Front lighting: yes
  • LED indicators: yes
  • Bell ring: yes
  • Sensitivity adjustment: yes
  • Auto power off: yes
  • Switch: yes
  • Power supply: battery
  • Cell type: 2x1.5V; AAA
  • Working temperature range: 0~40 ˚C
  • Storage temperature: -10 ~ +60 ˚C
  • Application: electric

Dimensions and weights

Gross weight
0.06 kg
Package width
3.6 cm
Package height
3.6 cm
Package length
16.3 cm

Product codes

EAN
5906083056130
