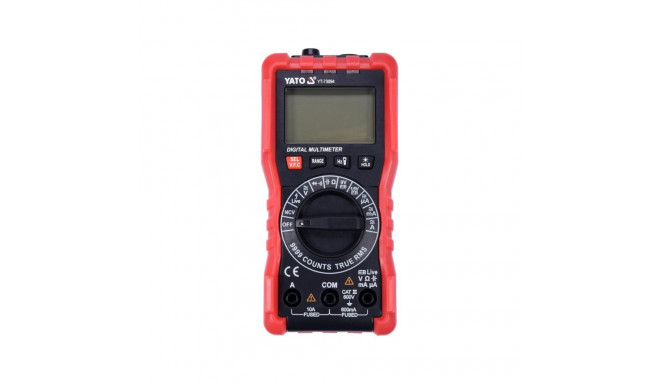

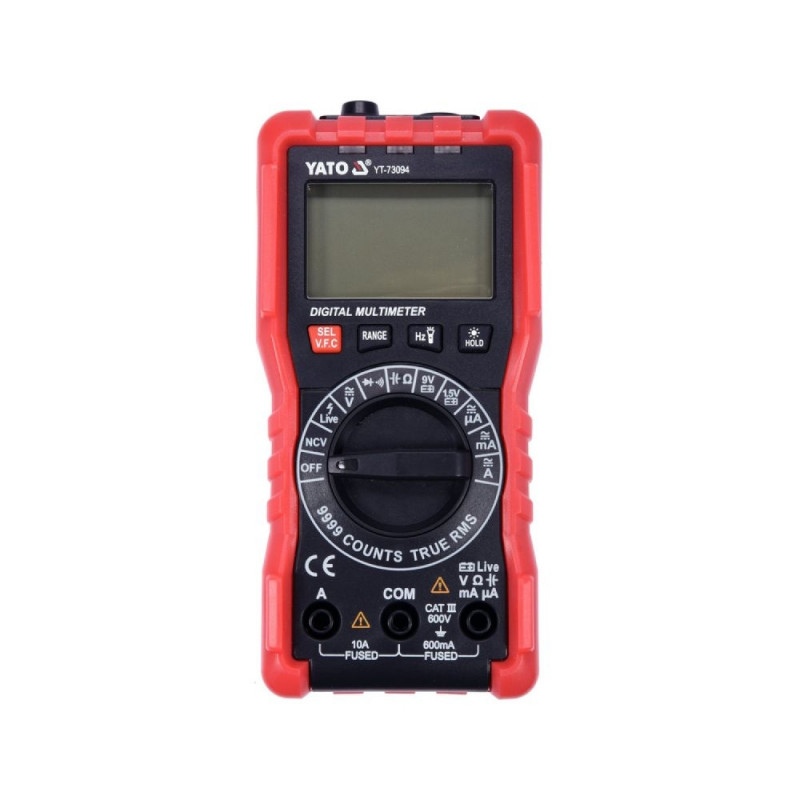

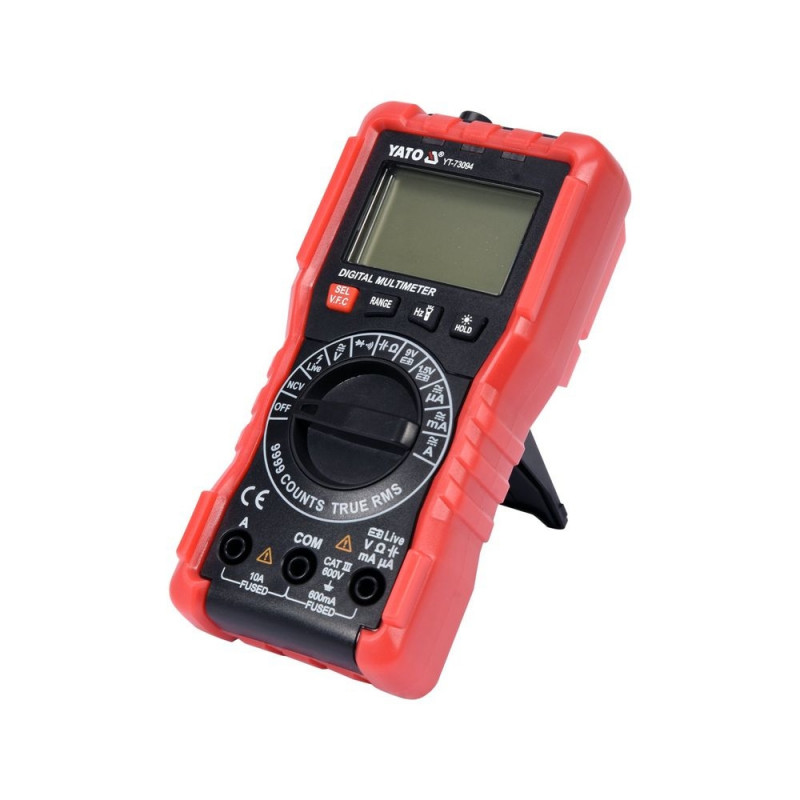

Digital Multimeter YT-73094 YATO

19,99 €

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

The YATO YT-73094 digital multimeter is designed for both alternating and direct voltage and current measurements, offering a wide range of functionalities suitable for both basic and advanced electrical tasks.


Basic Measurements:


  • AC voltage measurement: A.C. 0-600 V, TRUE RMS + V.F.C.
  • DC voltage measurement: D.C. 0-600 V
  • Alternating current measurement: A.C. 0-10 A, TRUE RMS + V.F.C.
  • DC current measurement: D.C. 0-10 A
  • Resistance measurement: 0-9,999 MΩ
  • Diode test: IF 1 mA, UR 3.3 V
  • Circuit continuity test: 0-30 Ω

Additional Measurements:


  • Capacitor measurement: 0-99.99 mF
  • Frequency measurement: 0-60 kHz
  • Non-contact AC voltage detection: NCV
  • 1.5 V battery test with a load resistance of about 30 Ω
  • 9 V battery test with a load resistance of about 300 Ω

Measurement Accuracies:


For example, the measurement accuracy for AC voltage of 235 V would be calculated as follows:


  • Measurement accuracy: ±(1.2% + 3), resolution 0.1 V
  • Calculation: (235 x 1.2%) + 3 x 0.1 = 2.82 + 0.3 = 3.12 V

Thus, the actual result would be reported as 235 ± 3.12 V.


Built-in Functions:


  • TRUE RMS - accurately displays the true RMS value of AC voltage, ensuring accurate measurements even with distorted waveforms.
  • NCV - non-contact detection of AC voltage through an inductive method, identifying voltage presence in insulated wires.
  • V.F.C. - low-pass filter that enhances voltage/current measurements by filtering out high-frequency interference.
  • Battery Test - assesses battery condition by drawing a small current, comparing results from the DC voltage test and battery test.
  • AUTO - automatic measurement range adjustment for optimal accuracy without requiring manual settings.
  • RANGE - manual adjustment for accurate measurement when working with known values.
  • DATA HOLD - maintains the current measurement value on the display for easy reference.

Additional Information:


  • LCD display capable of showing a maximum result of 9999.
  • Backlit screen and flashlight functionality for enhanced usability.
  • Audible signal during circuit continuity tests for resistances below 30 Ω.
  • Automatic switching from diode test to continuity test for resistances below 50 Ω.

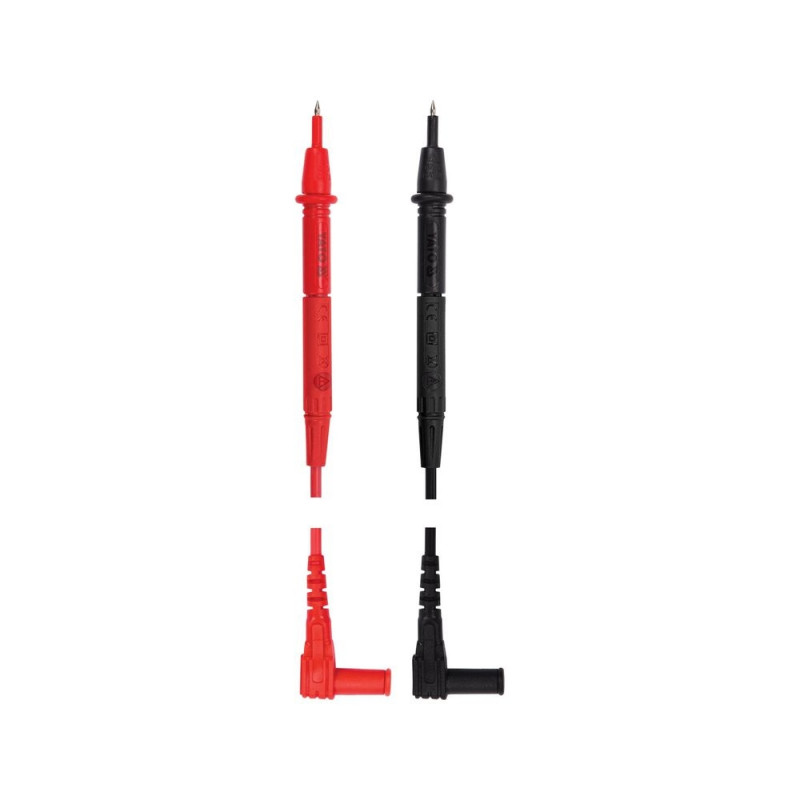

  • Measuring probes included with the device.
  • Durable construction with overload protection and a rubber holster to prevent mechanical damage.
  • Automatic meter shutdown and low battery indicator for convenience.
  • Powered by two 1.5 V AAA batteries.

Dimensions and weights

Gross weight
0.375 kg
Package width
33 cm
Package height
31.5 cm
Package length
47.5 cm

Product codes

EAN
5906083056147
