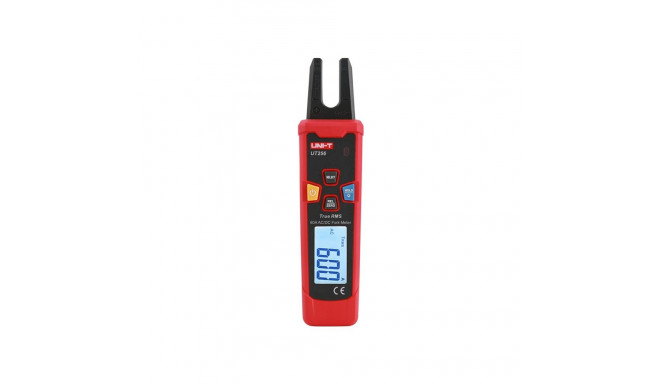

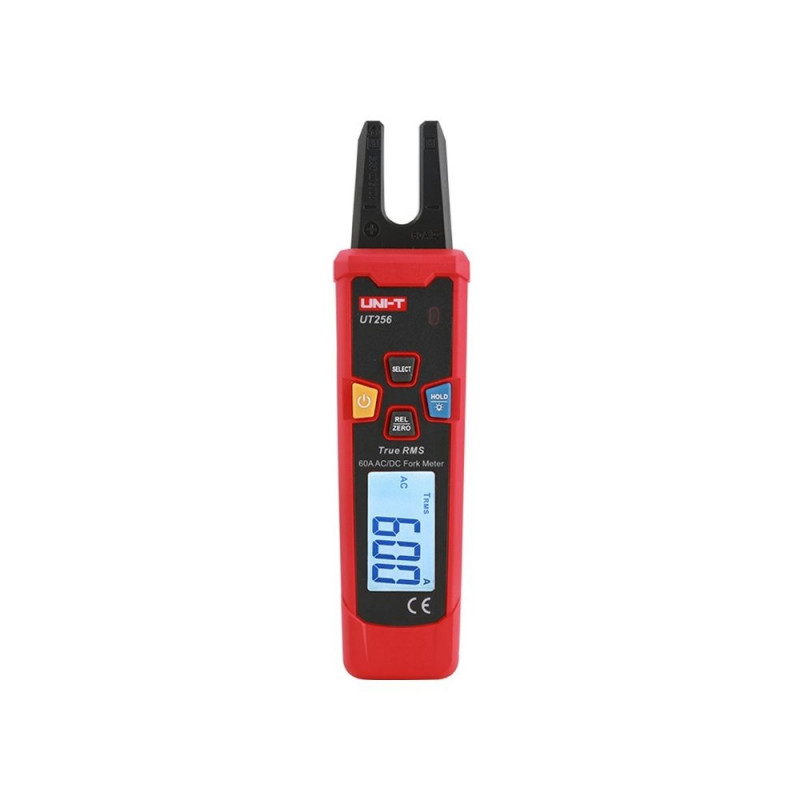

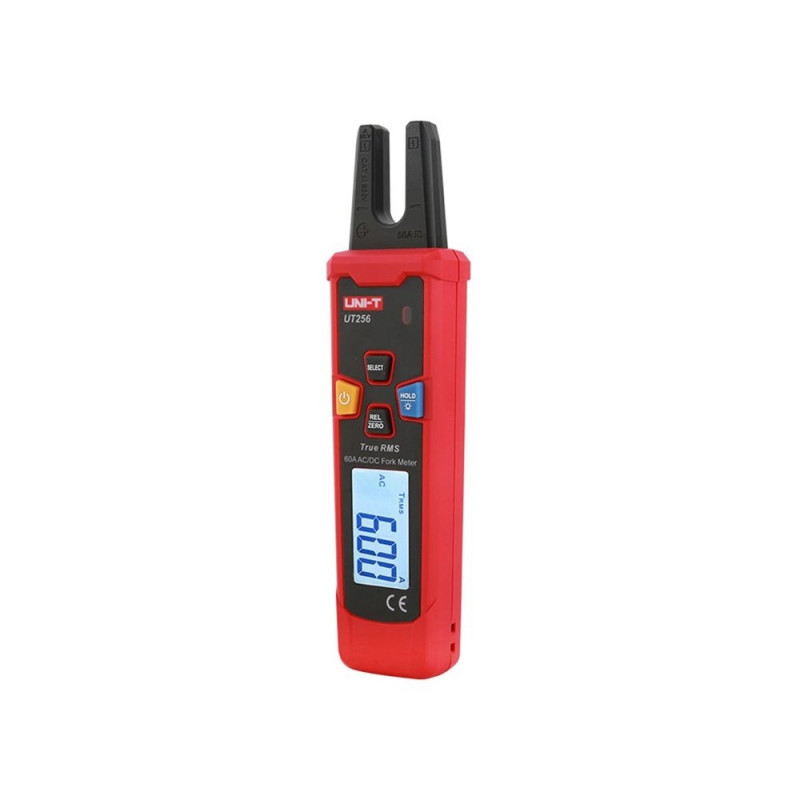

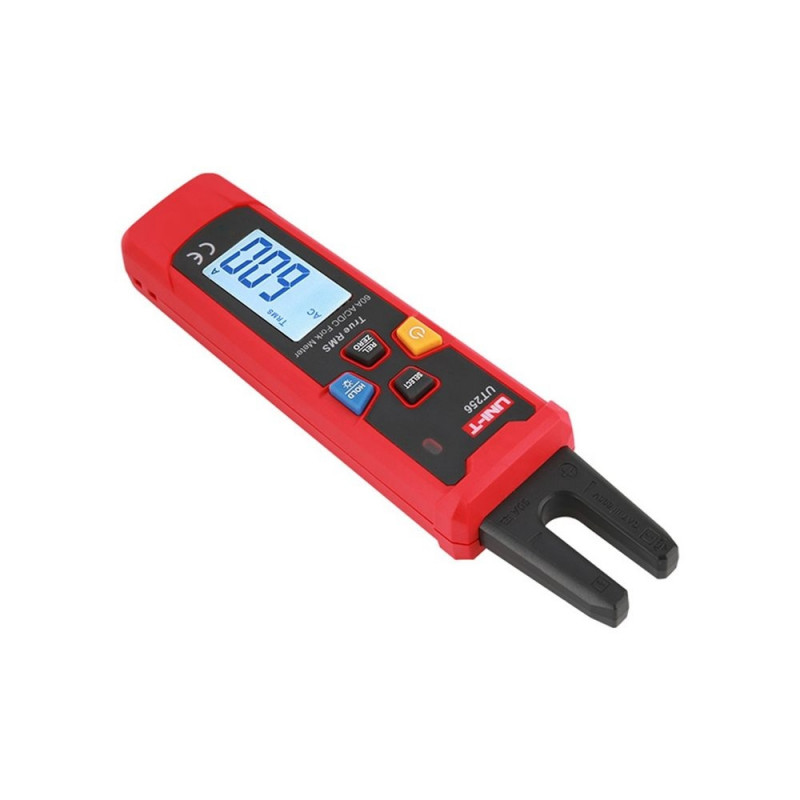

Uni-T UT256 Clamp Meter

The Uni-T UT256 is a compact True RMS clamp meter designed for fast and convenient measurement of AC and DC currents up to 60 A. Its slim housing and thin clamp with a 10 mm opening make it easy to work in tight spaces, making this model ideal for measuring wires in confined installations. An additional advantage is the built-in NCV sensor at the tip of the probe, which allows for non-contact voltage detection.

Convenient operation and practical features

The UT256 is equipped with a Data Hold function, Relative mode, Zero mode, and a backlit display, which enhances user comfort and makes it easier to read results in various conditions. An audible and visual alarm improves safety, and automatic shut-off after approximately 30 minutes helps conserve energy. Thanks to True RMS technology, the device offers greater measurement reliability during daily use.

Compact design for field work

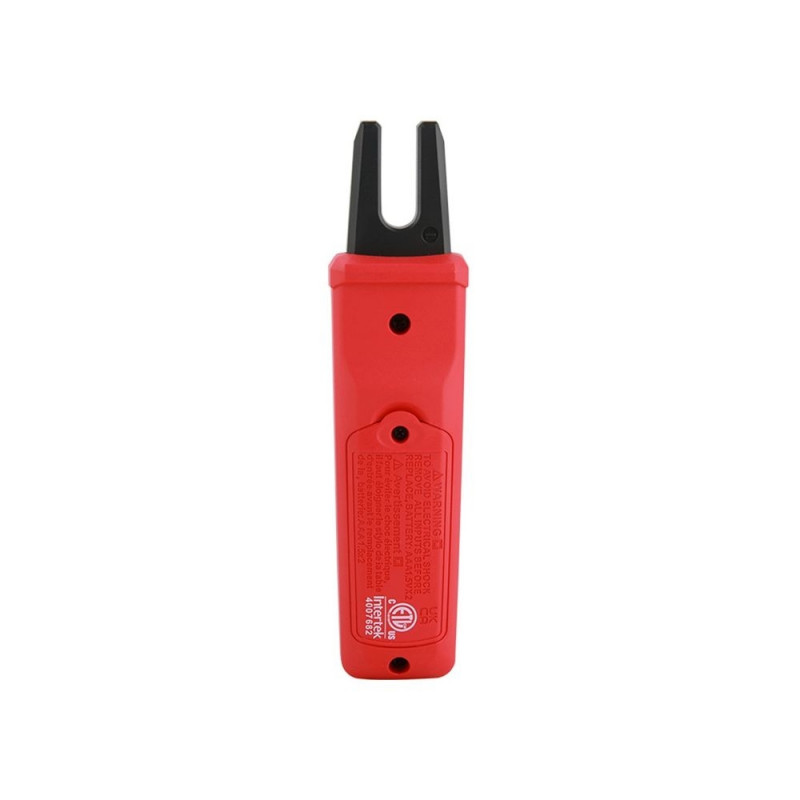

The meter weighs only 120 g with batteries and measures 171 × 42 × 28 mm, making it convenient to carry and operate with one hand. Powered by two AAA batteries and featuring an easily accessible battery compartment, the device can be quickly prepared for use and the batteries can be efficiently replaced. The model meets CAT III 600V safety requirements and has been tested for resistance to drops from a height of 1 meter, which enhances its practicality in everyday use.

Included
  • Clamp meter
  • 2 AAA batteries
  • Test leads
  • Lanyard
  • Carrying case
  • User manual
Specifications
Manufacturer Uni-T
Model UT256
Type True RMS clamp meter
AC current 60A ±(2%+5)
DC current 60A ±(2%+5)
Maximum reading Auto range
Features True RMS, NCV, Data Hold, Relative mode, Zero mode, backlight, audible and visual alarm, auto power off, low battery indicator
Jaw opening 10 mm
Power supply 2x 1.5V AAA batteries
Dimensions 171 x 42 x 28 mm
Weight 120 g
Color Red and gray
Safety CAT III 600V
Certifications CE, UKCA, cETLus

Dimensions and weights

Gross weight
0.138 kg

Product codes

EAN
6935750525630
Manufacturer code
UT256
