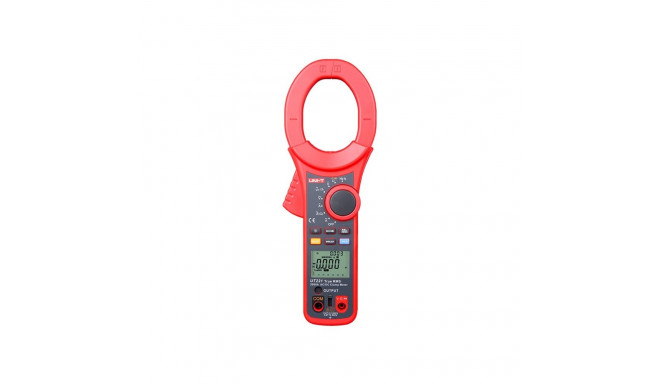

Uni-T UT221 Digital Current Meter

110,99 €

Monthly payment starting from 3,32 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Uni-T UT221 digital clamp meter The Uni-T UT221 is an advanced clamp meter designed to measure high AC and DC currents up to 2000 A. With a large jaw opening of 63 mm and automatic range switching, the device performs well when working with complex e
Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

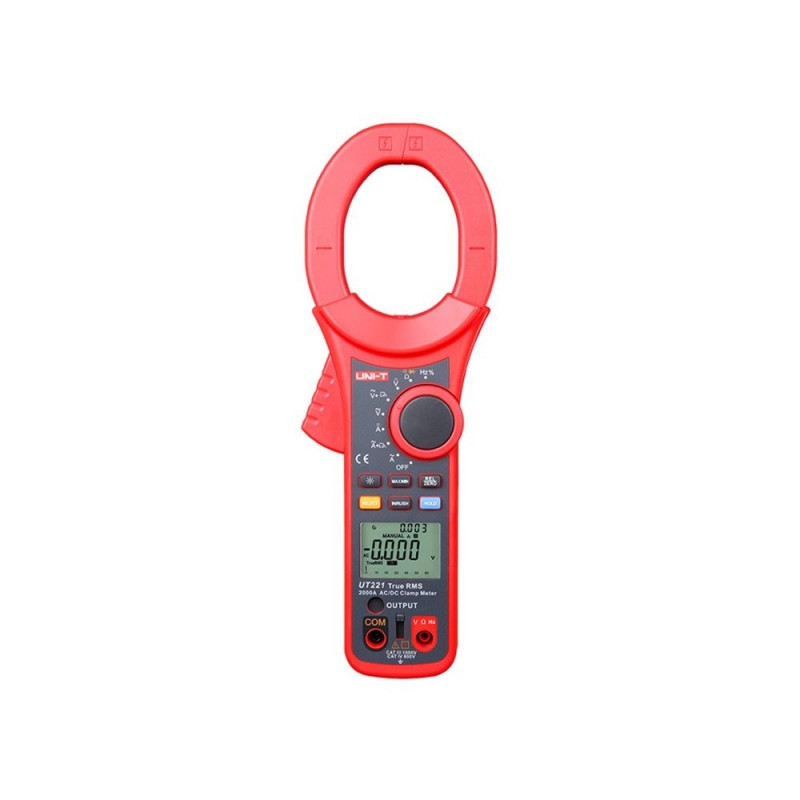

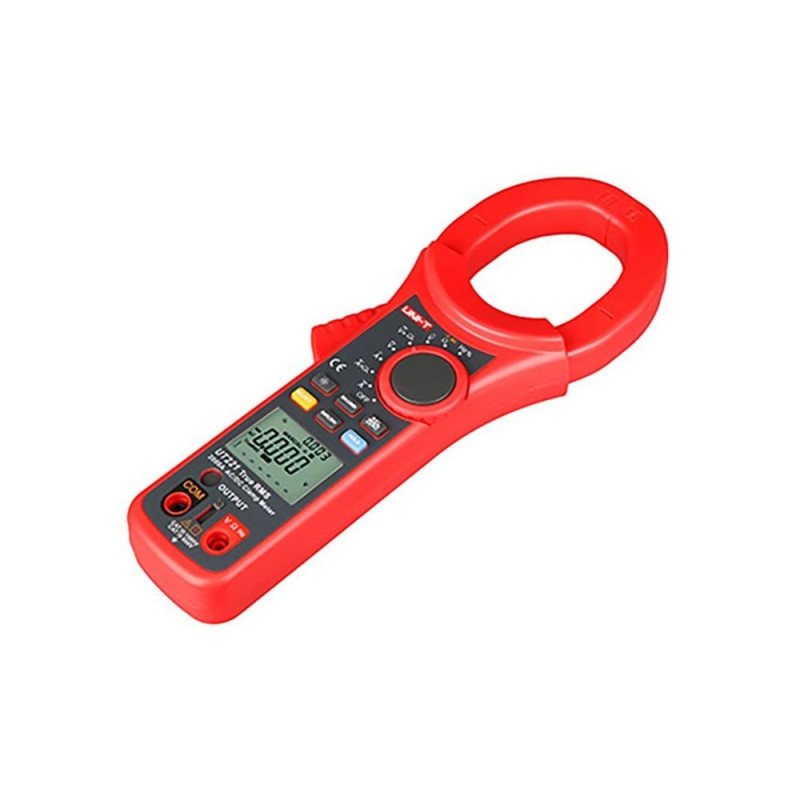

Uni-T UT221 digital clamp meter

The Uni-T UT221 is an advanced clamp meter designed to measure high AC and DC currents up to 2000 A. With a large jaw opening of 63 mm and automatic range switching, the device performs well when working with complex electrical and industrial installations. The model allows for measuring AC voltage up to 750 V, DC voltage up to 1000 V, resistance up to 66 MΩ, and frequency up to 20 MHz. Additionally, it offers True RMS for AC voltage and current, duty cycle measurement, a low-pass filter, inrush current measurement, and relative mode, which expands its capabilities when diagnosing more demanding systems.

Convenient operation and features supporting daily work

A maximum reading of 6000 and a 66-segment analog bar graph make it easy to observe changes in measured parameters. The meter is equipped with MIN/I-OUT, Data Hold, MAX, diode test, and continuity buzzer functions, allowing for convenient performance of a variety of measurements. A clear set of icons, a low-battery indicator, and a robust design measuring 298 × 107 × 47 mm and weighing 726 g make the Uni-T UT221 a practical tool for more demanding measurement applications.

Included
  • Clamp meter
  • Test leads (1 pair)
  • Output cable
  • 9V battery (6F22)
  • Carrying case
  • User manual
Specifications
Manufacturer Uni-T
Model UT221
Product type True RMS digital clamp meter
AC current range 2000 A ±(2.5% + 5)
DC current range 2000 A ±(2.5% + 5)
AC voltage range 750 V ±(1.2% + 5)
DC voltage range 1000 V ±(0.8% + 1)
Resistance measurement range 66 MΩ ±(1% + 2)
Frequency range 20 MHz ±(0.1% + 3)
Duty cycle range 10% – 90%
Maximum display reading 6000
Functions True RMS, diode test, continuity test, Data Hold, MAX, Relative mode, low-pass filter, inrush current measurement, analog bar graph, automatic range switching, low battery indicator
Jaw opening 63 mm
Power supply 9V battery (6F22)
Display dimensions 43 × 30 mm
Dimensions 298 × 107 × 47 mm
Weight 726 g
Certifications CE, UKCA, cETLus

Dimensions and weights

Gross weight
2.08 kg

Product codes

EAN
6935750502211
Manufacturer code
UT221
