Uni-T UT206B Digital Clamp Meter

FREE SHIPPING
WITHIN ESTONIA!

81,99 €

Monthly payment starting from 2,45 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

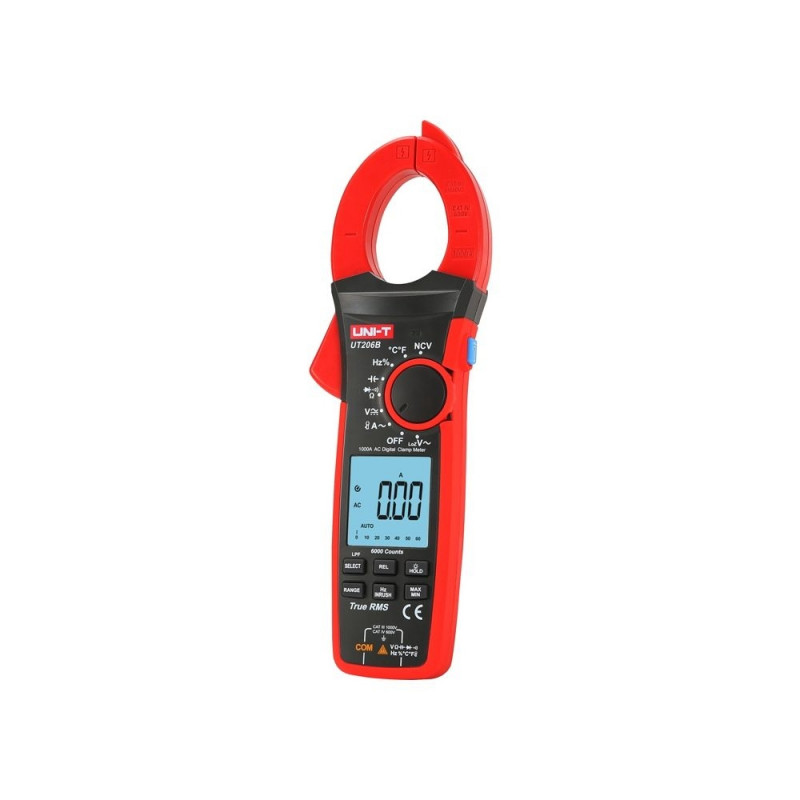

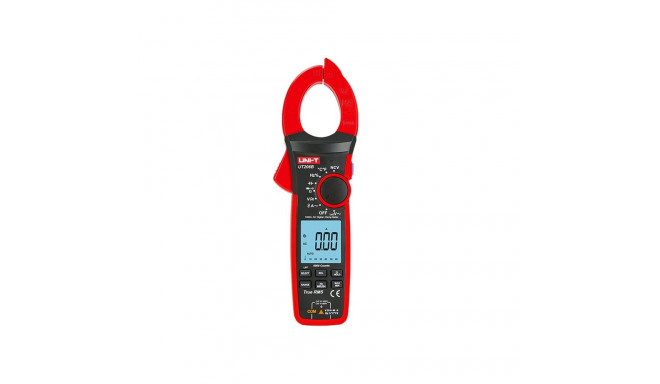

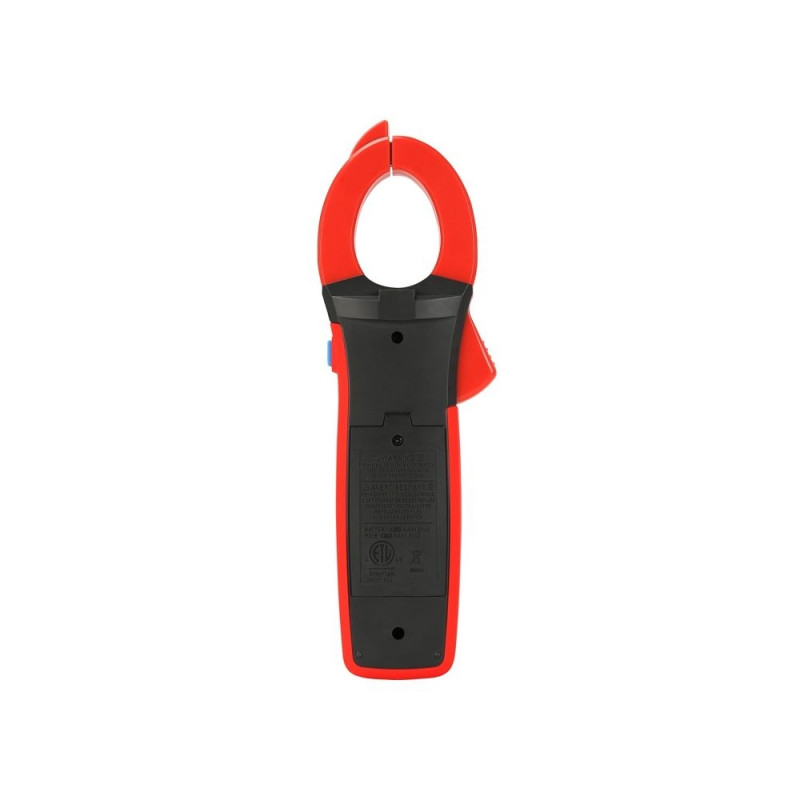

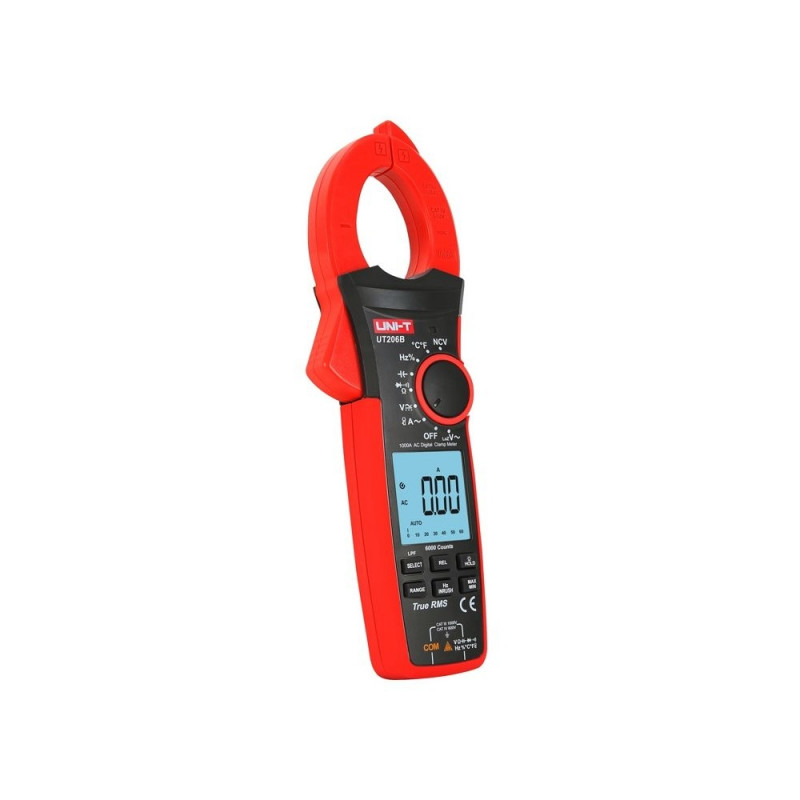

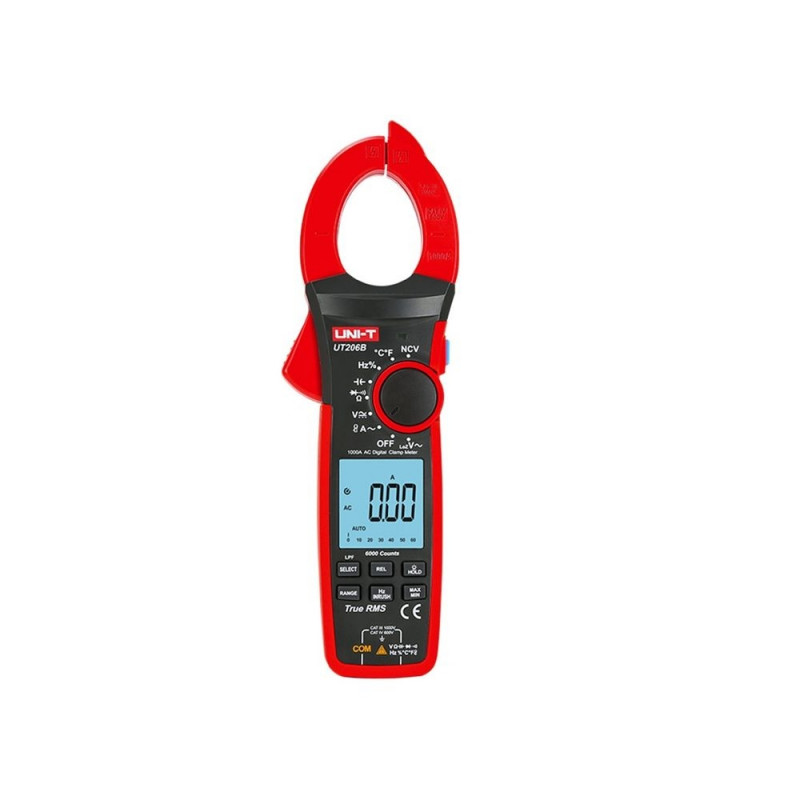

Uni-T UT206B Digital Clamp Meter

The Uni-T UT206B digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly simplifies field work and operations at switchgear panels.

Extended measurement capabilities

The UT206B model measures AC current up to 1000A and AC/DC voltage up to 1000V, and additionally offers temperature and inrush current measurement. The LoZ and LPF functions provide more accurate results in industrial installations.

Features that make work easier

True RMS, NCV, inrush mode, and a low-pass filter increase measurement accuracy. The ability to connect a Flex probe allows the current measurement range to be extended up to 3000A.

Intuitive design and safety

A large display with a bar graph and a 42 mm jaw opening make work easier. The device complies with CAT III 1000V / CAT IV 600V standards.

Included
  • Clamp meter
  • Batteries x3
  • Test leads
  • Temperature probe
  • User manual
Specifications
Manufacturer Uni-T
Model UT206B
Type True RMS Clamp Meter
AC Current 1000A ±(2%+5)
Inrush Current 1000A ±(10%+10)
AC Voltage 1000V ±(1.2%+3)
DC voltage 1000V ±(0.5%+5)
LPF ACV 1000V ±(2%+5)
LoZ ACV 1000V ±(2%+5)
AC voltage range 40Hz ~ 400Hz
Resistance 60MΩ ±(1%+2)
Capacitance 60mF ±(4%+5)
Temperature -40°C ~ 1000°C ±(1%+2)
Frequency 10Hz ~ 1MHz ±(0.1%+3)
Duty cycle 10% ~ 90% ±(2.6%+7)
Maximum reading 6000
Functions True RMS, NCV, LPF, LoZ, inrush current measurement, bargraph, Flex probe capability
Jaw opening 42 mm
Power supply 3x 1.5V battery (R03)
Display 43 x 45 mm
Dimensions 272 x 81 x 43.5 mm
Weight 465 g
Safety CAT III 1000V / CAT IV 600V
Certifications CE, UKCA, cETLus
