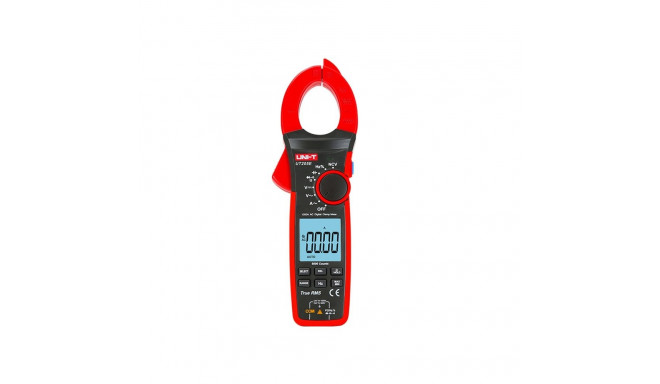

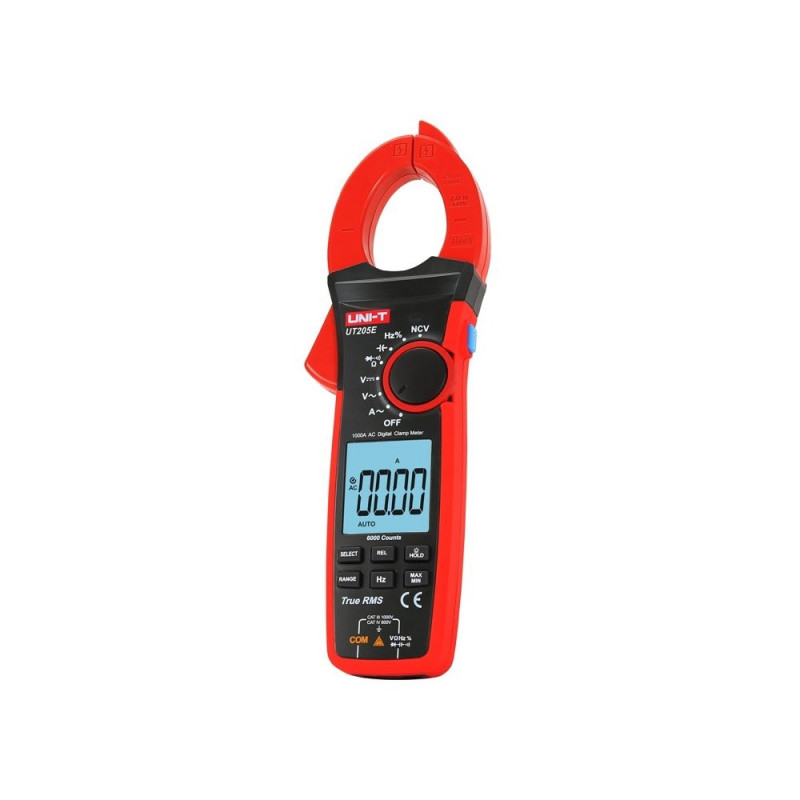

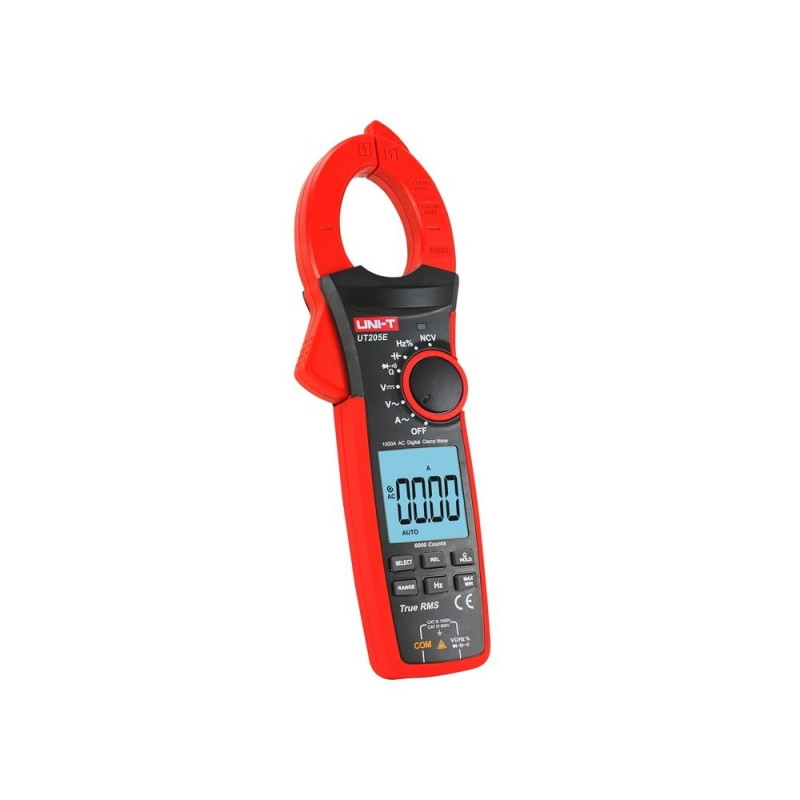

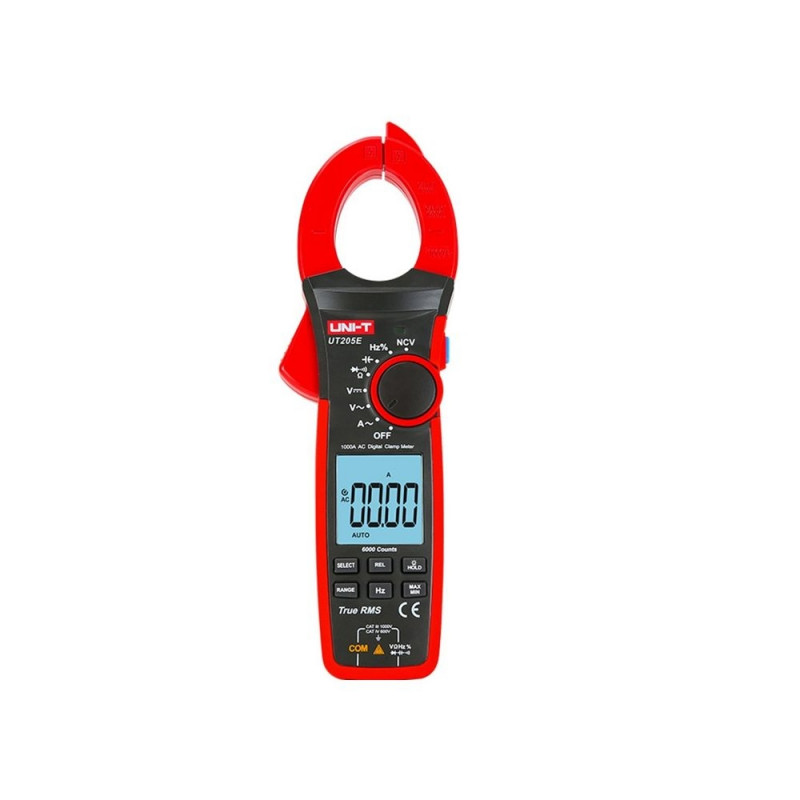

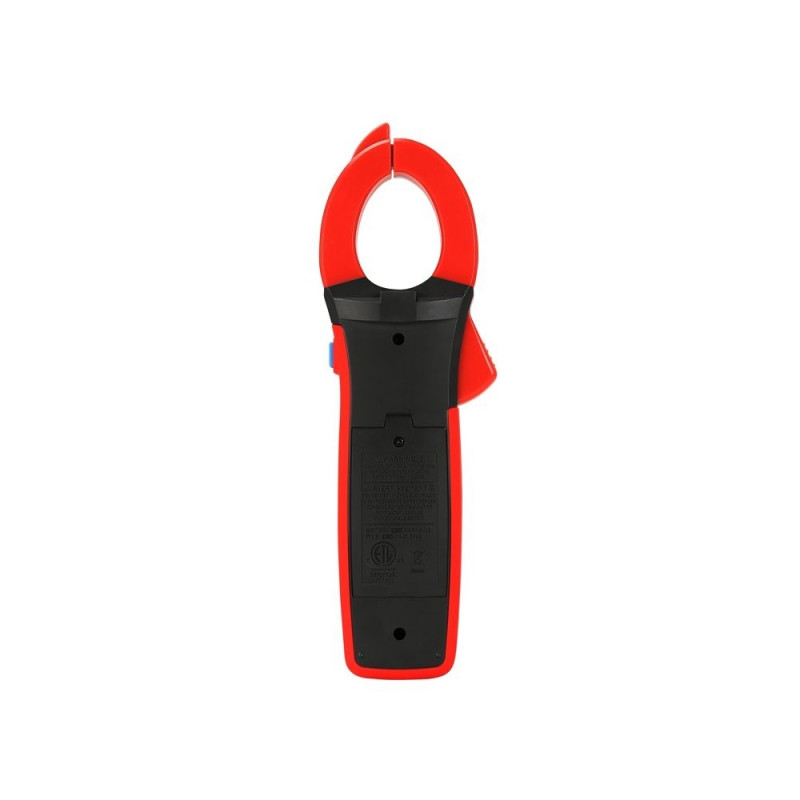

Uni-T UT205E Digital Clamp Meter

56,99 €

Monthly payment starting from 1,70 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Uni-T UT205E digital clamp meter The Uni-T UT205E digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circ
Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Uni-T UT205E digital clamp meter

The Uni-T UT205E digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly facilitates field work and operations at switchgear panels.

Wide measurement range

The UT205E model can measure AC current up to 1000A and AC/DC voltage up to 1000V, allowing you to work with more demanding installations. Additionally, it supports resistance, capacitance, frequency, and duty cycle measurements, expanding its diagnostic capabilities.

Features that make work easier

True RMS ensures more accurate measurements, while features such as NCV, backlight, and flashlight improve working comfort. Automatic range selection and a clear display facilitate quick measurements in various conditions.

Intuitive design and safety

The large screen and 42 mm jaw opening allow for comfortable work even with thick cables. The device complies with CAT III 1000V / CAT IV 600V standards, ensuring safe use.

Included
  • Clamp meter
  • Test leads (1 pair)
  • 3 AAA batteries
  • User manual
Specifications
Manufacturer Uni-T
Model UT205E
Product type True RMS clamp meter
AC current range 1000 A ±(2% + 5)
AC current frequency response 50 Hz – 60 Hz
AC voltage range 1000 V ±(1.2% + 3)
DC voltage range 1000 V ±(0.5% + 5)
AC voltage frequency response 40 Hz – 400 Hz
Resistance measurement range 60 MΩ ±(1% + 2)
Capacitance measurement range 60 mF ±(4% + 5)
Frequency range 10 Hz – 1 MHz ±(0.1% + 3)
Duty cycle range 10% – 90% ±(2.6% + 7)
Maximum display reading 6000
Functions True RMS, NCV, backlight, flashlight, automatic range switching
Jaw opening 42 mm
Measurement category CAT III 1000V / CAT IV 600V
Power supply 3 × 1.5 V (R03)
Display dimensions 43 × 45 mm
Dimensions 272 × 81 × 43.5 mm
Weight 465 g
Certifications CE, UKCA, cETLus

Dimensions and weights

Gross weight
0.92 kg
Package width
13.5 cm
Package height
7 cm
Package length
31 cm

Product codes

EAN
6935750520536
Manufacturer code
UT205E
