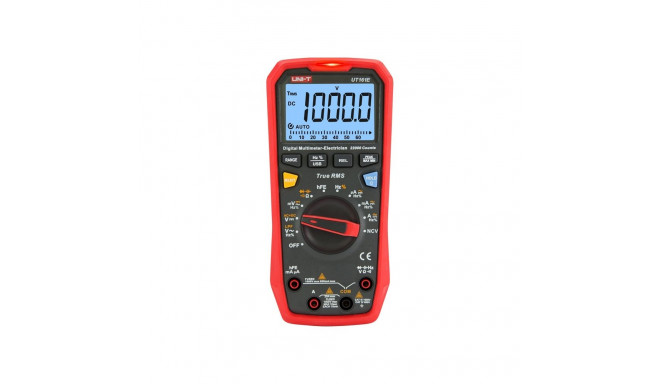

Uni-T UT161E Digital Multimeter

136,99 €

Monthly payment starting from 4,67 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

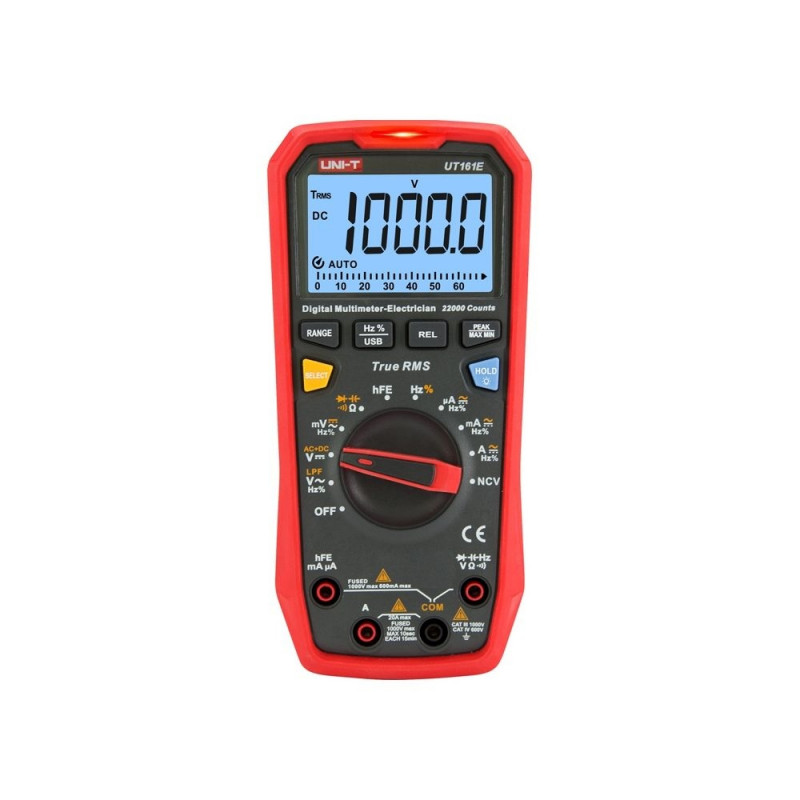

Uni-T UT161E digital multimeter

The Uni-T UT161E is the most advanced model in the UT161 series, designed for professional applications requiring high accuracy and a wide range of measurements. The device can measure voltages up to 1000 V and currents up to 20 A, and offers extended ranges for resistance, capacitance, and frequency, making it ideal for working with more demanding electrical and electronic systems. The True RMS function and LPF (low-pass filter) help ensure stable and accurate results even with more complex signals.

Precise readings and convenient data analysis

The UT161E is equipped with Max/Min, Peak Hold, and Relative Mode functions, which facilitate real-time parameter analysis. The high-resolution 22,000-count display, along with an extensive bar graph, ensures excellent readability of results and greater reading precision. An additional advantage is USB communication, which allows for data storage and analysis on a computer, enhancing convenience during service and diagnostic work.

Included
  • Digital multimeter
  • Test leads (1 pair)
  • USB cable
  • Multifunction adapter
  • 4 AAA batteries
  • User manual
Specifications
Manufacturer Uni-T
Model UT161E
Product type True RMS digital multimeter
DC voltage range 1000 V ±(0.05% + 5)
AC voltage range 1000 V ±(0.8% + 10)
DC current range 20 A ±(0.5% + 10)
AC current range 20 A ±(0.8% + 10)
Resistance measurement range 220 MΩ ±(0.5% + 10)
Capacitance measurement range 220 mF ±(3.0% + 5)
Frequency range 220 MHz ±(0.01% + 5)
Duty cycle range 0.1% – 99.9% ±(2.0% + 5)
Maximum display reading 22000
AC bandwidth 40 Hz – 10 kHz
Functions True RMS, LPF filter, diode test, continuity test, Data Hold, Relative mode, Max/Min, Peak Hold, backlight, bar graph, USB communication
Measurement category CAT III 1000V / CAT IV 600V
Power supply 4 × 1.5 V AAA batteries
Dimensions 190 × 90 × 50 mm
Weight 350 g
Certifications CE, UKCA, cETLus
