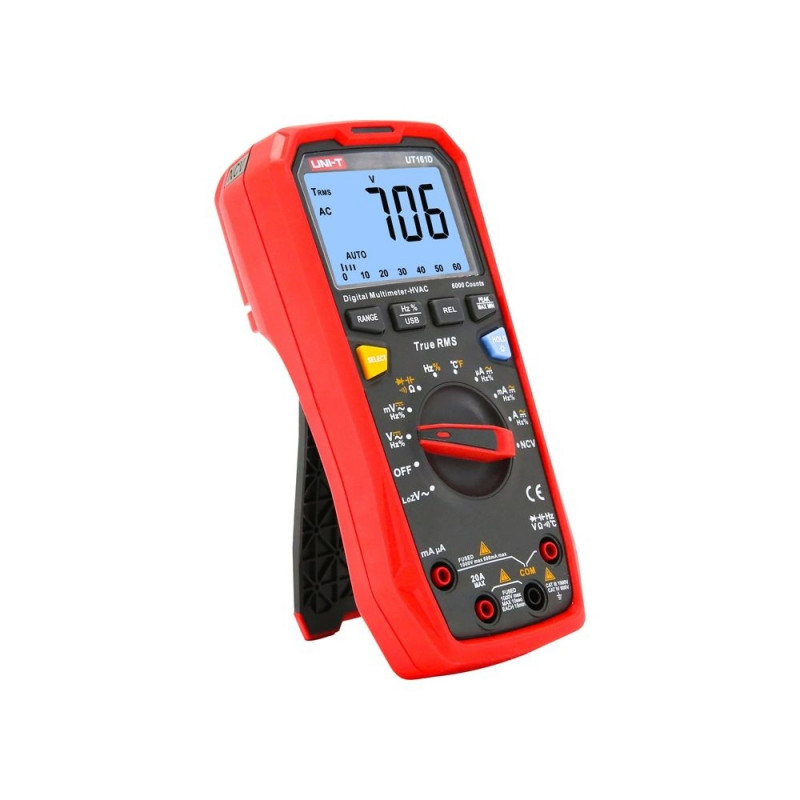

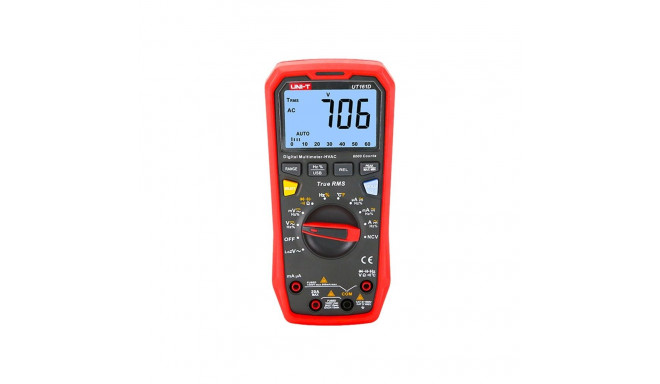

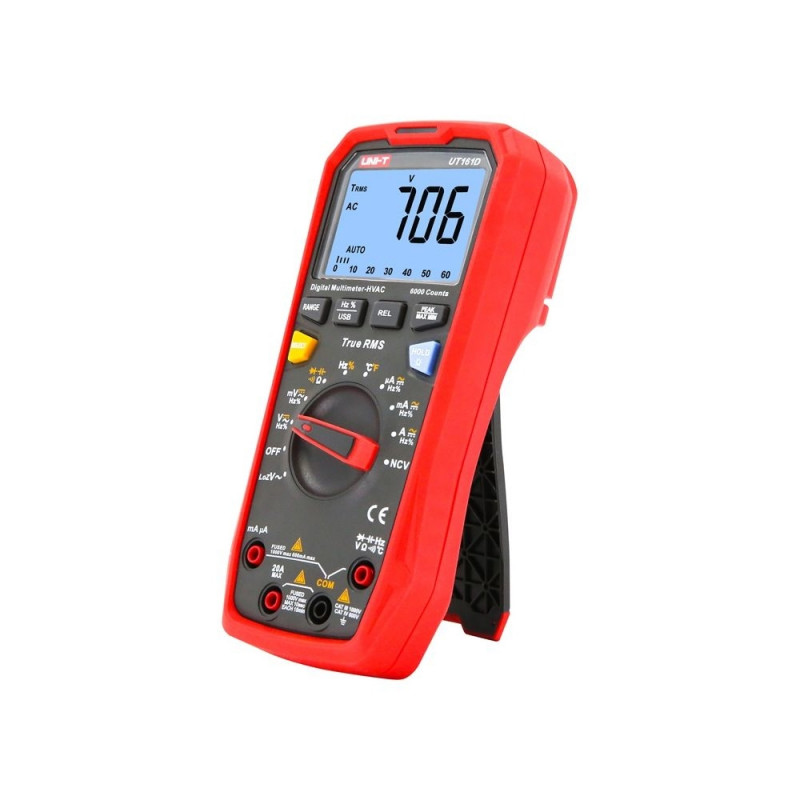

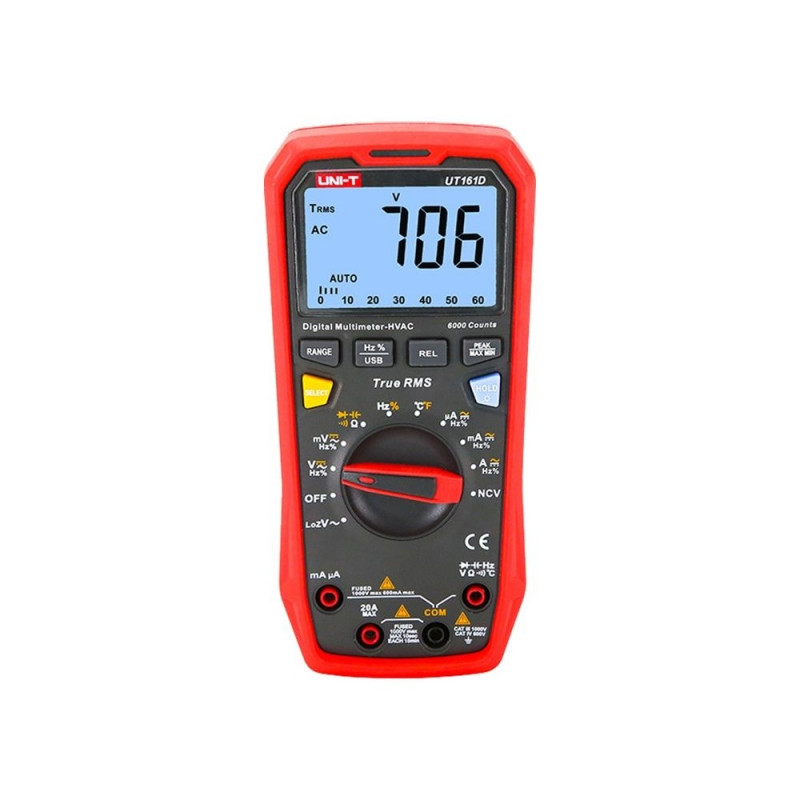

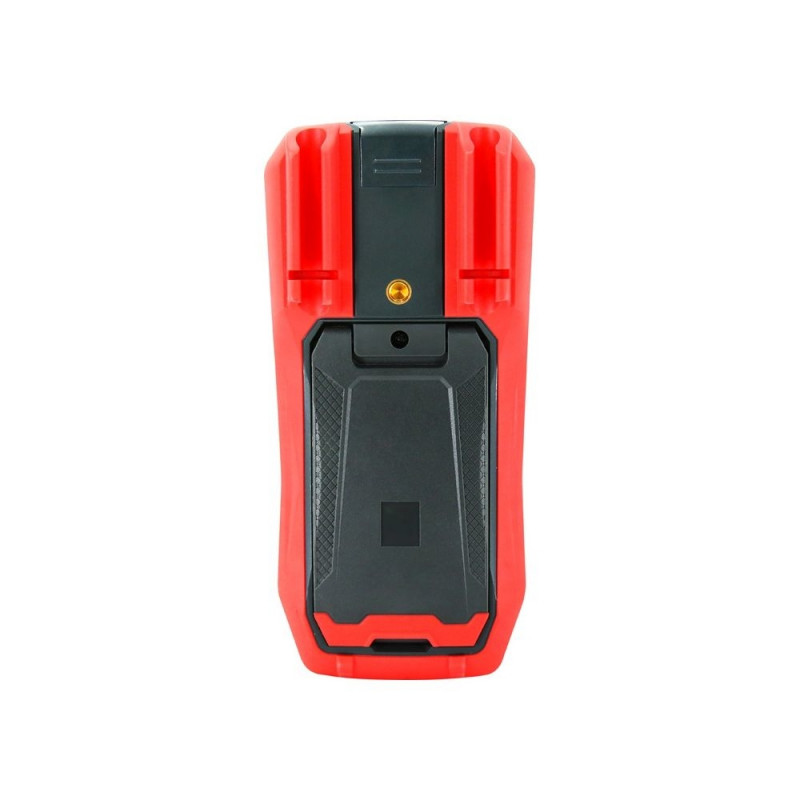

Uni-T UT161D digital multimeter

The Uni-T UT161D is a digital multimeter with True RMS functionality, designed for measurements in electrical installations and the diagnostics of electronic devices. The device measures AC/DC voltage up to 1000 V, current up to 10 A, and temperature, making it suitable for both everyday workshop tasks and more demanding service applications. True RMS, Max/Min, Peak Hold, and relative mode functions increase the accuracy of result analysis and facilitate monitoring of device operating parameters.

Clear readout and greater measurement safety

The UT161D model is equipped with non-contact voltage detection (NCV) and a LoZ function, which helps minimize the impact of stray voltages during electrical installation measurements. The backlit display with an analog bar allows for quick and convenient data reading, and USB communication enables the transfer and archiving of measurement results. Thanks to the combination of a wide range of functions and convenient operation, the multimeter performs well during daily diagnostics and service work.

Included
  • Digital multimeter
  • Test leads (1 pair)
  • USB cable
  • Thermocouple
  • 4 AAA batteries
  • User manual
Specifications
Manufacturer Uni-T
Model UT161D
Product type True RMS digital multimeter
DC voltage range 1000 V ±(0.5% + 3)
AC voltage range 1000 V ±(1.0% + 3)
DC current range 10 A ±(1.0% + 2)
AC current range 10 A ±(1.2% + 5)
Resistance measurement range 60 MΩ ±(1.0% + 2)
Capacitance measurement range 60 mF ±(3.0% + 5)
Frequency range 10 MHz ±(0.1% + 4)
Duty cycle range 0.1% – 99.9% ±(2.0% + 5)
Temperature measurement range -40...1000°C ±(1.0% + 3)
Maximum display reading 6000
AC bandwidth 40 Hz – 1 kHz
Functions True RMS, NCV, LoZ, diode test, continuity test, Data Hold, Relative mode, Max/Min, Peak Hold, backlight, bar graph, USB communication
Measurement category CAT III 1000V / CAT IV 600V
Power supply 4 × 1.5 V AAA batteries
Dimensions 190 × 90 × 50 mm
Weight 350 g
Certifications CE, UKCA, cETLus
