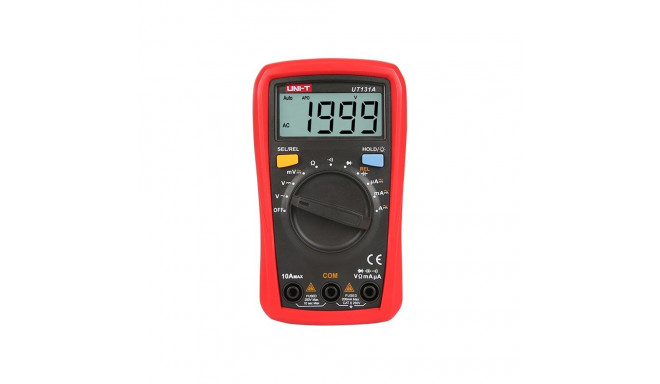

Uni-T Palm-Sized UT131A Digital Multimeter

17,99 €

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

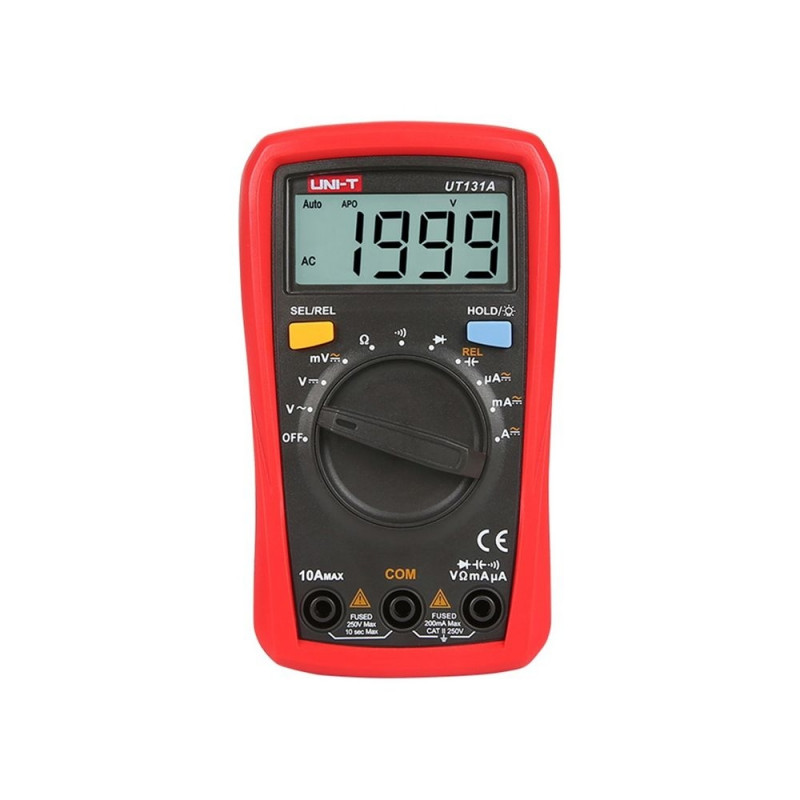

Uni-T Palm Size UT131A Digital Multimeter

The Uni-T UT131A is a compact digital multimeter from the UT131 series, designed for ease of use and everyday measurement of basic electrical parameters. The new generation of this series features a refreshed design, a clear LCD display, and an ergonomic protective cover with space for test leads. An additional advantage is its resistance to drops from heights of up to 2 meters, which increases the device’s durability during daily use.

Wide measurement range and automatic operation

The UT131A model allows for the measurement of DC and AC voltage up to 250 V, DC and AC current up to 10 A, resistance up to 200 MΩ, and capacitance up to 2 mF. It is the capacitance measurement function that sets this model apart from other versions in the series and makes it the most versatile choice in this regard. Automatic range switching simplifies operation and speeds up measurements, resulting in greater convenience.

Practical everyday features

The device is equipped with a diode test, continuity test, Data Hold function, auto-off, and LCD backlight. A maximum reading of 2000 and a loud buzzer enhance the convenience of daily use. Thanks to its CAT II 250V safety rating, the UT131A is suitable for basic measurement tasks in a safe working environment.

Included
  • Digital multimeter
  • Test leads
  • User manual
Specifications
Manufacturer Uni-T
Model UT131A
Type Pocket digital multimeter
DC Voltage 200mV / 2V / 20V / 200V / 250V ±(0.5%+2)
AC Voltage 200 mV / 2 V / 20 V / 200 V / 250 V ±(0.7%+3)
DC Current 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.0%+2)
AC Current 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2%+3)
Resistance 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ ±(0.8%+2)
Capacitance 2nF / 20nF / 200nF / 2µF / 20µF / 200µF / 2mF ±(3.0%+5)
Maximum reading 2000
Range switching Automatic
Functions Diode test, continuity test, Data Hold, auto power off, LCD backlight
Safety CAT II 250V
Drop test 2 m
Power supply 2x 1.5V battery (R03)
Weight 206 g
Dimensions 134 mm x 77 mm x 47 mm
Display dimensions 66 mm x 51 mm
Color Red and gray
Certifications CE, UKCA, cETLus

Dimensions and weights

Gross weight
0.32 kg

Product codes

EAN
6935750513118
Manufacturer code
UT131A
