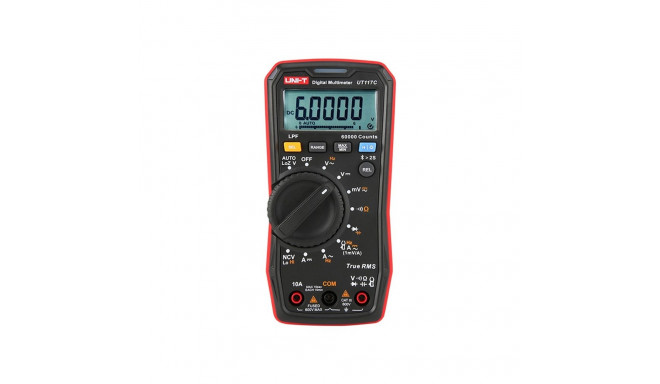

Uni-T UT117C Digital Multimeter

FREE SHIPPING
WITHIN ESTONIA!

182,99 €

Monthly payment starting from 6,24 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

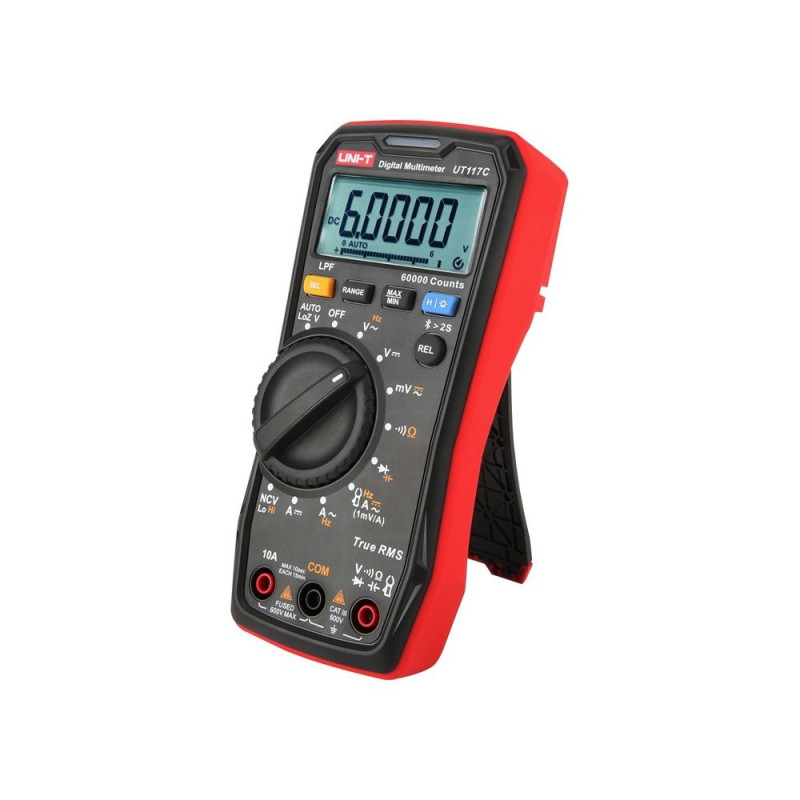

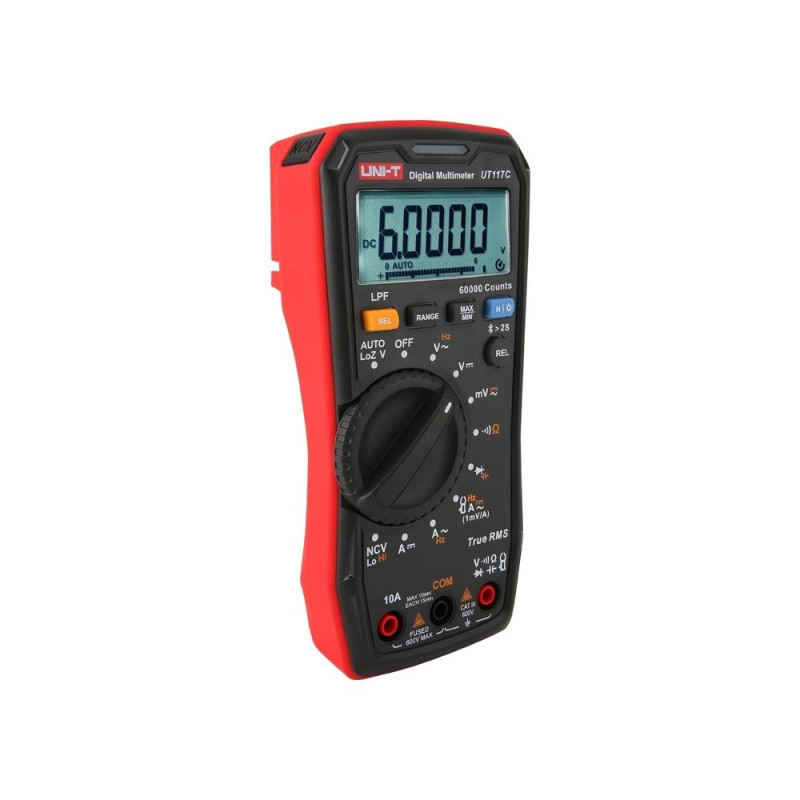

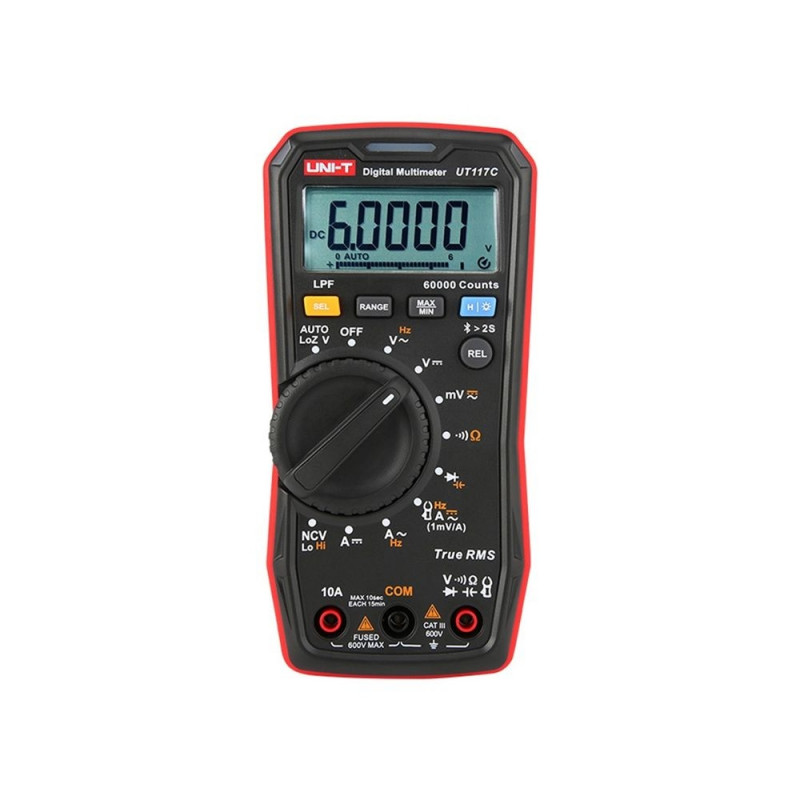

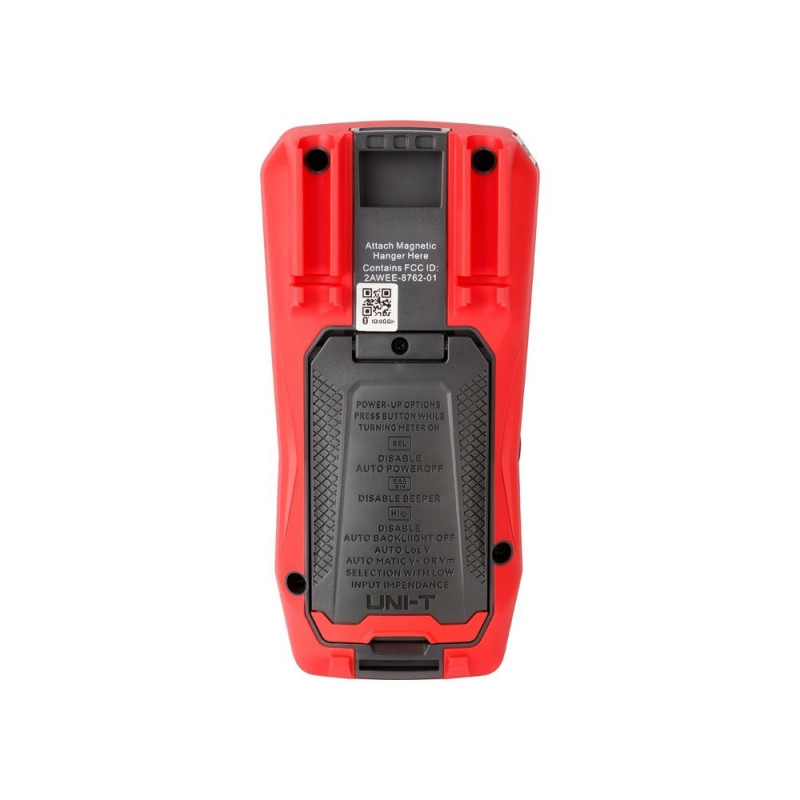

Uni-T UT117C digital multimeter

The Uni-T UT117C is a precision True RMS digital multimeter that combines a compact design with a wide range of applications and high measurement accuracy. The device measures AC/DC voltage up to 600 V, AC/DC current up to 10 A, as well as resistance, capacitance, and frequency. With a maximum reading of 60,000 and fast response times, this model is well-suited for electricians and electronics technicians who require accurate results and user-friendly operation.

Advanced features for demanding measurements

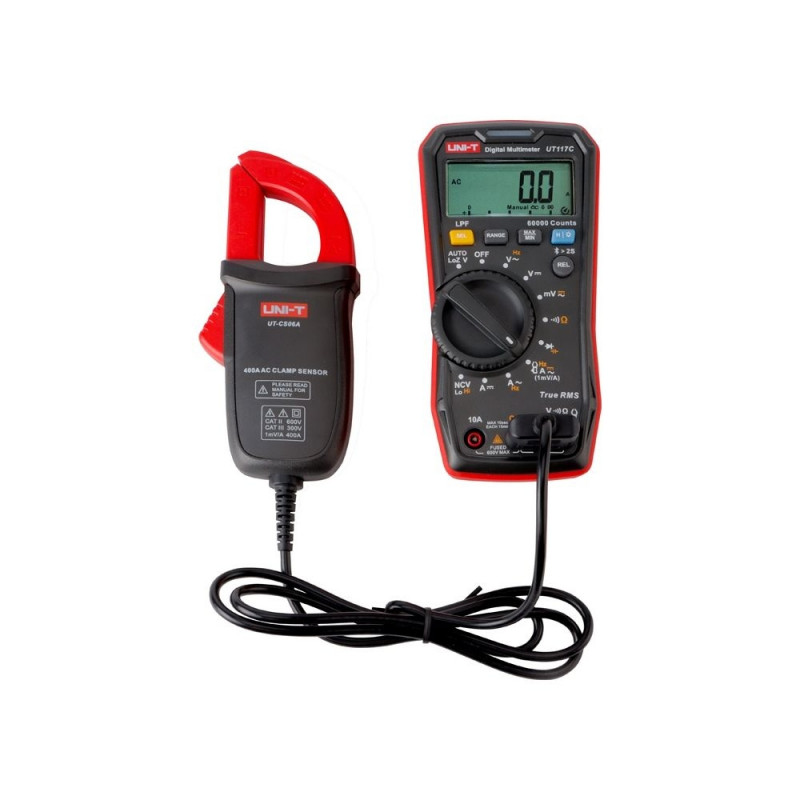

The UT117C is equipped with LoZ, LPF, and Auto Volt functions, which enhance usability in various measurement conditions. It also features Bluetooth, support for external current clamps, and non-contact voltage detection (NCV). The multimeter also offers continuity and diode testing, Data Hold, Max/Min mode, relative mode, and automatic and manual range switching, making it better suited for various service and installation tasks.

Rugged construction and ease of use

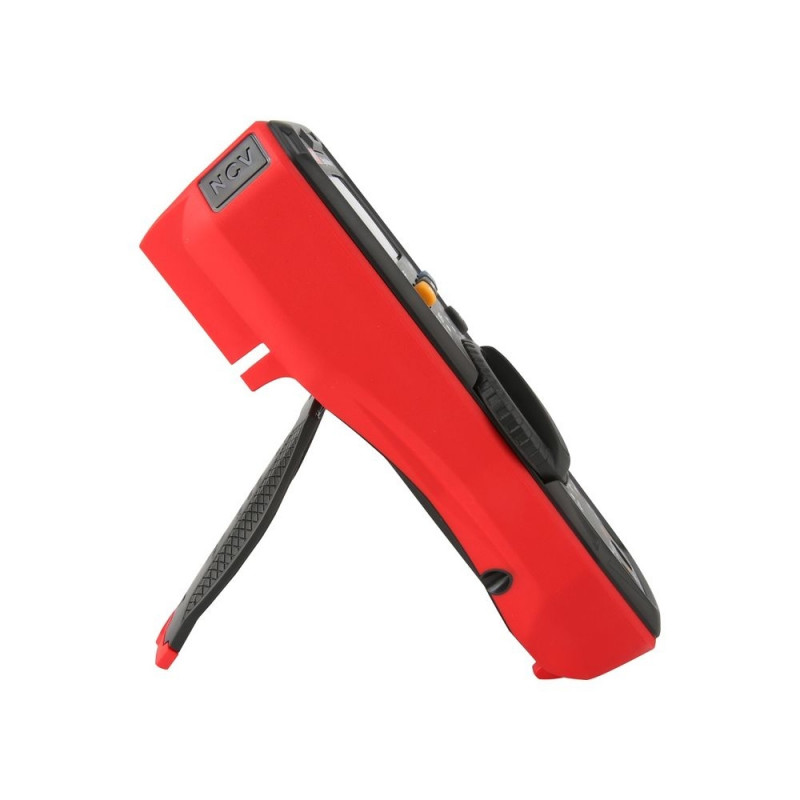

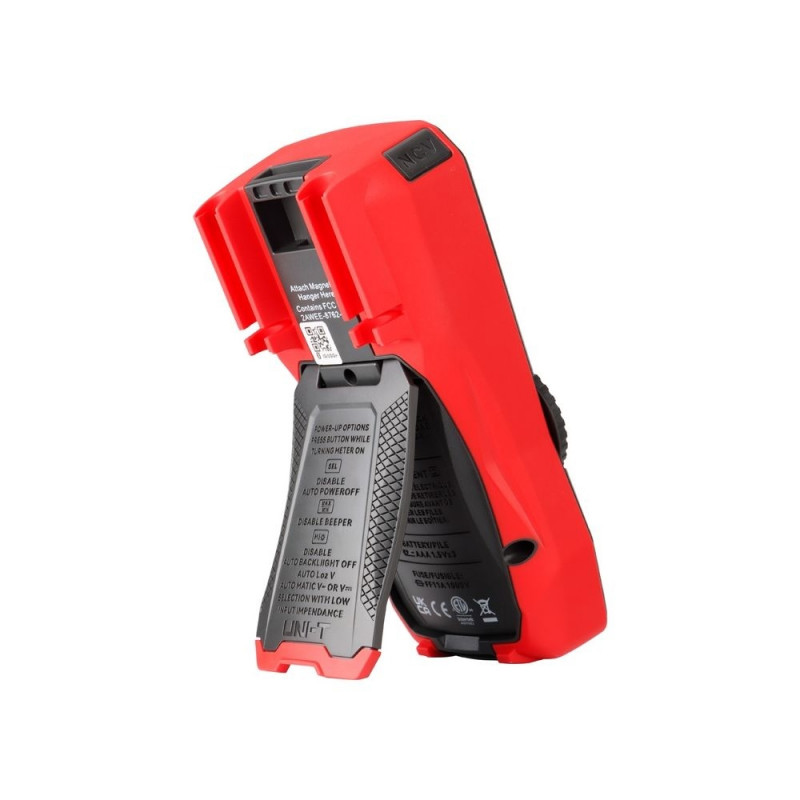

The UT117C is designed for daily use in the field and in the workshop. The device can withstand a drop from a height of 2 meters, features audible and visual alarms, and provides a high-voltage warning, enhancing safety during measurements. Additional features include an LCD backlight, auto-off, a low-battery indicator, and the option to use an optional magnetic holder, all of which contribute to greater ease of use.

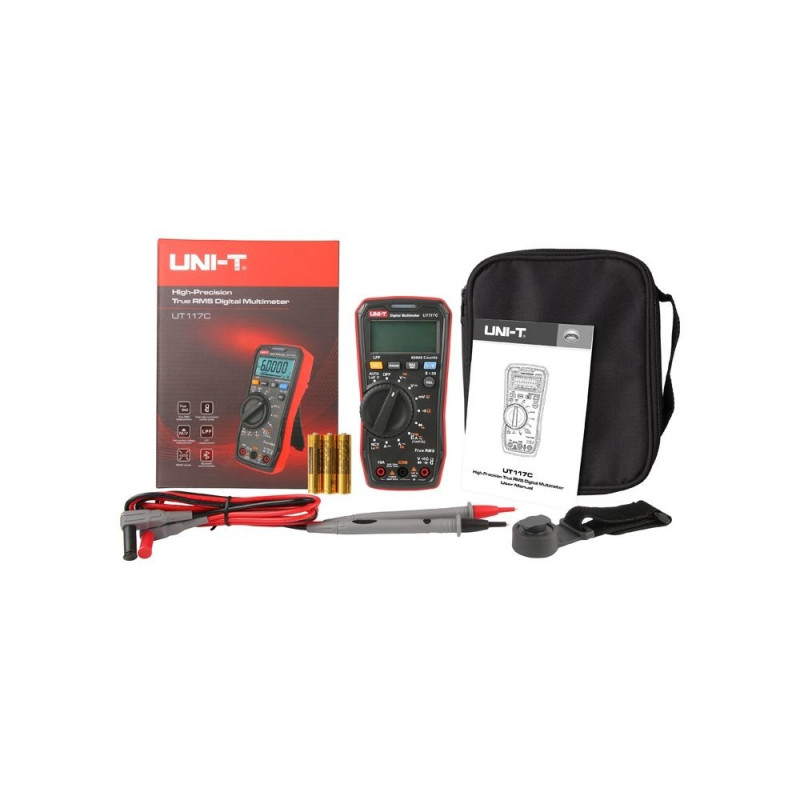

Included
  • Digital multimeter
  • Test leads
  • 3 AAA batteries
  • Magnetic strap
  • User manual
Specifications
Manufacturer Uni-T
Model UT117C
Product type True RMS digital multimeter
AC voltage range 600.00 mV / 6.0000 V / 60.000 V / 600.00 V ±(1% + 30)
DC voltage range 600.00 mV / 6.0000 V / 60.000 V / 600.00 V ±(0.3% + 10)
AC current range 6.0000 A / 10.000 A ±(1.5% + 30)
DC current range 6.0000 A / 10.000 A ±(0.5% + 10)
Auto Volt LoZ range 600.0 V ±(1% + 3)
AC LPF voltage range 600.0 V ±(2% + 3)
Frequency range 99.99 Hz / 999.9 Hz / 9.999 kHz / 50.00 kHz ±(0.01% + 3)
Resistance measurement range 600.00 Ω – 6.0000 MΩ ±(0.5% + 5), 40.000 MΩ ±(3% + 5)
Capacitance measurement range 1000 nF / 10.00 μF / 100.0 μF ±(1.9% + 5), 1000 μF / 10,000 μF ±(2.5% + 5)
Maximum display reading 60,000
Clamp factor 1 mV/A
Functions NCV, high voltage warning, audible and visual alarms, continuity test, diode test, Data Hold, Max/Min, relative mode, automatic and manual range switching, LCD backlight, True RMS, support for external current clamps, low battery indicator
Bluetooth Yes
Auto backlight off After 5 minutes
Auto power off After approx. 15 minutes
Drop resistance 2 m
Measurement category CAT III 600V
Power supply 3 × 1.5 V AAA batteries
Weight Approx. 346 g
Dimensions 169 × 84 × 48.8 mm
Color Red and gray
Certifications CE, UKCA, cETLus
