Uni-T UT120C Pocket Digital Multimeter

22,99 €

Main info

Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

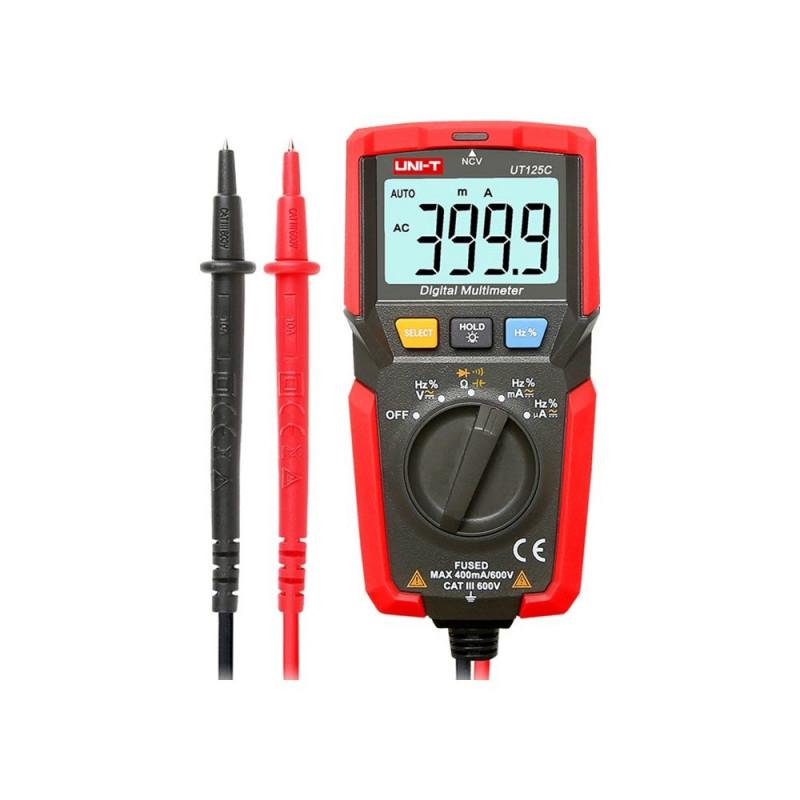

Uni-T UT125C pocket digital multimeter

The Uni-T UT125C is a pocket-sized digital multimeter that combines compact dimensions, an ergonomic design, and ease of everyday use. The device features a display with a maximum reading of 4000 and is designed for use with low currents below 0.4 A. With the ability to measure voltage and current (AC/DC up to 600 V / 400 mA) and CAT III 600V certification, it is ideal for electronics repair.

Essential measurements in a compact form

The UT125C model allows for the measurement of voltage, current, resistance, capacitance, frequency, and duty cycle, and also offers diode and continuity testing. An additional advantage is the non-contact voltage detection (NCV) function, which makes it convenient to quickly check installations. This set of features makes the meter well-suited for workshop and hobby applications, as well as for the daily diagnosis of simpler electronic circuits.

Ease of use and compact design

The small housing, measuring 112 × 58 × 35 mm and weighing 180 g, makes the multimeter easy to carry and comfortable to use. The device is equipped with a Data Hold function, a low battery indicator, and an auto-off feature, which facilitates daily work and helps save energy. An additional advantage is its resistance to drops from a height of 1 meter, which increases its practicality when used in various conditions.

Included
  • Digital multimeter
  • 2 AAA batteries
  • User manual
Specifications
Manufacturer Uni-T
Model UT125C
Product type Pocket digital multimeter
DC voltage range 600 V ±(0.5% + 5)
AC voltage range 600 V ±(1.2% + 5)
DC current range 400 mA ±(1.8% + 5)
AC current range 400 mA ±(2% + 8)
Resistance measurement range 40 MΩ ±(1% + 5)
Capacitance measurement range 100 µF ±(4% + 10)
Frequency range 10 Hz – 60 kHz ±(0.1% + 5)
Duty cycle 20% – 80%
Functions NCV, diode test, continuity test, low battery indicator, Data Hold, auto power off
Maximum display reading 4000
Operating temperature 0...50°C
Measurement category CAT III 600V
Drop resistance 1 m
Power supply 2 × 1.5 V (R03)
Display dimensions 38 × 23 mm
Weight 180 g
Dimensions 112 × 58 × 35 mm
Color Red and gray
Certifications CE, UKCA, cETLus

Dimensions and weights

Gross weight
0.23 kg

Product codes

EAN
6935750512531
Manufacturer code
UT125C
