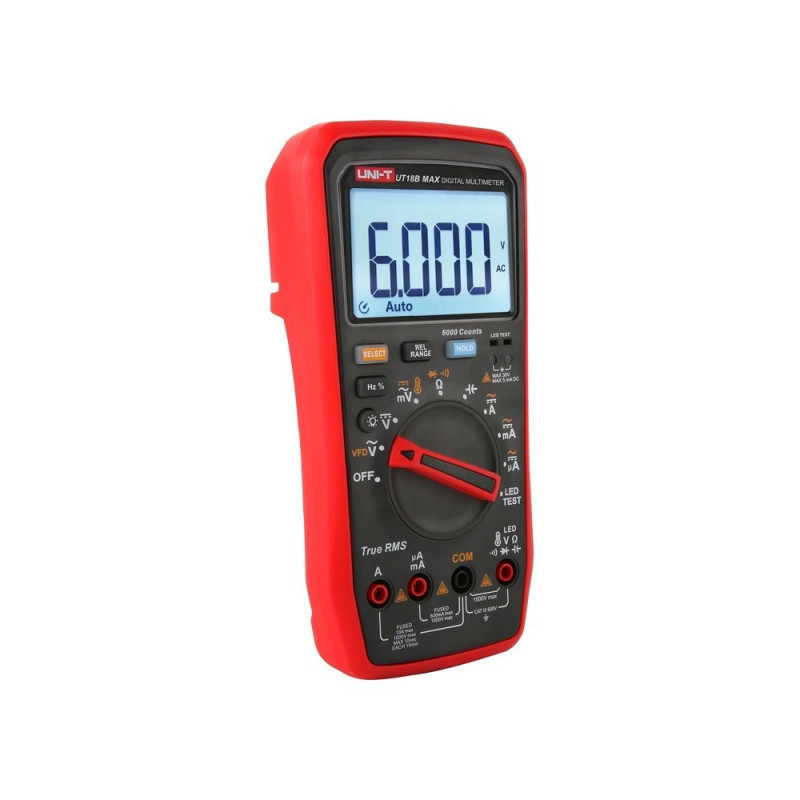

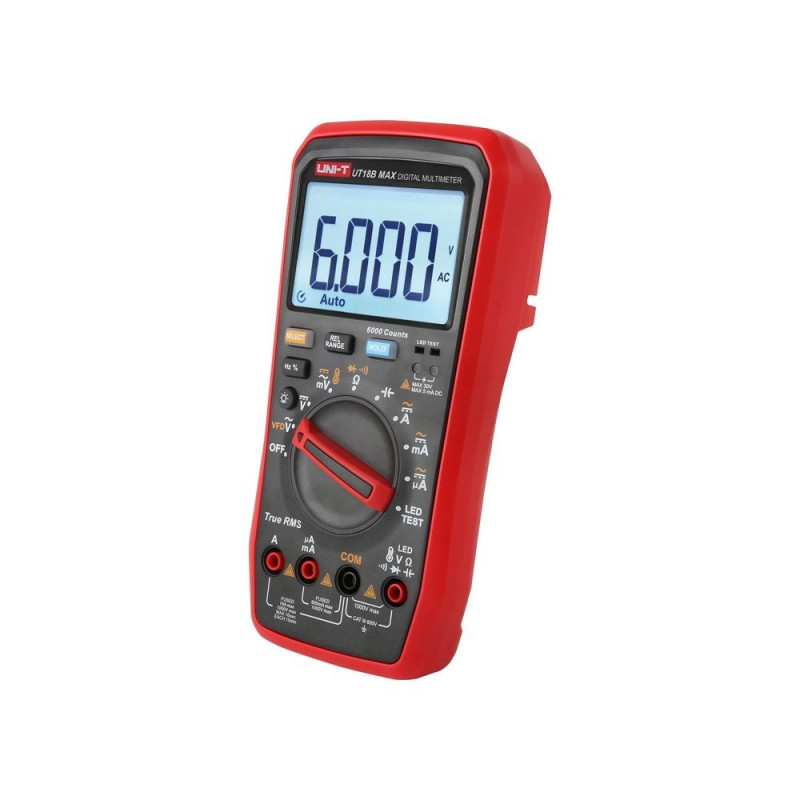

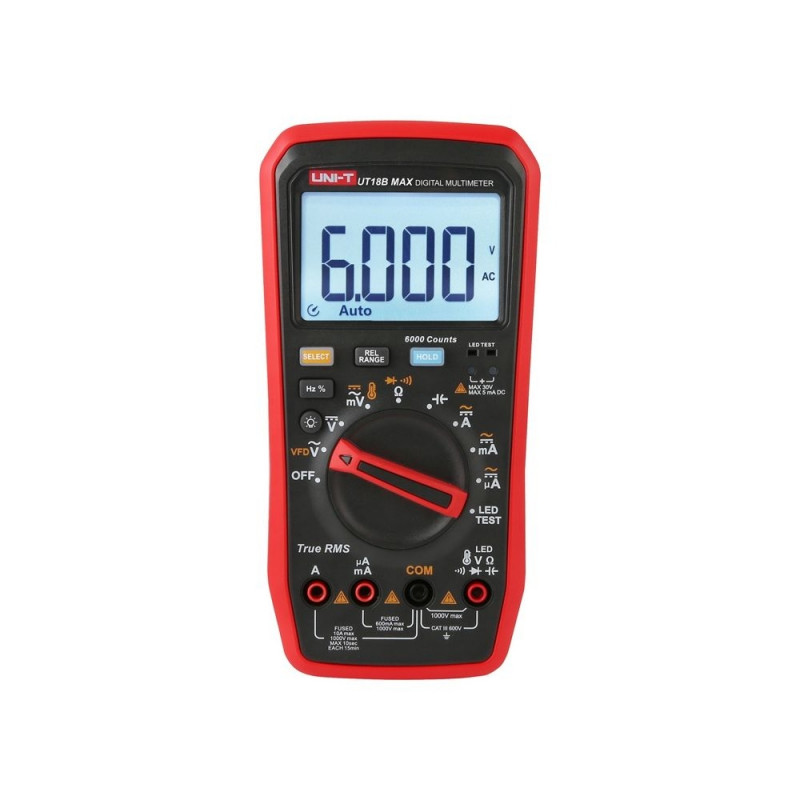

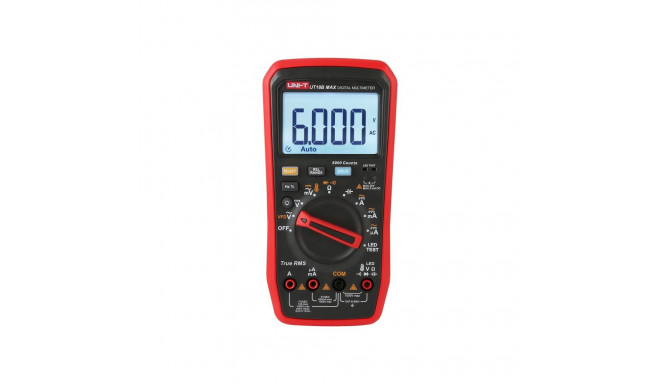

Uni-T True RMS UT18B MAX Digital Multimeter

The Uni-T UT18B MAX is the most advanced model in this series, designed for users who need not only standard electrical measurements but also an additional LED testing function. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, as well as temperature in the range from -55°C to 500°C. It maintains high precision and practicality, making it ideal for everyday use.

Practical features for service work

The model features a display with a maximum reading of 6000, as well as continuity test, Data Hold, relative mode, and adjustable backlight functions. Compared to other models in the series, it stands out with a dedicated LED diode test function, though it does not include a MAX/MIN mode. Automatic and manual range switching, auto-off, and intuitive operation ensure ease of use across various applications.

Expanded capabilities and full safety

The multimeter comes with a Type K thermocouple, allowing the user to immediately utilize the temperature measurement function. Safety is ensured by a wrong-wire connection alarm and CAT III 600V overvoltage protection. This model is designed for users who expect greater functionality and want a tool that is also useful for testing LED lighting.

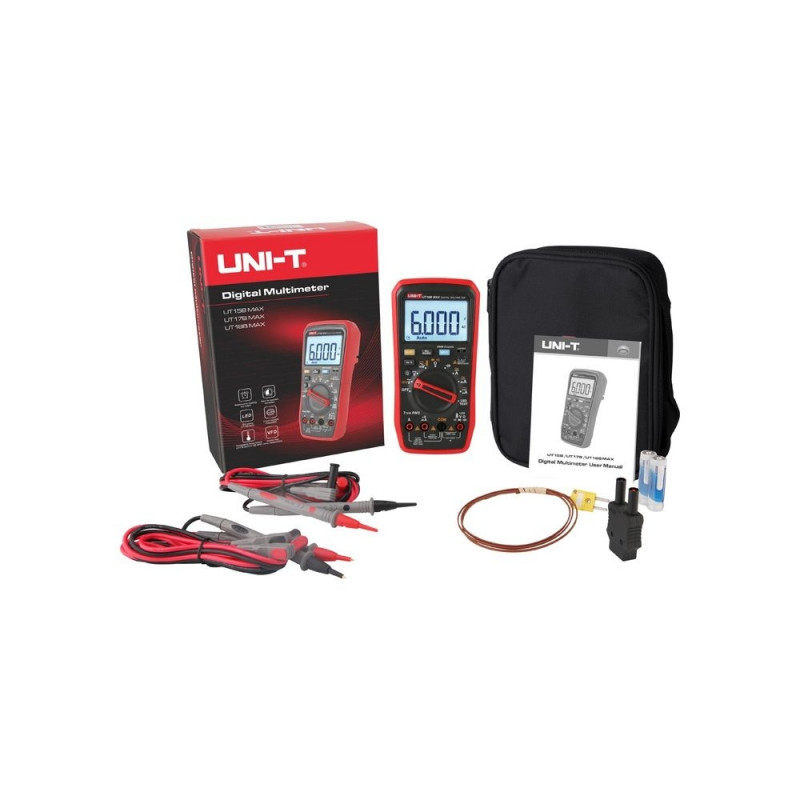

Included
  • Digital multimeter
  • User manual
  • Standard gold-plated test leads x2
  • Test leads with fine tips x2
  • Batteries x2
  • Type K thermocouple x1
Specifications
Manufacturer Uni-T
Model UT18B MAX
Type True RMS digital multimeter
DC voltage 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4%+3)
AC Voltage 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5%+5)
VFD 600.0 V ±(8%)
AC current 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
DC current 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
Resistance 600.0Ω to 60.00MΩ ±(0.5%+2)
Capacitance 6.000nF to 6000µF ±(2.0%+5)
Frequency 10Hz ~ 10MHz ±(0.1%+3)
Duty Cycle 1% ~ 99.9% ±(1.0%+4)
Temperature -55°C to 500°C ±2°C / ±4°F
Display 6000
Continuity Test Yes
Diode Test Yes
LED Diode Test Yes
Data Hold Yes
MAX/MIN Mode No
Relative Mode Yes
Backlight Adjustable
Range switching Automatic and manual
Auto power off Yes
Wake-up with any button Yes
Visual and audible alarm Yes
Warped wire connection alarm Yes
Voltage category CAT III 600V
Power Supply 2x 1.5V AA batteries
Weight 455 g
Dimensions 182 mm × 91 mm × 45 mm
Color Red and gray
