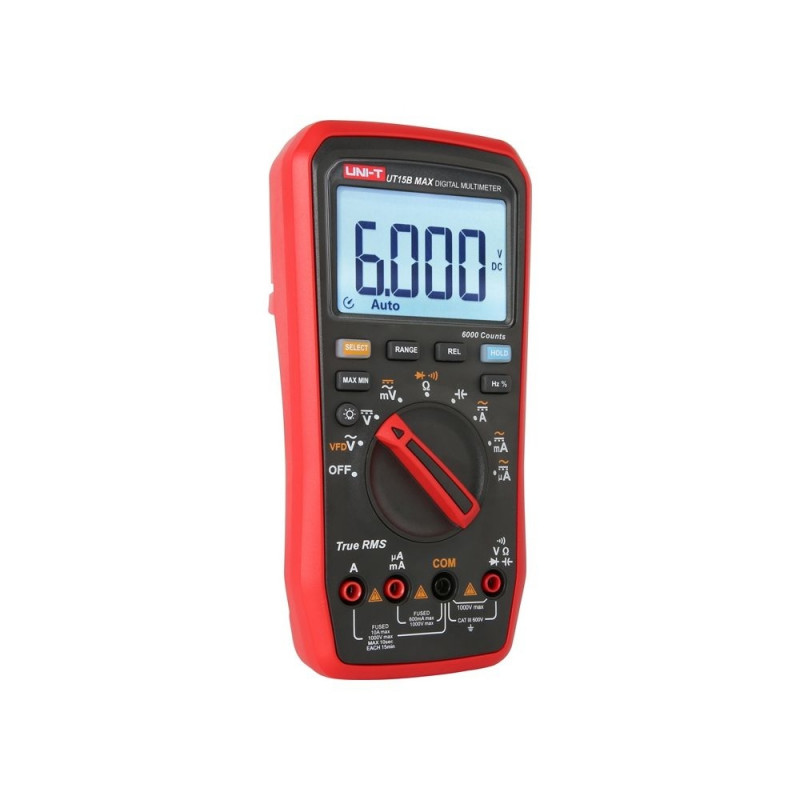

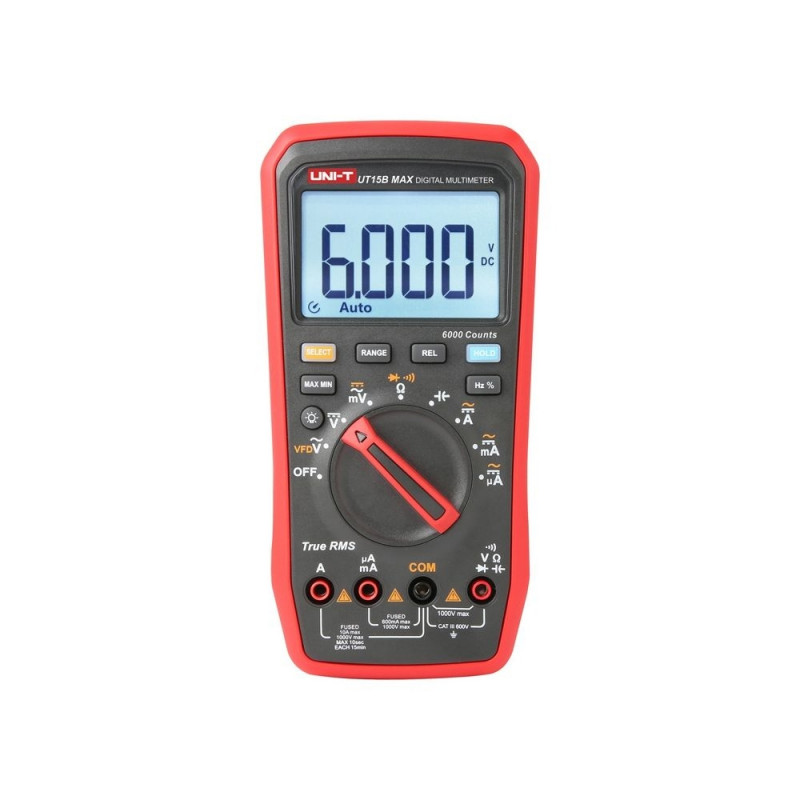

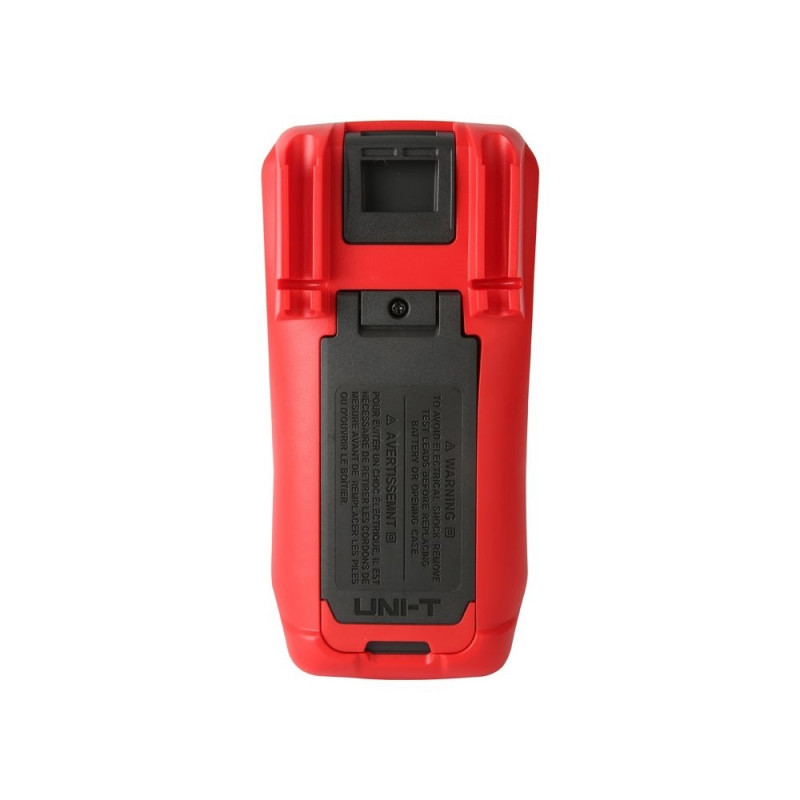

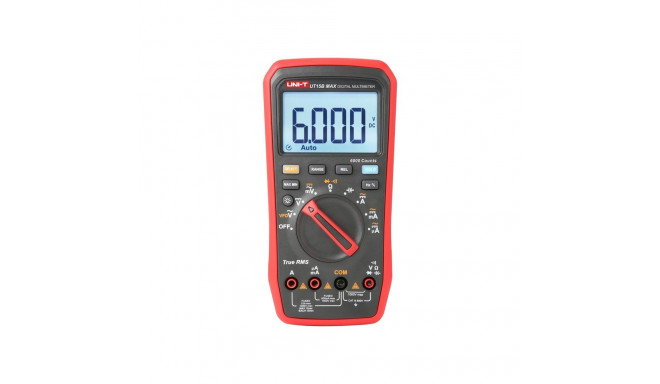

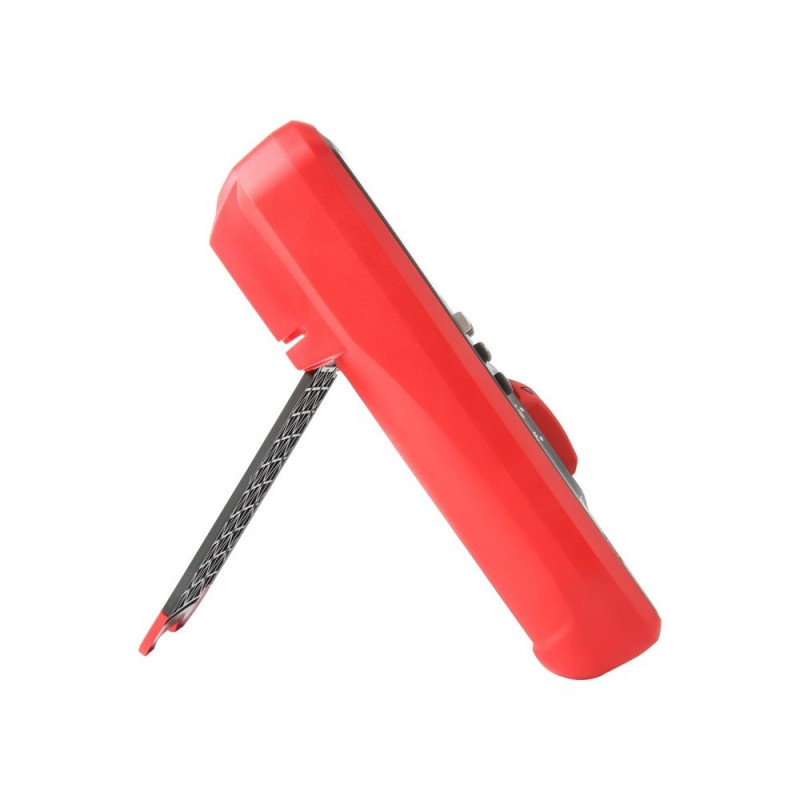

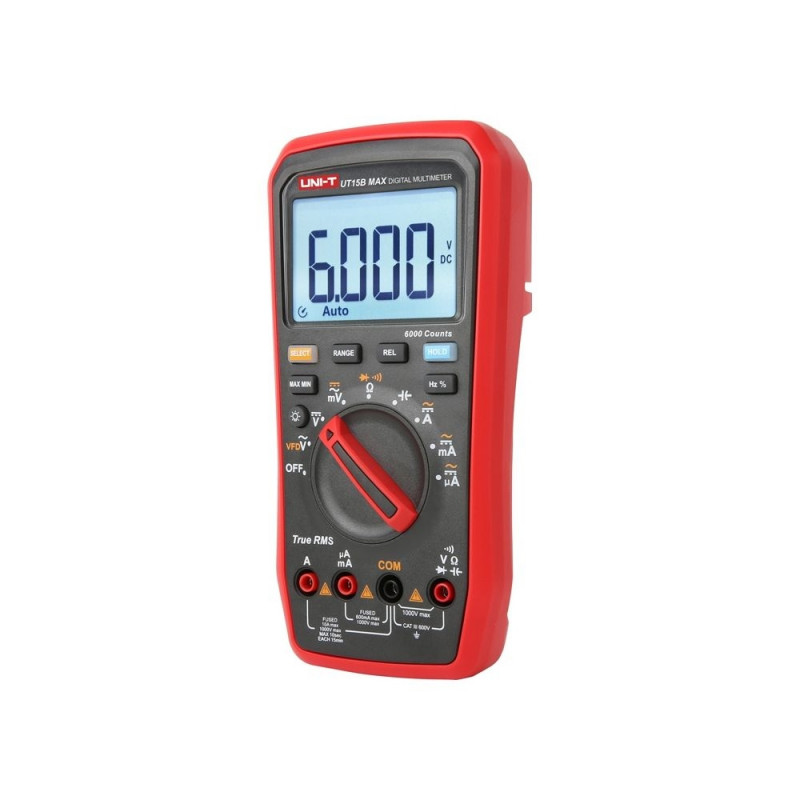

Uni-T True RMS UT15B MAX Digital Multimeter

90,99 €

Monthly payment starting from 2,72 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Uni-T True RMS UT15B MAX digital multimeter The Uni-T UT15B MAX is the entry-level model in the series, combining high measurement precision with practical features useful in everyday work. The device measures DC and AC voltage up to 1000 V, DC and A
Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Uni-T True RMS UT15B MAX digital multimeter

The Uni-T UT15B MAX is the entry-level model in the series, combining high measurement precision with practical features useful in everyday work. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz. An additional advantage is the VFD function, which enhances the multimeter’s utility when working with selected electrical circuits.

Convenient features and safe operation

The model features a display with a maximum reading of 6000, as well as continuity and diode test functions, Data Hold, MAX/MIN, and relative mode. Adjustable backlighting improves readability, and automatic or manual range switching allows you to adapt the operation to the situation. Automatic shutdown and wake-up with any button also contribute to ease of use.

Safety and practical operation

The UT15B MAX is designed for safe and convenient operation. The device features visual and audible alarms, a wrong-lead connection alarm, and CAT III 600V overvoltage protection. It is an ideal solution for professionals seeking a precise multimeter for routine tasks where temperature measurement is not critical.

Included
  • Digital multimeter
  • Standard gold-plated test leads (2 pcs.)
  • Test leads with fine tips (2 pcs.)
  • 2 AA batteries
  • User manual
Specifications
Manufacturer Uni-T
Model UT15B MAX
Product type True RMS digital multimeter
DC voltage range 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4% + 3)
AC voltage range 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5% + 5)
VFD range 600.0 V ±(8%)
AC current range 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2% + 3)
DC current range 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2% + 3)
Resistance measurement range 600.0 Ω – 60.00 MΩ ±(0.5% + 2)
Capacitance measurement range 6.000 nF – 6000 µF ±(2.0% + 5)
Frequency range 10 Hz – 10 MHz ±(0.1% + 3)
Duty cycle 1% – 99.9% ±(1.0% + 4)
Temperature measurement No
Maximum display reading 6000
Continuity test Yes
Diode test Yes
Data Hold Yes
MAX/MIN mode Yes
Relative mode Yes
Backlight Adjustable
Range selection Automatic and manual
Auto power off Yes
Wake-up with any button Yes
Visual and audible alarm Yes
Wrong-lead connection alarm Yes
Measurement category CAT III 600V
Power supply 2 × 1.5 V AA batteries
Weight 455 g
Dimensions 182 × 91 × 45 mm
Color Red and gray
