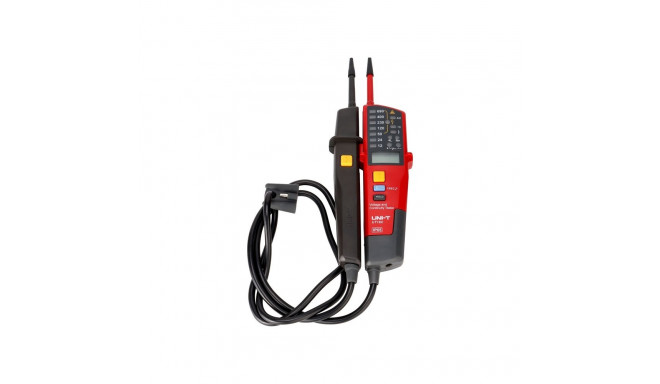

Uni-T UT18C Voltage and Continuity Tester

Addional discount of 5%
will be applied in shopping cart
(min. 10€ purchase)
43,99 €

Monthly payment starting from 1,32 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Uni-T UT18C voltage and continuity tester The Uni-T UT18C is an advanced voltage and continuity tester designed for diagnosing electrical installations, equipped with a backlit LCD display and LED indicators that ensure quick and easy-to-read results
Add to cart

Delivery in 4-7 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

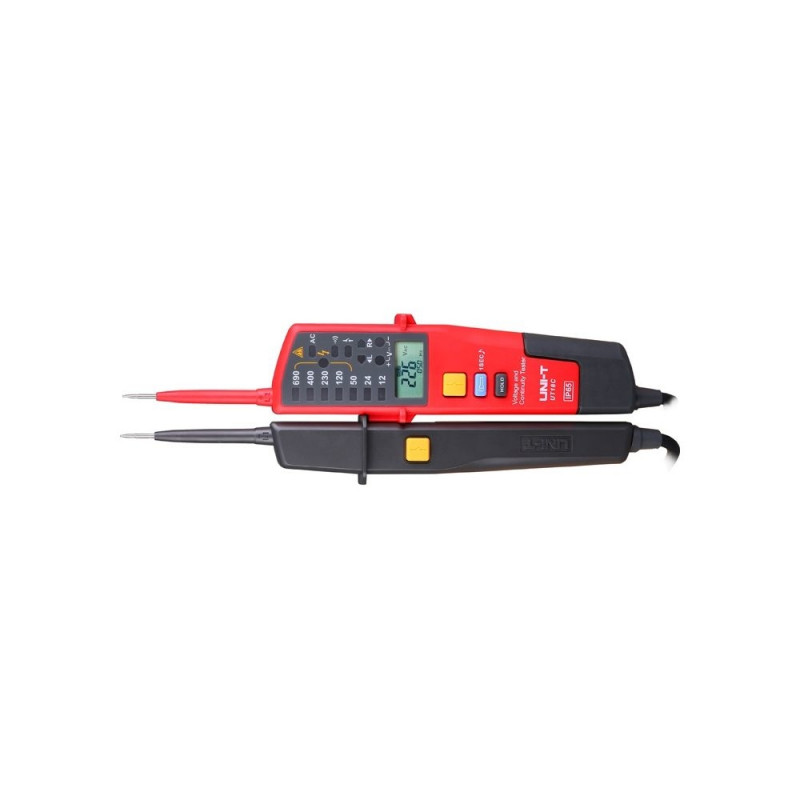

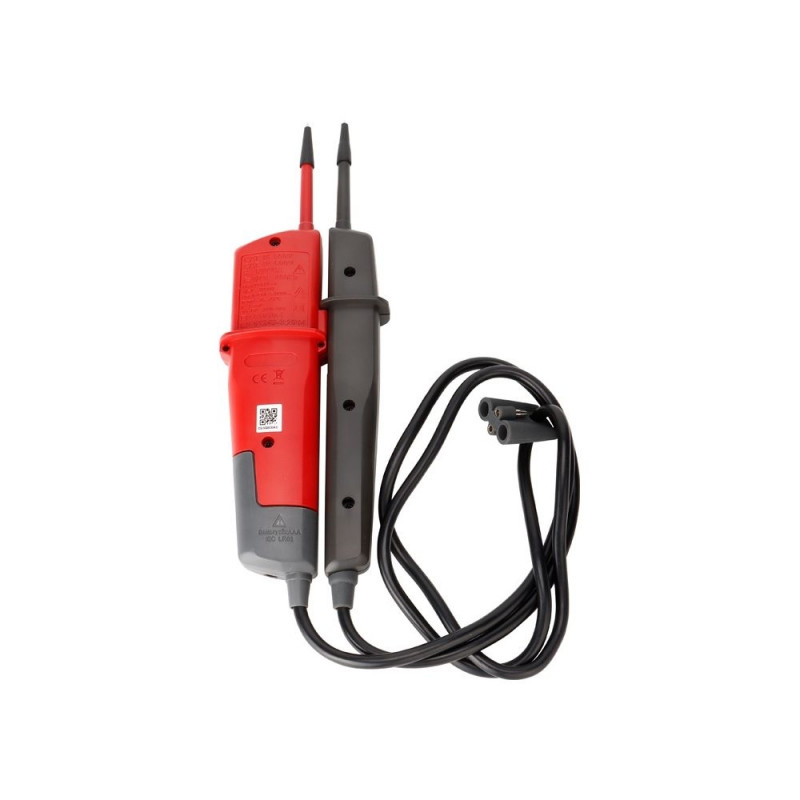

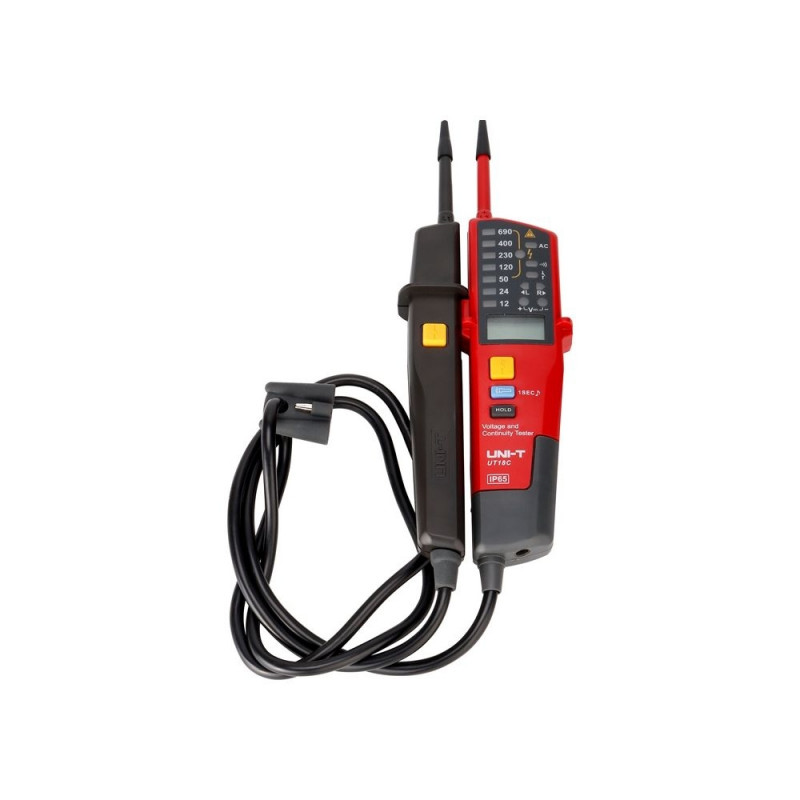

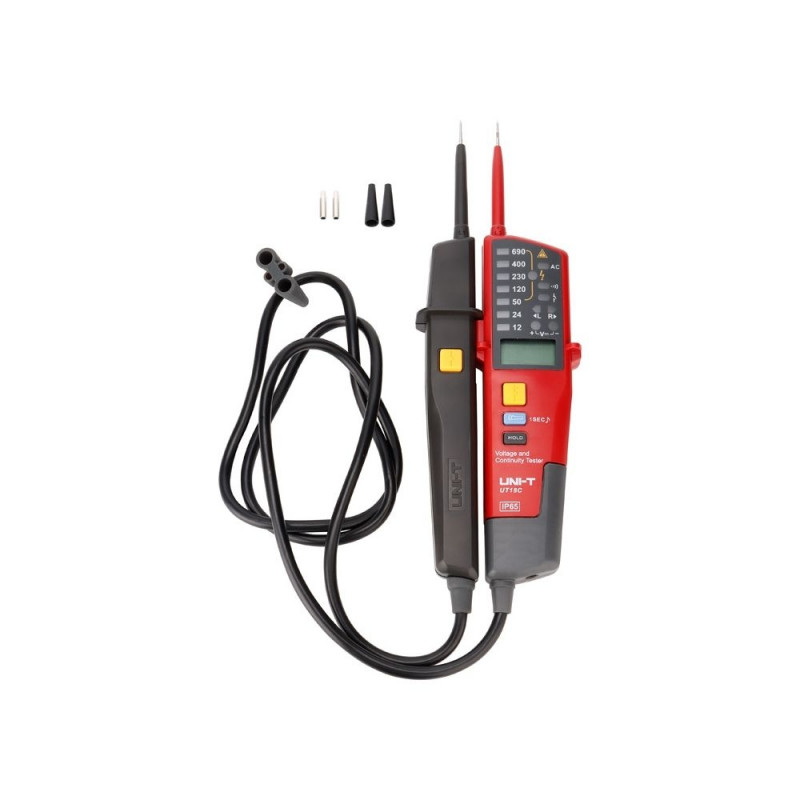

Uni-T UT18C voltage and continuity tester

The Uni-T UT18C is an advanced voltage and continuity tester designed for diagnosing electrical installations, equipped with a backlit LCD display and LED indicators that ensure quick and easy-to-read results. The device allows for AC/DC voltage measurement up to 690 V, frequency measurement from 40 Hz to 400 Hz, circuit continuity testing with audible and LED indicators, detection of positive and negative polarity, phase sequence testing, and voltage detection with a single probe. The UT18C model also offers an RCD test function, a self-test for operational integrity, and the ability to perform measurements without power in the 100–690 V range. Its rugged design, compliant with IP65 and CAT IV 600 V, a built-in flashlight, silent mode, and compact dimensions make this tester ideal for daily installation and maintenance work.

Included
  • Voltage and continuity tester
  • 2 AAA batteries
  • User manual
Specifications
Manufacturer Uni-T
Model UT18C
Product type Voltage and continuity tester
Voltage display LED and LCD
Voltage range 12 V (8 V ± 1 V), 24 V (18 V ± 2 V), 50 V (38 V ± 4 V), 120 V (94 V ± 8 V), 230 V (180 V ± 14 V), 400 V (325 V ± 15 V), 690 V (562 V ± 24 V)
LCD display Yes
LCD voltage range 6–690 V
LCD frequency range 40–400 Hz
LCD voltage accuracy ±(1.5% + 5)
LCD frequency accuracy ±(3% + 5)
LCD screen dimensions 31 × 20 mm
Phase rotation test 57–400 V AC, 3-phase, 50–400 Hz
Single-wire L2 voltage detection 100–690 V, 50–400 Hz
Continuity test 0 Ω – 100 kΩ
Continuity test accuracy +50%
Continuity test indication Buzzer and LED
RCD test 230 V, 50–400 Hz
Polarity detection Positive and negative
Self-test Yes
No-load test 100–690 V
Overvoltage protection 713–788 V
Silent mode Yes
Auto standby <10 μA
Flashlight Yes
Low battery indicator Approx. 2.5 V
Ingress protection IP65
Measurement category CAT IV 600 V
Power supply 2 × 1.5 V (R03)
Weight 280 g
Dimensions 272 × 85 × 31 mm
Color Red and gray

Dimensions and weights

Gross weight
0.43 kg

Product codes

EAN
6935750518038
Manufacturer code
UT18C
