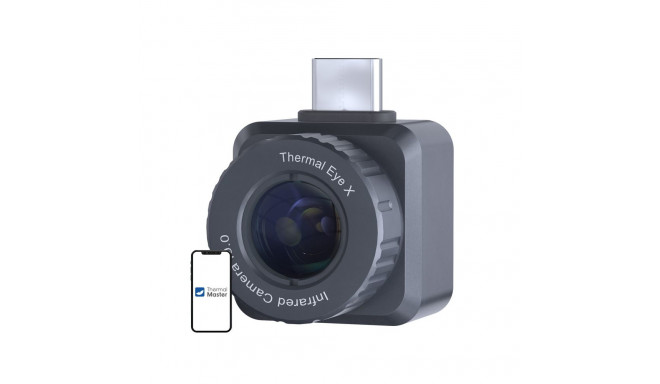

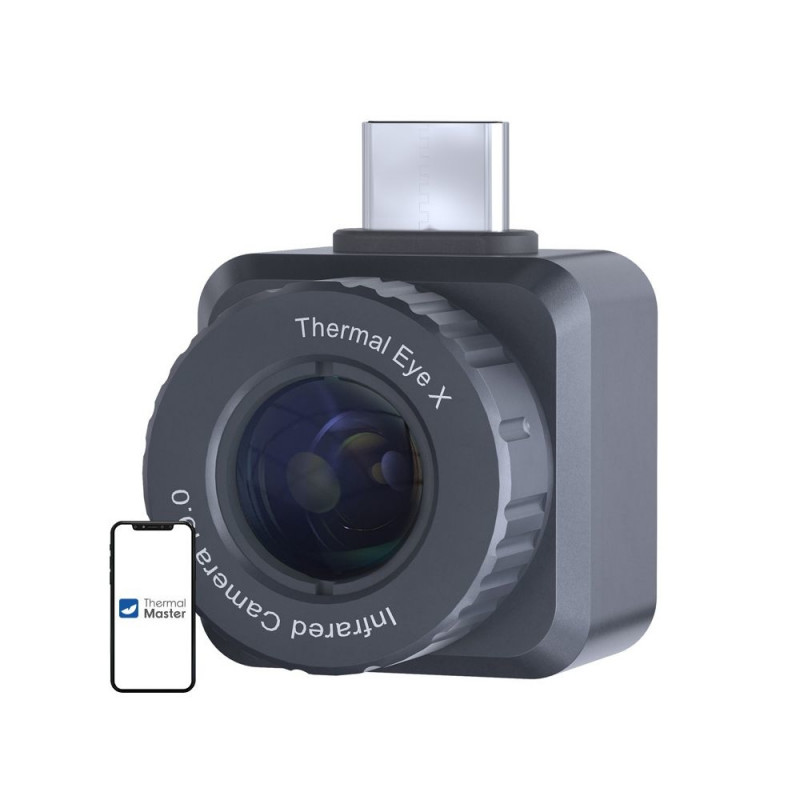

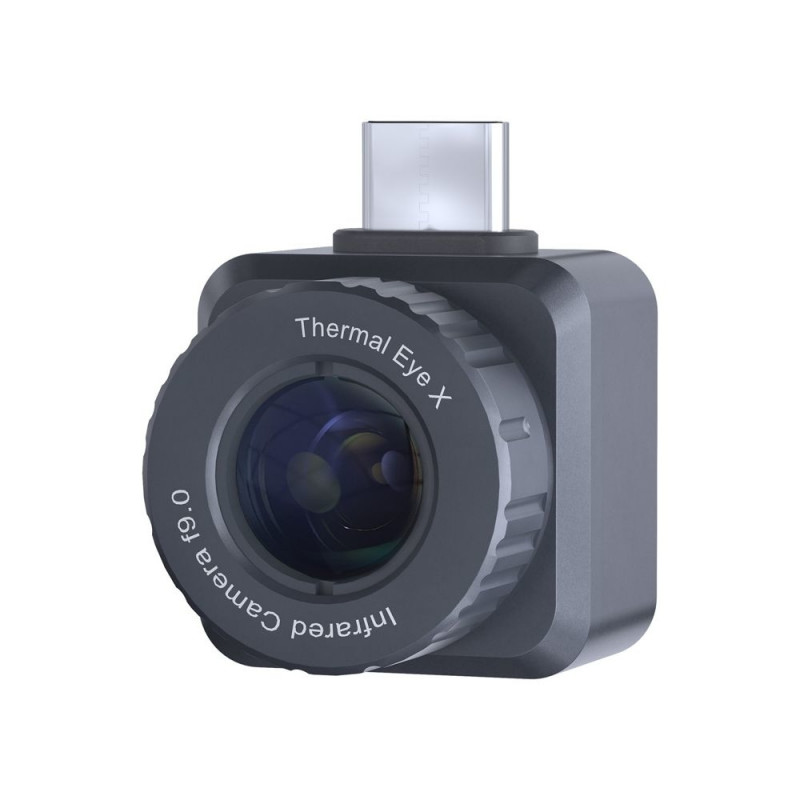

THERMAL MASTER X2 USB-C Mini Thermal Camera

Addional discount of 7%
will be applied in shopping cart
(min. 10€ purchase)
271,99 €

Monthly payment starting from 9,27 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

THERMAL MASTER X2 USB-C Mini Thermal Camera The THERMAL MASTER X2 USB-C is an advanced mini thermal camera that transforms a compatible smartphone with a USB-C port into a precise diagnostic tool with a wide range of applications. It combines high im
Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

THERMAL MASTER X2 USB-C Mini Thermal Camera

The THERMAL MASTER X2 USB-C is an advanced mini thermal camera that transforms a compatible smartphone with a USB-C port into a precise diagnostic tool with a wide range of applications. It combines high image resolution, a smooth 50 Hz refresh rate, an impressive detection range, and extensive customization options, making it ideal for both technical inspections and field applications. Thanks to its proprietary X³ algorithm, the device generates detailed thermal images, and the 15x digital zoom allows you to observe distant objects with high accuracy. The design is engineered for integration with additional tactical accessories and specialized equipment, making the X2 an extremely versatile solution for demanding users.

Clear thermal image

At the heart of the device is an infrared sensor with a resolution of 256 × 192 pixels, supported by the proprietary X³ Super algorithm. When this technology is activated, the image is upscaled to 512 × 384 pixels, which significantly increases the amount of visible detail and makes it easier to detect small temperature differences. As a result, the camera allows for faster identification of overheating components, leaks, and other anomalies that might go unnoticed at standard resolution.

Smooth real-time preview

A 50 Hz refresh rate ensures an exceptionally smooth preview, which is crucial when observing moving objects or working in dynamic conditions. The image responds to camera movement instantly, allowing you to comfortably conduct inspections, patrol an area, or track objects without delays or motion blur. You can take full advantage of the device’s capabilities using the dedicated THERMAL MASTER app, available on Google Play.

Impressive detection range

The THERMAL MASTER X2 allows you to detect heat sources from a distance of up to 476 yards (approximately 435 meters). This range makes the device ideal for terrain observation, patrolling vast areas, and outdoor applications. The camera allows you to see objects far beyond your direct field of view, providing significantly greater control over your surroundings.

Precise digital zoom

The built-in 15× digital zoom allows you to zoom in on areas of interest without having to physically approach the object. It is worth noting that the camera can identify small birds, such as pigeons, from a distance of about 40 yards (approximately 36 meters). The device also offers two advanced image display modes (HD and Highlight). HD mode improves the sharpness and detail of the thermal image, while Highlight mode highlights the most important temperature areas, making it easier to quickly locate critical points. This makes analyzing results simpler and more intuitive, regardless of operating conditions.

Five-position adjustment with settings memory

The THERMAL MASTER X2 is equipped with a five-position adjustment system, including coordinate memory, settings memory, position adjustment, zoom adjustment, and a precision correction knob. What’s more, with the THERMAL MASTER, you gain up to 270% more efficiency thanks to its short eye relief design. This solution enhances viewing comfort and makes it easier to use the device for extended periods, especially in demanding field conditions or during inspections lasting many hours.

Manufacturer THERMAL MASTER
Model X2
Detection range 984 yards (person 1.8 m tall)
Magnification 15x zoom
Infrared resolution 256 to 512 pixels
X³ Super algorithm Supported
Frame rate 50 Hz
20-in-1 ArmorX tactical kit, supports 20 modifications
2-in-1 Thermal monocular + thermography
Focal length 39 mm lens = 13 mm lens ©17 µm
Focus mode Manual focus
Dual-image mode HD mode and backlight mode, one-touch switching
Compound bow mode Exclusive patent
Hotspot tracking Tactical heat tracking
Reticle 8 shapes + 5 colors, quick switching
Ninja mode 2 meters fully concealed
Razor X Supported
Insight+ Supported
Tactical Assistant E-compass/speed/position/weather/time
Professional temperature measurement Supports correction for emissivity/target distance/ambient temperature
NETD 40 mK (@25°C, F#1.0)
Precise temperature measurement 1Q+ Supported
Dedicated color palette for outdoor use Night vision Green/Bird/Hot White/Hot Black/Red Head/Iron Red
Battery life 300–480 minutes (e.g., Samsung Galaxy S23+ with a 4700 mAh battery – 367 minutes)
Application scenarios Outdoors/camping/field/rescue/tactics/hidden camera detection/leak detection in HVAC systems, etc.
Field of view 19.63° x 14.71°
Weight (with lens) 18.5 g
Temperature measurement range (0°C–100°C)
Operating temperature (-20°C–60°C)
Dimensions (with lens) 23 mm x 23 mm x 23.8 mm
Video memory Photo and video recording function
App name Thermal Master
Operating system Android 9.0 and later
