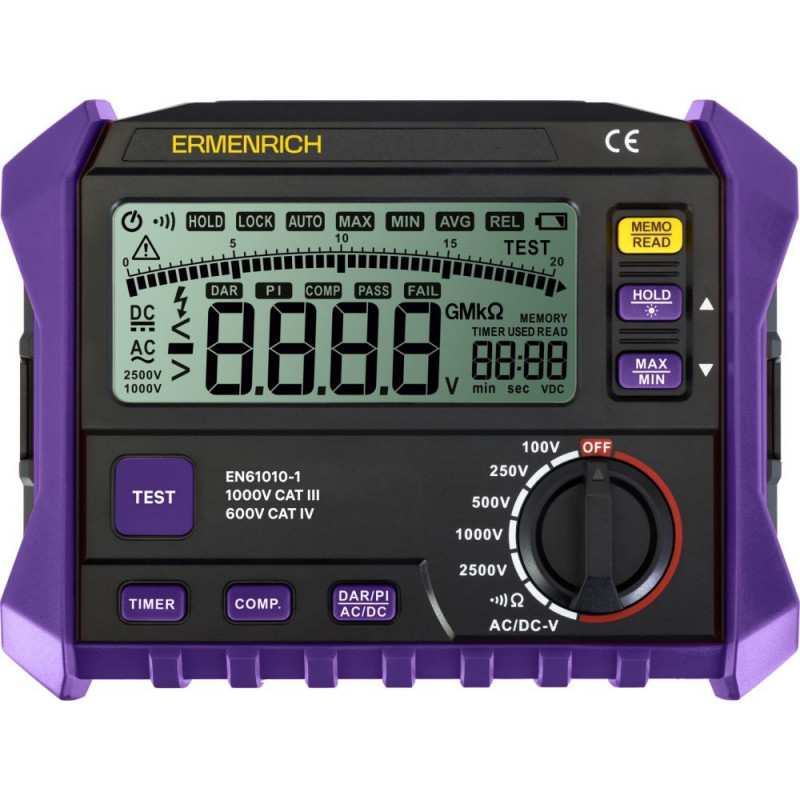

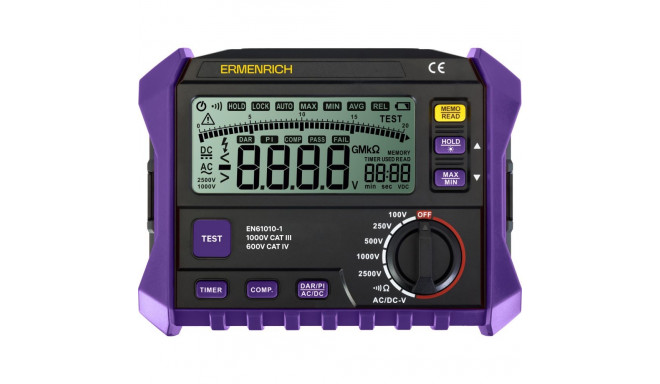

Ermenrich Ping ET50 Insulation Tester

153,99 €

Monthly payment starting from 5,25 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Ermenrich Ping ET50 is an insulation resistance meter, or megohmmeter, which is used to check the quality of cables. Damage or deterioration of the insulation on a live cable can lead to short circuits and fires. Regular megohmmeter inspection reduce

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Ermenrich Ping ET50 is an insulation resistance meter, or megohmmeter, which is used to check the quality of cables. Damage or deterioration of the insulation on a live cable can lead to short circuits and fires. Regular megohmmeter inspection reduces the risk of such dangerous situations occurring. The device operates at 5 test voltages: 100, 250, 500, 1000, and 2500V. The total resistance measurement range is from 0 to 200GΩ.

The device also measures two additional parameters: dielectric absorption ratio (DAR) and polarization index (PI). The first indicates the amount of moisture in the insulation: Drying is required if the volume is high. The second parameter is used to determine the residual insulation life. The megohmmeter also measures AC and DC voltage, has a continuity test function and a timer for resistance measurement mode. The measurement re-sults and operating parameters are displayed on the built-in backlit screen. There are functions for recording data to memory, keeping data on the screen, and determining the minimums and maximums.

The device has a built-in flashlight for working in the dark. The power is supplied from batteries.

Key features:

  • Five test voltages: 100, 250, 500, 1000, and 2500V
  • Insulation resistance measurement in a range of 0 to 200GΩ
  • Absorption coefficient and polarization index measurements
  • Resistance measurement timer, recording results to memory
  • Measurement of DC and AC voltage, continuity mode
  • Flashlight, auto-off function, battery-powered

The kit includes:

  • Insulation tester
  • Probes
  • Alligator clips
  • Case bag
  • User manual and warranty card
Brand Ermenrich
Warranty 5 years
EAN 5905555027333
Package size (LxWxH) 33x27x9 cm
Shipping Weight 1.53 kg
Test voltages, V 100, 250, 500, 1000, 2500
Resistance measurement range (100V) 0–1GΩ: error ±(3%+5)
Resistance measurement range (250V) 0–2GΩ: error ±(3%+5)
Resistance measurement range (500V) 0–20GΩ: error ±(3%+5)
Resistance measurement range (1000V) 0–20GΩ: error ±(3%+5); 20–100GΩ ±(5%+5)
Resistance measurement range (2500V) 0–20GΩ: error ±(3%+5); 20–200GΩ ±(8%+5)
Short circuit current 3mA
DC voltage measuring range 0–1000V: error ±(1%+5)
AC voltage measuring range 0–750V: error ±(1%+5)
Continuity test +; combined with resistance measurement mode (0–200GΩ: error ±(1%+5))
Overvoltage category cat. III (1000V), cat. IV (600V)
Display yes
Graphic scale yes
Flash light yes
Safety standards IEC/EN 61010-1
Dielectric absorption ratio (DAR) yes
Polarization index measurement (PI) yes
Data save/read function yes
Data hold function yes
Limit value memory (Min/Max) yes
Resistance measurement timer yes
Power supply 6 AA batteries (not included)
Low battery status indicator yes
Auto power off yes

*Can be put into parcel-machine Истина

Dimensions and weights

Gross weight
1.53 kg
Package length
33 cm

Product codes

EAN
5905555027333
