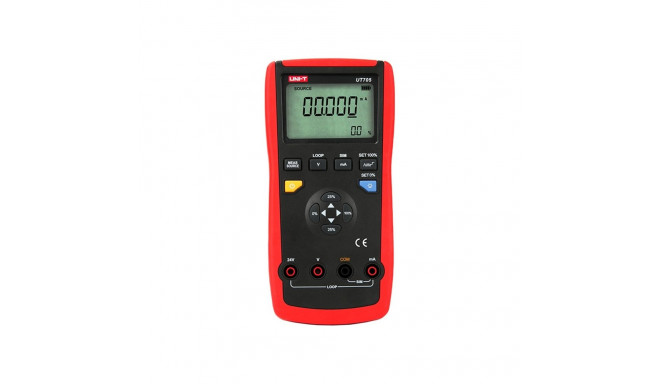

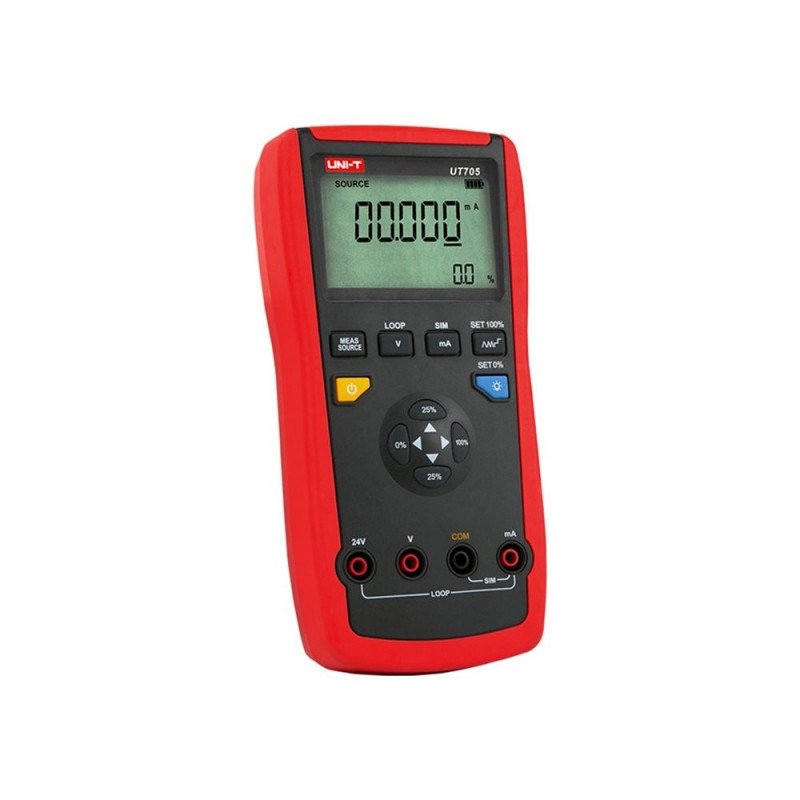

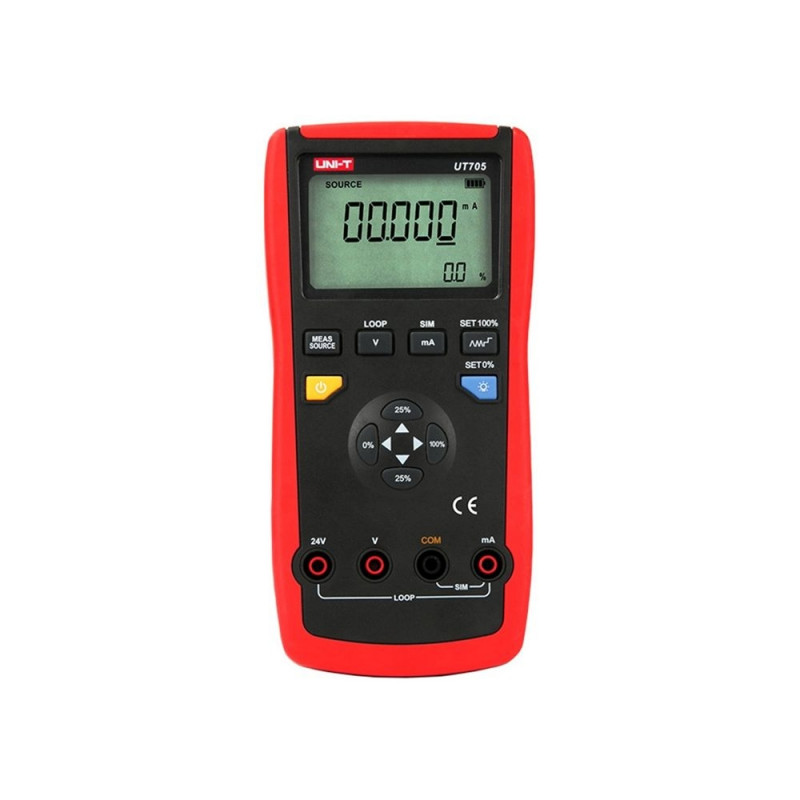

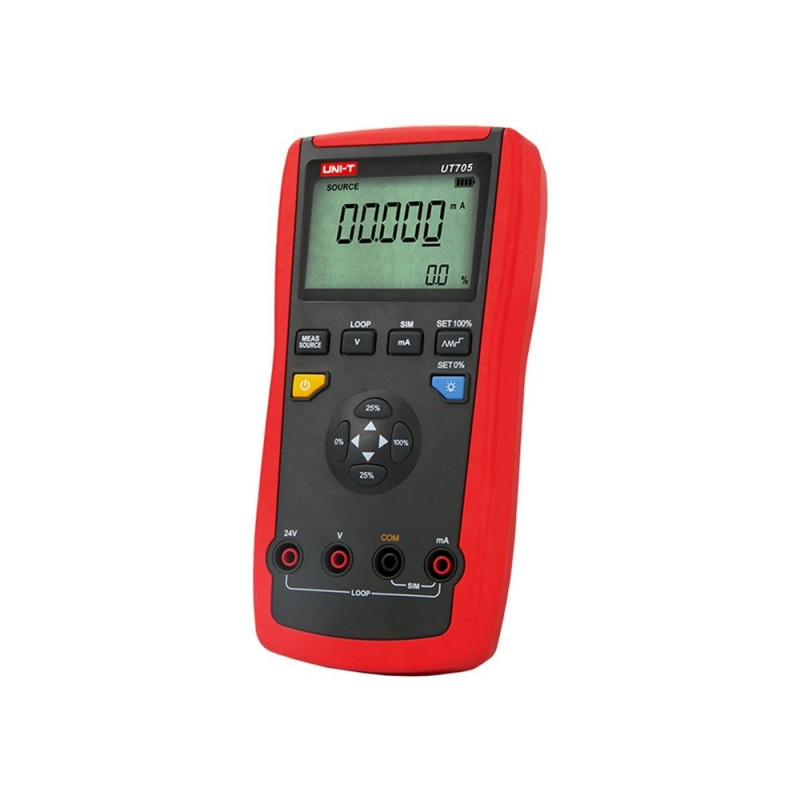

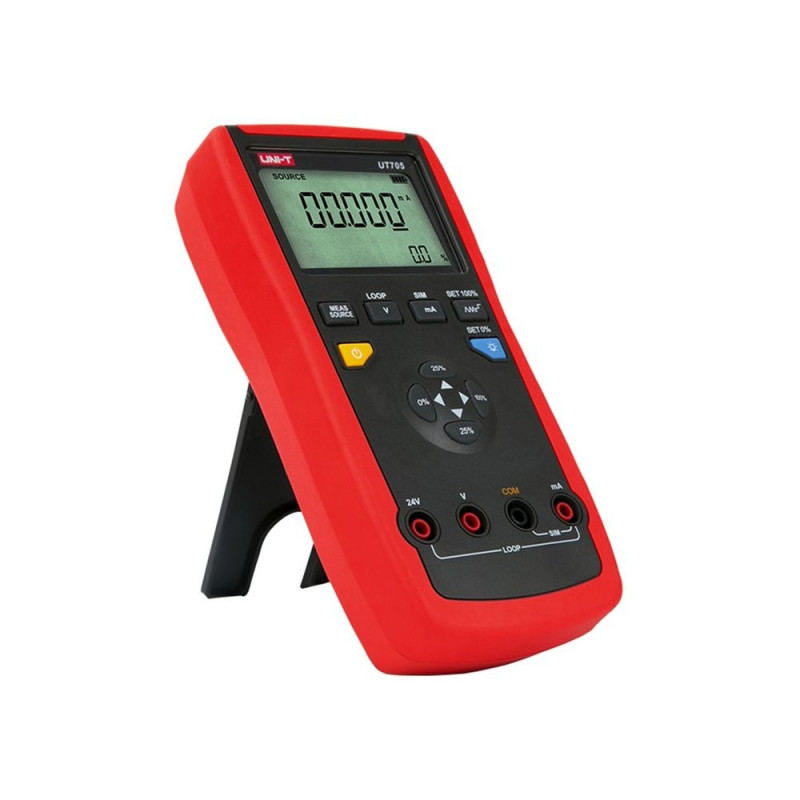

Uni-T UT705 Process Calibrator

409 €

Monthly payment starting from 13,94 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Uni-T UT705 process calibrator The Uni-T UT705 is a current loop calibrator designed for calibration, diagnostics, and maintenance work in industrial automation systems. The device can measure DC voltage up to 30,000 V, as well as DC current and loop
Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Uni-T UT705 process calibrator

The Uni-T UT705 is a current loop calibrator designed for calibration, diagnostics, and maintenance work in industrial automation systems. The device can measure DC voltage up to 30,000 V, as well as DC current and loop current up to 24,000 mA. It also supports DC current source, current simulation, and 24 V loop power supply functions, enabling comprehensive testing and monitoring of transducers and other process system components. High measurement accuracy of ±(0.02%+2) ensures reliable results during demanding calibration tasks.

Features to streamline daily work

The UT705 is equipped with manual and automatic signal ramping functions, 25% and 100% range step modes, and the ability to save and recall settings, which significantly speeds up repetitive tasks. The backlit display makes it easy to read data in various lighting conditions, and the auto-off feature helps conserve energy. Weighing 410 g and measuring 96 × 193 × 47 mm, the device remains convenient for transport and daily use, and its resistance to drops from a height of 1 meter increases its durability during field and workshop work.

Included
  • Process calibrator
  • Test leads (1 pair)
  • 9V battery (6F22)
  • Carrying case
  • User manual
Specifications
Manufacturer Uni-T
Model UT705
Product type Process loop calibrator
DC voltage measurement range 30.000 V ±(0.02% + 2)
DC current measurement range 24.000 mA ±(0.02% + 2)
Loop current measurement range 24.000 mA ±(0.02% + 2)
DC current source range 24.000 mA ±(0.02% + 2)
DC current simulation range 24.000 mA ±(0.02% + 2)
Loop power supply output 24 V
Loop power supply accuracy 10%
Ramping functions Slow ramp, fast ramp, step ramp
Step functions 25% of range, 100% of range
Settings memory (Save/Recall) Yes
LCD backlight Yes
Auto power off Yes
Drop resistance 1 m
Power supply 9V battery (6F22)
Display dimensions 63 × 40 mm
Color Red and gray
Dimensions 96 × 193 × 47 mm
Weight 410 g
Certifications CE, UKCA

Dimensions and weights

Gross weight
0.67 kg

Product codes

EAN
6935750570180
Manufacturer code
UT705
