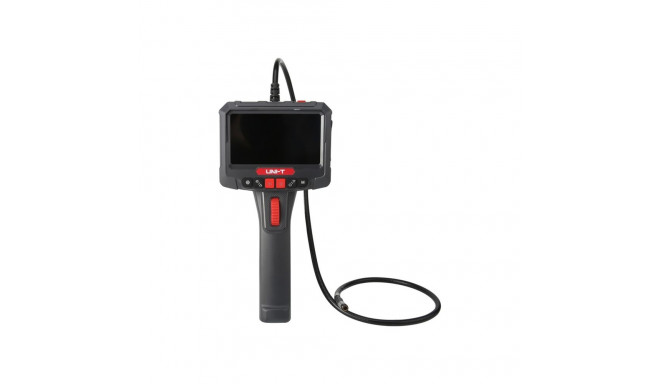

Uni-T UT663B Borescope

FREE SHIPPING
WITHIN ESTONIA!

179,99 €

Monthly payment starting from 6,13 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Uni-T UT663B Borescope The Uni-T UT663B is an industrial borescope designed for use in complex spaces that are beyond the reach of the human eye. The device was created for inspections in narrow, curved, and hard-to-reach areas where precise inspecti
Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Uni-T UT663B Borescope

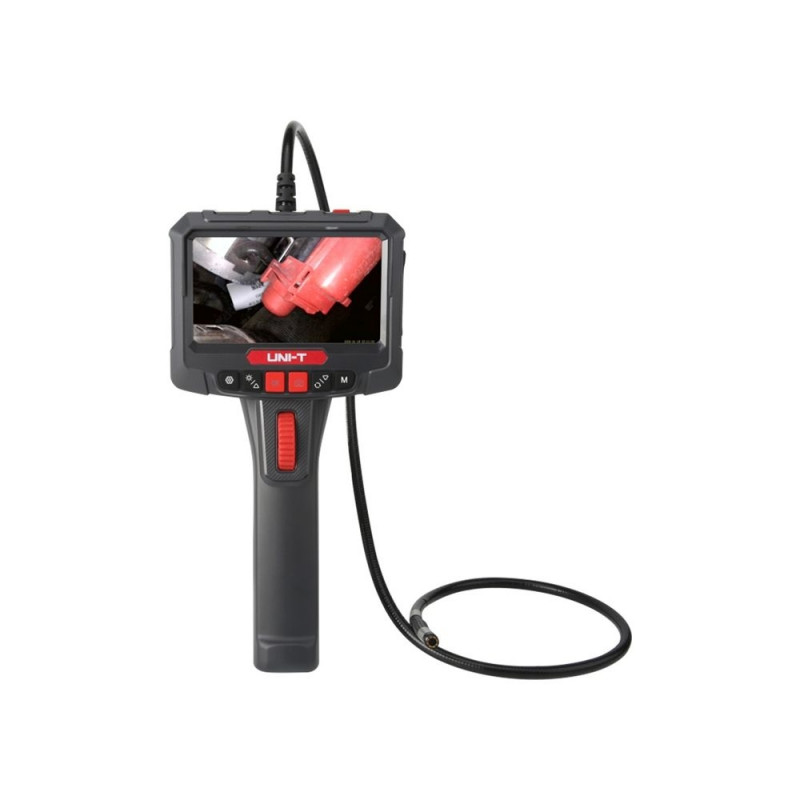

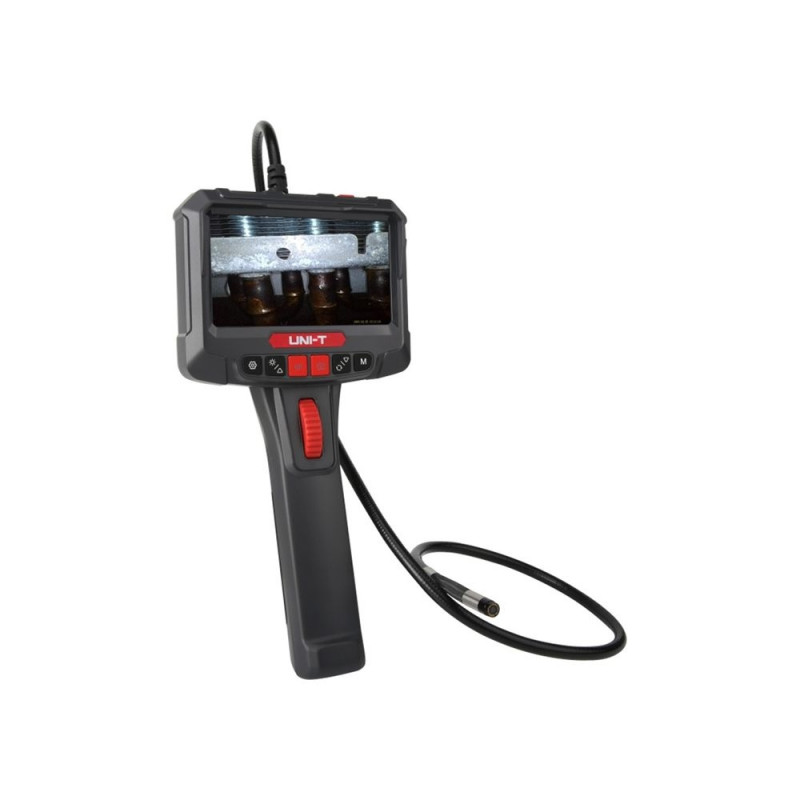

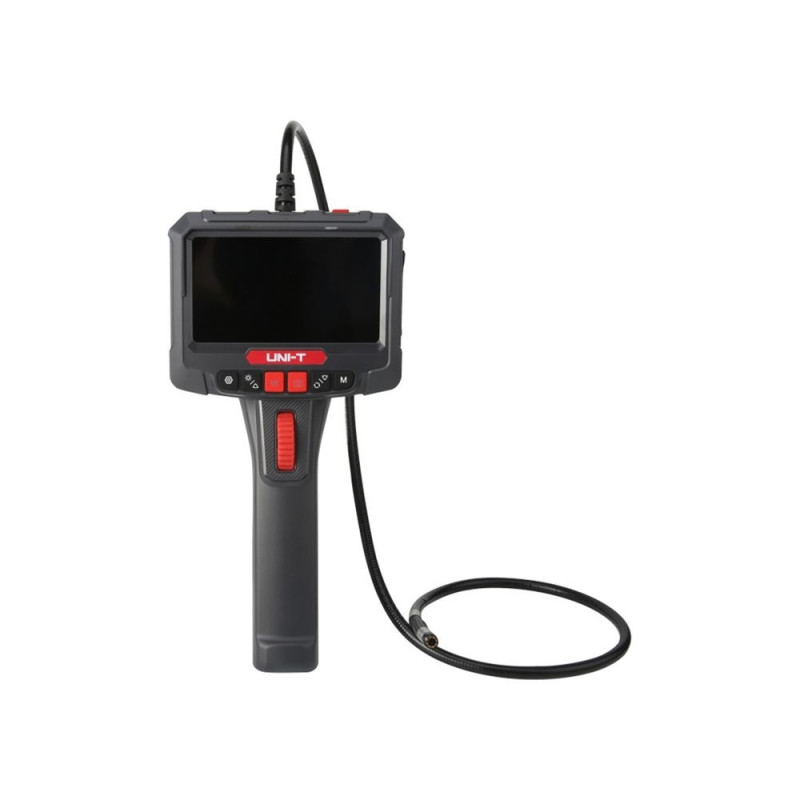

The Uni-T UT663B is an industrial borescope designed for use in complex spaces that are beyond the reach of the human eye. The device was created for inspections in narrow, curved, and hard-to-reach areas where precise inspection is essential without the need to disassemble components. The model is equipped with a camera featuring 180° bidirectional rotation, a 5.0" screen, and a 1-meter cable, which facilitates inspections in more demanding conditions.

Better visibility and greater image control

The borescope features a 5.0" screen, supports 1920 x 1080 resolution photos, and records video in 1920 x 1080 AVI format, allowing you to conveniently document the inspection process. The 8 mm diameter camera with a CMOS sensor provides a 70° field of view and a depth of field of 20–100 mm, helping you closely observe the inspected components. Available features also include photo capture, video recording, playback, image rotation, audio recording, and high-temperature alerts.

Rotating head and operation in hard-to-reach areas

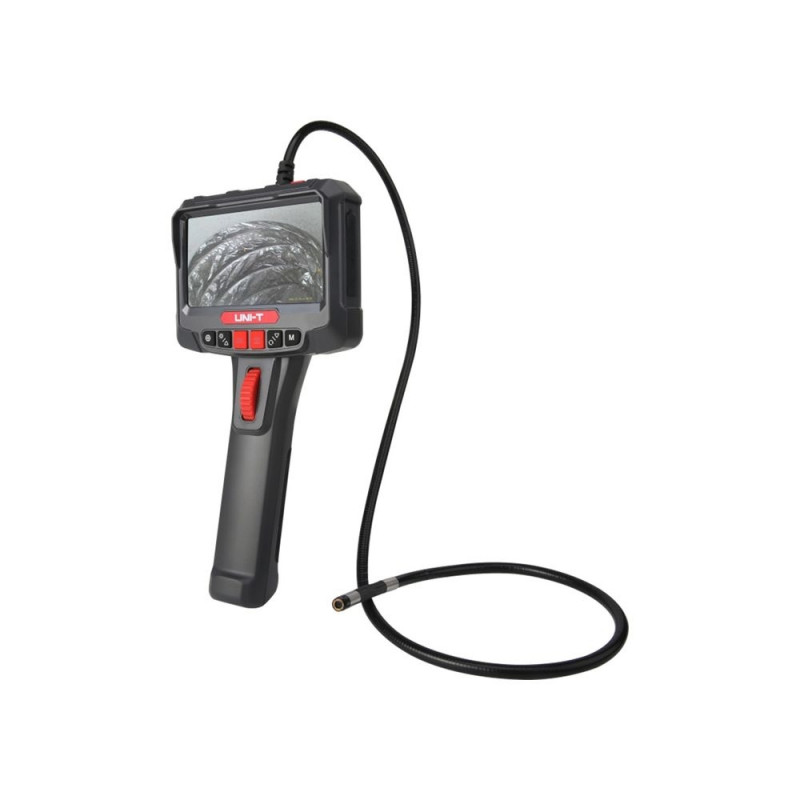

The most important feature of the UT663B model is its rotating head with a 180° bidirectional range, which allows you to avoid blind spots and adjust the viewing angle more conveniently. A rigid 1-meter metal cable extends the operating range and makes it easier to reach deeper spaces. This solution is particularly effective where standard borescopes have limited maneuverability.

Durable construction and documentation-ready

The camera meets the IP67 standard, and 8 LEDs with 4-step brightness adjustment improve visibility in dark interiors of devices and installations. The device uses a 3.7 V / 3000 mAh battery, which provides up to 4 hours of operation, and a standard 32 GB TF card allows you to save photos and videos immediately. It is a practical tool for technical, maintenance, and diagnostic inspections where ease of use and the ability to record results are essential.

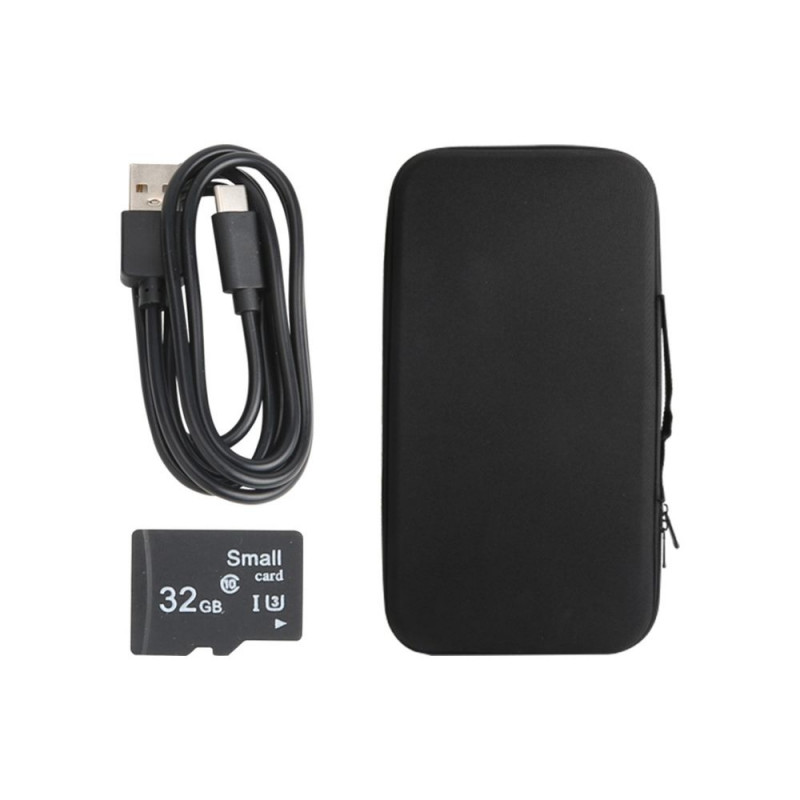

Included
  • Industrial borescope with 360° rotating head
  • Type-C cable
  • Box
  • Fabric case
  • 32GB TF card
  • User manual
Specifications
Manufacturer Uni-T
Model UT663B
Type Industrial borescope
Screen size 5.0"
System languages English, Simplified Chinese, Traditional Chinese, Japanese, German, Spanish, French, Italian, Korean
Photo resolution JPG 1920 x 1080
Video resolution AVI 1920 x 1080
Basic functions Photo capture, video recording, playback, high-temperature protection, image rotation, audio recording
Storage 32GB TF card
Maximum storage capacity 64GB
Rotation angle 180° bidirectional
Cable material Metal, rigid
Cable length 1m
Lens diameter 8mm
Light sensor CMOS
Field of view 70°
Depth of field 20 ~ 100mm
LED light adjustment 4 settings
Number of LEDs 8
Camera resolution 1000K
Protection rating IP67
Battery 3.7V / 3000mAh
Operating time 4h
Lens temperature 0°C ~ 80°C
Operating temperature 0°C ~ 45°C
Operating humidity <90% RH non-condensing
Certifications CE, RoHS
