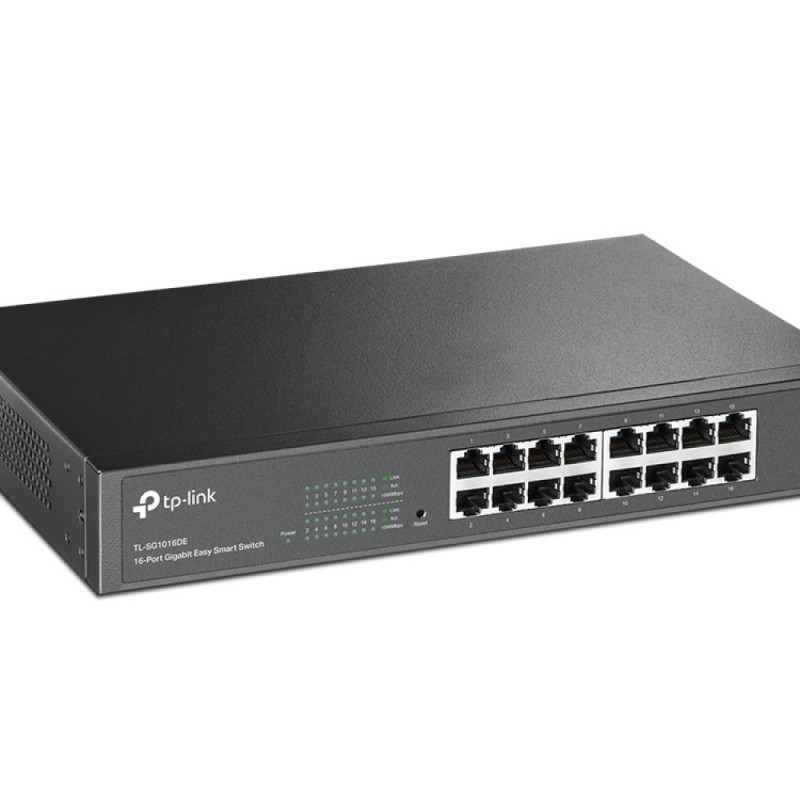

TP-Link 16-Port Gigabit Easy Smart Network Switch

Main info

Product has been archived


Compatible operating systems Windows
Auto MDI/MDI-X Yes
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
Height 44 mm
Package weight 1.91 kg
Depth 180 mm
AC input frequency 50/60 Hz
Power source AC
User guide Yes
Package type Box
Operating temperature (T-T) 0 - 40 °C
Package height 80 mm
Housing material Metal
Power consumption (max) 19.15 W
Package width 250 mm
VLAN support Yes
Form factor 1U
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Product colour Black
Power over Ethernet (PoE) No
AC input voltage 100 - 240 V
Rack mounting Yes
LED indicators Yes
Cables included AC
Width 284 mm
Package depth 400 mm
Basic switching RJ-45 Ethernet ports quantity 16
Jumbo frames 9000
Forwarding rate 23.8 Mpps
Switching capacity 32 Gbit/s
Gigabit Ethernet (copper) ports quantity 16
Packet buffer memory 0.512 MB
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Link aggregation Yes
IGMP snooping Yes
Jumbo frames support Yes
Resource CD Yes
Power connector AC-in jack
Store-and-forward Yes
Number of queues 4
Rate limiting Yes
Maximum cable length 100 m
Port mirroring Yes
Heat dissipation 34.52 BTU/h
MAC address table 8000 entries
Auto-negotiation Yes
Number of VLANs 32
10G support No
Switch layer L2
Broadcast storm control Yes
Switch type Managed
Rack mount kit Yes
Power supply included Yes
Flow control support Yes
Sustainability compliance Yes
Warranty 60 (F)
Virtual LAN features Tagged VLAN
Copper ethernet cabling technology 100BASE-TX
Networking standards IEEE 802.1p
Cable types supported Cat5
Sustainability certificates Federal Communications Commission (FCC)

Dimensions and weights

Package width
400 cm
Package height
250 cm
Package length
80 cm

Product codes

EAN
6935364021269
Manufacturer code
TL-SG1016DE
