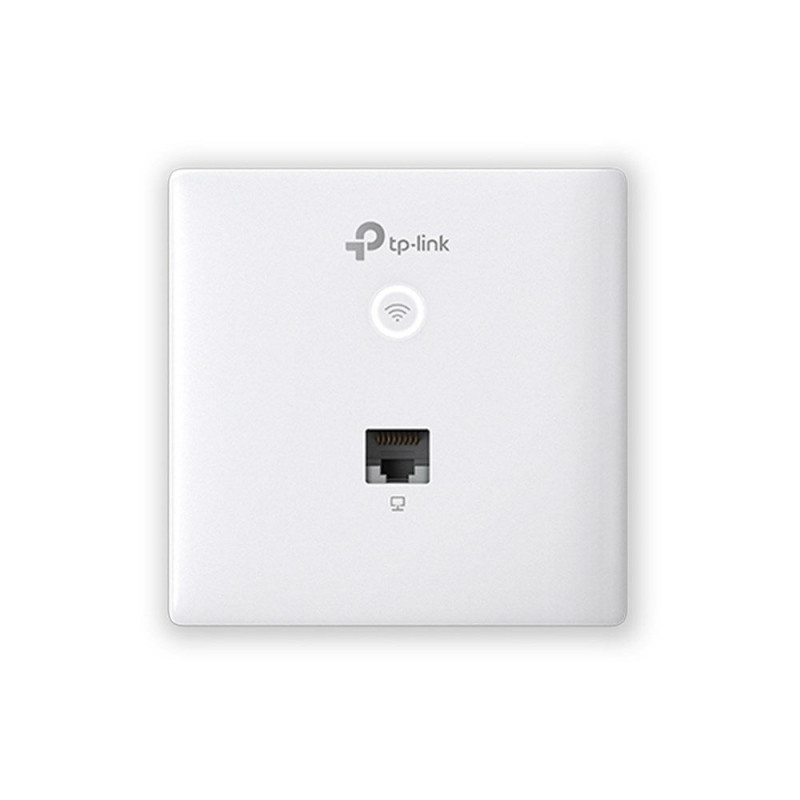

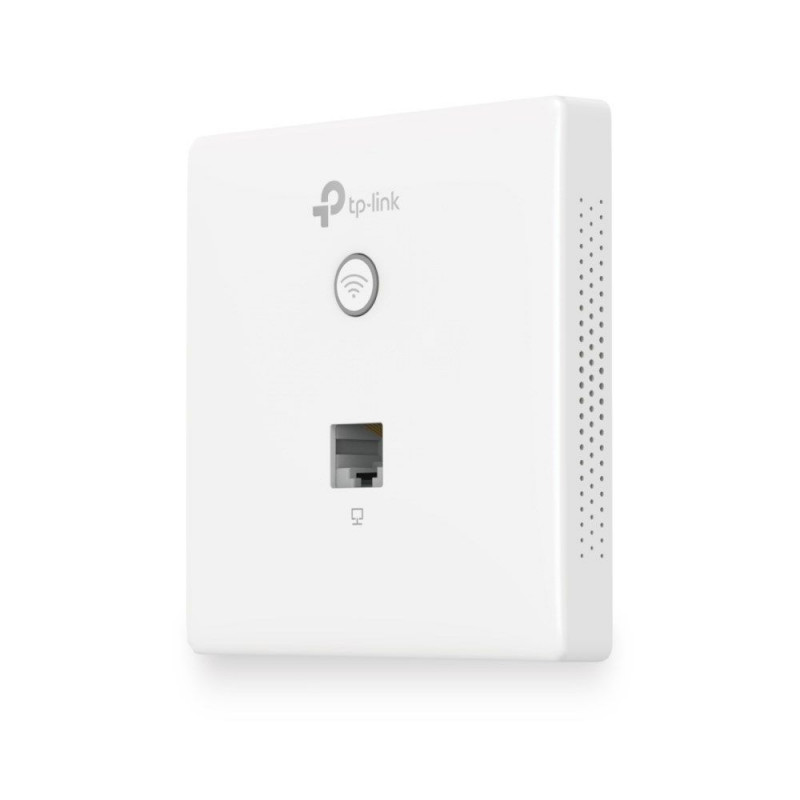

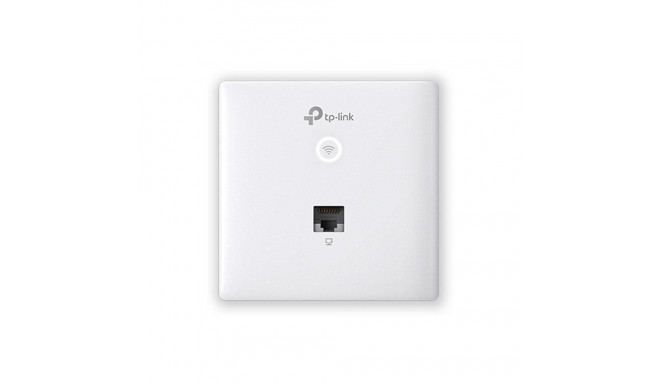

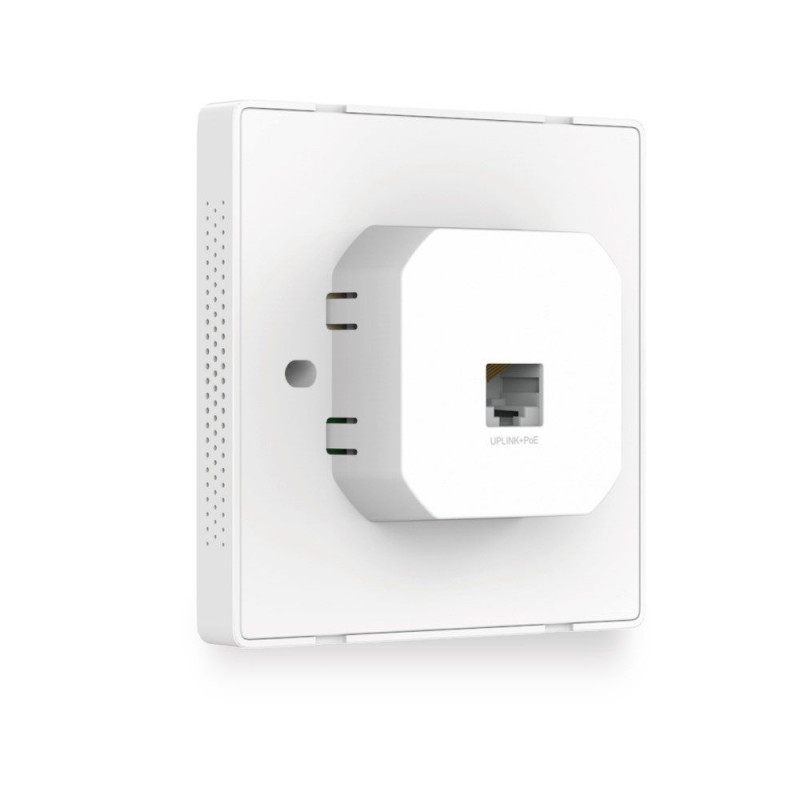

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

84,99 €

Monthly payment starting from 2,54 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online


Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Quick start guide Yes
Reset button Yes
Antenna type Internal
MIMO Yes
LED indicators Operation
Frequency band 2.4 - 5 GHz
Compliance certificates CE
WAN connection Ethernet (RJ-45)
2.4 GHz Yes
5 GHz Yes
Web-based management Yes
MAC address filtering Yes
Maximum data transfer rate 1167 Mbit/s
Product colour White
Syslog Yes
Operating temperature (T-T) 0 - 40 °C
Quantity per pack 2 pc(s)
Width 86.8 mm
Automatic channel selection Yes
Antenna features Integrated antenna
Operating relative humidity (H-H) 10 - 90%
Service Set Identifier (SSID) features Multiple SSIDs
Package height 47 mm
Storage temperature (T-T) -40 - 70 °C
Maximum data transfer rate (5 GHz) 867 Mbit/s
Quality of Service (QoS) support Yes
Power consumption (typical) 9 W
BeamForming Yes
MIMO type Multi User MIMO
Placement Wall
Package width 118 mm
Power over Ethernet (PoE) Yes
6 GHz No
Package weight 210 g
Access Control List (ACL) Yes
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Band steering Yes
Height 30.2 mm
Package depth 130 mm
Antennas quantity 2
Depth 86.8 mm
Sustainability compliance Yes
Rate limiting Yes
Mounting kit Yes
VLAN support Yes
Power consumption (max) 25.5 W
Cabling technology 10/100/1000Base-T(X)
Wi-Fi Multimedia (WMM)/(WME) Yes
Harmonized System (HS) code 85176990
Automatic channel scanning Yes
Antenna gain level (max) 3.6 dBi
Storage relative humidity (H-H) 5 - 90%
Transmitting power (CE) 20 - 23 dBm
Ethernet LAN (RJ-45) ports 1
Number of SSID supported 16
Warranty 60 (G)
Security algorithms 152-bit WEP
Ethernet LAN data rates 100
Networking standards IEEE 802.3af
Virtual LAN features VLAN mapping
Warnings Do not expose to prolonged moisture.

Extended warranties and insurance:

  • Additional warranty (2 years) - 19,99 €
  • Additional warranty + insurance (2 + 1 year) - 29,99 €
  • Insurance (1 year) - 19,99 €
  • Insurance (2 years) - 29,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Package width
130 cm
Package height
120 cm
Package length
50 cm

Product codes

EAN
6935364089481
Manufacturer code
EAP230-Wall
