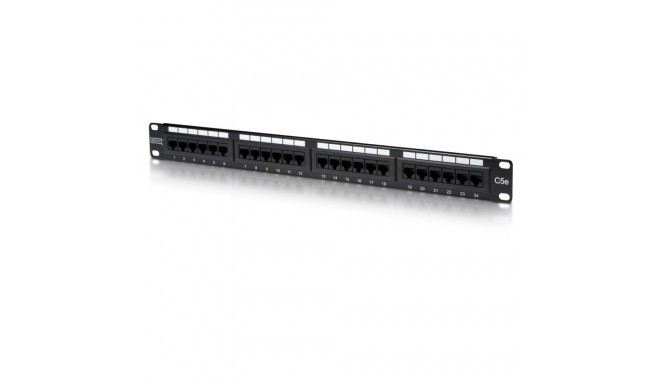

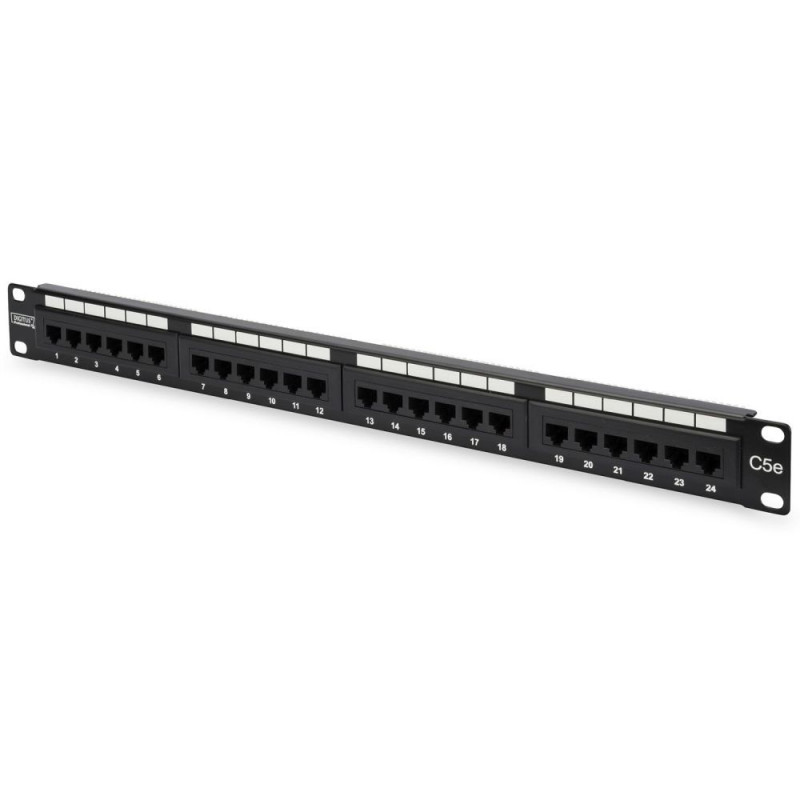

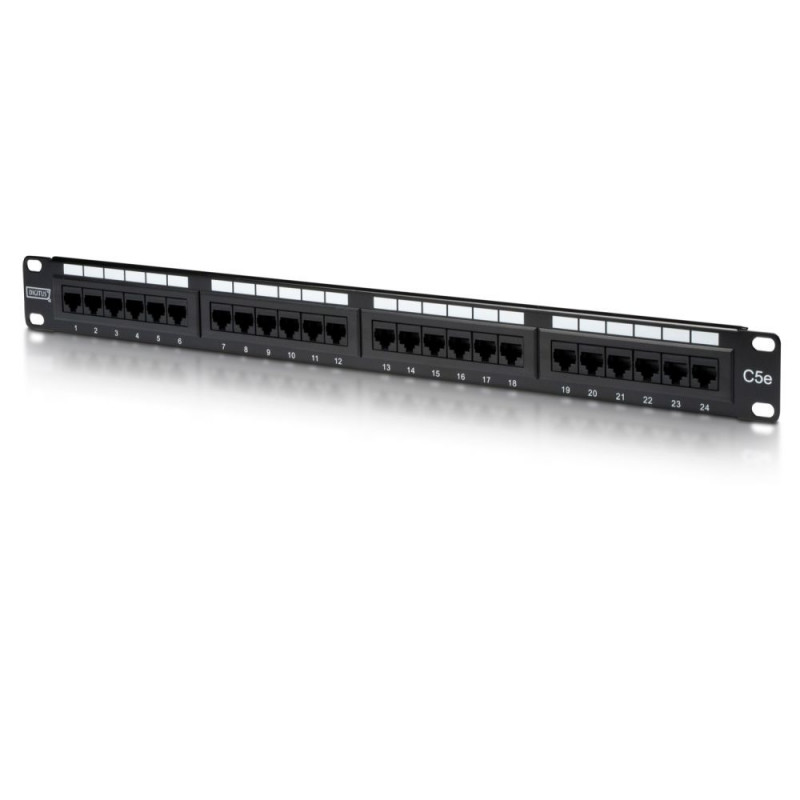

DIGITUS Patch panel,CAT5E,19",24xUTP RJ45,black

Main info

DIGITUS CAT 5e patch panel, unshielded 24-port RJ45, 8P8C, LSA, 1U, rack mount, color black RAL 9005 Best performance and link quality for your network. The unshielded CAT 5e Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 4

Product has been archived

DIGITUS CAT 5e patch panel, unshielded 24-port RJ45, 8P8C, LSA, 1U, rack mount, color black RAL 9005 Best performance and link quality for your network. The unshielded CAT 5e Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units).The housing is made of 1.5 mm galvanized, cold-rolled steel and is therefore perfectly suitable for 19" rack mounting. Technical Details Transmission properties: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with cable tie Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Ground wire: Not included Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Number of buses/couplings: 24 Suitable for number of connectors: 24 Type of connector: RJ45 8(8) Screened: no Category: 5E Connection type: LSA Number of height units: 24 Colour: Black RAL-number: 9005 Mounting method: 482.6 mm (19 inch) mounting Height: 44 mm Width: 482 mm Depth: 109 mm
ansmission properties Category 5e
ea of application Up to 100 MHz, 10/100Base-T, 1GBase-T
rms ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
using material 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
45 female material ABS UL 94V-0
45 female contact Tinned phosphor bronze, 0.5 µ gold-plated contact
A termination clamp Krone LSA+, UL 94V-2, zinc plated phosphor bronze
ound wire Not included
sertion force 30N max. (IEC 60603-7-5)
tention strength 7.7 kg between jack and plug
eration temperature -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
ting cycles female > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
C wire size 22 – 26 AWG solid and stranded conductor
sulation resistance > 500 MOhm
ntact resistance < 20 MilliOhm
mber of buses/couplings 24
itable for number of connectors 24
pe of connector RJ45 8(8)
reened no
tegory 5E
nnection type LSA
mber of height units 24
lour Black
L-number 9005
unting method 482.6 mm (19 inch) mounting
ight 44 mm
dth 482 mm
pth 109 mm
nductor plate FR4, UL 94V-0
amp > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
electric strength 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Dimensions and weights

Gross weight
0.08 kg

Product codes

EAN
4016032241461
Manufacturer code
4016032241461
