Home page » Computers & IT»Networking»Switches»TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

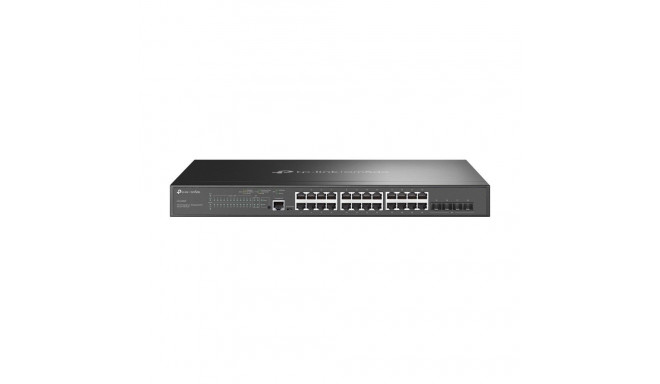

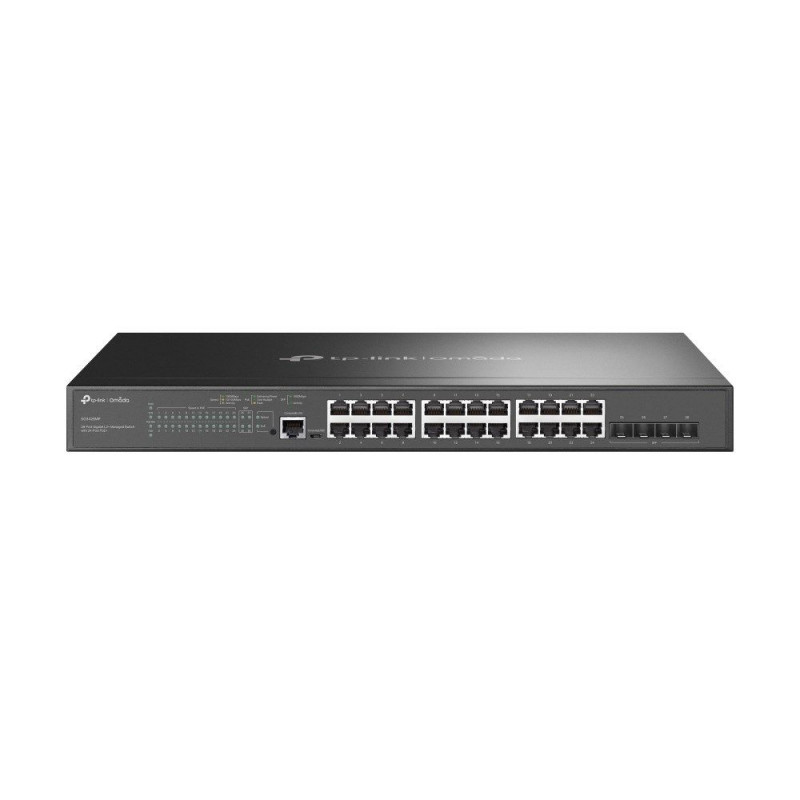

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

Main info

Product has been archived


Warranty 60 (F)
Certification CE, FCC, RoHS
MAC address table 16000 entries
Packet buffer memory 12 MB
System event log Yes
Number of VLANs 4000
Power connector AC-in jack
Power over Ethernet plus (PoE+) ports quantity 24
Forwarding rate 41.66 Mpps
ARP inspection Yes
Authentication MAC-based authentication, Port-based authentication
Store-and-forward Yes
Spanning tree protocol Yes
Jumbo frames 9000
BPDU filtering/protection Yes
Rate limiting Yes
IP-MAC-Port binding Yes
IP routing Yes
Configuring Location Settings (CLI) Yes
Heat dissipation 1637.14 BTU/h
Switch type Managed
Active link detection Yes
Access Control List (ACL) Yes
Switch layer L2+
Gigabit Ethernet (copper) ports quantity 24
Link aggregation Yes
IGMP snooping Yes
GARP VLAN Registration Protocol (GVRP) Yes
Loop protection Yes
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
10G support No
SSH/SSL support Yes
Multicast support Yes
Port mirroring Yes
Flow control support Yes
Static port security Yes
Basic switching RJ-45 Ethernet ports quantity 24
Management protocols SNMPv1/v2c/v3, LLDP/LLDP-MED
Console port RJ-45/Micro-USB
Cloud-managed Yes
Broadcast storm control Yes
Head-of-line (HOL) blocking Yes
Depth 330 mm
AC input frequency 50/60 Hz
Product colour Black
Power over Ethernet (PoE) Yes
Width 440 mm
Height 44 mm
Power consumption (max) 480.1 W
Ethernet LAN data rates 10,100,1000 Mbit/s
VLAN support Yes
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 45 °C
Rack mounting Yes
Jumbo frames support Yes
LED indicators Yes
Total Power over Ethernet (PoE) budget 384 W
Switching capacity 56 Gbit/s
Form factor 1U
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
User guide Yes
Quick start guide Yes
Number of fans 2 fan(s)
Storage relative humidity (H-H) 5 - 90%
Web-based management Yes
MAC address filtering Yes
Power over Ethernet (PoE) power per port 30 W
SFP module slots quantity 4
Security algorithms SSL/TLS
Warnings Do not open the case or try to repair it yourself.
DHCP features DHCP server
Networking standards IEEE 802.3at
Copper ethernet cabling technology 1000BASE-T
Virtual LAN features Private VLAN

Dimensions and weights

Package width
110 cm
Package height
440 cm
Package length
530 cm

Product codes

EAN
6935364010737
Manufacturer code
TL-SG3428MP
