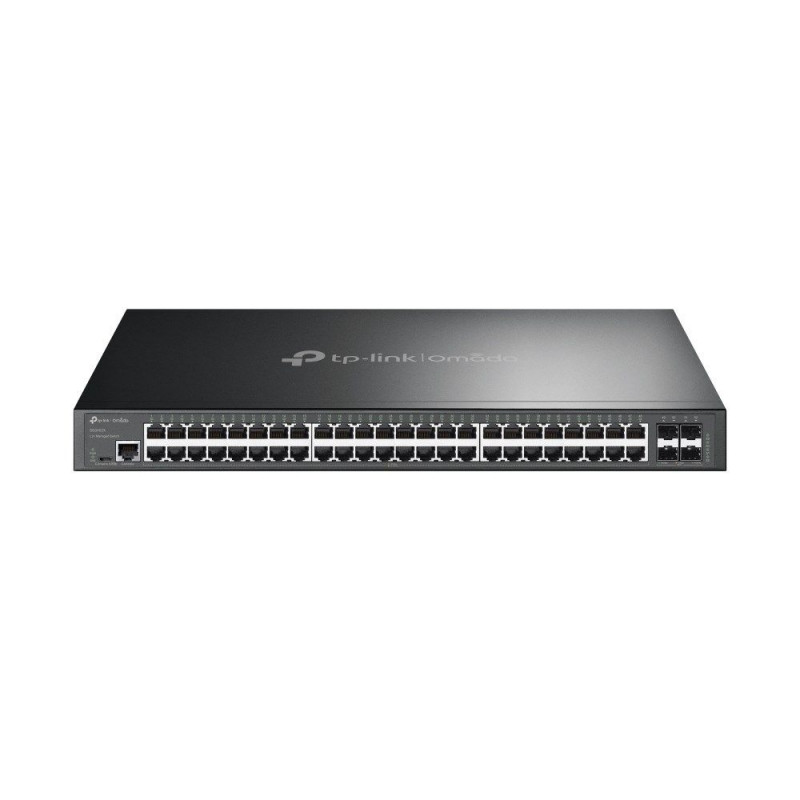

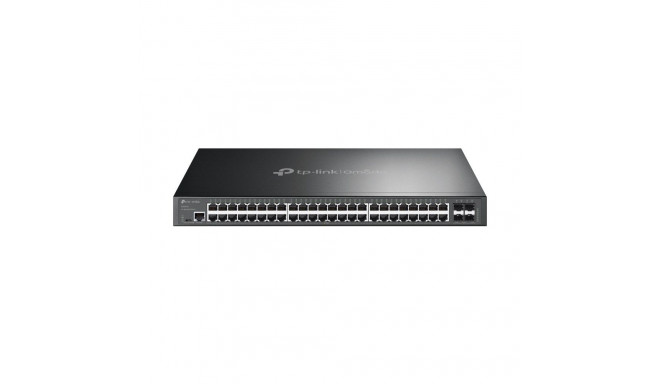

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Addional discount of 4%
will be applied in shopping cart
(min. 10€ purchase)
529 €

Monthly payment starting from 18,03 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online


Certification CE, FCC, RoHS
Quick start guide Yes
Power consumption (max) 32.72 W
Form factor 1U
Product colour Black
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
Rack mounting Yes
Power supply included Yes
Operating relative humidity (H-H) 10 - 90%
AC input frequency 50/60 Hz
Jumbo frames support Yes
Switching capacity 176 Gbit/s
Cables included AC
Power over Ethernet (PoE) No
Width 440 mm
Web-based management Yes
MAC address filtering Yes
Height 44 mm
Storage relative humidity (H-H) 5 - 90%
Basic switching RJ-45 Ethernet ports quantity 48
Power source AC
Package type Box
Operating temperature (T-T) 0 - 45 °C
VLAN support Yes
Password protection Yes
AC input voltage 100 - 240 V
LED indicators Yes
Depth 220 mm
Console port RJ-45/Micro-USB
Cloud-managed Yes
Rack rails Yes
ARP inspection Yes
Power connector AC-in jack
IGMP proxy Yes
SSH/SSL support Yes
Number of VLANs 4000
Rack mount kit Yes
10G support Yes
Authentication Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
System event log Yes
Switch layer L2+
Link aggregation Yes
Static port security Yes
Authentication type AAA, RADIUS, TACACS+
Spanning tree protocol Yes
Jumbo frames 9000
BPDU filtering/protection Yes
Static route Yes
Rate limiting Yes
Management protocols SNMPv1/v2c/v3, SNTP
IGMP snooping Yes
Head-of-line (HOL) blocking Yes
Multicast support Yes
IPv4 routes 48
Configuring Location Settings (CLI) Yes
Port mirroring Yes
Packet buffer memory 12 MB
GARP VLAN Registration Protocol (GVRP) Yes
IP-MAC-Port binding Yes
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Flow control support Yes
Forwarding rate 130.9 Mpps
Broadcast storm control Yes
Multicast Listener Discovery (MLD) snooping Y
Number of static routes 48
Huawei-proprietary MIB Y
Public MIB Y
Heat dissipation 111.65 BTU/h
Switch type Managed
SFP+ module slots quantity 4
Access Control List (ACL) Yes
Loop protection Yes
Warranty 60 (G)
MAC address table 16000 entries
IPv6 routes 48
Number of fans 0 fan(s)
IPv4 & IPv6 features IPv6 tracert
Queue scheduling algorithms SP
Virtual LAN features VLAN mapping
DHCP features DHCP relay
Networking standards IEEE 802.1s
Warnings The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 99,99 €
  • Additional warranty (2 years) - 69,99 €
  • Insurance (1 year) - 89,99 €
  • Insurance (2 years) - 159,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Package width
340 cm
Package height
100 cm
Package length
530 cm

Product codes

EAN
6935364006471
Manufacturer code
TL-SG3452X
