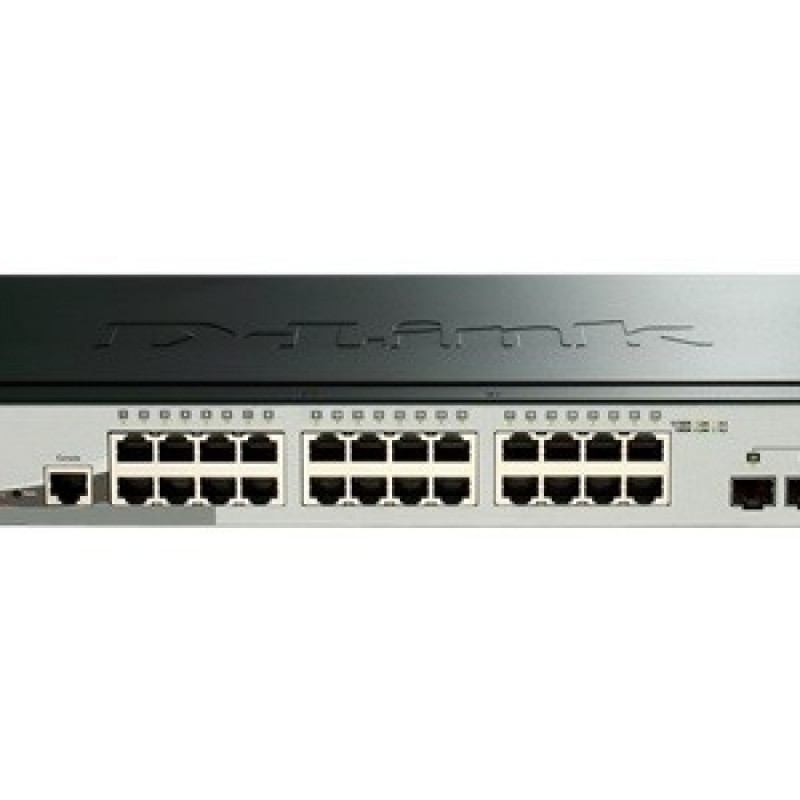

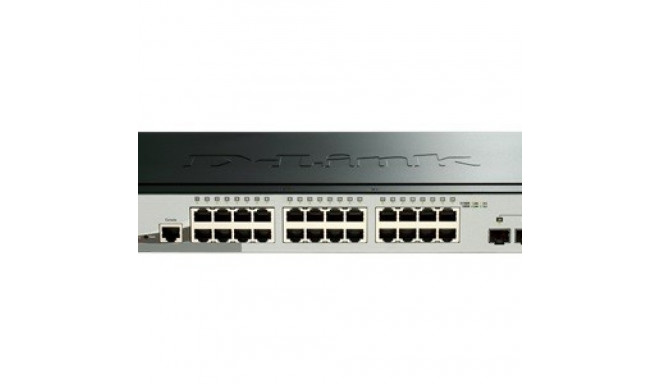

Switch DGS-1510-28X 24GE 4SFP+

Main info

Product has been archived

DGS-1510 Series Gigabit Stackable Managed Smart Switches

  • L2 management and security with L3 features
  • CLI command line, console port and Web GUI
  • 10G SFP+ physical stackable
  • Static and MSTP routes
  • Lifetime-Limited warranty upon registration

Command line CLI

Supports a standard and commonly used command line interface for system management.

Physical racking

Physically stackable up to 6 units in a stack with a total of 288 ports.

10G uplink ports

With SFP+ ports, you can connect to other areas of the network with 10G throughput.

Static routing

Segregation of L3 traffic between switches, regardless of VLAN segemntation.

Multiple images and confusion files

Firmware updates and configuration testing without any risk of losing settings.

Limited Lifetime Warranty

Register your product to benefit from the Lifetime Limited Warranty.

The DGS1510 series is the latest generation of managed Smart switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high throughput, industry-standard CLI console compliance, makes the DGS1510 series switches ideal for SMBs as well as enterprise environments.

Full feature set with L3 traffic management

The DGS1510 switch series features advanced network management tools via an industry-standard CLI console, console serial port and the GUI browser-based user interface. This provides your business with VLAN, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routes, multiple firmware images and multiple configuration files.

With powerful security features in the form of IGMP snooping, access control lists, port security tools and the D-Link Safeguard Engine, which protects the network from malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 switch family is a versatile tool for networked enterprise environments.

Fibre optic Uplink ports

Network expansion to suit the needs of any business is possible with fibre uplink ports with advanced management and security features.

D-View 7: free network design and management system

D-Link's free Network Assistant (DNA) system provides information on all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities.

Energy saving

D-Link's DGS-1510 family of switches with D-Link Green technology enables energy savings without affecting operational performance or functionality.


Switch class SMART
Application Medium and large companies
Switch layer L3
Switch layer L2
Network architecture GigabitEthernet
Number of 10/100 Mbps ports None
Number of 10/100/1000 Mbps ports 24
10/100/1000/2500 Mbps ports None
Number of 10Gb ports 4
Number of PoE+ ports None
Number of COMBO ports None
Number of SFP+ ports 4
Number of QSFP+ ports None
Console port Yes
Forwarding mode Store-and-forward
Throughput 128
Forwarding rate 95.24
Memory buffer 1.5
MAC address table size 16384
Support for Jumbo frames Yes
Jumbo frame size 9.216
Stackability Yes
Maximum number of units per stack 6
Number of VLAN groups 4000
VLAN 802.1Q Tagged VLAN 4K VLAN Groups Configurable VID: 0~4094 GVRP VLAN Wizard Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN 2.1 MAC-based VLAN Protocol-based VLAN
Supported protocols and standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet 802.3ae 10 GbE IEEE 802.3x Flow Control for Full-Duplex Mode
L3 features ARP 256 Static ARP Supports Gratuitous ARP IPv6 Neighbour Discovery (ND) 16 IP interfaces Default Routing Static Routing 64 IPv4 Static Route Entries 32 IPv6 Static Route Entries UDP helper
Other functions Virtual Stacking Support: D-Link Single IP Management Up to 32 devices per virtual stack Up to 20G stacking bandwidth Physical Stacking: Supports Duplex Chain/Ring topology Up to 40G stacking bandwidth full duplex Up to 6 units per stack
Chassis type Rack
Fan Yes
Power supply Internal
Power consumption 22.3
Mean time between failures (MTBF) 516593
Power supply 100 - 240 VAC 50/60 Hz
Dimensions 440 x 210 x 44 mm
Weight 2
Environment requirements Operating temperature: -5 to 50 C (23 to 122 F) Storage temperature: -20 to 70C (-4 to 158F) Operating humidity: 0% to 95% non-condensing Storage humidity: 0% to 95% non-condensing
Certificates CE FCC C-Tick VCCI BSMI CCC IPv6 Ready Logo Phase 2 cUL CB
Designation
QoS 802.1p Quality of Service Queue Handling Strict Priority Queue (SPQ) Weighted Round Robin (WRR) Deficit Round Robin (DRR) SPQ + WRR 8 queues per port Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s) C
Security Port Security Supports up to 128 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Dynamic ARP Inspection D-Link Safeguard Engine DHCP Server Screening ARP Spoofing Prevention Max. 64 entries SSH Supports v2 Supports IPv4/IPv6 BPDU Attack P
Management, monitoring, configuration Command Line Interface (CLI) Telnet Server TFTP Client IPv6 Neighbor Discovery Configurable MDI/MDIX SNMP Supports v1, v2c, v3 SNMP Trap System Log Max. 10,000 log entries Debug command Multiple images DHCP Server DHCP Client Surveillance mode DHCP Client
L2 features MAC Address Table: Up to 16,384 Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frame up to 9,216 Bytes IGMP Snooping IGMP v1/v2 Snooping IGMP v3 awareness Supports 512 IGMP groups Supports 128 static multicast addresses IGMP per VLAN Suppo

Dimensions and weights

Gross weight
2.55 kg
Package width
50 cm
Package height
34 cm
Package length
9 cm

Product codes

EAN
790069467974
Manufacturer code
NUDLISS24000025
