Home page » Computers & IT»Networking»Switches»Switch DGS-1210-28 Switch 24GE 4SFP

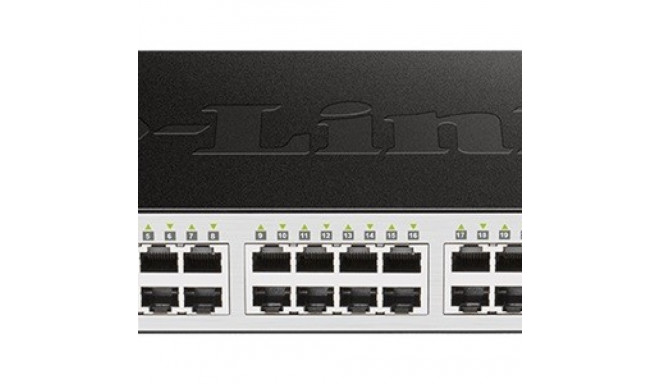

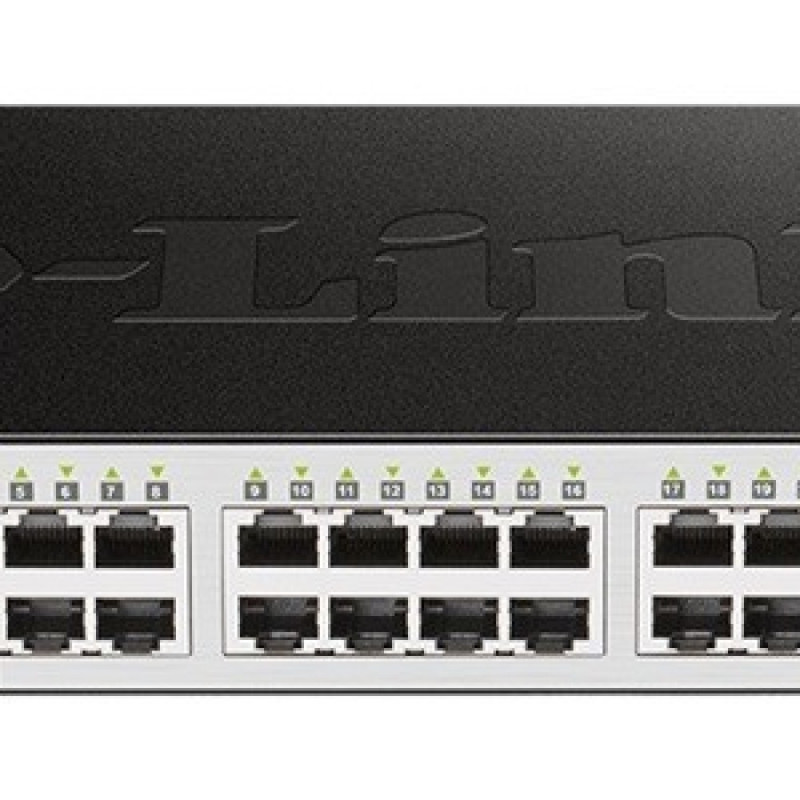

Switch DGS-1210-28 Switch 24GE 4SFP

Main info

DGS-1210 Series Gigabit Managed Smart+ Switches L2 management and security with L3 capabilities CLI and web interface Static and MSTP routes Dual images and configurations Lifetime-Limited warranty upon registration CLI command line via Telnet Supp

Product has been archived

DGS-1210 Series Gigabit Managed Smart+ Switches

  • L2 management and security with L3 capabilities
  • CLI and web interface
  • Static and MSTP routes
  • Dual images and configurations
  • Lifetime-Limited warranty upon registration

CLI command line via Telnet

Support for a compact command line interface for system configuration and management.

Static routing

Segregation of L3 traffic between switches, regardless of VLAN segemntation.

Fibre optic uplink ports

Ideal for connecting distributed devices while maintaining gigabit throughput.

Dual software images and configuration files

Perform firmware updates and configuration testing without any risk.

Surveillance Mode Interface

D-Link's easy-to-use Surveillance Mode interface provides instant recognition of the topology of installed cameras.

Limited Lifetime Warranty

Register your product to benefit from the Lifetime Limited Warranty.

Advanced L2 management with L3 static routes

Advanced network management options for the DGS-1210 Smart+ family of switches are available via the CLI console or a browser-based graphical user interface. This gives your business the ability to use VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routes, dual software images and dual configuration files.

With powerful security features in the form of IGMP snooping, access control lists, port security tools and the D-Link Safeguard Engine, which protects the network from malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ switch family is a versatile tool for network edge and access environments.

Fibre optic Uplink ports

Network expansion to suit the needs of any business is possible with fibre uplink ports with advanced management and security features.

D-View 7: free network design and management system

D-Link's free Network Assistant (DNA) system provides information on all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities.

Energy saving

D-Link's DGS-1210+ family of switches with D-Link Green technology enables energy savings without affecting operational performance or functionality.

Surveillance Mode

Select Surveillance Mode in the graphical user interface to take advantage of easy-to-use monitoring features that also allow you to easily manage your surveillance network. The devices that make up the security system are automatically detected and grouped in a dedicated Auto Surveillance VLAN, so that surveillance traffic is secured and is transmitted unhindered


Switch class SMART
Application Medium and large companies
Switch layer L2
Switch layer L3
Network architecture GigabitEthernet
Number of 10/100 Mbps ports None
Number of 10/100/1000 Mbps ports 28
10/100/1000/2500 Mbps ports None
Number of 10Gb ports None
Number of PoE ports (PoE & PoE+) None
Number of PoE+ ports None
Number of COMBO ports 4
Number of SFP ports 4
Number of SFP+ ports None
Number of QSFP+ ports None
Console port No
Forwarding mode Store-and-forward
Throughput 56
Forwarding rate 41.7
Memory buffer 4.1
MAC address table size 8000
Support for Jumbo frames Yes
Jumbo frame size 10
Stackability No
Number of VLAN groups 256
VLAN 802.1Q VLAN Group Max. 256 static VLAN groups Configurable VID from 1 - 4094 Asymmetric VLAN Auto Voice VLAN Max. 10 user-defined OUI Max. 8 default OUI Auto Surveillance VLAN
L3 features IP interface Supports 4 interfaces IPv6 Neighbor Discovery (ND) Static routing 124 IPv4 static route entries 50 IPv6 static route entries
Chassis type Rack
Fan No
Power supply Internal
Power consumption 16.94
Mean time between failures (MTBF) 992594
Power supply 100 - 240 V AC 50/60 Hz
Dimensions 440 x 140 x 44 mm
Weight 2.15
Certificates EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC Safety: CB, UL, BSMI, CCC
Environment requirements Operating temperature: -5 to 50°C Storage temperature: -20 to 70 ° C Operation humidity: 0% to 95% relative humidity Storage humidity: 0% to 95% relative humidity
Supported protocols and standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) IEEE 802.3z 1000BASE-X 1 Gbps ov
QoS 802.1p Quality of Service 8 queues per port Queue Handling Strict Weighted Round Robin (WRR) Bandwidth Control Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps) QoS based on: 802.1p priority queues DSCP MAC address EtherType IP address P
Security Broadcast/Multicast/Unicast Storm Control D-Link Safeguard Engine Traffic segmentation SSH v2 TLS v1.0 DoS attack prevention 802.1X Port-based Access Control Port Security Supports up to 64 MAC addresses per port ARP Spoofing Prevention Max. 127 entries D
Management, monitoring, configuration Web-based GUI D-Link Network Assistant Utility Compact CLI Telnet Server TFTP Client Configurable MDI/MDIX SNMP Supports v1/v2c/v3 SNMP Trap Backup/upgrade firmware Smart Wizard Upload/download configuration file BootP/DHCP Client System Log Max. 500 log
L2 features MAC Address Table 8K entries 16K entries (DGS-1210-52/52MP only) IGMP Snooping IGMP v1/v2 Snooping IGMP v3 awareness Supports 256 IGMP groups Supports at least 64 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier Loopback Detection 8

Dimensions and weights

Gross weight
2.821 kg
Package width
49.5 cm
Package height
25 cm
Package length
7.5 cm

Product codes

EAN
790069467769
Manufacturer code
NUDLISS24000019
