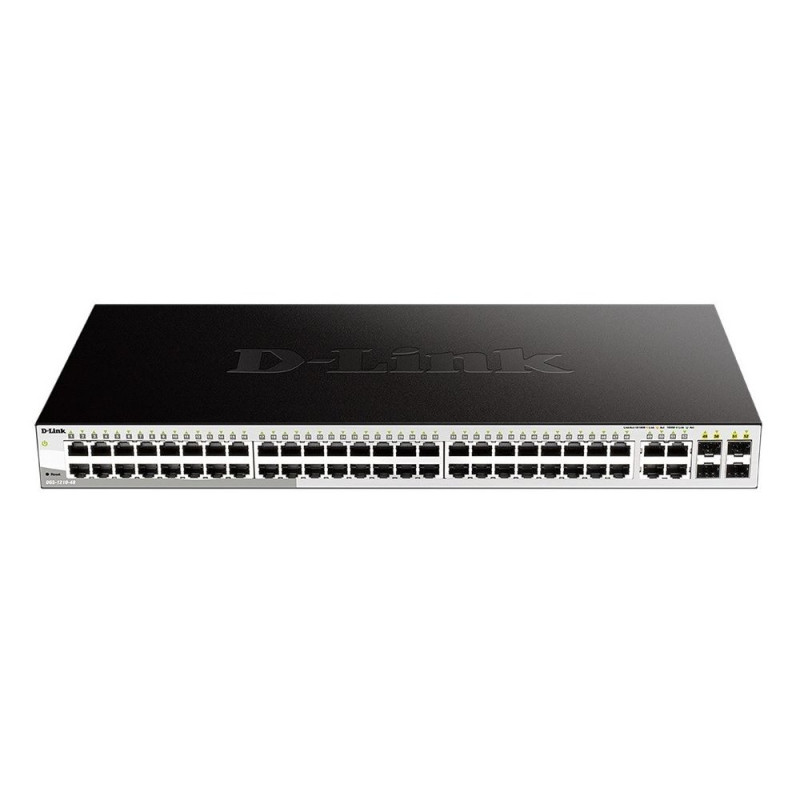

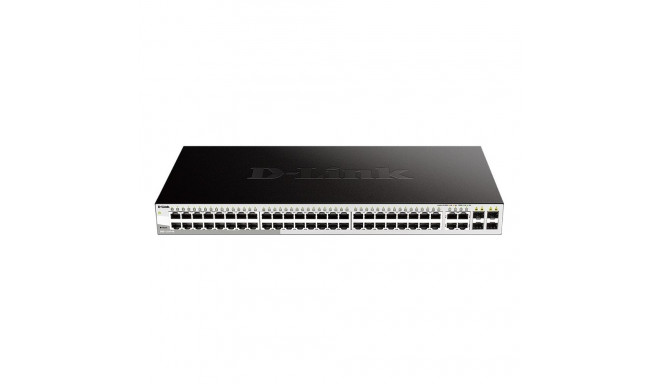

Switch DGS-1210-48 44GE 4SFP

Main info

Product has been archived

DGS-1210 Series Gigabit Managed Smart Switches

  • Layer 2 management and security
  • Browser-based graphical user interface
  • Dual configuration files
  • Lifetime-Limited warranty upon registration
  • Dual configuration files

Risk-free testing possible

Surveillance Mode Interface

D-Link's easy-to-use Surveillance Mode interface provides instant recognition of the topology of installed cameras.

Fibre optic uplink ports

Ideal for connecting distributed devices while maintaining gigabit bandwidth.

Limited Lifetime Warranty

Register your product to take advantage of the Lifetime Limited Warranty.

Exceptional Layer 2 features

The DGS-1210 family switches offer a complete set of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function enables direct connections between servers and switches, resulting in fast and stable data transfers. With a transfer rate of 2,000 Mbit/s in full duplex, the Gigabit ports enable very fast data transfers to the servers with minimal loss. Network maintenance features include Loopback Detection and Cable Connection Diagnostics tools. Loopback Detection automatically detects loops and closes infected ports. Cable Link Diagnostics, designed primarily for administrators and customer service representatives, helps diagnose cable quality and determine the type of error.

Fibre optic Uplink ports

Network expansion to suit any company's needs is possible thanks to fibre optic uplink ports with advanced management and security features.

D-View 7: free network design and management system

D-Link's free Network Assistant (DNA) system provides information on all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities.

Energy saving

D-Link's DGS-1210 family of switches with D-Link Green technology enables energy savings without affecting performance or functionality.

Surveillance Mode

Select Surveillance Mode in the graphical user interface to take advantage of easy-to-use monitoring features that also allow you to easily manage your surveillance network. The devices that make up the security system are automatically detected and grouped in a dedicated Auto Surveillance VLAN, ensuring that surveillance traffic is secured and is transmitted without hindrance.


Designation
Switch class SMART
Application Medium and large companies
Switch layer L2
Network architecture GigabitEthernet
Number of 10/100 Mbps ports None
Number of 10/100/1000 Mbps ports 52
10/100/1000/2500 Mbps ports None
Number of 10Gb ports None
Number of PoE ports (PoE & PoE+) None
Number of PoE+ ports None
Number of COMBO ports 4
Number of SFP ports 4
Number of SFP+ ports None
Number of QSFP+ ports None
Console port No
Forwarding mode Store-and-forward
Throughput 104
Forwarding rate 77.4
Memory buffer 12
MAC address table size 16000
Support for Jumbo frames Yes
Jumbo frame size 10
Stackability No
Number of VLAN groups 256
VLAN 802.1Q Tagged VLAN VLAN Group Max. 256 static VLAN groups Max. 4094 VIDs Management VLAN Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN
Supported protocols and standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Flow Control for Full-Duplex Mode
Management, monitoring, configuration Web-based GUI Telnet Server TFTP Client IPv6 Neighbor Discovery Configurable MDI/MDIX SNMP Supports v1, v2, v3 SNMP Trap System Log BootP/DHCP Client D-Link Network Assistant support SNTP ICMPv6 IPv4/v6 Dual Stack DHCP Auto Configuration RMON v1
Chassis type Rack
Fan No
Power supply Internal
Power consumption 34.2
Mean time between failures (MTBF) 400667
Power supply 100 - 240 VAC 50/60 Hz
Dimensions 440 x 210 x 44 mm
Weight 3.46
Environment requirements Operating temperature: -5 to 50 C (23 to 122 F) Storage temperature: -20 to 70C (-4 to 158F) Operating humidity: 0% to 95% non-condensing Storage humidity: 0% to 95% non-condensing
Certificates CE Class A cUL CE LVD
QoS 802.1p Quality of Service Queue Handling Strict Weighted Round Robin (WRR) 8 queues per port Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 16 Kb/s) CoS based on: 802.1p Priority Queues DSCP ToS TCP/UDP port
Security Port Security Supports up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Static MAC D-Link Safeguard Engine DHCP Server Screening Trusted Host ARP Spoofing Prevention Max. 64 entries SSL Supports v1/v2/v3 Supports IPv4/IPv6 Traffic
L2 features MAC Address Table: 8K Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frame up to 10,000 Bytes IGMP Snooping IGMP v1/v2 Snooping IGMP Snooping v3 Awareness Supports 256 IGMP groups Supports at least 64 static multicast addresses IGMP per VL
