Home page » Computers & IT»Networking»Switches»D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port

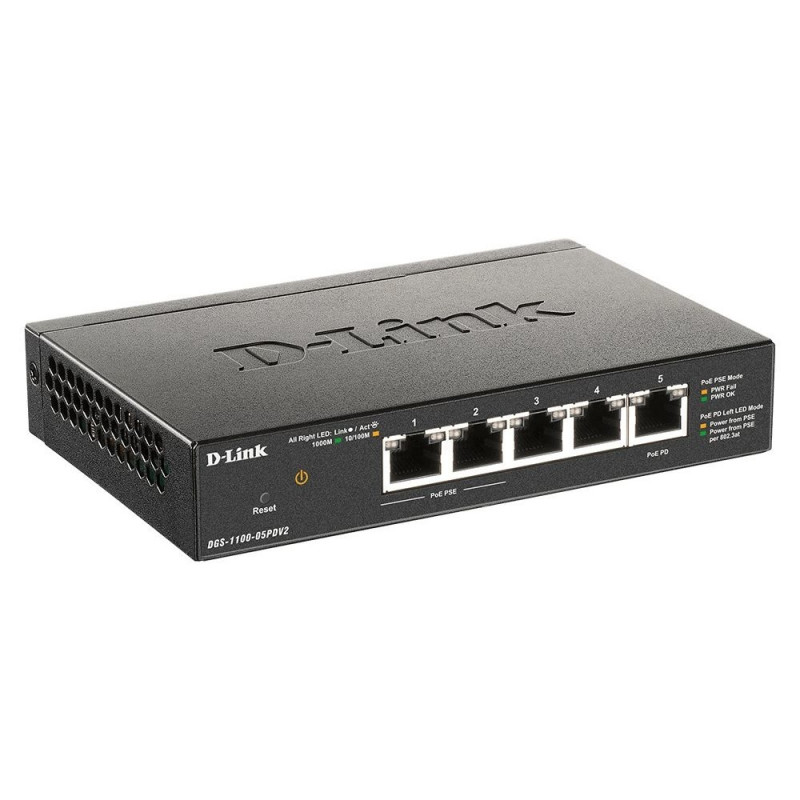

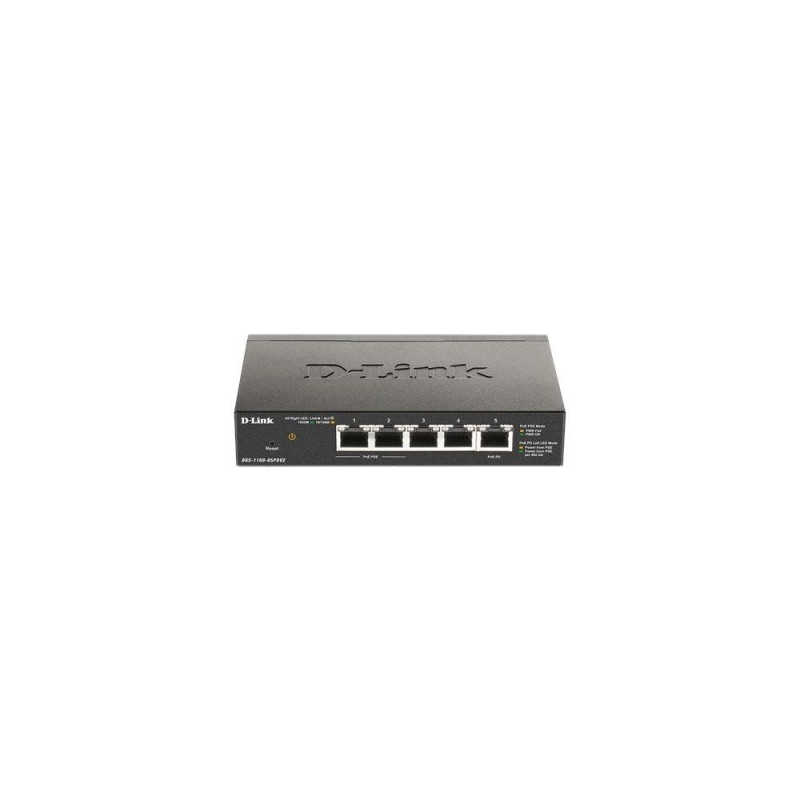

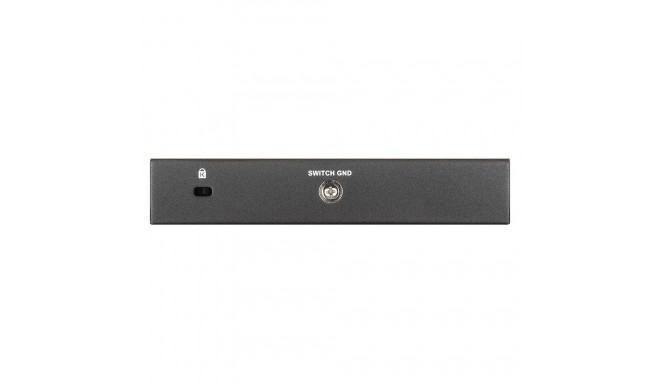

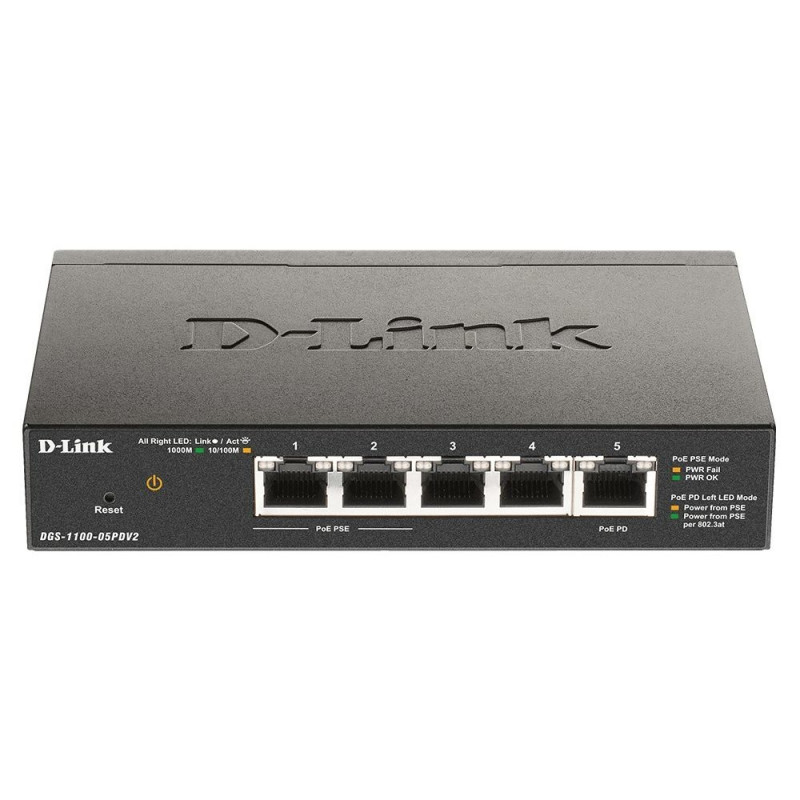

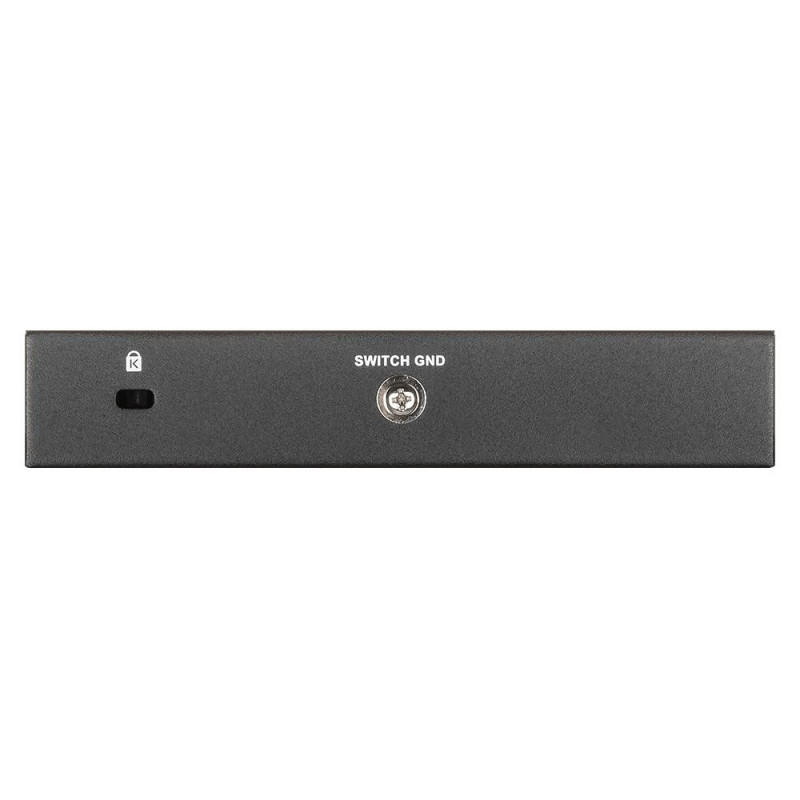

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port

Main info

Product has been archived


Warranty 24 (G)
Product colour Black
Web-based management Yes
Power consumption (max) 24.08 W
Gigabit Ethernet (copper) ports quantity 5
10G support No
VLAN support Yes
Power supply included No
Operating temperature (T-T) 0 - 40 °C
Power over Ethernet (PoE) Yes
Auto MDI/MDI-X Yes
SSH/SSL support Yes
Power consumption (typical) 3.24 W
Mean time between failures (MTBF) 2357475 h
Switch type Managed
Head-of-line (HOL) blocking Yes
Fanless Yes
Switching capacity 10 Gbit/s
Flash memory 2 MB
Power source PoE
Weight 380 g
Forwarding rate 7.44 Mpps
Number of queues 4
DHCP features DHCP client
Packet buffer memory 1 MB
Broadcast storm control Yes
IGMP entries 128
Width 150 mm
Basic switching RJ-45 Ethernet ports quantity 5
Operating relative humidity (H-H) 0 - 90%
Power over Ethernet (PoE) ports quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Height 28 mm
Rack mounting No
Power over Ethernet (PoE) power per port 18 W
IGMP snooping Yes
Noise level 0 dB
Auto-negotiation Yes
Number of trunks 1
Storage temperature (T-T) -40 - 70 °C
Quality of Service (QoS) support Yes
Number of VLANs 4094
Harmonized System (HS) code 85176990
Depth 97 mm
Jumbo frames 9216
Flow control support Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Full duplex Yes
Storage relative humidity (H-H) 0 - 95%
MAC address entries Static MAC address entries
MAC address table 2000 entries
Port mirroring Yes
Static port security Yes
Half duplex Yes
Ethernet LAN data rates 10000 Mbit/s
Networking standards IEEE 802.3u
Virtual LAN features Tagged VLAN
Compliance certificates Low Voltage Directive (LVD)

Dimensions and weights

Package width
220 cm
Package height
140 cm
Package length
60 cm

Product codes

EAN
790069453298
Manufacturer code
DGS-1100-05PDV2
